UXX-S4A340AIntegrated Mobile Broadband Router

Cradlepoint, Inc 805W. Franklin Street, Boise, ID 83702 Declaration for no non‐US channel operation October 24, 2013 We, Cradlepoint, Inc declare that the device does not support any non‐US channels in all the operational mode(s) for the following product. FCC ID: UXX‐S4A340A If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Steve Wood / VP, Engineering CradlePoint, Inc. TEL：(208) 424-5054 Facsimile：(208) 429-6852 Email: [email protected]

Cradlepoint, Inc 805W. Franklin Street, Boise, ID 83702 Federal Communications Commission Authorization and Evaluation Division Date: October 24, 2013 Confidentiality Request FCC ID: UXX‐S4A340A Pursuant to DA 04-1705 of the Commission’s Rules, we request short-term confidential treatment for the following information until 2013/10/31 of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos Test Setup Photos User’s Manual Internal Photo Thank you! Sincerely yours, ------------------------------------------------------- Steve Wood / VP, Engineering CradlePoint, Inc. TEL：(208) 424-5054 Facsimile：(208) 429-6852 Email: [email protected]

Cradlepoint, Inc 805W. Franklin Street, Boise, ID 83702 Date:2013/10/24 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: UXX‐S4A340A Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematic Diagram Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Steve Wood / VP, Engineering CradlePoint, Inc. TEL：(208) 424-5054 Facsimile：(208) 429-6852 Email: [email protected]

Cradlepoint, Inc 805W. Franklin Street, Boise, ID 83702 Power of Attorney Date:2013/10/24 FCC ID: UXX‐S4A340A To whom it may concern: We, the undersigned Cradlepoint, Inc hereby authorize Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C+E approval and any communication needed with the national authority. Any and all acts carried out by Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Steve Wood / VP, Engineering CradlePoint, Inc. TEL：(208) 424-5054 Facsimile：(208) 429-6852 Email: [email protected]

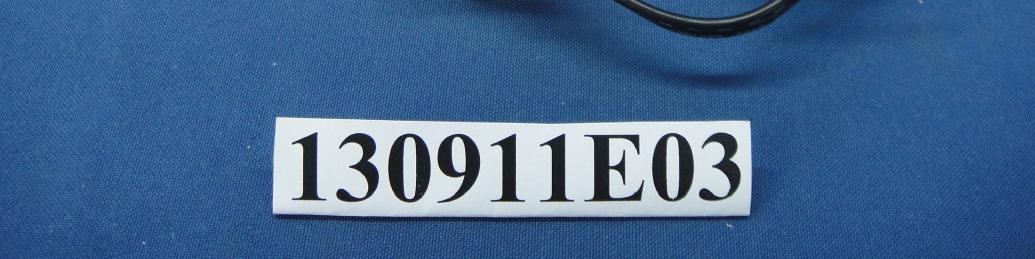

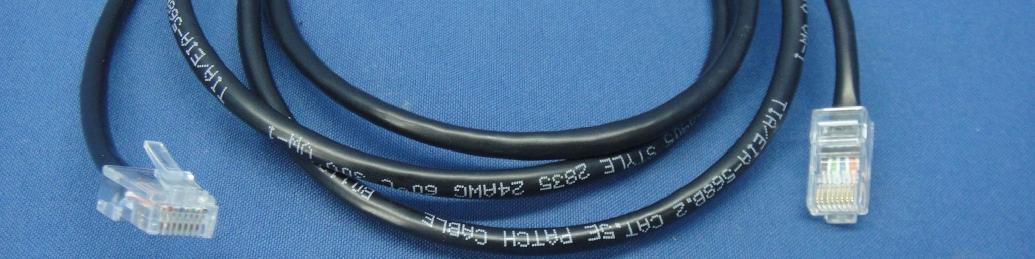

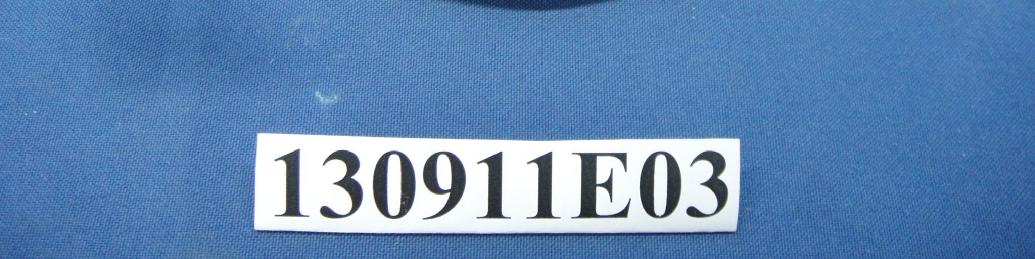

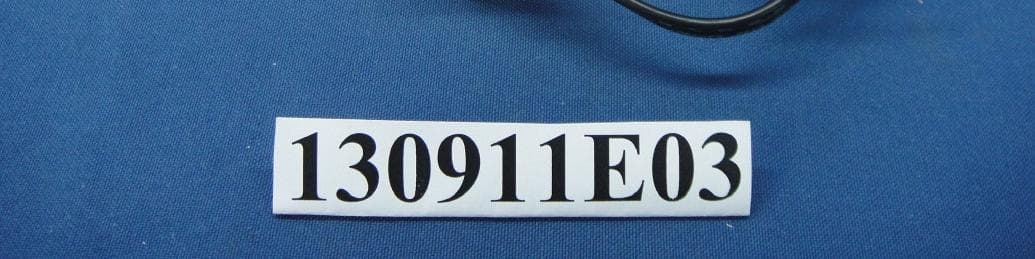

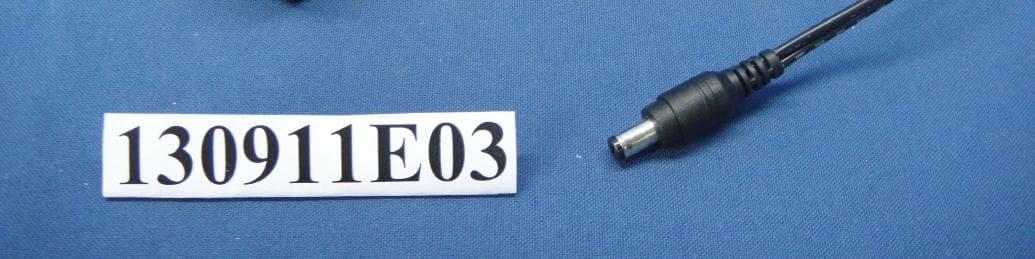

Report No.: 130911E03 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 130911E03 Page 2 Report No.: 130911E03 Page 9 Model : HK-PH36-A12 Report No.: 130911E03 Page 10 Report No.: 130911E03 Page 11 Model : HK-AH-120A400-DH Report No.: 130911E03 Page 12 Report No.: 130911E03 Page 13

FCC ID： UXX-S4A340A IC : 6921A-S4A340A LABEL LOCATION Brad name : cradlepoint Model name : S4A340A CradlePoint Thames PRODUCT LABEL 2.75mm 2.75mm 40.00±0.15mm 65.00±0.15mm Made in Taiwan RoHS Part No.: 2100 www.cradlepoint.com H/W ver.1.0 12V 3A FCC ID:UXX-S4A340A IC:6921A-S4A340A Model No.:S4A340A Default Password:440c1fc1 MAC Address: 0030440c1fc1 Serial No.:MM130167900418 SSID: 2100-fc1

Report No.: 130911E03 Page 3 Report No.: 130911E03 Page 4 Report No.: 130911E03 Page 5 Report No.: 130911E03 Page 6 Report No.: 130911E03 Page 7 Report No.: 130911E03 Page 8

FCC ID: UXX-S4A340A Report No.: RF130911E03 Operational Description This device is a Integrated Mobile Broadband Router, which operates in both of the 5GHz and 2.4GHz bands and can transmitting simultaneously, the maximum data rate could be up to 256Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 256Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by DC 12V from power adapter. T The antennas provided to the EUT, please refer to the following table: The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of FCC ID: UXX-S4A340A Report No.: RF130911E03 repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA130911E03 1 of 7 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA130911E03 MODEL NO.: S4A340A FCC ID: UXX-S4A340A RECEIVED: Sep. 11, 2013 TESTED: Sep. 23 to 25, 2013 ISSUED: Oct. 24, 2013 APPLICANT: Cradlepoint, Inc ADDRESS: 805W. Franklin Street, Boise, ID 83702 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA130911E03 2 of 7 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA130911E03 3 of 7 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA130911E03 Original release Oct. 24, 2013 Report No.: SA130911E03 4 of 7 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Integrated Mobile Broadband Router BRAND NAME: cradlepoint MODEL NO.: S4A340A TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Cradlepoint, Inc TESTED DATE: Sep. 23 to 25, 2013 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: S4A340A) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Oct. 24, 2013 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: Oct. 24, 2013 ( May Chen, Manager ) Report No.: SA130911E03 5 of 7 Report Format Version 5.0.0 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. This product could be applied with one USB Cellular Modem device, and the safe distance is 37 cm for collocated radio. Report No.: SA130911E03 6 of 7 Report Format Version 5.0.0 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN: For 15.247(2.4GHz): FREQUENCY (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 557.816 4.03 20 0.28069 1 FREQUENCY (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 557.816 4.03 37 0.08201 1 For 15.247(5GHz): FREQUENCY (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 747.107 4.59 20 0.42767 1 FREQUENCY (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 747.107 4.59 37 0.12496 1 For 15.407(5GHz): FREQUENCY (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180 ~ 5240 48.870 4.59 20 0.02798 1 FREQUENCY (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180 ~ 5240 48.870 4.59 37 0.00817 1 Report No.: SA130911E03 7 of 7 Report Format Version 5.0.0 For USB Cellular Modem: DEVICE MAX POWER (mW) MAX POWER (dBm) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) USB Cellular Modem 7000 38.45 37 0.40690 0.55 This product can operate with a plug-in USB Cellular Modem device which has maximum of 7W output power. CONCLUSION: B…

Text truncated - open the document above for the full version.

Report No.: RF130911E03 R1 1 of 120 Report Format Version 5.2.0 Cancels and replaces the report No.: RF130911E03 dated Oct. 24, 2013 FCC TEST REPORT(15.247) REPORT NO.: RF130911E03 R1 MODEL NO.: S4A340A FCC ID: UXX-S4A340A RECEIVED: Sep. 11, 2013 TESTED: Sep. 16 to Oct. 21, 2013 ISSUED: Nov. 04, 2013 APPLICANT: Cradlepoint, Inc ADDRESS: 805W. Franklin Street, Boise, ID 83702 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF130911E03 R1 2 of 120 Report Format Version 5.2.0 Cancels and replaces the report No.: RF130911E03 dated Oct. 24, 2013 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 5 1. CERTIFICATION ..................................................................................................... 6 2. SUMMARY OF TEST RESULTS ............................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 8 3. GENERAL INFORMATION ...................................................................................... 9 3.1 GENERAL DESCRIPTION OF EUT ........................................................................ 9 3.2 DESCRIPTION OF TEST MODES ........................................................................ 13 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 14 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 17 3.4 DUTY CYCLE OF TEST SIGNAL .......................................................................... 18 3.5 DESCRIPTION OF SUPPORT UNITS ................................................................... 20 3.6 CONFIGURATION OF SYSTEM UNDER TEST .................................................... 21 4. TEST TYPES AND RESULTS (FOR 2.4GHz, 2.400 ~ 2.4835GHz Band) .............. 22 4.1 CONDUCTED EMISSION MEASUREMENT ......................................................... 22 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ....................................... 22 4.1.2 TEST INSTRUMENTS ........................................................................................... 22 4.1.3 TEST PROCEDURES ........................................................................................... 24 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 24 4.1.5 TEST SETUP ........................................................................................................ 24 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 25 4.1.7 TEST RESULTS (MODE 1) ................................................................................... 28 4.1.8 TEST RESULTS (MODE 2) ................................................................................... 26 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................. 30 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ............... 30 4.2.2 TEST INSTRUMENTS ........................................................................................... 31 4.2.3 TEST PROCEDURES ........................................................................................... 32 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 32 4.2.5 TEST SETUP ........................................................................................................ 33 4.2.6 EUT OPERATING CONDITIONS .......................................................................... 33 4.2.7 TEST RESULTS .................................................................................................... 34 4.3 6dB BANDWIDTH MEASUREMENT ..................................................................... 47 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................... 47 4.3.2 TEST INSTRUMENTS ........................................................................................... 47 4.3.3 TEST PROCEDURE.........................................................................................…

Text truncated - open the document above for the full version.

Report No.:RF130911E03-1 R1 1 of 65 Report Format Version 5.2.0 Cancels and replaces the report No.: RF130911E03-1 dated Nov. 04, 2013 FCC TEST REPORT (15.407) REPORT NO.: RF130911E03-1 R1 MODEL NO.: S4A340A FCC ID: UXX-S4A340A RECEIVED: Sep. 11, 2013 TESTED: Sep. 16 to Oct. 21, 2013 ISSUED: Nov. 04, 2013 APPLICANT: Cradlepoint, Inc ADDRESS: 805W. Franklin Street, Boise, ID 83702 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.:RF130911E03-1 R1 2 of 65 Report Format Version 5.2.0 Cancels and replaces the report No.: RF130911E03-1 dated Nov. 04, 2013 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 4 1. CERTIFICATION .................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................ 6 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 7 3. GENERAL INFORMATION ..................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ....................................................................... 8 3.2 DESCRIPTION OF TEST MODES ....................................................................... 12 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 13 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 15 3.4 DUTY CYCLE OF TEST SIGNAL ......................................................................... 16 3.5 DESCRIPTION OF SUPPORT UNITS .................................................................. 20 3.6 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 21 4. TEST TYPES AND RESULTS .............................................................................. 22 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 22 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 22 4.1.2 TEST INSTRUMENTS .......................................................................................... 22 4.1.3 TEST PROCEDURES .......................................................................................... 24 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 24 4.1.5 TEST SETUP ....................................................................................................... 24 4.1.6 EUT OPERATING CONDITIONS ......................................................................... 25 4.1.7 TEST RESULTS(MODE 1) ................................................................................... 28 4.1.8 TEST RESULTS(MODE 2) ................................................................................... 26 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 30 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 30 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS.......... 30 4.2.3 TEST INSTRUMENTS .......................................................................................... 31 4.2.4 TEST PROCEDURES .......................................................................................... 32 4.2.5 DEVIATION FROM TEST STANDARD ................................................................. 32 4.2.6 TEST SETUP ....................................................................................................... 33 4.2.7 EUT OPERATING CONDITION ............................................................................ 33 4.2.8 TEST RESULTS ................................................................................................... 34 4.3 TRANSMIT POWER MEASUREMENT ................................................................ 44 4.3.1 LIMITS OF TRANSMIT POWER MEASUREMENT .............................................. 44 4.3.2 TEST INSTRUMENTS .......................................................................................... 44 4.3.3 TEST PROCEDURE ..............…

Text truncated - open the document above for the full version.
