UXX-S4A542AAdvanced Edge Router

Cradlepoint, Inc.
Advanced Edge Router - FCC ID UXX-S4A542A - Cradlepoint, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Aug 26, 2015
Application Purpose
Original Equipment
Date of Application
Aug 26, 2015
Equipment Note
Advanced Edge Router
Frequency Range
2412.00000000 - 2462.00000000
Company
Cradlepoint, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Quick Start Guide cradlepoint.com Cradlepoint AER1600/AER1650 Quick Start Guide Part Number: 170672-000 cradlepoint.com 2 WHAT’S IN THE BOX Cradlepoint AER1600/ AER1650 (Models: TBD) Quick Start Guide AC Power Adapter Accessories• * - Included with AER1600LP3/AER1650LP3, optional for AER1600/AER1650 and AER1600LPE/AER1650LPE 1 • Replacement power adapters • External modem antennas and cabling 1 A Cr adlepoint 4G LTE modem is embedded in all AER1600/AER1650LPE models. Add a second integrated MC400 modem for a complete “cut-the-wire” 4G LTE solution, fusing enterprise reliability with unparalleled agility.Enterprise SupportFor enhanced services including enterprise-level support, extended warranties, and expert installation, check out Cradlepoint’s Cr adleCare suite of services. Visit cradlepoint.com/cradlecare to learn more. MC400 3G/4G Modem with Antennas* Modem Antennas Ethernet Cable The Cradlepoint AER1600/AER1650 is available with two different modem options:• AER1600LPE/AER1650LPE include an embedded modem and a slot to add an MC400 modem • AER1600/AER1650 and AER1600LP3/AER1650LP3 only include a slot for an MC400 modem and do not include an embedded modem cradlepoint.com 3 HARDWARE Reset Button Lock Slot Po wer Port Power Switch Ethernet LAN Ethernet WAN USB 2.0 Port LEDs (see pages 4-5) WiFi Modem When connecting the provided antennas, review the connection points.• WiFi antennas (only included on AER1600) have flat cir cular bases (RSMA). • Modem antennas have protruding pins (SMA). Antennas Cable Retention Slot Bottom view image placeholder Embedded modem image placeholder MC400 modemimage placeholder cradlepoint.com 4 LEDS POWER The Cradlepoint AER1600/AER1650 must be powered using an approved 12 V DC po wer source . • Green = Powered ON. • No Light = Not receiving power. Check the power switch and the power source connection. • Flashing Amber = Attention. Open the administration pages (see page 7) and check the r outer status. ETHERNET WAN Indicates information about a data source connected to the Ether- net WAN port.• Blue = Connected to an active Ethernet WAN interface . WiFi BROADCAST (only on AER1600) These two LEDs indicate activity on the WiFi broadcast for both the 2.4 GHz and 5 GHz bands. • 2.4GHz (green) = 2.4 GHz WiFi is on and operating normally. • 5GHz (blue) = 5 GHz WiFi is on and operating normally. WAN VPN Indicates information about a VPN data source. • Green = Active VPN tunnel. VPN cradlepoint.com 5 SIGNAL STRENGTH Blue LED bars indicate the active modem’s signal strength. • 4 Solid Bars = Strongest signal. • 1 Blinking Bar = Weakest signal. (A blinking bar indicates half of a bar.) INTERNAL MODEM Indicates the status of internal modems. EXTERNAL USB MODEM Indicates the status of external USB modems. All modems have the following LED indicators:• Green = Modem has established an active connection. • Blinking Green = Modem is connecting. • Amber = Modem is not active. • Blinking Amber = Data connection error. No modem connection possible. • Blinking Red = Modem is in the process of resetting. LEDSADDITIONAL LED INDICATIONS• Several different LEDs flash when the factory reset button is detected. • Two of the modem LEDs blink red in unison for 10 seconds when there is an error during firm ware upgrade. EMBEDDED MODEM Indicates the status of embedded modem. cradlepoint.com 6 BASIC SETUP1. Insert an activated SIM into the modem.The Cradlepoint AER1600/AER1650 requires a SIM with an activated wireless broadband data plan. C ontact your carrier for details about selecting a data plan and about the process for provisioning your SIM. Once you have an activated SIM: + For AER1600LPE/AER1650LPE only: R emove embedded modem SIM cover and insert activated SIM into embedded modem . Replace embedded modem SIM cover. + Insert activated SIM(s) into internal modem (optional f or AER1600LPE/AER1650LPE) . Insert the SIM card into the slot marked SIM 1 (use the other slot, SIM 2, for a secondary/backup SIM) . Insert the card with the notch-end first and the gold contacts facing down – it will click into place. 2. Reinsert the internal modem.Slide the internal modem back into its slot. Put the cover back into place and insert the included security screw if desired (requires small Phillips screwdriver). NOTE: To remove modem, attach included modem antennas (finger-tighten only) and pull modem straight out.3. Attach included modem antennas.Antennas are finger-tighten only. Attach to connecto rs marked MAIN and AUX. 4. Connect to a power source.Attach the included adapter to the device and to a p ower source and loop cable through cable retention slot. Then turn the power switch on (I).5. Connect to a computer or other network equipment.Connect via Ethernet to LAN or WiFi for local manage ment. cradlepoint.com 7 FIRST TIME SETUP WIZARDWhen you log in for the first time, you are automatically directed to the FIRST TIME SETUP WIZARD, which will help y ou customize your AER1600/AER1650. Change any of the following: + Administrator Password + Time Zone + WiFi Settings + Access Point Name (APN) + Modem Authentication + Failure Check NOTE: To return to the First Time Setup Wizard after your initial login, select GETTING STARTED on the top na vigation bar and FIRST TIME SETUP in the dropdown menu. RESET: To restore the AER1600/AER1650 to its factory default settings, press and hold the RESET button on the back of the de vice for ten seconds. Reset returns the login password to the DEFAULT PASSWORD and resets all configuration changes.ACCESSING THE AD MINISTRATION PAGES To make configuration changes to your router, open the AER1600/AER1650’s GUI-based administr ation pages. 1. Connect via Ethernet WAN or WiFi. 2. Open a browser window and type “cp/” or “192.168.0.1” in the addr ess bar. Press enter/return. 3. When prompted for your password, type the eight char acter DEFAULT PASSWORD found on the product label. cradlepoint.com 8 UPDATING FIRMWAREVIA ENTERPRISE CLOUD MANAGER1. Log in at cradl…

Text truncated - open the document above for the full version.

Attestation Statements

Global Leader in 4G LTE Network Solutions 805 W. Franklin Street Boise, ID 83702 | Toll Free: +1.855.813.3385 | Local: +1.208.424.5054 | Fax: +1.208.429.6852 | cradlepoint.com 1 Declaration for no non-US channel operation August 17, 2015 We, Cradlepoint, Inc declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: UXX-S4A542A If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! Steven T. Wood Vice President of Engineering Cradlepoint Int. Tel: (208) 424-5054 E-mail : [email protected]

Cover Letter(s)

Global Leader in 4G LTE Network Solutions 805 W. Franklin Street Boise, ID 83702 | Toll Free: +1.855.813.3385 | Local: +1.208.424.5054 | Fax: +1.208.429.6852 | cradlepoint.com 1 ဆငစဉ ငဒ စထ   ဈဉဈဆ     !"""  #$% %"         & " !"င'ဈဉထင'ဈဉဓ"")"* "+,,!-./ ""! !!,.0",,!" -1                     -%"!"!",,.! ".", -!' , -!"!" ""0- ,,!,% 2 "-"" !,"'  ,,! "", " * င'ဈဉထ+"!" ",,!!!,.0 ! 1--3",,!'  !.. "+      %'4 5!&"$006 ,' '6 ဆငဒ7ဈဆဈ ဉငဉဈ $ "18!,'!

Cover Letter(s)

Global Leader in 4G LTE Network Solutions 805 W. Franklin Street Boise, ID 83702 | Toll Free: +1.855.813.3385 | Local: +1.208.424.5054 | Fax: +1.208.429.6852 | cradlepoint.com 1 Date: 2015-08-17 FCC ID: UXX-S4A542A AUTHORIZATION LETTER To whom it may concern: We, the undersigned, hereby authorize Amanda Wu / Senior Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all manners relating to FCC application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Amanda Wu / Senior Specialist of BV CPS Taoyuan on our behalf shall have the same effect as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------- Steven T. Wood Vice President of Engineering Cradlepoint Int. Tele no. : (208) 424-5054 E-mail : [email protected]

External Photos

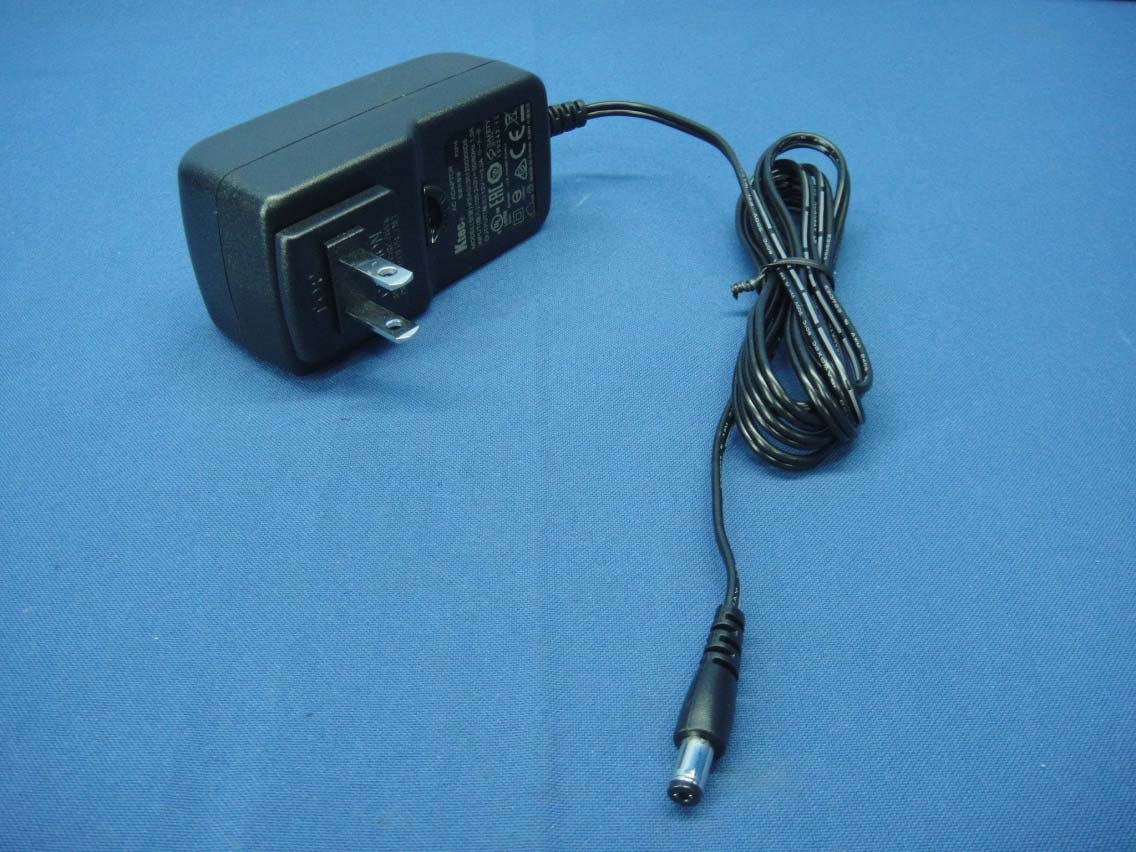

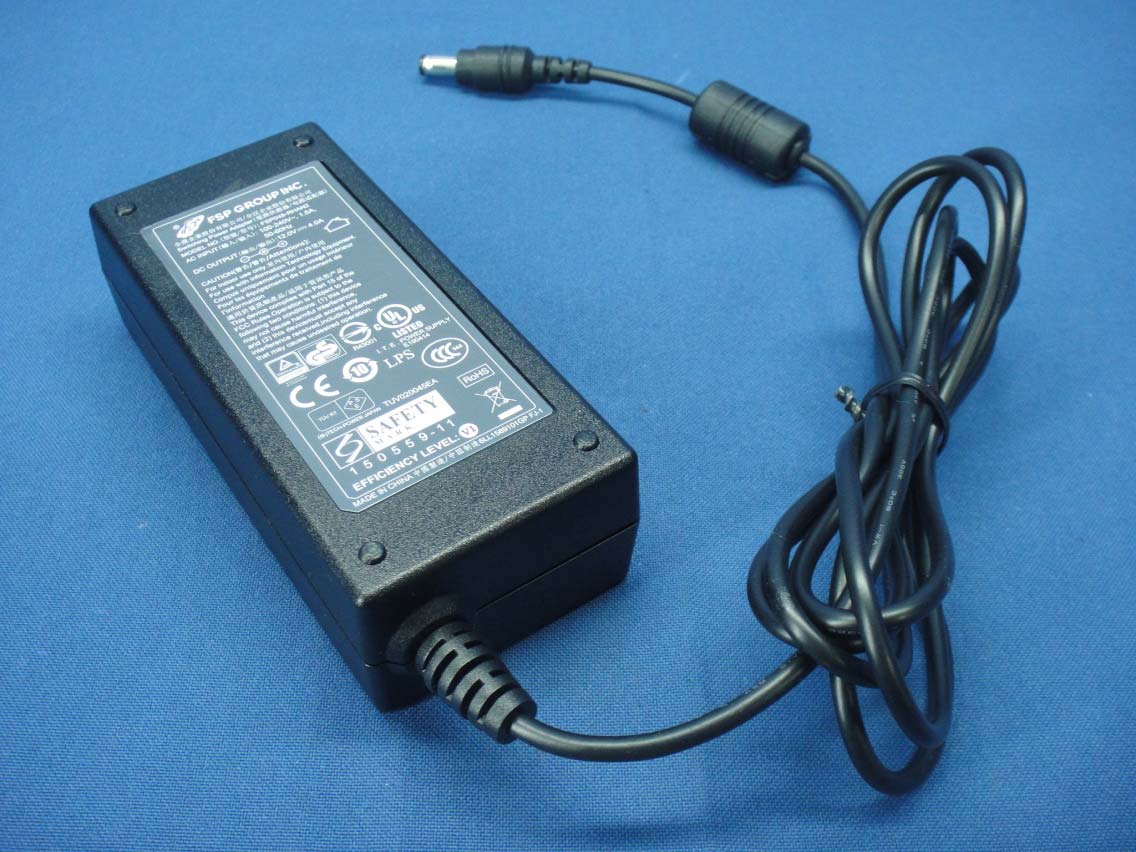

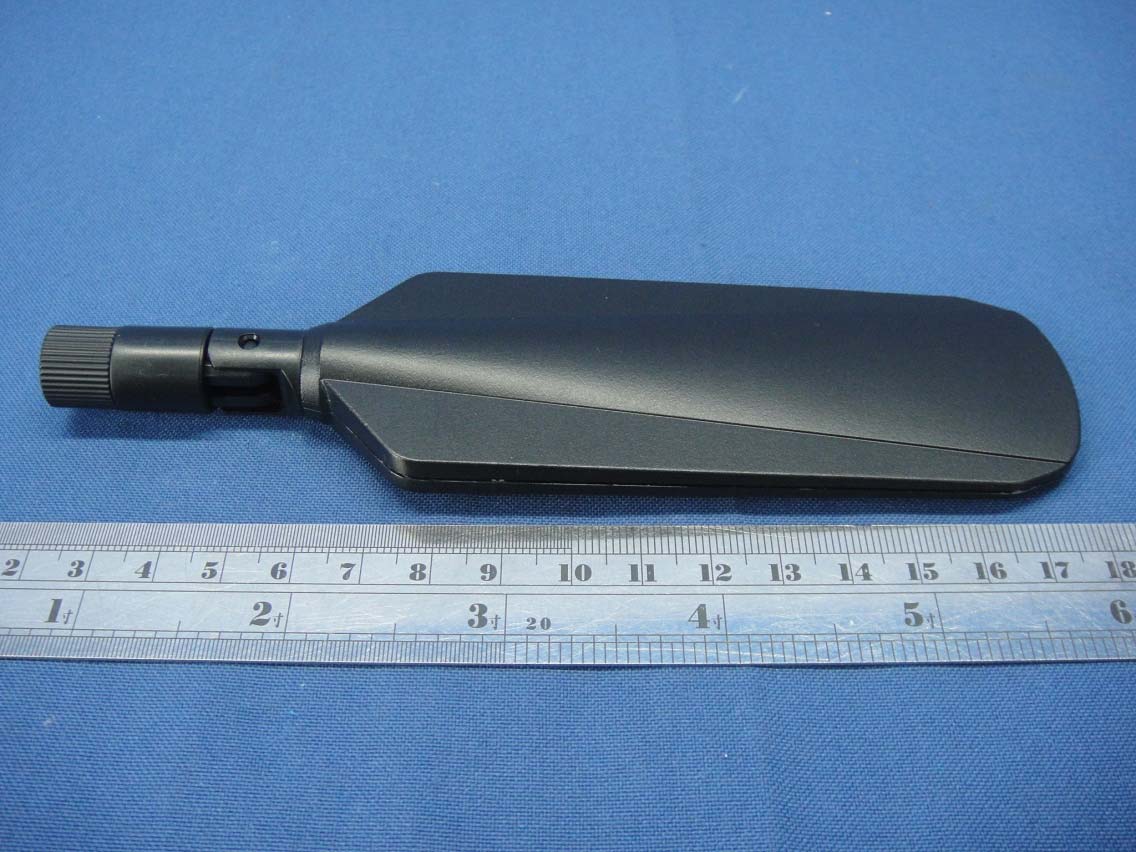

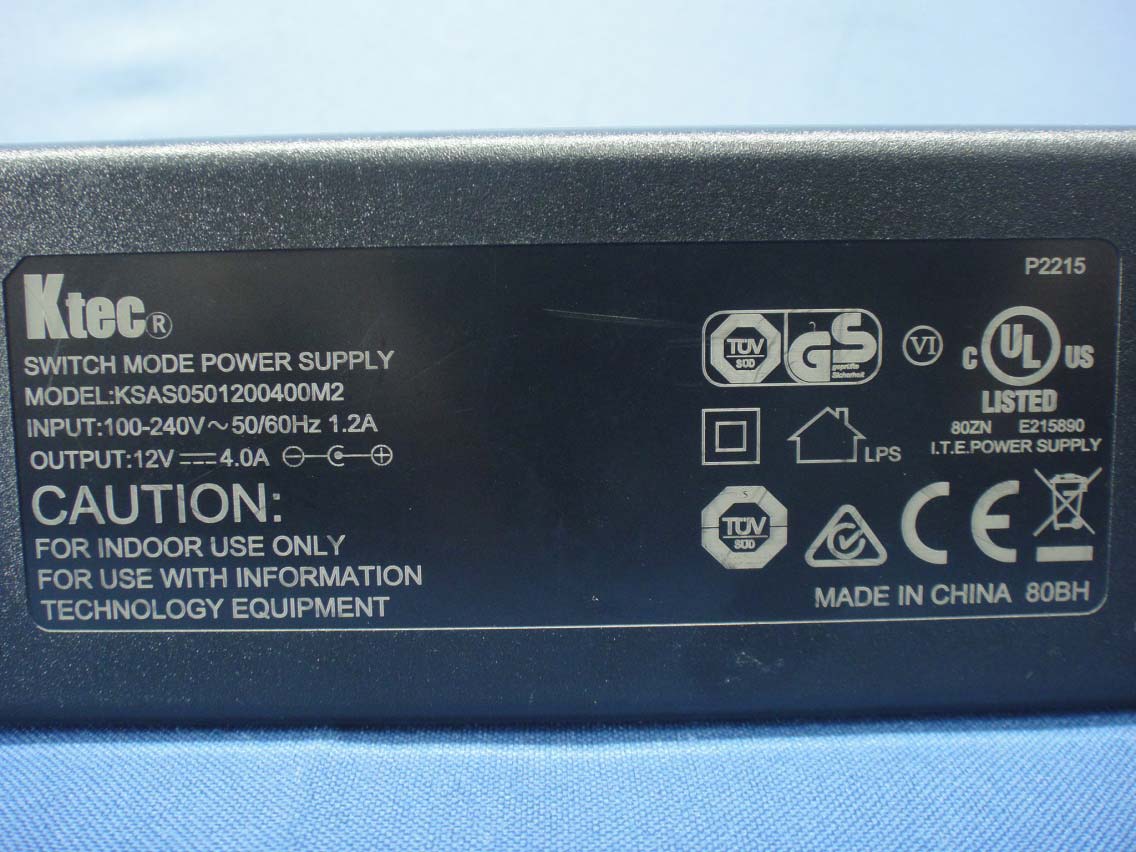

Report No.: 150720E02 Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: S4A542A Report No.: 150720E02 Page 2 Model No.: S4A543A Report No.: 150720E02 Page 3 LTE Antenna 1 (Model No.: YWX-6241SAXX-711C) Report No.: 150720E02 Page 4 LTE Antenna 2 (Model No.: RFA-LTE-T196-U-B70) Report No.: 150720E02 Page 5 Model No.: KSAS0361200300D5 Report No.: 150720E02 Page 6 Report No.: 150720E02 Page 7 Model No.: KSAS0501200400M2 Report No.: 150720E02 Page 8 Report No.: 150720E02 Page 9 Model No.: FSP040-DHMN2 Report No.: 150720E02 Page 10 Report No.: 150720E02 Page 11 Model No.: FSP048-RHAN2 Report No.: 150720E02 Page 12

ID Label/Location Info

LABEL LOCATION FCC ID: UXX-S4A542A IC : 6921A-S4A542A Brad name : Cradlepoint Model name : S4A542A, S4A543A LABEL LOCATION FCC ID: UXX-S4A542A IC : 6921A-S4A542A

Internal Photos

Report No.: 150720E02 Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: S4A542A Report No.: 150720E02 Page 2 3G USB device (Model No.: MC400LPE) Report No.: 150720E02 Page 3 Report No.: 150720E02 Page 4 Report No.: 150720E02 Page 5 Report No.: 150720E02 Page 6 Report No.: 150720E02 Page 7 Report No.: 150720E02 Page 8 Report No.: 150720E02 Page 9 Report No.: 150720E02 Page 10 Report No.: 150720E02 Page 11 Report No.: 150720E02 Page 12 WIFI Antenna 1 (Model No.: RFA-25-G170-70-64) Report No.: 150720E02 Page 13 WIFI Antenna 2 (Model No.: RFA-25-G170-70B-154) Report No.: 150720E02 Page 14 Model No.: S4A543A Report No.: 150720E02 Page 15 3G USB device (Model No.: MC400LPE) Report No.: 150720E02 Page 16 Report No.: 150720E02 Page 17 Report No.: 150720E02 Page 18 Report No.: 150720E02 Page 19 Report No.: 150720E02 Page 20 Report No.: 150720E02 Page 21 Report No.: 150720E02 Page 22 Report No.: 150720E02 Page 23 Report No.: 150720E02 Page 24 Report No.: 150720E02 Page 25 Report No.: 150720E02 Page 26 3G module (Model No.: MC7354) Report No.: 150720E02 Page 27 Report No.: 150720E02 Page 28 WIFI Antenna 1 (Model No.: RFA-25-G170-70-64) Report No.: 150720E02 Page 29 WIFI Antenna 1 (Model No.: RFA-25-G170-70B-154) Report No.: 150720E02 Page 30

RF Exposure Info

Report No.: SA150720E02 Page No. 1 / 7 Report Format Version: 6.1.1 RF Exposure Report Report No.: SA150720E02 FCC ID: UXX-S4A542A Test Model: S4A543A Series Model: S4A542A Received Date: July 20, 2015 Test Date: Aug. 06, 2015 Issued Date: Aug. 14, 2015 Applicant: Cradlepoint, Inc Address: 1111 W. Jefferson Street, Suite 400,Boise, ID 83702 USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA150720E02 Page No. 2 / 7 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 3 Calculation Result of Maximum Conducted Power ........................................................................... 6 Appendix .......................................................................................................................................................... 7 Report No.: SA150720E02 Page No. 3 / 7 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA150720E02 Original release. Aug. 14, 2015 Report No.: SA150720E02 Page No. 5 / 7 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 27cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA150720E02 Page No. 6 / 7 Report Format Version: 6.1.1 3 Calculation Result of Maximum Conducted Power For WLAN: Frequency Band (MHz) Max Power (mW) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 710.332 6.51 27 0.34715 1 5180-5240 462.954 7.91 27 0.31232 1 5745-5825 226.046 7.91 27 0.15250 1 Note: 2.4GHz: Directional gain = 3.50dBi + 10log(2) = 6.51dBi 5GHz: Directional gain = 4.9dBi + 10log(2) = 7.91dBi For 3G/LTE 3G module_FCC ID: N7NMC7355, Model No.: MC7354 Frequency Band (MHz) Max Power (mW) Antenna Gain (dBi) Distance (cm) Source-Based Time-Averaged Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 824-849 2000 2.00 27 0.08650 0.5493 Note: 1. Limit of Power Density = F/1500 Note: 2. Calculations for RF Exposure compliance in the cellular and PCS bands are base on the maximum source based time-average power obtained from 2-Slot GPRS operation. The resulting duty cycle factor is 2/8, or 6.02dB. For 3G/LTE 3G USB device_Contains FCC ID: N7NMC7355, Model no.: MC400LPE Frequency Band (MHz) Max Power (mW) Antenna Gain (dBi) Distance (cm) Source-Based Time-Averaged Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 824-849 2000 2.00 27 0.08650 0.5493 Note: 1. Limit of Power Density = F/1500 Note: 2. Calculations for RF Exposure compliance in the cellular and PCS bands are base on the maximum source based time-average power obtained from 2-Slot GPRS operation. The resulting duty cycle factor is 2/8, or 6.02dB. Conclusion: All of the WLAN/3G/LTE can transmit simultaneously, the formula of calcul…

Text truncated - open the document above for the full version.

Test Report

Report No.: RF150720E02 Page No. 1 / 67 Report Format Version: 6.1.1 FCC Test Report Report No.: RF150720E02 FCC ID: UXX-S4A542A Test Model: S4A543A Series Model: S4A542A Received Date: July 20, 2015 Test Date: July 22 to Aug. 06, 2015 Issued Date: Aug. 20, 2015 Applicant: Cradlepoint, Inc Address: 1111 W. Jefferson Street, Suite 400,Boise, ID 83702 USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150720E02 Page No. 2 / 67 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................. 10 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................ 11 3.3 Duty Cycle of Test Signal .................................................................................................................. 13 3.4 Description of Support Units ............................................................................................................. 14 3.4.1 Configuration of System under Test .................................................................................................. 15 3.5 General Description of Applied Standards ........................................................................................ 18 4 Test Types and Results ...................................................................................................................... 19 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 19 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 19 4.1.2 Test Instruments ................................................................................................................................ 20 4.1.3 Test Procedures ................................................................................................................................. 22 4.1.4 Deviation from Test Standard ............................................................................................................ 22 4.1.5 Test Set Up ........................................................................................................................................ 23 4.1.6 EUT Operating Conditions ................................................................................................................. 23 4.1.7 Test Results ....................................................................................................................................... 24 4.2 Conducted Emission Measurement .................................................................................................. 37 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 37 4.2.2 Test Instruments ........................................................................................…

Text truncated - open the document above for the full version.

Test Report

Report No.: RF150720E02-1 Page No. 1 / 74 Report Format Version:6.1.1 Reference No.: FCC Test Report Report No.: RF150720E02-1 FCC ID: UXX-S4A542A Test Model: S4A543A Series Model: S4A542A Received Date: July 20, 2015 Test Date: July 22 to Aug. 06, 2015 Issued Date: Aug. 20, 2015 Applicant: Cradlepoint, Inc Address: 1111 W. Jefferson Street, Suite 400,Boise, ID 83702 USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150720E02-1 Page No. 2 / 74 Report Format Version:6.1.1 Reference No.: Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................. 10 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................ 11 3.3 Duty Cycle of Test Signal .................................................................................................................. 14 3.4 Description of Support Units ............................................................................................................. 15 3.4.1 Configuration of System under Test .................................................................................................. 16 3.5 General Description of Applied Standard .......................................................................................... 19 4 Test Types and Results ...................................................................................................................... 20 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 20 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 20 4.1.2 Test Instruments ................................................................................................................................ 21 4.1.3 Test Procedures ................................................................................................................................. 23 4.1.4 Deviation from Test Standard ............................................................................................................ 23 4.1.5 Test Setup .......................................................................................................................................... 24 4.1.6 EUT Operating Conditions ................................................................................................................. 25 4.1.7 Test Results ....................................................................................................................................... 26 4.2 Conducted Emission Measurement .................................................................................................. 45 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 45 4.2.2 Test Instruments ....................................................…

Text truncated - open the document above for the full version.

Test Report

Report No.: RF150720E02-2 Page No. 1 / 36 Report Format Version: 6.1.1 Reference No.: Supplemental “Transmit Simultaneously” Test Report Report No.: RF150720E02-2 FCC ID: UXX-S4A542A Test Model: S4A543A Series Model: S4A542A Received Date: July 20, 2015 Test Date: July 22 to Aug. 07, 2015 Issued Date: Aug. 20, 2015 Applicant: Cradlepoint, Inc Address: 1111 W. Jefferson Street, Suite 400,Boise, ID 83702 USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. Test Location (3): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permi…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Steve Howarth(VP Engineering)
[email protected]208-424-5054Fax: 208-429-6852

Test Firm

Bureau Veritas CPS (H.K.) Ltd., Taoyuan BranchRichard Chen
[email protected]+886-3-2600884Fax: +886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz710.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 27 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. This device has 20 MHz and 40 MHz bandwidth mode.
