UZCGBC-1000Bluetooth Handsfree Car Kit

User Manual(English) --------------------------------------------------------------- ------------------------------------------ Intelligent & Smart Bluetooth hands-free car kit with detector sensor for adriver Bluetooth Hands-free Car KitThank you for choosing MobiFren GBC-1000.It is high quality Bluetooth hands-free car kit,designed to provide you convenient and easyway of using your mobile phone.This instruction manual will get you started!--------------------------------------------------------------- ------------------------------------------ MobiFren GBC-1000 User ManualContentsAccessoriesSafety Instruction1Installandcharging2 About your MobiFren GBC-10003 Specifications4 Getting started with your MobiFren -Turnon/offhands-free - Pairing your MobiFren to mobile phone - Using your MobiFren hands-free car kit Call, Multi Point, Mute, etc 5WhatdoesLEDcolormean?6Troubleshooting&FAQ7 Handle MobiFren with care8 Certification and safety approvals 9 Glossary10 Warranty--------------------------------------------------------------- ------------------------------------------ Hands-free Car Kit & AccessoriesGBC-1000 Hands-free Car KitClipCharging cableUSB type car charger ( option )User Manual* The drawings and examples in manual are for better understanding to thisproduct, so, it may be different from the real good.Accessories and design can be changed without prior notice.Safety InstructionRoad safety at all timesUsing your mobile phone while driving can distract you and increase thepossibility of an accident.Always drive safely and follow local laws.--------------------------------------------------------------- ------------------------------------------ 1. Install and Charging- After attaching clip to GBC-1000, please clip on the sun visor at the right place where the human body detector sensor works well in your car. * The detecting sensor works within 80 degree and 1 meter.If the detecting s ensor does not perceive any motion in the car or the driver gets off the car, the power of hands-free will be off and Bluetooth connection wi ll be disconnected. * If you use the sun visor to block sun light, you can not use hands-free.* The sensing degree may be variable, depending from car models, so, please clip on GBC-1000 in the middle of the sun visor if possible. - Charging by USB cable chargerCharging by USB type car chargerMake sure that your MobiFren GBC-1000 is fully charged before you use it for the first time. * The LED shows ‘RED’ during charging a nd will turn ‘BLUE’ when fully charge d. While using USB hub, charging may not work well, due to low current.2. About your MobiFren GBC-1000(1) LED Light- Blue indicates operating mode (connected, active, standby or fully char ged ) - Red indicates battery condition (low level or charging status)(2) Volume Button ( + / - ) +:VolumeUp-:VolumeDown (3) Charging socket(4) Multi Function Button ( MFB)(5)Powerswitch(On/Off)(6) Human body detector sensor(7) 3.5Ø, 3 pole jack :Jack for earphone(8) Microphone(9) Speaker3. Specifications•Talktime:About32hours• Standby time : About 1,600 hours (75days)• Standby time at sleep mode : About 24 months• Rechargeable Lithium Polymer battery • Charging time : About 2.5 hours• Size : 118 x 62 x 9.5mm •Weight:71g• Speaker Output : Max 3W• Operating range : within 10M• Support profiles : Headset Profile, Handsfree Profile• Bluetooth specification : Version 2.1 + EDR * Talk and standby time may be variable, depending on the devices or connect ing conditions. 4. Getting started with your MobiFrenMobiFren GBC-1000 is very easy to use. - Turning your hands-free car kit on and off : • To turn on your hands-free car kit, please locate power switch ON.Power on* On first purchasing, the hands-free car kit enters into paring mode autom atically when the power is on. * If the human body sensor detects a driver when the power is on, the hands-fr ee car kit is activated automatically. * If the human body detector sensor does not detect a driver when the power is on, the hands-free car kit becomes sleep mode automatically after 3 minutes. * The human body detector sensor does not work during call.• To turn off your hands-free car kit, please locate the power switch OFF.Power off* During call, if you move the power switch to OFF, the call transfers from ha nds-free car kit to your mobile phone. * If you do not use GBC-1000 for a long time, please locate the power switch at off position. - Pairing your GBC-1000 to your mobile phone : < Manual pairing > * If you do not pair to mobile phone within 3 minutes, the hands-free car kit w ill be out of pairing mode 1.1 <Pairing on first purchasing : Initial pairing mode >If you turn on the power, it enters into “Pairing mode”.The blue LED is conti nuously on.Then, you can pair the hands-free car kit to your mobi le phone, after activating Bluetooth function in your mobile phone. 1.2<Pairing again or pairing to other device> If you press MFB button for around 6 seconds at the status power-on, the hand s-free car kit enters into pairing mode.The blue LED is continuously on. Then, you can pair the hands-free car kit to your mobile phone, after activating Bluetooth function in your mobile phone. Press for about 6 seconds. < Proximity Auto Pairing >( What is the Proximity Auto Pairing? ) It’s easy pairing way for the users. If you locate your mobile phone to the ha nds-free car kit within 10cm, then, it pairs automatically. ※Somemobilephonesmaynotsupporttothisfeature.If you press MFB button for about 1 second at “Manual pairing mode”, it conve rts to “Proximity Auto Pairing mode”. The blue and red LED gli tters alternately. Then, you can pair the hands-free car kit to the device. Proximity pairing is effective within 45 seconds, and if the mobile phone r equest Pin code, press “0000 (four zeros)”.But, if the device fails <P roximity Auto Pairing> within 45 seconds, it changes to manual pairing.In this case, please pair it according to < Manual pairing > w ay. If the pairing is successful, t…

Text truncated - open the document above for the full version.

GT Telecom Co., Ltd. Date : August 30, 2010 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Young-Joon, Park/Application Examiner of CTK Co., Ltd. and hereafter referred to as CTK Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Young-Joon, Park of CTK Co., Ltd.on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, GI PYO, KIM R&D Department / Junior Engineer

848-16 Gupyeong-Dong, Gumi-City, Gyeongbuk, Korea Tel No : +82-54-474-2220 Fax No : +82-54-474-2251 August 30, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : GT Telecom Co., Ltd. FCC ID : UZCGBC-1000 Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics, Block diagram and Operational description. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, GI PYO, KIM R&D Department / Junior Engineer

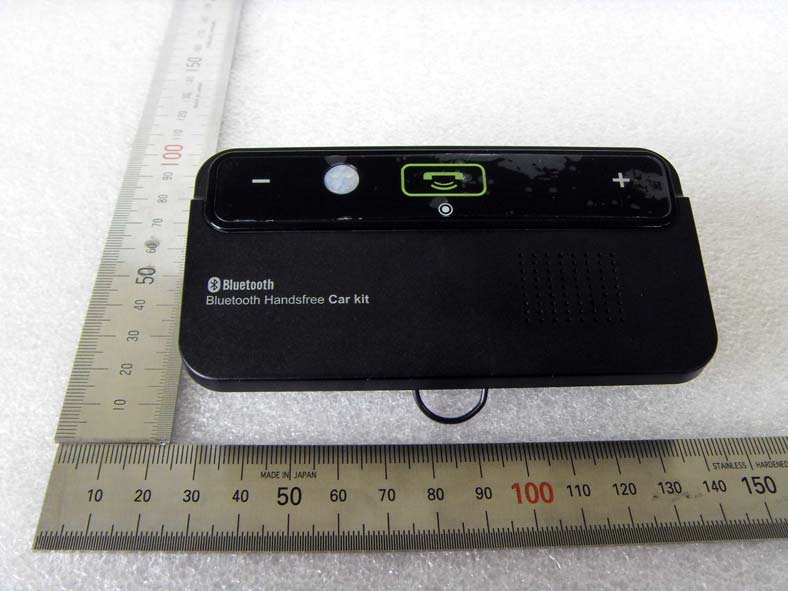

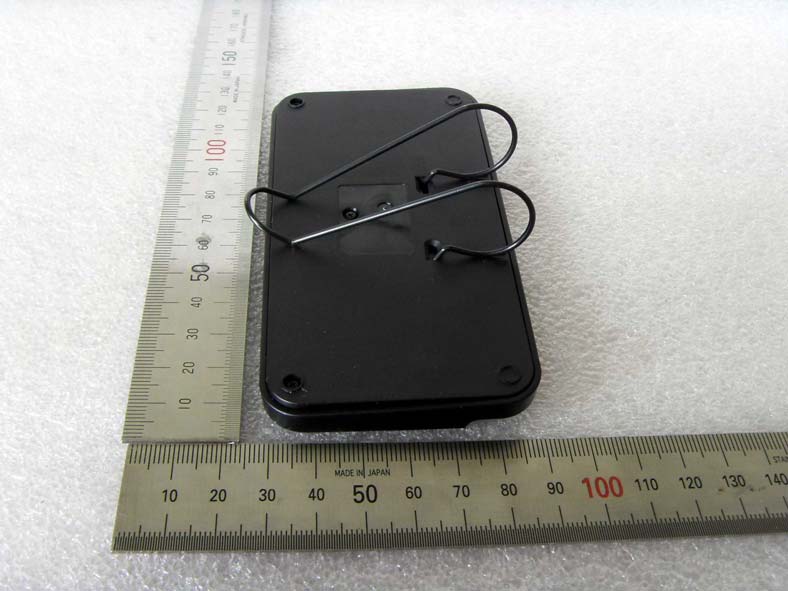

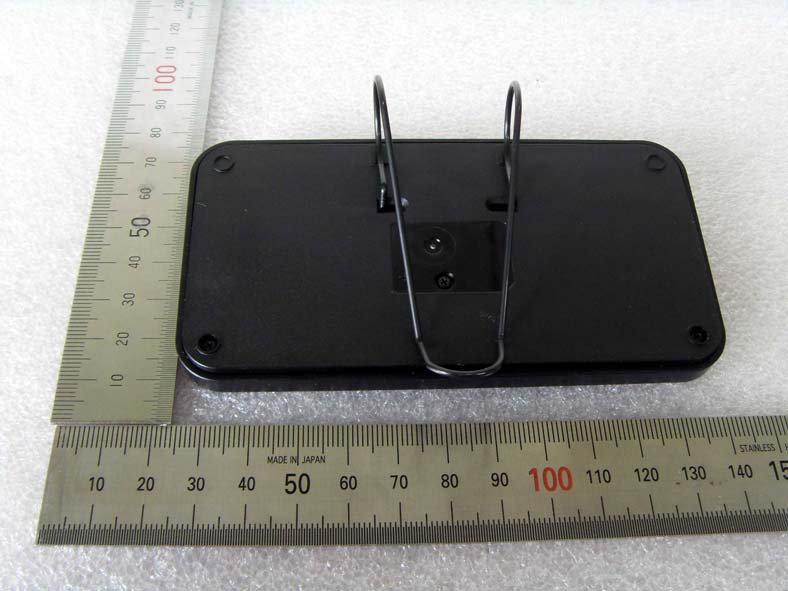

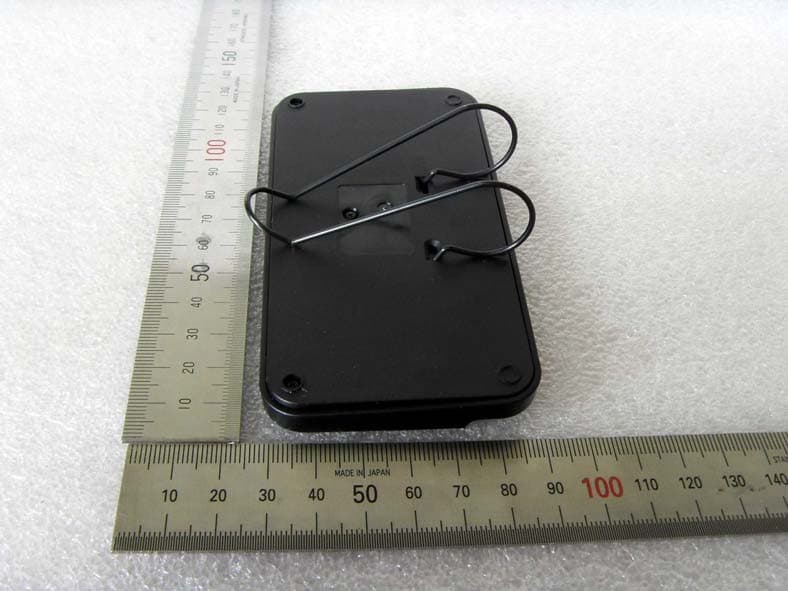

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com EUT External Photographs CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Label and Location

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: 2010080093 Date: August 31, 2010 Page 1 of 46 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TEST REPORT For FCC Test Report No. : 2010080093 Date of Issue : August 31, 2010 FCC ID : UZCGBC-1000 Model/Type No. : GBC-1000 Kind of Product : Bluetooth Handsfree Car kit Applicant : GT Telecom Co., Ltd. Applicant Address : 848-16 Gupyeong-Dong, Gumi-City, Gyeongbuk, Korea Manufacturer : Mobisolution Co., Ltd. Manufacturer Address : A-101, 848-16 Gupyeong-Dong, Gumi-City, Gyeongsanbuk-Do, Korea Contact Person : Gi Pyo, Kim / Junior Engineer Telephone : +82-54-474-2220 Received Date : August 11, 2010 Test period : Start : August 11, 2010 End : August 31, 2010 Test Results : In Compliance Not in Compliance The test results presented in this report relate only to the object tested. Tested by Reviewed by Lee Young-taek Test Engineer Young-Joon, Park Technical Manager Date: August 31, 2010 Date: August 31, 2010 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: 2010080093 Date: August 31, 2010 Page 2 of 46 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) REPORT REVISION HISTORY Date Revision Page No August 31, 2010 Issued (2010080093) All This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: 2010080093 Date: August 31, 2010 Page 3 of 46 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TABLE OF CONTENTS REPORT REVISION HISTORY ..........................................................................................2 1.0 General Product Description ...............................................................................4 1.1 Tested Frequency .............................................................................................4 1.2 Tested Mode ....................................................................................................4 1.3 Model Differences .............................................................................................5 1.4 Device Modifications .........................................................................................5 1.5 Peripheral Devices ............................................................................................5 1.6 Calibration Details of Equipment Used for Measurement .........................................5 1.7 Test Facility......................................................................................................5 1.8 Laboratory Accreditations and Listings .................................................................6 2.0 Summary of tests .............................................................................................7 2.1 Transmitter Requirements ..................................................................................8 2.1.1 Carrier Frequency Separation .......................................................................8 2.1.2 Number of Hopping Frequencies ................................................................. 10 2.1.3 20 dB bandwidth ...................................................................................... 13 2.1.4 Time of Occupancy (Dwell Time) ................................................................. 19 2.1.5 Maximum peak Conducted Output Power...................................................... 25 2.1.6 Band-edge............................................................................................... 30 2.1.7 Field Strength of Emissions ........................................................................ 38 2.1.8 AC Conducted Emissions............................................................................ 43 APPENDIX A – Test Equipment Used For Tests ................................................................ 46 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: 2010080093 Date: August 31, 2010 Page 4 of 46 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) 1.0 General Product Description Equipment model name : GBC-1000 Serial number : Prototype EUT condition : Pre-production, not damaged Antenna type : Chip antenna Gain 0.218 dBi Frequency Range : 2402 ~ 2480 MHz RF power : 3.03 dBm Peak Conducted (GFSK) : 1.74 dBm Peak Conducted (8-DPSK) Type of Modulation : Frequency Hopping Spread Spectrum Number of channels : 79 Channel Spacing : 1MHz Channel Access Protocol : Frequency Hopping Type of Modulation : GFSK(1Mbps), DQPSK(2Mbps), 8-DPSK(3Mbps) Power Source : Lithium Polymer Battery(DC 3.7 V) 1.1 Tested Frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 1.2 Tested Mode - Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture). - Following channel(s) was (were) selected for the final test as listed below. Tested Ch Modulation Technology Modulation Type Low, Mid, High FHSS GFSK Low, Mid, High FHSS 8-DPSK CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeon…
