UZI-C105HSDPA ExpressCard

The Stelera C105 User Manual Contents Chapter 1 Getting Started 3 Chapter 2 Connecting 8 Chapter 3 Settings 11 Chapter 4 Statistics & Information 13 Chapter 5 Q&A 155 Chapter 6 Important Safety Information and Glossary 18 The Stelera C105 Chapter 1 Getting Started 4 Chapter 1 What’s in the box 1. Stelera C105: Insert this into an ExpressCard Slot if available. 2. PCMCIA Adaptor Casing (optional): Slide the C105 in this casing if a PCMCIA slot is available. 3. USB Accessories a. Stelera C105 USB Adaptor Casing: Insert the C105 (1) into this case if no PCMCIA/ExpressCard slot is available and connect it to the PC with the USB Cable (3b). b. USB Cable: Insert the small end into the Adaptor Casing (3a) and the two large ends into the PC. Two free USB ports are required for maximum signal strength. The gray port can be shared with a mouse or keyboard. c. Notebook Screen Hook: Secures the C105 to a laptop computer screen. Features ● Supports 2G, 3G and 3.5G standards ● USB, ExpressCard or PCMCIA Interface ● Windows Vista, XP and 2000 compatibility ● Does not interfere with other USB peripherals ● Six language interface (English, French, German, Italian, Spanish and Traditional Chinese) ● Plug & Play functionality ● Dual Antennas Before You Install Information Before installing the C105, we recommend obtaining the following information from the SIM Card Mobile network operator: Access Point Name (APN) - For many carriers, the APN may simply be Internet. Phone Number - The Phone Number to dial to establish a network connection. Stelera software helps input this number correctly. Insert SIM Card 1. Face the gold contact points toward each other. 2. Insert the SIM card into the slot. 3. Push the card in until it reaches the end of the arrow next to the slot. Hardware Installation With the SIM card properly inserted, the C105 may now be installed into the computer, which may be done via PCMCIA/ExpressCard Slot or USB port. ExpressCard Slot 1. Slide the C105 into the slot (SIM card side down, LED side up). 2. The LED should light up when connection is established. 5 Chapter 1 PCMCIA Adaptor 1. Slide the C105 into the PCMCIA Adaptor (LED & Gold Strip Up, SIM Card Side Down) as far as possible. 2. With the same orientation (antenna side up), slide the C105- Adaptor unit into the PCMCIA slot. 3. The LED should light up when connection is established. USB 1. Slide the C105 into the USB adaptor casing (USB adaptor label & C105 LED side up). 2. Insert the small USB plug into the adaptor casing. Insert the two large USB plugs into the computer. 3. The LED should light up when connection is established, though it may be obscured. Software Installation The process and appearance of certain software elements in Windows Vista will be somewhat different than in 2000/XP. These differences are minor and should not limit the functionality of the C105 in any way. New Hardware Detection Windows 2000/XP Once the C105 is connected, a dialog box should pop-up from the Toolbar Hardware Connection Icon. The device will be identified as the Stelera C105 3.5G HSDPA Utility. Windows Vista In Vista, a pop-up window may appear. Click Allow to proceed. After the first pop-up, all other aspects for software installation will be identical in all compatible versions of Windows. Software installation should proceed automatically. If it does not, it may be initiated from My Computer, where the C105 will be identified as a CD-ROM device. Sometimes a restart will occur during installation. If it does, reinitiate installation from My Computer. 6 Chapter 1 InstallShield Wizard Preparation The C105 will automatically use the appropriate language for your OS, if available. Welcome The Setup Wizard window opens automatically. The first page contains OS compatibility and legal disclaimers. Click Next to continue. License Agreement Click I accept the terms in the license agreement > Next to continue. Select Installation Folder Click Change to manually select a folder. Change Current Destination Folder Highlight the folder and click OK to select it. Click Cancel to close the Browse window. Confirm Installation Click Back to change any preceding information or settings. Click 7 Chapter 1 Install to begin installation. Installation Installation time will vary, depending on the computer. Home Screen 1. Signal Strength 2. Minimize 3. Radio Technology 4. Mobile Network Operator 5. Connection Status 6. Connection Time Elapse 7. Total Data Uploaded 8. Total Data Downloaded 9. Compose Message 10. Radio On/Off 11. Menu 12. Home Screen 13. Connect/Disconnect Note: The Home screen only indicates 3G (internet) connection status. After installation, the C105 automatically initiates 2G (SMS) functions upon successful connection to the computer. Text messages can be sent or received, even if the Home screen indicates no connection. Menu Screen Setting: General, SMS, SIM, Radio and Network preferences. Statistics: Upload, Download graphs and totals. Contacts: C105, SIM Card and Outlook Contact lists. Profile: Connection profile setup/options. Information: Device, Version and Signal specifics. Installation Complete When installation is complete, click Finish to exit. The Connection Manager will open automatically and bring up the Home Screen. The Quick Start Guide will also automatically open, but only if you have Adobe Acrobat 6.0+. The Stelera C105 Chapter 2 Connecting 9 Chapter 2 Establishing a Connection With the C105 fully installed, an online connection can now be made. The C105 will automatically scan your system and create a default profile, which should work in the vast majority of cases. To test it, simply click the Connect button. Connection should take about 5 seconds. When established, the Home screen should say Connected, with the onscreen clock running and the Download/Upload tallies running. The toolbar icon will also change color to indicate the connection protocol (same as LED indicator). See Specifications for details. If connection is uns…

Text truncated - open the document above for the full version.

SUBJECT : BANDRICH INC. - FCC ID: UZI -C105 REFERENCE: JOB 65TC8 Dear Sir The EUT is HSDPA Release5 Device, we use R&S CMU200(Option K63,K64,K65) to set the EUT working on HSPDA link mode (FRC with H-Set 1 in SubTest 1 of Release 5 HSDPA) when SAR measurement & check the EUT’s output power was maximum Date this : January 22, 2007 A Test Lab Techno Corp. Country Huang Measurement Center Manager

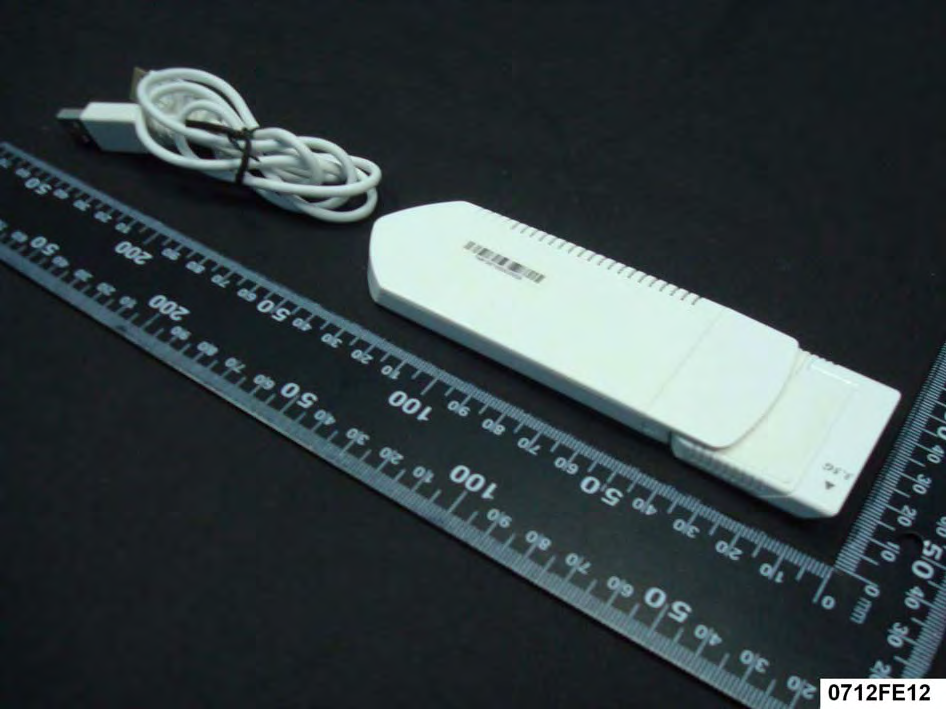

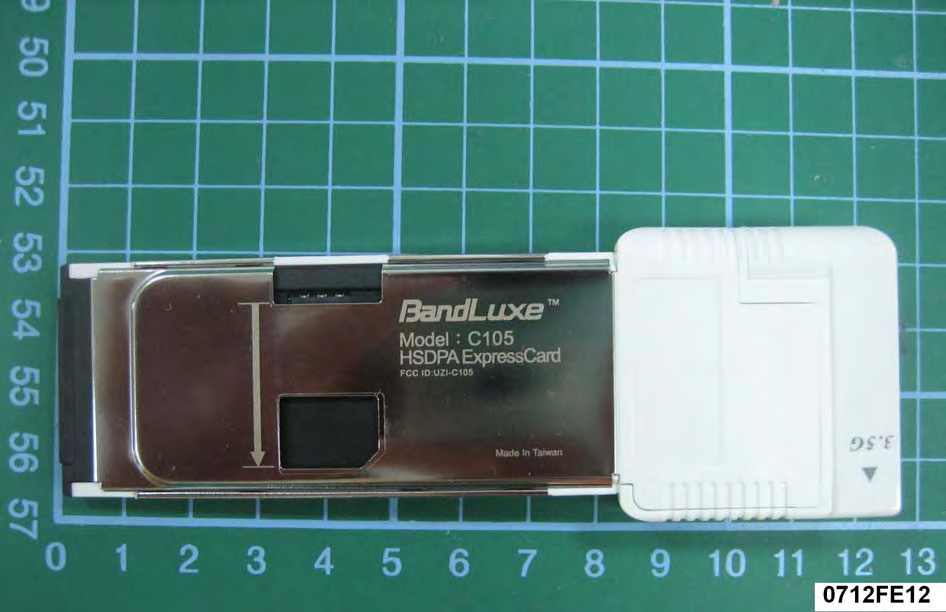

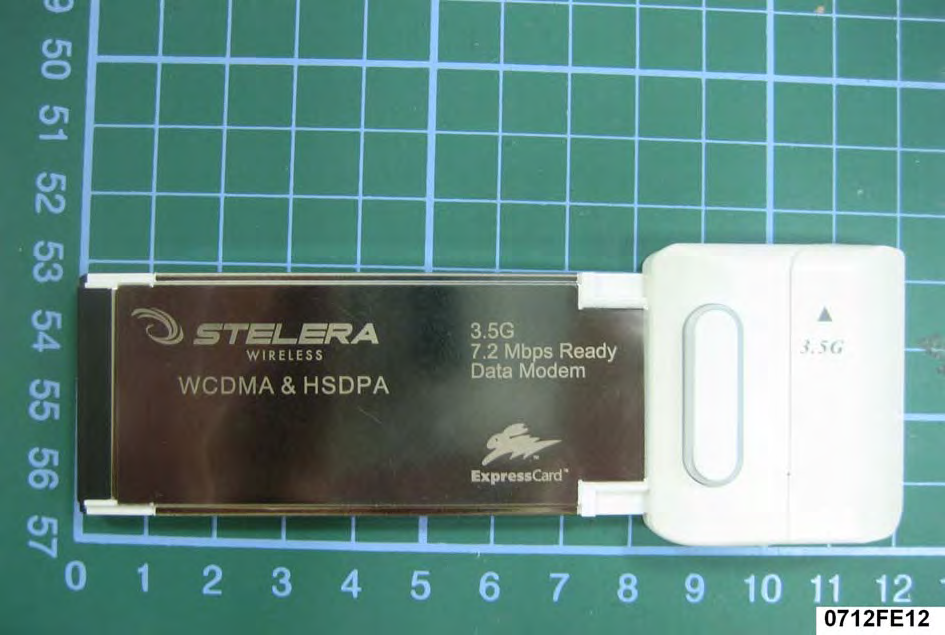

Test Report No：0712FE12 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 1 External Photos of EUT Test Report No：0712FE12 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 2 Photo _ 1 of 4 Test Report No：0712FE12 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 3 EUT Photo _ 2 of 4 Test Report No：0712FE12 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 4 EUT Photo _ 3 of 4 Test Report No：0712FE12 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 5 EUT Photo _ 4 of 4

Test Report No：0712FR11 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 1 of 2 SAMPLE LABEL Test Report No：0712FR11 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 2 of 2 Label Format: Label Position: Equipment Label Real View

Test Report No：0712FE12 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 1 Internal Photos of EUT Test Report No：0712FE12 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 2 EUT Photo _ 1 of 9 Test Report No：0712FE12 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 3 EUT Photo _ 2 of 9 Test Report No：0712FE12 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 4 EUT Photo _ 3 of 9 Test Report No：0712FE12 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 5 EUT Photo _ 4 of 9 Test Report No：0712FE12 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 6 EUT Photo _ 5 of 9 Test Report No：0712FE12 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 7 EUT Photo _ 6 of 9 Test Report No：0712FE12 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 8 EUT Photo _ 7 of 9 Test Report No：0712FE12 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 9 EUT Photo _ 8 of 9 Test Report No：0712FE12 FCC ID: UZI-C105 ©2005 A Test Lab Techno Corp. Page 10 EUT Photo _ 9 of 9

Specification Description Product Name: HSDPA ExpressCard Brand Name: BandLuxe TM Model Number: C105 Modulation: QPSK for UMTS 16QAM for HSDPA RF Frequency: 1710 ~ 1755MHz UMTS Tx 2110 ~ 2155MHz UMTS Rx RF Channels: 1312-1513 for UMTS (Band 4) RF output power: 23 dBm(typical) for UMTS S(Band 4) RF Antenna type: Internal monopole antenna RF Antenna gain: avg. -4~-6 dBi (typical) Voltage range: 3.0V~3.6V
