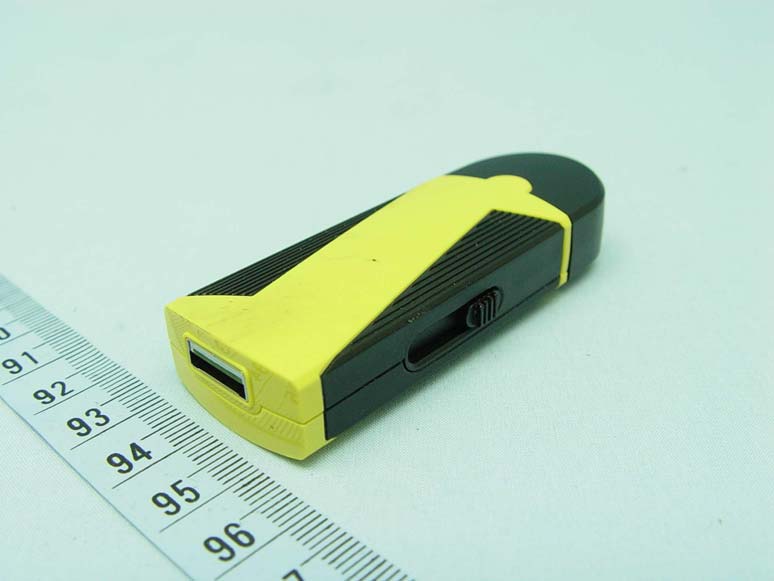

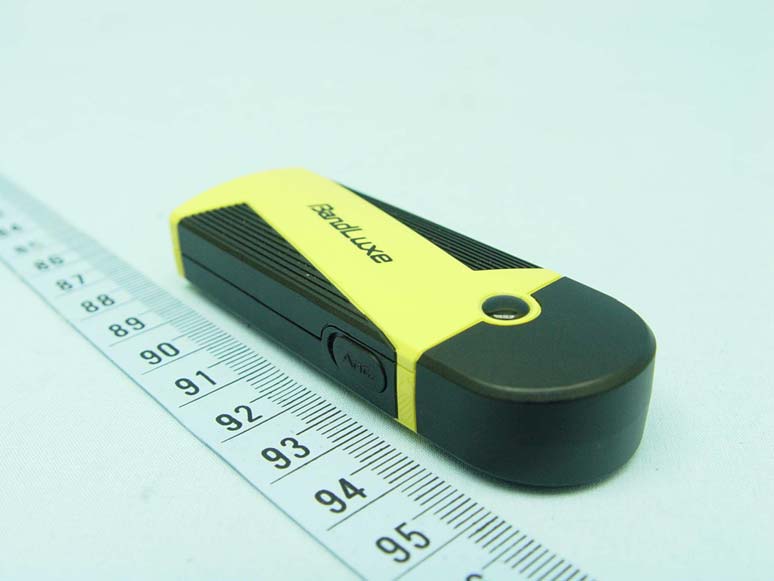

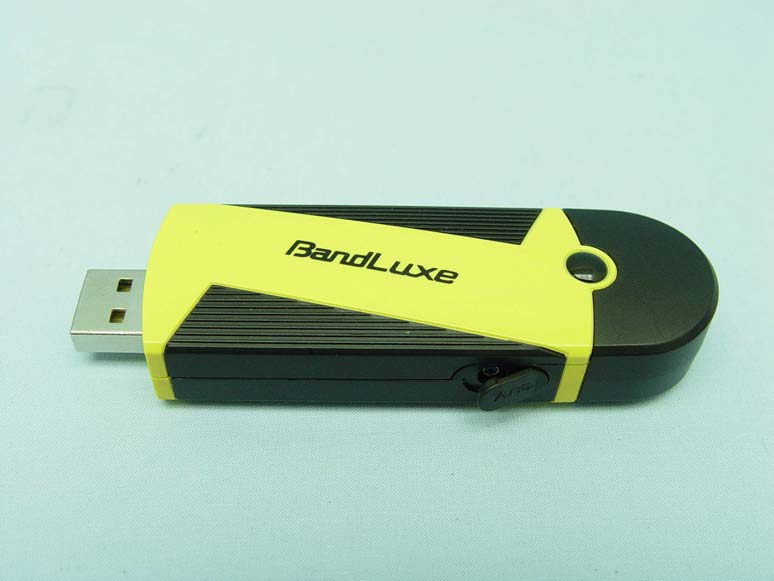

UZI-C505LTE USB Modem

The BandLuxe C505 LTE USB Modem User Manual PN: 65006900011 Contents Chapter 1 Getting Started 3 Chapter 2 Connecting 8 Chapter 3 SMS 11 Chapter 4 Setting 13 Chapter 5 Statistics & Information 16 Chapter 6 Q&A 18 Chapter 7 Important Safety Information and Glossary 21 The BandLuxe C505 Chapter 1 Getting Started 4 Chapter 1 Getting Started What’s content BandLuxe C505 USB dongle modem Features ● Support 3.5G, HSPA+ and LTE standard ( LTE/HSPA+/HSPA / WCDMA EDGEGPRS) ● Support SMS Message ● USB Interface ● Support microSD/microSDHC storage ● Support systems: Windows 7, Windows Vista, Windows XP, ● Does not interfere with other USB peripherals ● Multi language interface (English, French, German, Italian, Spanish, Traditional Chinese, Russian, Portuguese and Finnish) ● Plug & Play Before You Install Information Before installing the C505, we recommend obtaining the following information from the SIM Card Mobile network operator: Access Point Name (APN) - For many carriers, the APN may simply be Internet. Phone Number - The Phone Number to dial to establish a network connection. BandLuxe software helps input this number correctly. Password (Optional) - Some (but not many) carriers require a password. Notice: BandLuxe C505 is a radio device. Please be aware to keep metal materials away from the device. Insert the SIM Card & microSD Memory Card 1. USB connector can be extended by shifting the left-side switch (fig. 1) 2. Remove the front cover.(fig. 2) 3. Follow the arrow direction insert the SIM card(fig. 3) 4. micro SD card reader is equipped. Golden color contact of microSD card should be faced up to insert. (fig. 4). *micro SD card is an optional purchased accessory. 5. Replace the front cover Hardware Installation With the SIM card properly inserted, the C505 may now be installed into the computer via USB port. 1. Insert the C505 into the computer. 2. The LED should light up when connection is established, though it may be obscured. 5 Chapter 1 Getting Started Software Installation The process and appearance of certain software elements in Windows Vista will be somewhat different than in XP. These differences are minor and should not limit the functionality of the C505 in any way. New Hardware Detection Windows XP Once the C505 is connected, a dialog box should pop up from the Toolbar Hardware Connection Icon. The device will be identified as the BandLuxe C505 LTE Utility. Windows Vista / Windows7 In Vista, a pop-up window may appear. Click Allow to proceed. After the first pop-up, all other aspects for software installation will be identical in all compatible versions of Windows. Software installation should proceed automatically. If it does not, it may be initiated from My Computer, where the C505 will be identified as a CD-ROM device. Sometimes a restart will occur during installation. If it does, reinitiate installation from My Computer. Install Shield Wizard Setup Language Preparation The C505 will automatically use the appropriate language for your OS, if available. Welcome The Setup Wizard window opens automatically. The first page contains OS compatibility and legal disclaimers. Click Next to continue. 6 Chapter 1 Getting Started License Agreement Click I accept the terms in the license agreement > Next to continue. Select Installation Folder Click Change to manually select a folder. Change Current Destination Folder Highlight the folder and click OK to select it. Click Cancel to close the Browse window. Confirm Installation Click Back to change any preceding information or settings. Click Install to begin installation. Installation Installation time will depend on variable computer. Installation Complete When installation is completed, click Finish to exit. The Connection Manager will open automatically 7 Chapter 1 Getting Started .Home Screen 1. Signal Strength 2. Minimize 3. Radio Technology 4. Mobile Network Operator 5. Connection Status 6. Connection Time Elapse 7. Total Data Uploaded 8. Total Data Downloaded 9. Menu 10. Home Screen 11. Connect/Disconnect 12. Close Note: The Home screen only indicates LTE (internet) connection status. After installation, the C505 automatically initiates SMS functions upon successful connection to the computer. Text messages can be sent or received, even if the Home screen indicates no connection. Menu Screen SMS: Text message folders such as Inbox, Draft, etc. Setting: General, SMS, SIM, Radio and Network preferences. Statistics: Upload/Download graphs, totals and connection log. Contacts: C505 SIM Card and Outlook Contact lists. Profile: Connection profile setup/options. Information: Device, Version and 1 212 3 4 5 6 7 11 10 8 9 The BandLuxe C505 Chapter 2 Connecting 9 Chapter 2 Connecting Establishing a Connection With the C505 installed, an online connection can be ready to use. The C505 will automatically scan your system and create a default profile, which should work in the vast majority of cases. To test it, simply click the Connect button. Connection should take about 5 seconds. When established, the Home screen should show Connected, with the onscreen clock running and the Download/Upload tallies running. The toolbar icon will also change color to indicate the connection protocol (same as LED indicator). See Specifications for details. If connection is unsuccessful, check if the device and SIM card are properly connected and inserted. If they are, a new internet profile may need to be created. Create a Profile 1. Click Menu > Profile. The profile menu will contain the default profile, showing the operator's name of the SIM card. 2. Click New to create a new profile. Depending on the carrier, all 5 spaces may not need to be filled to proceed. 3. Choose a Profile Name. The name is arbitrary and is helpful when different connection methods are available. 4. Inquire with the Mobile network operator (SIM carrier) as to whether the User Name and Password are required. 5. The Password can be any combination of letters, numbers or symbols and …

Text truncated - open the document above for the full version.

Declaration of MPR We, BandRich Inc., Company Address: 7F., No. 188, Baociao Rd., Sindian City, Taipei County 23146, Taiwan (R.O.C.) Declare that the dvice: Model: C505 Product description: C505 LTE data modem Complies with the MPR requirements of the 3GPP. The applied Standards: 3GPP TS 36.101 C505 has NV item holds backoff values in units of dB for different sets of LTE waveforms, based on the constellation and RB allocation. The backoff is hard-coded in the software. We set the MPR as following table. The device will follow the table to reduce maximum power. I.e the maximum power will be reduced 1 dB if the modulation=16QAM, BW=5MHz and RBs>8. And the maximum power will be reduced 0.5 dB if the modulation=16QAM, BW=5MHz and RBs≤ 8. C505 will follow the table to have MPR function. And all the setting is fixed by software. The target power for the maximum output power without MPR is 22.5dBm. However, it will have some design and measurement tolerance by different channels and RBs allocation. So we set the MPR backoff values smaller than the requirements of the 3GPP. The maximum output power of C505 will be also controlled smaller than 23.46 dBm. And the power fluctuations will not affect overall SAR compliance due to the relatively low measured SAR values in the SAR report. Maximum Power Reduction (MPR) for C505 Modulation Bandwidth RBs NV_LTE_TX_MPR_BACKOFF_I[i] QPSK 5.0 MHz >8 0.5 16QAM 5.0 MHz ≤ 8 0.5 16QAM 5.0 MHz > 8 1 QPSK 10.0 MHz >12 0.5 16QAM 10.0 MHz ≤12 0.5 16QAM 10.0 MHz >12 1
