UZI-C505ALTE USB Modem

User Manual BandLuxe C500 Series PN: 65006900011 Rev.D Contents Chapter 1 Getting Started 3 Chapter 2 Connecting 8 Chapter 3 SMS 11 Chapter 4 Setting 13 Chapter 5 Statistics & Information 16 Chapter 6 Q&A 18 Chapter 7 Important Safety Information and Glossary 21 BandLuxe C500 series Chapter 1 Getting Started 4 Chapter 1 Getting Started What’s content BandLuxe C5XX USB dongle modem Features ● C50x series : support 3.5G, HSPA+ and LTE standard ( LTE/HSPA+/HSPA/WCDMA/ EDGE/GPRS) C52x series : support LTE/EVDO Rev A ● Support SMS Message ● USB Interface ● Support microSD/microSDHC storage ● Support systems: Windows 7, Windows Vista, Windows XP, ● Does not interfere with other USB peripherals ● Multi language interface (English, French, German, Italian, Spanish, Traditional Chinese, Russian, Portuguese, Finnish, Polish, Thai, Dutch and Arabic) ● Plug & Play Before You Install Information Before installing the C50X, we recommend obtaining the following information from the SIM Card Mobile network operator: Access Point Name (APN) - For many carriers, the APN may simply be Internet. Phone Number - The Phone Number to dial to establish a network connection. BandLuxe software helps input this number correctly. Password (Optional) - Some (but not many) carriers require a password. Notice: BandLuxe C5XX is a radio device. Please be aware to keep metal materials away from the device. Insert the SIM Card & microSD Memory Card 1. USB connector can be extended by shifting the switch (fig. 1) 2. Remove the front cover.(fig. 2) 3. Follow the arrow direction insert the SIM card(fig. 3) 4. micro SD card reader is equipped. Golden color contact of microSD card should be faced up to insert. (fig. 4). *micro SD card is an optional purchased accessory. 5. Replace the front cover Hardware Installation With the SIM card properly inserted, the C5XX may now be installed into the computer via USB port. 1. Insert the C5XX into the computer. 2. The LED should light up when connection is established, though it may be obscured. 5 Chapter 1 Getting Started Software Installation The process and appearance of certain software elements in Windows Vista will be somewhat different than in XP. These differences are minor and should not limit the functionality of the C5XX in any way. New Hardware Detection Windows XP Once the C5XX is connected, a dialog box should pop up from the Toolbar Hardware Connection Icon. The device will be identified as the BandLuxe C5XX LTE Utility. Windows Vista / Windows7 In Vista, a pop-up window may appear. Click Allow to proceed. After the first pop-up, all other aspects for software installation will be identical in all compatible versions of Windows. Software installation should proceed automatically. If it does not, it may be initiated from My Computer, where the C5XX will be identified as a CD-ROM device. Sometimes a restart will occur during installation. If it does, reinitiate installation from My Computer. Install Shield Wizard Setup Language Preparation The C5XX will automatically use the appropriate language for your OS, if available. Welcome The Setup Wizard window opens automatically. The first page contains OS compatibility and legal disclaimers. Click Next to continue. 6 Chapter 1 Getting Started License Agreement Click I accept the terms in the license agreement > Next to continue. Select Installation Folder Click Change to manually select a folder. Change Current Destination Folder Highlight the folder and click OK to select it. Click Cancel to close the Browse window. Confirm Installation Click Back to change any preceding information or settings. Click Install to begin installation. Installation Installation time will depend on variable computer. Installation Complete When installation is completed, click Finish to exit. The Connection Manager will open automatically 7 Chapter 1 Getting Started Home Screen 1. Signal Strength 2. Minimize 3. Radio Technology 4. Mobile Network Operator 5. Connection Status 6. Connection Time Elapse 7. Total Data Uploaded 8. Total Data Downloaded 9. Menu 10. Home Screen 11. Connect/Disconnect 12. Close Note: The Home screen only indicates LTE (internet) connection status. After installation, the C5XX automatically initiates SMS functions upon successful connection to the computer. Text messages can be sent or received, even if the Home screen indicates no connection. Menu Screen SMS: Text message folders such as Inbox, Draft, etc. Setting: General, SMS, SIM, Radio and Network preferences. Statistics: Upload/Download graphs, totals and connection log. Contacts: SIM Card, Outlook and dongle contact lists Profile: Connection profile setup/options. Information: IMEI, software, firmware version, and model name. 1 212 11 10 9 5 4 6 7 3 8 BandLuxe C500 series Chapter 2 Connecting 9 Chapter 2 Connecting Establishing a Connection With the C5XX installed, an online connection can be ready to use. The C5XX will automatically scan your system and create a default profile, which should work in the vast majority of cases. To test it, simply click the Connect button. Connection should take about 5 seconds. When established, the Home screen should show Connected, with the onscreen clock running and the DownLoad/UpLoad tallies running. The toolbar icon will also change color to indicate the connection protocol (same as LED indicator). See Specifications for details. If connection is unsuccessful, check if the device and SIM card are properly connected and inserted. If they are, a new internet profile may need to be created. Create a Profile 1. Click Menu > Profile. The profile menu will contain the default profile, showing the operator's name of the SIM card. 2. Click New to create a new profile. Depending on the carrier, all 5 spaces may not need to be filled to proceed. 3. Choose a Profile Name. The name is arbitrary and is helpful when different connection methods are available. 4. Inquire with the Mobile network operator (SIM carrier) as to whether the User Name…

Text truncated - open the document above for the full version.

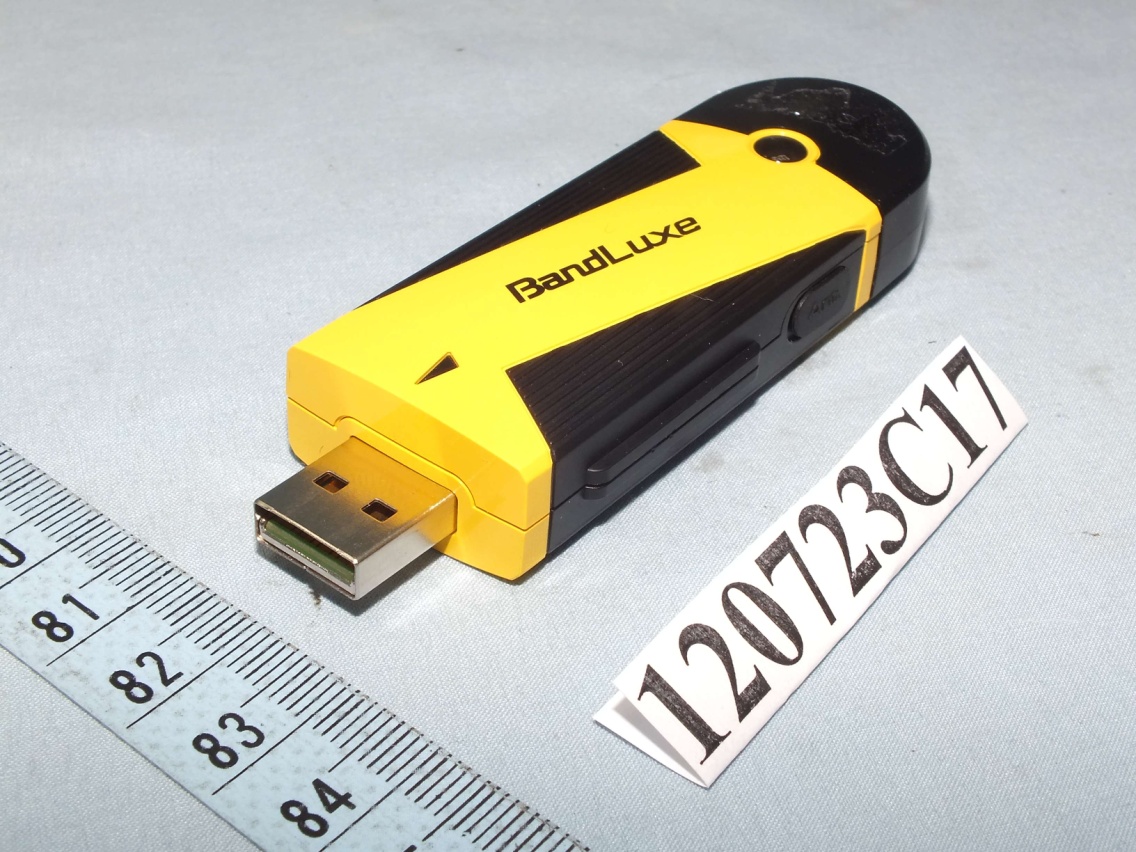

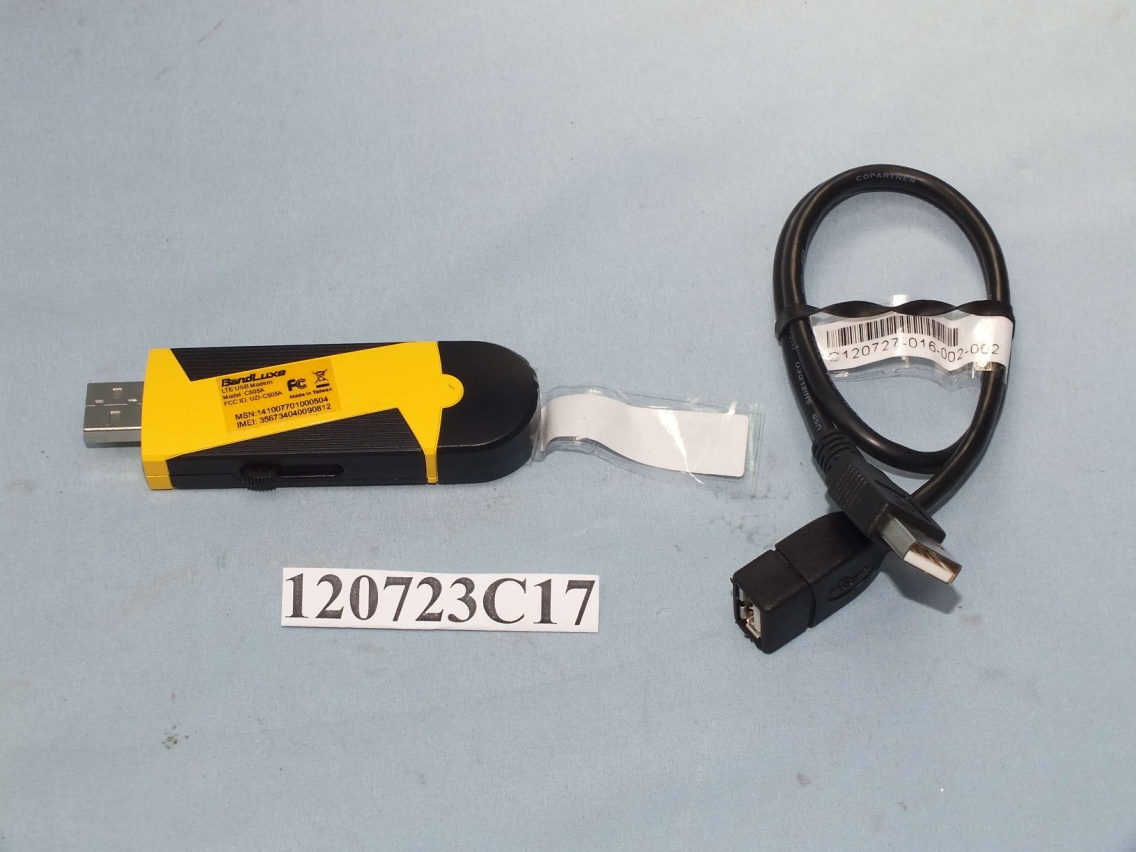

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC SAR Test Report Report Format Version 5.0.0Issued Date : Aug. 30, 2012 Report No. : SA991230C03AReference No.: 120723C17 Revision : R01 Appendix A. SAR Plots of System Verification The plots for system verification are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/08 System Check_B750_120808 DUT: Dipole 750 MHz; Type: D750V3; SN: 1013 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: B750_0808 Medium parameters used: f = 750 MHz;  = 0.966 mho/m;  r = 55.257;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijijįĴġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijIJįĵġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(10.61, 10.61, 10.61); Calibrated: 2012/02/23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Pin=250mW/Area Scan (61x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.78 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.234 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.263 mW/g SAR(1 g) = 2.26 mW/g; SAR(10 g) = 1.52 mW/g Maximum value of SAR (measured) = 2.81 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/09 System Check_B750_120809 DUT: Dipole 750 MHz; Type: D750V3; SN: 1013 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: B750_0809 Medium parameters used: f = 750 MHz;  = 0.969 mho/m;  r = 55.4;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁˇʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˊʳк DASY4 Configuration: - Probe: EX3DV4 - SN3650; ConvF(9.21, 9.21, 9.21); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2011/08/29 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.83 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.5 V/m; Power Drift = 0.006 dB Peak SAR (extrapolated) = 3.36 W/kg SAR(1 g) = 2.33 mW/g; SAR(10 g) = 1.57 mW/g Maximum value of SAR (measured) = 2.91 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/20 System Check_B750_120820 DUT: Dipole 750 MHz; Type: D750V3; SN: 1013 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: B750_0820 Medium parameters used: f = 750 MHz;  = 0.966 mho/m;  r = 55.257;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįĺġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijıįĹġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(9.21, 9.21, 9.21); Calibrated: 2011/10/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (61x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.82 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.328 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.328 mW/g SAR(1 g) = 2.31 mW/g; SAR(10 g) = 1.56 mW/g Maximum value of SAR (measured) = 2.89 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/20 System Check_B835_120820 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d021 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: B835_0820 Medium parameters used: f = 835 MHz;  = 0.973 mho/m;  r = 55.201;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįĹġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijıįĹġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(9.12, 9.12, 9.12); Calibrated: 2011/10/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.02 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.637 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.530 mW/g SAR(1 g) = 2.38 mW/g; SAR(10 g) = 1.57 mW/g Maximum value of SAR (measured) = 3.02 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/20 System Check_B1750_120820 DUT: Dipole 1750 MHz; Type: D1750V2; SN: 1023 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: B1750_0820 Medium parameters used: f = 1750 MHz;  = 1.47 mho/m;  r = 53.682;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįĸġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijıįĸġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(7.49, 7.49, 7.49); Calibrated: 2011/10/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.2 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 94.798 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 16.297 mW/g SAR(1 g) = 9.22 mW/g; SAR(10 g) = 4.92 mW/g Maximum value of SAR (measured) = 13.1 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/20 SystemCheck_B1900_120820 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d036 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: B1900_0820 Medium parameters used: f = 1900 MHz;  = 1.544 mho/m;  r = 52.838;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįĹġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijı…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Aug. 30, 2012 Report No. : SA991230C03A Reference No.: 120723C17 Revision : R01 Appendix B. SAR Plots of SAR Measurement The plots for SAR measurement are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/20 P601 WCDMA V_RMC12.2k_Horizontal Down_0.5cm_Ch4182 DUT: 120723C17 Communication System: WCDMA; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: B835_0820 Medium parameters used : f = 836.4 MHz; σ = 0.974 mho/m; ε r = 55.189; ρ = 1000 kg/m 3 Ambient Temperature：21.8 °C; Liquid Temperature：20.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(9.12, 9.12, 9.12); Calibrated: 2011/10/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch4182/Area Scan (31x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.919 W/kg Ch4182/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 30.207 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.888 mW/g SAR(1 g) = 0.599 mW/g; SAR(10 g) = 0.392 mW/g Maximum value of SAR (measured) = 0.755 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/20 P602 WCDMA II_RMC12.2k_Horizontal Down_0.5cm_Ch9400 DUT: 120723C17 Communication System: WCDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: B1900_0820 Medium parameters used: f = 1880 MHz; σ = 1.52 mho/m; ε r = 52.896; ρ = 1000 kg/m 3 Ambient Temperature：21.8 °C; Liquid Temperature：20.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(7.46, 7.46, 7.46); Calibrated: 2011/10/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch9400/Area Scan (31x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.01 W/kg Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.145 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 1.237 mW/g SAR(1 g) = 0.728 mW/g; SAR(10 g) = 0.415 mW/g Maximum value of SAR (measured) = 0.983 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/20 P603 WCDMA IV_RMC12.2k_Horizontal Up_0.5cm_Ch1412 DUT: 120723C17 Communication System: WCDMA; Frequency: 1732.4 MHz;Duty Cycle: 1:1 Medium: B1750_0820 Medium parameters used: f = 1733 MHz; σ = 1.453 mho/m; ε r = 53.722; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(7.49, 7.49, 7.49); Calibrated: 2011/10/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch1412/Area Scan (31x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.784 W/kg Ch1412/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.909 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.828 mW/g SAR(1 g) = 0.541 mW/g; SAR(10 g) = 0.335 mW/g Maximum value of SAR (measured) = 0.679 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/20 03:20:04 P604 LTE17_QPSK_10M_Horizontal Down _0.5cm_Ch23780_25RB_Offset 12 DUT: 120723C17 Communication System: LTE; Frequency: 709 MHz;Duty Cycle: 1:1 Medium: B750_0820 Medium parameters used: f = 709 MHz; σ = 0.931 mho/m; ε r = 55.593; ρ = 1000 kg/m 3 Ambient Temperature：21.9 °C; Liquid Temperature：20.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(9.21, 9.21, 9.21); Calibrated: 2011/10/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch23780/Area Scan (31x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.312 W/kg Ch23780/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.796 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.344 mW/g SAR(1 g) = 0.237 mW/g; SAR(10 g) = 0.158 mW/g Maximum value of SAR (measured) = 0.297 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/20 P605 LTE4_QPSK_10M_Horizontal Up _0.5cm_Ch20000_1RB_Offset 49 DUT: 120723C17 Communication System: LTE; Frequency: 1715 MHz;Duty Cycle: 1:1 Medium: B1750_0820 Medium parameters used: f = 1715 MHz; σ = 1.434 mho/m; ε r = 53.768; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(7.49, 7.49, 7.49); Calibrated: 2011/10/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch20000/Area Scan (31x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.917 W/kg Ch20000/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.492 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.927 mW/g SAR(1 g) = 0.605 mW/g; SAR(10 g) = 0.374 mW/g Maximum value of SAR (measured) = 0.776 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/08 P201 LTE12_QPSK_10M_Horizontal Up _0.5cm_Ch23060_25RB_Offset 12 DUT: 120723C17 Communication System: LTE; Frequency: 704 MHz;Duty Cycle: 1:1 Medium: B750_0808 Medium parameters used: f = 704 MHz; σ = 0.927 mho/m; ε r = 55.631; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0Issued Date : Aug. 30, 2012 Report No. : SA991230C03AReference No.: 120723C17 Revision : R01 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 24 Report No. : SA991230C03A Reference No.: 120723C17 Issued Date : Aug. 30, 2012 Revision : R01 Variant FCC SAR Test Report Report No. : SA991230C03A Applicant : BANDRICH INC. Address : 6F., No. 71, Zhouzi St., Neihu Dist., Taipei City 11493, Taiwan (R.O.C.) Product : LTE USB Modem FCC ID : UZI-C505A Brand : BandLuxe Model No. : C505A Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 447498 D01 v04 / KDB 447498 D02 v02 / KDB 941225 D01 v02 KDB 941225 D05 v01 Date of Testing : Aug. 08, 2012 ~ Aug. 20, 2012 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. This report is issued as a supplementary report of BV ADT report no.: SA991230C03. The difference compared with the original SAR report is adding LTE band 12 capability, and remove RF components for GPRS/EDGE. Prepared By : Andrea Hsia / Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 24 Report No. : SA991230C03A Reference No.: 120723C17 Issued Date : Aug. 30, 2012 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ................................................................................................................ 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 12 3.4 SAR Measurement Procedure ................................................................................................................................... 13 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 13 3.4.2 Volume Scan Procedure................................................................................................................................... 13 3.4.3 Power Drift Monitoring ............................................................…

Text truncated - open the document above for the full version.

Report No.: RF991230C03A 1 of 30 Report Format Version 5.0.0 Reference No.: 991230C03, 120723C17 FCC TEST REPORT (PART 22) REPORT NO.: RF991230C03A MODEL NO.: C505A FCC ID: UZI-C505A RECEIVED: Dec. 30, 2010 TESTED: Jan. 05 ~ Jan. 09, 2011 ISSUED: Aug. 20, 2012 APPLICANT: BandRich Inc. ADDRESS: 6F., No. 71, Zhouzi St., Neihu Dist., Taipei City 11493, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF991230C03A 2 of 30 Report Format Version 5.0.0 Reference No.: 991230C03, 120723C17 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................. 3 1 CERTIFICATION ........................................................................................................ 4 2 SUMMARY OF TEST RESULTS ................................................................................ 5 2.1 MEASUREMENT UNCERTAINTY ............................................................................. 5 2.2 TEST SITE AND INSTRUMENTS .............................................................................. 6 3 GENERAL INFORMATION ......................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ........................................................................... 7 3.2 CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 8 3.3 DESCRIPTION OF SUPPORT UNITS ....................................................................... 8 3.4 TEST ITEM AND TEST CONFIGURATION ............................................................... 9 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 9 4 TEST TYPES AND RESULTS .................................................................................. 10 4.1 OUTPUT POWER MEASUREMENT ....................................................................... 10 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ..................................................... 10 4.1.2 TEST PROCEDURES .............................................................................................. 10 4.1.3 TEST SETUP ........................................................................................................... 11 4.1.4 TEST RESULTS ....................................................................................................... 12 4.2 FREQUENCY STABILITY MEASUREMENT ........................................................... 13 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT ........................................ 13 4.2.2 TEST PROCEDURE ................................................................................................ 13 4.2.3 TEST SETUP ........................................................................................................... 13 4.2.4 TEST RESULTS ....................................................................................................... 14 4.3 OCCUPIED BANDWIDTH MEASUREMENT ........................................................... 15 4.3.1 LIMITS OF OCCUPIED BANDWIDTH MEASUREMENT ........................................ 15 4.3.2 TEST SETUP ........................................................................................................... 15 4.3.3 TEST RESULTS ....................................................................................................... 16 4.4 BAND EDGE MEASUREMENT ............................................................................... 17 4.4.1 LIMITS OF BAND EDGE MEASUREMENT ............................................................. 17 4.4.2 TEST SETUP ........................................................................................................... 17 4.4.3 TEST PROCEDURES .............................................................................................. 17 4.4.4 TEST RESULTS ....................................................................................................... 18 4.5 CONDUCTED S…

Text truncated - open the document above for the full version.
