V24241Small size 2.4GHz wireless transceiver module

Document Number DS170-L0704-02 January 2008 （rev.1.0） Small size 2.4GHz wireless transceiver module 「TY24FM-E2024-01」 The TY24FM-E2024-01 is a 2.4GHz Low power wireless transceiver module. The module contains all required hardware and software to evaluate and develop wireless communication based on IEEE 802.15.4 PHY. Product Photo ＜ Feature＞ ・ Integrated by MCU, RF circuits, antenna ・ Communicated by the functions of device detect and data transmission ・ Based on IEEE802.15.4.PHY ・ 1:N communication style ・ Controlled by UART I/F ・ Low power sleep mode ・ DC3.0V supply voltage ・ Certified CE, and FCC, Japan Radio Law E2022 E2024 Document Number DS170-L0704-02 January 2008 （rev.1.0） ＜Specification＞ Product name TY24FM-E2024-01 Carrier frequency 2400ＭＨｚ～2483.5ＭＨｚ （16 channel） Communication protocol Original protocol Modulation DS-SS (Direct Sequence Spectrum Spread) Wireless bit rate Maximum 250Kbps （Subject to the communication environment） Transmit Power Maximum 1mW (At the feeding point of the antenna) Transmit Distance About 40m （Reference value） Interface ・Serial communication Baud rate : Maximum 38.4kbps Data length: 8bit Parity: no parity Stop: 1stop bit Flow control: no flow control Supply Voltage ・DC 3.0V (Recommended) Current Consumption ・TX: Typ. 41mA ・RX: Typ. 43mA ・Sleep Mode : Typ. 3uA (power-supply voltage DC 3.0Ｖ) Operating conditions ・Operating temperature range：-15°C～+70°C ・Operating humidity range：85%RH or less （No do be dewy） Weight About 2g Dimensions 27.8mm×16.2mm×3.9mm （D×W×H） Restrictions RoHS-Compliant (Pb free) Radio Law Japan Radio Law, CE, and FCC certification Document Number DS170-L0704-02 January 2008 （rev.1.0） ＜FCC statement＞ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifications not expressly approved by NEC Engineering, Ltd. could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Radiofrequency radiation exposure Information: The radiated output power of the device is far below the FCC radio frequency exposure limits. Nevertheless, the device shall be used in such a manner that the potential for human contact during normal operation is minimized. Document Number DS170-L0704-02 January 2008 （rev.1.0） ＜output I/F connector＞ connector type ： Stacking connector 20pin 0.5mm pitch product name ： JST 20R-JMCS-G-TF(NSA) Receptacle Signal level ：CMOS Customer ： Recommended connector JST 20P3.0-JMCS-G-TF(N) Plug Stacking height 3mm ・Module pin definitions Pin No. Pin name Type Definition State of reset Detail 1 VCC power Power － DC3.0Ｖ(Recommend power supply voltage) 2 GND GND GND － 3 TxD OUT UART data transmit HiZ 4 RxD IN UART data receive HiZ Internal Pullup 5 WAKEUP IN WAKEUP input － Sleep mode enable = High /disable = Low input 6 RESET IN RESET input － RESET Low input 7 Reserve － Reserve － n.c 8 Reserve － Reserve － n.c 9 Reserve － Reserve － n.c 10 Reserve － Reserve － n.c 11 VCC power power － DC3.0Ｖ(Recommend power supply voltage) 12 GND GND GND － 13 GND GND GND － 14 Reserve － Reserve － n.c 15 Reserve － Reserve － n.c 16 Reserve － Reserve － n.c 17 Reserve － Reserve － n.c 18 Reserve － Reserve － n.c 19 MODE OUT Mode output － Normal mode = Low / sleep mode =High output 20 GND GND GND － Document Number DS170-L0704-02 January 2008 （rev.1.0） ＜Dimensions＞ unit：mm Document Number DS170-L0704-02 January 2008 （rev.1.0） ＜Installation＞ ＮＥＣ Ｅｎｇｉｎｅｅｒｉｎｇ，Ｌｔｄ. General inquiries Sales&Marketing Division 4-10-27 Higashishinagawa Shinagawa-ku Tokyo 140-0002 Japan TEL: +81 3 6713 1230 URL http://www.nec-eng.com/ Contact

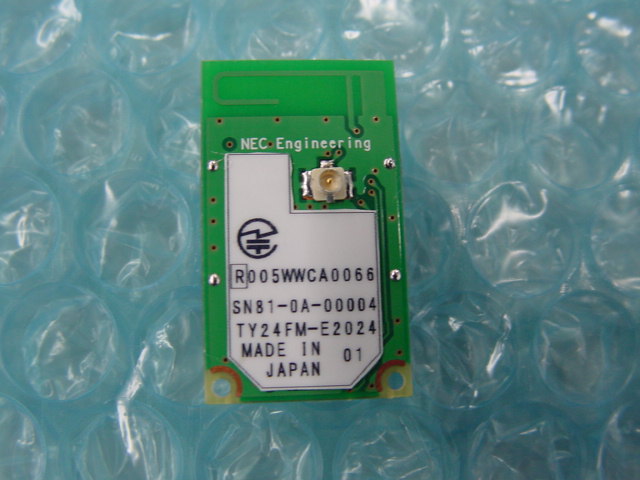

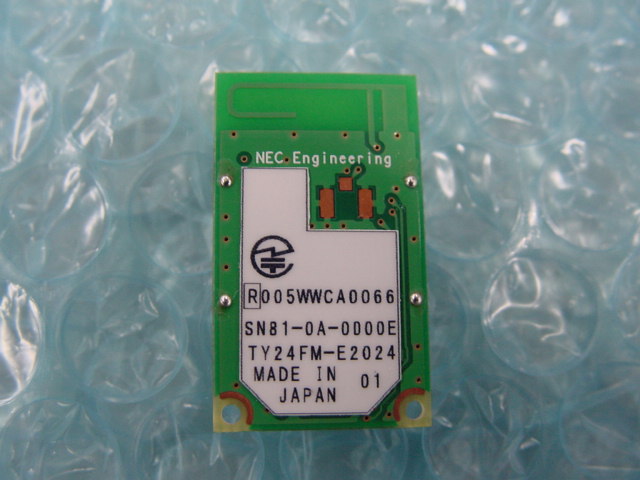

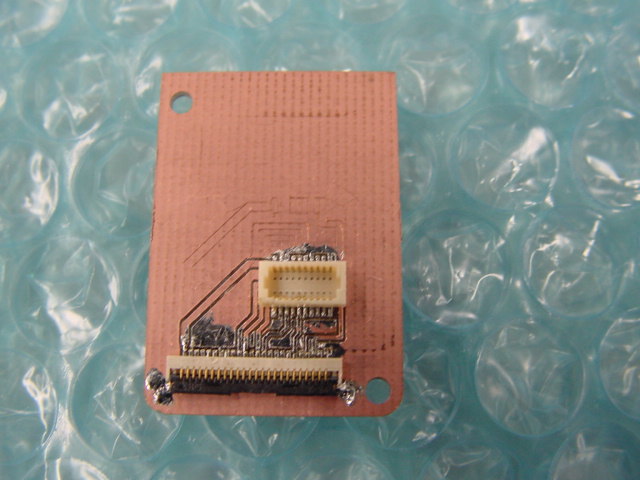

Bluetooth Qualification Test Facility (BQTF) FCC listed: A2LA accredited IC recognized # 3462B CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM EUT External Photos FCC Part 15.247 FOR: NEC Engineering, Ltd 1753, Shimonumabe Nakahara-ku Kawasaki, Kanagawa 211-8666 Japan MODEL #: TY24FM-E2024-01 FCC ID: V24241 TEST REPORT #: EMC_CET10_020_15.247 DATE: 2008-3-3 Test Report #: EMC_CET10_020_15.247 Date of Report : 2008-3-3 Page 2 of 8 TABLE OF CONTENTS 1 Assessment_____________________________________________________________________ 3 2 EUT Photos ____________________________________________________________________ 4 2.1 EUT Top_________________________________________________________________________ 4 2.2 EUT Bottom, conducted unit. _______________________________________________________ 5 2.3 EUT Bottom, radiated unit__________________________________________________________ 6 2.4 Interface Board ___________________________________________________________________ 7 2.5 Adaptor Board____________________________________________________________________ 8 Test Report #: EMC_CET10_020_15.247 Date of Report : 2008-3-3 Page 3 of 8 1 Assessment The following is in compliance with the applicable criteria specified in FCC rules Part 15.247 of the Code of Federal Regulations. Company Model # NEC Engineering, Ltd TY24FM-E2024-01 This report is prepared by: 2008-3-3 EMC & Radio Peter Mu (EMC Project Engineer) Date Section Name Signature The test results of this test report relate exclusively to the test item specified in Identification of the Equipment under Test. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. Test Report #: EMC_CET10_020_15.247 Date of Report : 2008-3-3 Page 4 of 8 2 EUT Photos 2.1 EUT Top Test Report #: EMC_CET10_020_15.247 Date of Report : 2008-3-3 Page 5 of 8 2.2 EUT Bottom, conducted unit. Test Report #: EMC_CET10_020_15.247 Date of Report : 2008-3-3 Page 6 of 8 2.3 EUT Bottom, radiated unit Test Report #: EMC_CET10_020_15.247 Date of Report : 2008-3-3 Page 7 of 8 2.4 Interface Board Test Report #: EMC_CET10_020_15.247 Date of Report : 2008-3-3 Page 8 of 8 2.5 Adaptor Board

１６．２ ａｎｔｅｎｎａ ｓｔａｃｋｉｎｇ ｈｉｇｈｔ ３ｍｍ ２．９ １ ｓｉｄｅ ｖｉｅｗ ｔｏｐ ｖｉｅｗ １４．４１３．６ ２７．８ ６１６．３ １．３ ２－φ１．４ ２．８５ ｃａｐ ２０ｐｉｎ ｓｔａｃｋｉｎｇ ｃｏｎｎｅｃｔｏｒ Ｅｎｇｉｎｅｅｒｉｎｇ ＮＥＣ ｂｏｔｔｏｍ ｖｉｅｗ ｓｉｌｋ ｓｏｌｄｅｒ（４ｐ） ｌａｂｅｌ ＴＹ２４ＦＭ－Ｅ２０２４ ＦＣＣＩＤ：Ｖ２４２４１ Ｒ００５ＷＷＣＡ００６６ ＭＡＤＥ ＩＮ ＪＡＰＡＮ ０１ ０６８２ ＳＮ＊＊－＊＊－＊＊＊＊＊

Bluetooth Qualification Test Facility (BQTF) FCC listed: A2LA accredited IC recognized # 3462B CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM Test Report FCC Part 15.247 FOR: NEC Engineering, Ltd 1753, Shimonumabe Nakahara-ku Kawasaki, Kanagawa 211-8666 Japan MODEL #: TY24FM-E2024-01 FCC ID: V24241 TEST REPORT #: EMC_CET10_020_15.247 DATE: 2008-3-3 Test Report #: EMC_CET10_020_15.247 Date of Report : 2008-3-3 Page 2 of 44 TABLE OF CONTENTS 1 Assessment_____________________________________________________________________ 3 2 Administrative Data _____________________________________________________________ 4 2.1 Identification of the Testing Laboratory Issuing the EMC Test Report _____________________ 4 2.2 Identification of the Client __________________________________________________________ 4 2.3 Identification of the Manufacturer ___________________________________________________ 4 3 Equipment Under Test (EUT) _____________________________________________________ 5 3.1 Specification of the Equipment under Test_____________________________________________ 5 3.2 Identification of the Equipment under Test (EUT) ______________________________________ 5 3.3 Identification of Accessory equipment ________________________________________________ 5 4 Subject Of Investigation __________________________________________________________ 6 5 Measurements (RADIATED) ______________________________________________________ 7 5.1 MAXIMUM PEAK OUTPUT POWER § 15.247 (RADIATED) ___________________________ 7 5.1.1 LIMIT SUB CLAUSE § 15.247 (b) (1) (2) (3) (4)_______________________________________________ 7 5.1.2 Test Results_____________________________________________________________________________ 7 5.2 RESTRICTED BAND EDGE COMPLIANCE RADIATED §15.247/15.205 ________________ 11 5.2.1 LIMITS _______________________________________________________________________________ 11 5.2.2 RESULTS: ____________________________________________________________________________ 12 5.3 TRANSMITTER SPURIOUS EMISSIONS RADIATED § 15.247/15.205/15.209 ____________ 16 5.3.1 LIMITS _______________________________________________________________________________ 16 5.3.2 RESULTS _____________________________________________________________________________ 17 6 Measurements (CONDUCTED) ___________________________________________________ 26 6.1 MAXIMUM PEAK OUTPUT POWER § 15.247 (CONDUCTED) ________________________ 26 6.1.1 LIMIT SUB CLAUSE § 15.247 (b) (1) ______________________________________________________ 26 6.1.2 RESULTS: ____________________________________________________________________________ 26 6.2 6dB BANDWIDTH _______________________________________________________________ 30 6.2.1 LIMIT SUB CLAUSE § 15.247 (a) (2) ______________________________________________________ 30 6.2.2 RESULTS: ____________________________________________________________________________ 30 6.3 POWER SPECTRAL DENSITY____________________________________________________ 34 6.3.1 LIMIT SUB CLAUSE § 15.247 5 (d) _______________________________________________________ 34 6.3.2 RESULTS: ____________________________________________________________________________ 34 6.4 CONDUCTED SPURIOUS EMISSION ______________________________________________ 38 6.4.1 LIMIT SUB CLAUSE § 15.247 (d) _________________________________________________________ 38 6.4.2 RESULTS: Tnom(23)°C VnomVDC ________________________________________________________ 38 7 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS ________________________ 41 8 BLOCK DIAGRAMS ___________________________________________________________ 42 9 Revision History. _______________________________________________________________ 44 Test Report #: EMC_CET10_020_15.247 Date of Report : 2008-3-3 Page 3 of 44 1 Assessment The following is in compliance with the applicable criteria specified in FCC rules Part 15.247 of the Code of Federal Regulations. Company Model # NEC Engineering, Ltd TY24FM-E2024-01 This report is reviewed by: 2008-3-3 EMC & Radio Lothar Schmidt (Director Regulatory and Antenna Services) Date Section Name Signature This report is prepared by: 2008-3-3 EMC & Radio Peter Mu (EMC Project Engineer) Date Section Name Signature The test results of this test report relate exclusively to the test item specified in Identification of the Equipment under Test. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. Test Report #: EMC_CET10_020_15.247 Date of Report : 2008-3-3 Page 4 of 44 2 Administrative Data 2.1 Identification of the Testing Laboratory Issuing the EMC Test Report Company Name: CETECOM Inc. Department: EMC Address: 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Telephone: +1 (408) 586 6200 Fax: +1 (408) 586 6299 Responsible Test Lab Manager: Lothar Schmidt Responsible Project Leader: Peter Mu Date of test: 2008-2-28 to 2008-3-3 2.2 Identification of the Client APPLICANT Applicant (Company Name) NEC Engineering, Ltd Street Address 1753, Shimonumabe Nakahara-ku City/Zip Code Kawasaki, Kanagawa 211-8666 Country Japan Contact Person Hiroyuki Fujimi Telephone +81-44-435-9626 Fax +81-44-435-9672 e-mail [email protected] 2.3 Identification of the Manufacturer Firm: NEC Computertechno,Ltd. Contact Person: Tsuyoshi Kato Telephone: +81-55-243-4172 Fax: +8…

Text truncated - open the document above for the full version.

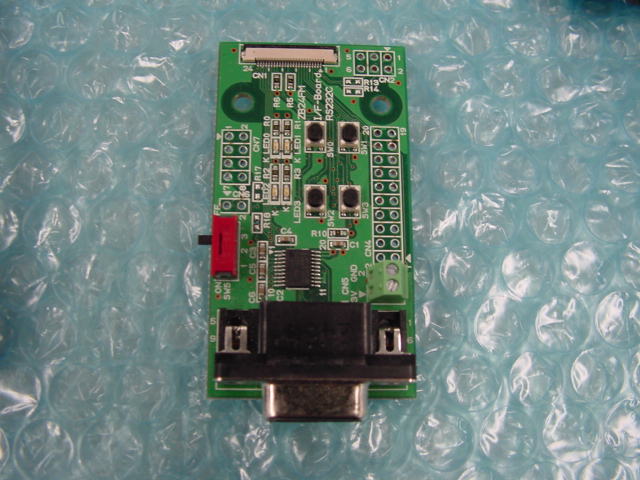

Bluetooth Qualification Test Facility (BQTF) FCC listed: A2LA accredited IC recognized # 3462B CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM Test Setup Photos FCC Part 15.247 FOR: NEC Engineering, Ltd 1753, Shimonumabe Nakahara-ku Kawasaki, Kanagawa 211-8666 Japan MODEL #: TY24FM-E2024-01 FCC ID: V24241 TEST REPORT #: EMC_CET10_020_15.247 DATE: 2008-3-3 Test Report #: EMC_CET10_020_15.247 Date of Report : 2008-3-3 Page 2 of 5 TABLE OF CONTENTS 1 Assessment_____________________________________________________________________ 3 2 Test Setup Photos _______________________________________________________________ 4 2.1 Radiated Spurious Emissions________________________________________________________ 4 2.2 Radiated Spurious Emissions________________________________________________________ 5 Test Report #: EMC_CET10_020_15.247 Date of Report : 2008-3-3 Page 3 of 5 1 Assessment The following is in compliance with the applicable criteria specified in FCC rules Part 15.247 of the Code of Federal Regulations. Company Model # NEC Engineering, Ltd TY24FM-E2024-01 This report is prepared by: 2008-3-3 EMC & Radio Peter Mu (EMC Project Engineer) Date Section Name Signature The test results of this test report relate exclusively to the test item specified in Identification of the Equipment under Test. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. Test Report #: EMC_CET10_020_15.247 Date of Report : 2008-3-3 Page 4 of 5 2 Test Setup Photos 2.1 Radiated Spurious Emissions Test Report #: EMC_CET10_020_15.247 Date of Report : 2008-3-3 Page 5 of 5 2.2 Radiated Spurious Emissions
