V242752.4 GHz Wireless Transceiver Module

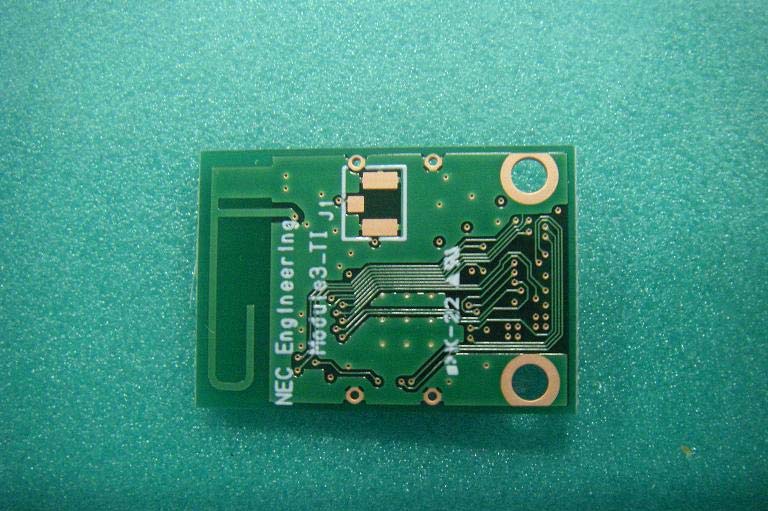

2.4GHz ZigBee® wireless transceiver module 「ZB24TM-Z2750」 The ZB24TM-Z2750 embedded RF modules provide wireless connectivity using the ZigBee PRO Feature Set. Product Photo ＜ Features＞ ・ Integrated by MCU, RF circuits, antenna ・ Communicated by the functions of device detect and data transmission ・ ZigBee mesh networking protocol ・ Controlled by UART I/F ・ Low power sleep mode only End Device ・ DC2.0-3.6V supply voltage ・ FCC certification, Japan Radio Law Document Number ＩＴ471-A0057-X309 July 2011（rev.1.0） Document Number ＩＴ471-A0057-X309 July 2011（rev.1.0） ＜Specifications＞ Product name ZB24TM-Z2750 Carrier frequency 2400ＭＨｚ～2483.5ＭＨｚ （16 channel） Communication protocol ZigBee2007® protocol using the ZigBee PRO Feature Set Modulation DS-SS (Direct Sequence Spectrum Spread) Wireless bit rate Maximum 250Kbps （Subject to the communication environment） Transmit Power Maximum 3mW (At the feeding point of the antenna) Effective range About 200m （Reference value） Interface ・UART serial communication Data length: 8bit Baud rate : 115.2kbps Parity: no parity Stop: 1stop bit Flow control: hardware (RTS/CTS) Supply Voltage ・2.0 - 3.6VDC Current Consumption ・TX: Typ. 34mA （2.5dBm）, Typ. 29mA （1dBm） ・RX: Typ. 24mA ・Sleep Mode : Typ. 1uA （End Device only） (power-supply voltage 3.0VDC) Operating conditions ・Operating temperature range：-10°C～+75°C ・Operating humidity range：85%RH or less （No do be dewy） Weight Aprox. 2g Dimensions 24mm×16.5mm×3.9mm （D×W×H） Restrictions RoHS-Compliant (Pb free) Reguration FCC certification, Japan Radio Law Document Number ＩＴ471-A0057-X309 July 2011（rev.1.0） ＜FCC statement＞ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifications not expressly approved by NEC Engineering, Ltd. could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Radiofrequency radiation exposure Information: The radiated output power of the device is far below the FCC radio frequency exposure limits. Nevertheless, the device shall be used in such a manner that the potential for human contact during normal operation is minimized. Document Number ＩＴ471-A0057-X309 July 2011（rev.1.0） ＜output I/F connector＞ Module connector type ： Stacking connector 20pin 0.5mm pitch product name ： JST 20R-JMCS-G-TF(NSA) Receptacle Signal level ： CMOS Connecting Device Product name ： JST 20P3.0-JMCS-G-TF(N) Plug(Recommended) Connector type ： Stacking connector 20pin 0.5mm pitch Stacking height ： Stacking height 3mm ・Module pin definitions Pin No. Pin name Type Definition State of reset Detail 1 VDD power Power － 3.0VDC(Recommended power supply voltage) 2 GND GND GND － 3 TxD OUT UART transmitted data HiZ 4 RxD IN UART received data HiZ 5 WAKEUP IN Reserved Hi Pull-up 6 RESET IN Reserved Hi Pull-up 7 SSN IN Reserved － 8 SCK IN/OUT Reserved － 9 MOSI IN/OUT LED4 － Internal pull-up 10 MISO IN/OUT LED3 － Internal pull-up 11 VDD power Power － 3.0VDC(Recommend power supply voltage) 12 GND GND GND － 13 GND GND GND － 14 CTS IN Clear to send － 15 RTS OUT Ready to send/LED1 － Internal pull-up 16 DBG_DC IN/OUT Reserved － 17 DBG_DD IN/OUT Reserved － 18 FCS IN/OUT Reserved － 19 MODE OUT LED2 Hi Pull-up 20 GND GND GND － ＜Dimensions＞ unit：mm 16.5 14.5 cap 20pin Staking connector ※Staking hight 3mm Top view Side view Contact ＮＥＣ Ｅｎｇｉｎｅｅｒｉｎｇ，Ｌｔｄ. General inquiries Sales&Marketing Division 4-10-27 Higashishinagawa Shinagawa-ku Tokyo 140-0002 Japan TEL: +81 3 6713 1200 URL http://www.nec.co.jp/solution/engsl/pro/zigbee/ Document Number ＩＴ471-A0057-X309 July 2011（rev.1.0）

ZB24TM-Z2750 FCCID:V24275 SN:***

Bluetooth Qualification Test Facility (BQTF) FCC listed A2LA Accredited IC recognized # 3462B CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Hans Peter May. V3.0 2010-10-30 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report FOR: Model Name: ZB24TM-Z2750 2.4GHz Zigbee wireless transceiver module FCC ID: V24275 47 CFR Part 15.247 for DSSS Systems TEST REPORT #: EMC_CET10_086_11001_15.247_Rev2 DATE: 2011-08-22 Test Report #: EMC_ CET10_086_11001_15.247_Rev2 FCC ID: V24275 Date of Report : 2011-08-22 Page 2 of 62 TABLE OF CONTENTS 1 Assessment ......................................................................................................................................... 4 2 Administrative Data .......................................................................................................................... 5 2.1 Identification of the Testing Laboratory Issuing the EMC Test Report ................................................... 5 2.2 Identification of the Client ........................................................................................................................ 5 2.3 Identification of the Manufacturer ............................................................................................................ 5 3 Equipment under Test (EUT) .......................................................................................................... 6 3.1 Specification of the Equipment under Test ............................................................................................... 6 3.2 Identification of the Equipment under Test (EUT) ................................................................................... 7 3.3 Identification of Accessory equipment ..................................................................................................... 7 4 Subject Of Investigation ................................................................................................................... 8 5 Summary of Measurement Results ................................................................................................. 9 6 Measurements .................................................................................................................................. 10 6.1 Radiated Measurement Procedure ........................................................................................................... 10 6.2 Conducted Measurement Procedure ....................................................................................................... 12 6.3 Maximum Peak Output Power ................................................................................................................ 13 6.3.1 References: ......................................................................................................................................... 13 6.3.2 Measurement requirements: ............................................................................................................... 13 6.3.3 Limits: ................................................................................................................................................. 13 6.3.4 Test Conditions: .................................................................................................................................. 13 6.3.5 Test Result: ......................................................................................................................................... 14 6.3.6 Test Data/plots: .................................................................................................................................. 15 6.4 Restricted Band Edge Compliance .......................................................................................................... 21 6.4.1 References: ......................................................................................................................................... 21 6.4.2 Limits: §15.247/15.205 ....................................................................................................................... 21 6.4.3 Measurement Procedure: ................................................................................................................... 21 6.4.4 Test Data/plots: .................................................................................................................................. 22 6.5 Occupied Bandwidth/ 20dB Bandwidth ................................................................................................. 26 6.5.1 References: ......................................................................................................................................... 26 6.5.2 Measurement requirements: ............................................................................................................... 26 6.5.3 Limits: ................................................................................................................................................. 26 6.5.4 Test Conditions: .................................................................................................................................. 26 6.5.5 Test Result: ......................................................................................................................................... 27 6.5.6 Test Data/plots: .................................................................................................................................. 28 6.6 Power Spectral Density ........................................................................................................................... 34 6.6.1 Limits: ............................…

Text truncated - open the document above for the full version.

V2.0 2009-10-30 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM Test Setup Pictures Model Name: ZB24TM-Z2750 FCC ID: V24275 TEST REPORT #: EMC_CET10_086_11001_TestSetup Project #: EMC_CET10_086_11001_TestSetup FCC ID: V24275 Date: 2011-08-22 Page 2 of 5 Radiated Spurious Emissions Test Setup Pictures 9kHz – 30 MHz Project #: EMC_CET10_086_11001_TestSetup FCC ID: V24275 Date: 2011-08-22 Page 3 of 5 30MHz-1GHz Project #: EMC_CET10_086_11001_TestSetup FCC ID: V24275 Date: 2011-08-22 Page 4 of 5 1-26GHz Project #: EMC_CET10_086_11001_TestSetup FCC ID: V24275 Date: 2011-08-22 Page 5 of 5 Line Conducted Emissions Test Setup Pictures
