V2S-RFC012.4g Wireless Remote

2.4ghz Remote Control User Manual How to pair? A: Put battery into the remote (2pcs AAA battery type) The First/furthest right LED will light up of 3 speeding-LED row Press and hold Pair/Stop button for a couple of seconds, once 4 LEDs blinking quickly, but still holding it, then to power the receiver box via 12V Power connector for a few seconds. The turning motor would shake once, then, it paired correctly.. How to change the speed? A:To press the “Speed Button”,you could adjust the speed between Speed1 and Speed3 Pressiing the button, LEDs will light up accordingly per speed level. Speed up: Speed1-Speed2-Speed3 Speed down: Speed3-Speed2-Speed1 How to stop in emergency condition? A: Press the Pair/stop button to stop is ok Sleeping Mode: A: The remote will go sleeping once NO operation for 15sec. To press any button to re-activate the device. Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. RF exposure warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.

C-M GLO, LLC 1201 North 4th Street, Watertown, WI 53098, USA ----------------------------------------------------------------------------------------------------------------------------------- Declaration of Authorization We Name: C-M GLO, LLC Address: 1201 North 4th Street, Watertown, WI 53098, USA Manufacturer: NINGBO YINZHOU JETECH ELECTRONICS CO., LTD Address: 3/F, B Dong, No 90, Lane 655, QiMing Road, NingBo, Zhejiang 315105, China Declare that: Name Representative of agent: Wu Jian Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: 2.4g Wireless Remote FCC ID: V2S-RFC01 Model: GT-RFC01, GT-RFC01-A Brand: N/A on our behalf. --------------------------------------------------- Signature: John D. Martin, President Date: 2014-07-24

C-M GLO, LLC 1201 North 4th Street, Watertown, WI 53098, USA ----------------------------------------------------------------------------------------------------------------------------------- Declaration We Name: C-M GLO, LLC Address: 1201 North 4th Street, Watertown, WI 53098, USA Manufacturer: NINGBO YINZHOU JETECH ELECTRONICS CO., LTD Address: 3/F, B Dong, No 90, Lane 655, QiMing Road, NingBo, Zhejiang 315105, Chin Declare, Product description: 2.4g Wireless Remote FCC ID: V2S-RFC01 Model: GT-RFC01, GT-RFC01-A Have no difference in interior, circuitry and layout. The only differences for marketing reasons are the model(s) names. --------------------------------------------------- Signature: John D. Martin, President Date: 2014-07-24

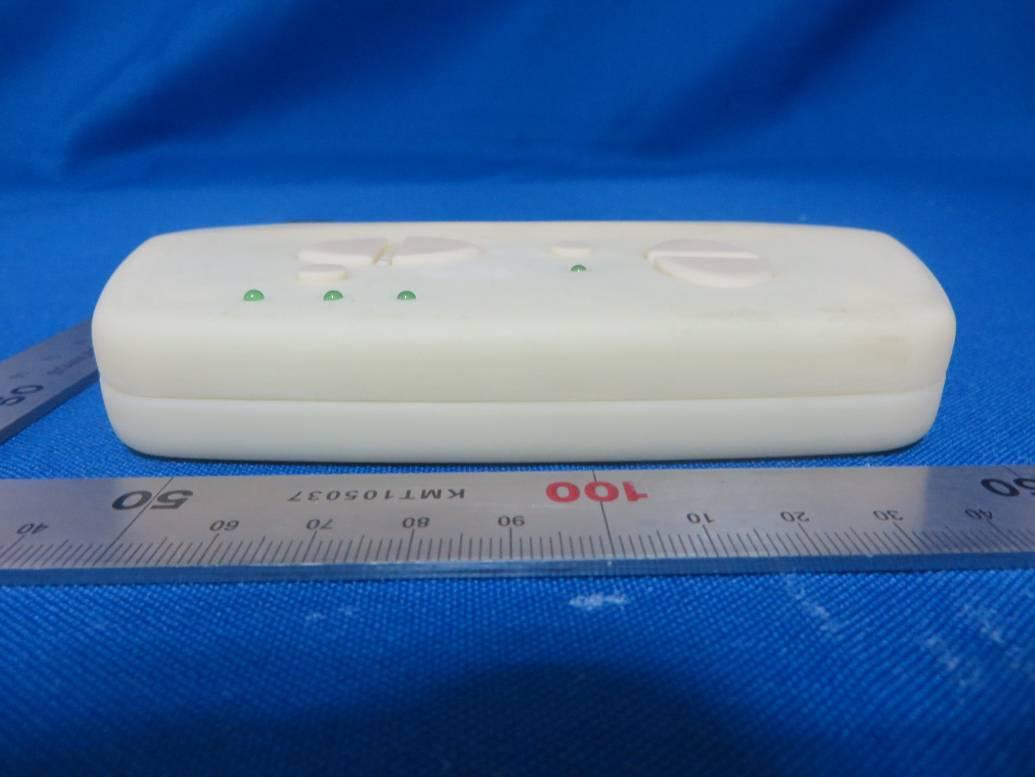

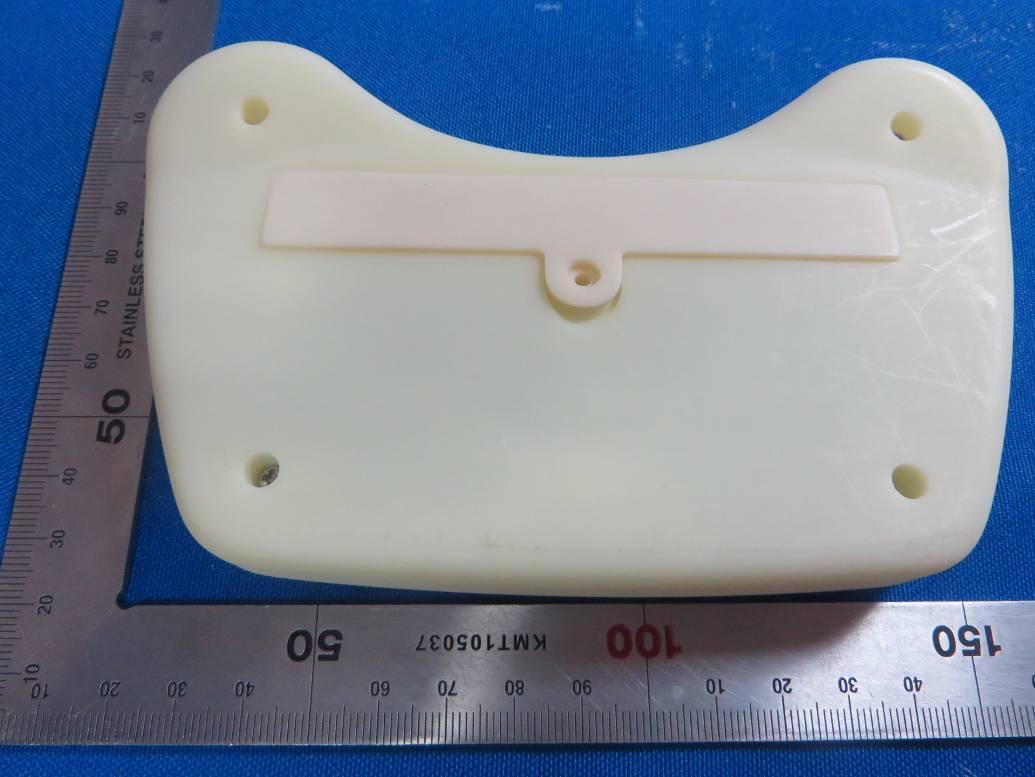

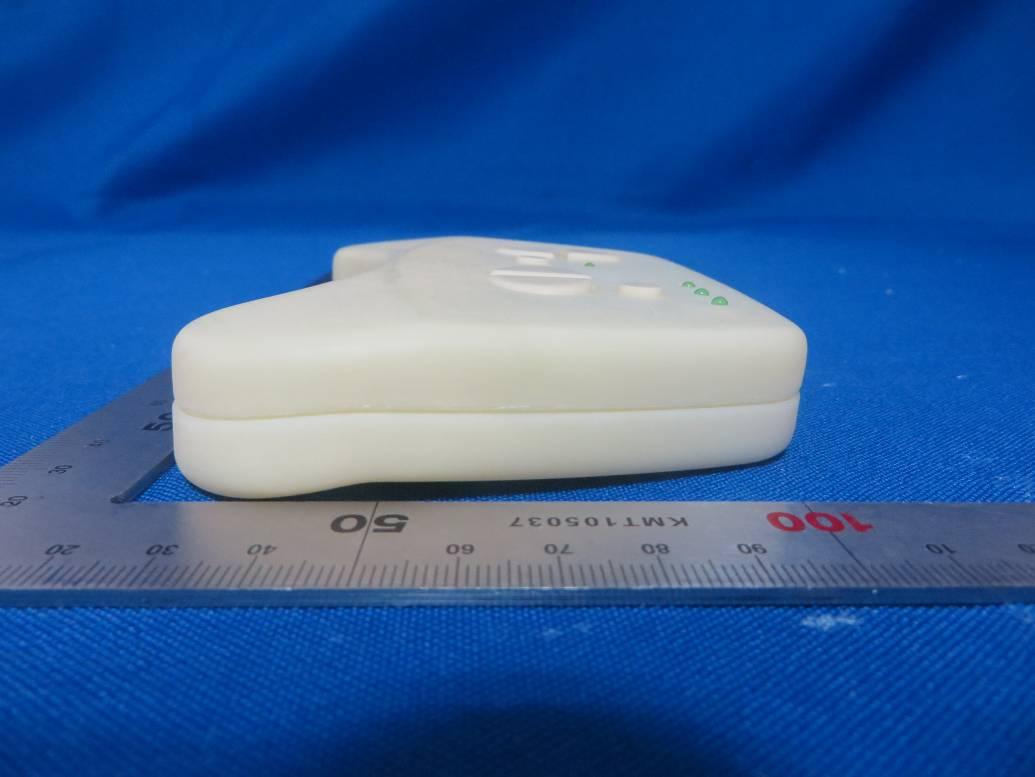

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo

Label Label Location RFC01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: V2S-RFC01
