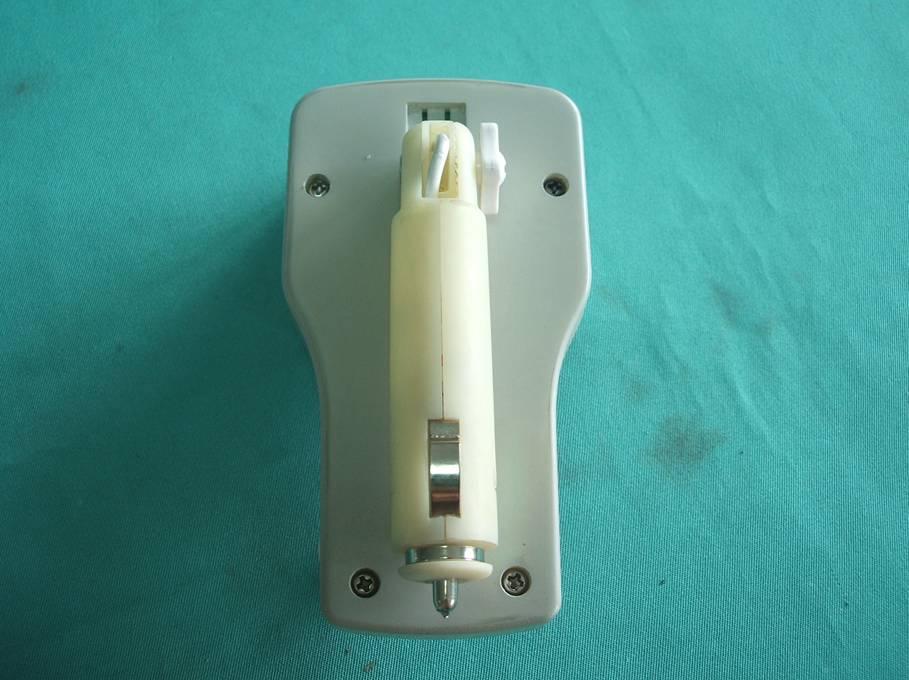

V3Y-ABTH08001FM TRANSMITTER

H08001 H08001 User Guide IMPORTANT INFORMATION REQUIRED BY THE FCC THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT Operation: 112V Turn On: Connects 12V DC power supply to cigarette lighter 2IPODibiza Connects to iPodHaier ibiza of media player or other sound sources 3(88.1MHz~107.9MHz) Press “Frequency Forward” button to choose the frequency ranging from 88.1MHz ~ 107.9MHz 4(88.1MHz~107.9MHz) Press “Frquency Backward” button to choose the frequency ranging from 88.1MHz ~ 107.9MHz 588.1MHz,88.9MHz,94.9MHz,107.9MHz Press “Preset Frequency” switch to changeover the frequency and start transmission (Preset Frequency: 88.1MHz,88.9MHz,94.9MHz,107.9MHz) 6LCD/LCD Press “LCD Backlit On/Off” button to turn on or turn off the backlit Overview Frequency Forward Frequency Backward LCD/ LCD Backlit On/Off Preset Frequency Switch Audio-in

Block Diagram PLL (U5) Master CMOS Chip (MCU1) Key-press scan Display Storage (U4) Transmit Circuit 88.1-107.9MHz X1 7.6Mhz Audio Input

1. How does the device Operate? Answer: Power is provided by DC 12V power source. Frequencies are selected by set key(Please see the user manual) on the EUT. Have a frequency range: 88.1- 107.9MHz are available. 2. Provide information on the device and its antenna. Answer: The antenna is a built-in trace on the circuit board. (please see the attached :user manual and circuit) 3. How is it installed? Answer: Connects 12V DC power supply to cigarette lighter. No other installation is required. 4. What test procedure was used? Answer: ANSI C63.4-2003. 5. If tested in a car, how was it configured? Answer: It was not tested in an automobile. It was tested in an 3 meter range as shown in the Test Set-Up photographs. 6. Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify the maximum tuning range. Answer: only 88.1, 98.1, 107.9MHz is available; Please see the test report (Page 6 of 11) and manual. 7. Was the bandwidth properly tested with the maximum audio input? The test lab should describe the audio input signal (use a typical audio file from a typical device) - DO NOT use 1kHz tone from signal generator as specified under ETSI EN 301 357-1) Answer: we played a song from iPod with the maximum audio input. 8. Does the device operate in a vehicle? Please state that this was verified. Answer: It was not test in a vehicle.

ALL BEST TECHNOLOGY LIMITED No.9.1 St Yincheng Rd., Yincheng Industrial Zone, Xiabian Village Changan Township, Dongguan City, Guangdong China FCC ID: V3Y-ABTH08001 Power of Attorney 2008-03-04 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road To Whom It May Concern: We, the undersigned, hereby authorize Most Technology Service Co., Ltd.(Mark Wen/General Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Most Technology Service Co., Ltd.(Mark Wen/General Manager) on our behalf shall have the same effect as acts of our own. This authorization will expire on Mar. 04, 2009. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, ALL BEST TECHNOLOGY LIMITED are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely ALL BEST TECHNOLOGY LIMITED Chen Jack (General manager)

LABEL LOCATION

Label Drawing FCC ID: V3Y-ABTH08001 Model Number: S88-H08001-XX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Circuit Description of transmitter 1. Audio signal input to MCU1; 2. After MCU1 stereo modulated, signal input to FM transmitter circuit; 3. MCU1 control PLL IC U5 to set the frequency. 4. Setup parameters will saved by Storage IC U4. 5. The Frequency range is: 88.1-107.9MHZ. 6. Power supply: DC 12V power supply or Car’s power source 7. Antenna is printing antenna.

APPROVED BY: CHECKED BY: DRAWN BY: FINISH : MATERIAL : DATE:08-2-20 DATE:08-2-20 DATE:08-2-20 DWG.NO.: SHEET 1 OF 1 PART NO.: MODEL: H08001 REV.: DESCRIPTION : 02D/E SCHEMATIC OF H08001 123456789 1011 1213141516171819202122 U8 BH1415F R78 0 C66 2200P C63150P C45 10uF C59 15P C60 15P C57 15P C77 1000P C64150P C67 2200P C21 104 C71C72C73 C88 27P C46 10uF C85 103 C47 10uF C58 15P R80 0 R83 100 R88 390 R84 100 R79 0 R86 10 R87 300 R51 10K R9 47 R10 47 R11 47 R81 39K C80 10uF C79 10uF C78 47uF C89 100uF Y1 7.6M D10 KV-1471E L9 L L15 FEM10C-3F6 L10 L C44 10uF C69C84 10P C74C75 C76 1000P C81 0.047u C83 33P C68 C82 22P C70 R82 100 R77 20K R52 10K R74 3.3K R75 3.3K R76 20K R50 10K R85 10 1 2 3 U9 2SC2062S NAT L OUT R OUT R69 2.2K C87 27P R56 3K R55 3K R70 12K R48 10K R57 27K C42 10uF C61 150P C62 150p U3-7 L OUT R71 12K R58 27K C43 10uF R OUT R OUT1 R OUT2 L OUT2 L OUT1 Vr V1 R OUT2 L OUT2 C39 10uF 1234 5678 U2 D72C C11 104 C30 100PF C29 100PF C28 100PF C25 100PF C41 10uF 10uF C26 100PF C40 10uF R34 100K R13 47k R12 47k R30 100k R33 100K R31 100k R32 100k R36 100KR35 100k R29 100k L7 L L8 L L6 L C27 100PF Vr V1 1234 5678 U4 D72C C14 104 R40 10k R43 10k R45 10K R41 10k R46 10K R47 10k R44 10k AUDIO IN1 Vr V1 R OUT1 L OUT1 C3510uF 1234 5678 U3 D72C C12 104 C33 100PF C24 100PF C32 100PF C22 100PF C37 10uF 10uF C31 100PF C36 10uF R27 100K R15 47k R14 47k R23 100k R26100K R24 100k R25 100k R28 100K R38 180k R22 100k L3 L L4 L L2 L C23 100PF C2 470uF/25V D3 4004 D1 1N4148 D6 4004 D7 4004 D2 1N4148 D5 4004 D4 4004 C4 104 C8 104 C3 470uF/25V C1 470uF/25VV C48 47uF/25V L11L12 C9 104 C50 100P C5 104 C6 104 VCHARGE 1 2 3 U1 YG317 R1 8.2K R4 2.7K R5 47 L5 L C7 104 V2 V1 L1 22uH 1 2 J1 VCC D8 1N914 R42 10K R54 270 R39 10K R37 100K R53 33K R16 47K C10 104 C54 0.47uF 1234 5678 U5 AP358 C49 47uF/35 U2-7 V1 Vr U3-7 VCHARGE ENCLOCKDATA Vfm Vfm C65 47uF/35V C5615P C51100P C13 104 C19 104 R66 4.7K R20 47K R3 1K 1234567 891011121314 U7 EM78P153S Q2 1623 Q1 2301 R6 47 R7 47 R8 47 R64 4.7K R65 4.7K R63 4.7K R68 2.2K R62 4.7K D9 1N914 S1 UP S2 LED ON/OFF U2-7 V2 LCD_DATA LCD_CLOCK LCD_EN EN CLOCK DATA L144R7K L13 4R7K C18 104 C53100P C20104 C52 100P Vlcd Vfm LCD_LED S4 DOWN S3 P 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 LCD 1 2 3 4 5 6 7 8 9 10 11 12 1314 15 16 17 18 19 20 21 22 23 24 25 26 IC17212A R67 4.7K C84 104 1 2 34 5 U10 A33A C85 104 C86 2.2uF Vlcd LCD_DATA LCD_CLOCK LCD_EN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 I Pod 1 CON30 R2 1K 3.3V J1-2 R72 0.1 R73 1M R60 470K R49 10K R61 36K R21 47K C17 104 C55 0.47uF 1234 5678 U6 393 J1-2 V1 3.3V R17 47K R19 47K R59 820 C15 104 R18 47K C16 104 J1-3J1-4 J1-3 J1-4 NAT C86 103

MOST TECHNOLOGY SERVICE CO., LTD. Tel:(86) 755-86170306 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: ALL BEST TECHNOLOGY LIMITED FCC ID: V3Y-ABTH08001 Cover Sheet Test Report Product Name: FM TRANSMITTER FCC ID: V3Y-ABTH08001 Model No.: S88-H08001-XX Applicant: ALL BEST TECHNOLOGY LIMITED No.9.1 St Yincheng Rd., Yincheng Industrial Zone, Xiabian Village Changan Township, Dongguan City, Guangdong China Date Received: 03/17/2008 Date Tested: 03/20/2008 MOST TECHNOLOGY SERVICE CO., LTD. Tel:(86) 755-86170306 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: ALL BEST TECHNOLOGY LIMITED FCC ID: V3Y-ABTH08001 TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: ALL BEST TECHNOLOGY LIMITED FCC ID: V3Y-ABTH08001 TEST REPORT CONTAINING: PAGE 1...........TEST EQUIPMENT LIST PAGE 2...........TEST PROCEDURE PAGE 3-5.........RADIATION INTERFERENCE TEST DATA PAGE 6-9.........OCCUPIED BANDWIDTH AND PLOTS EXHIBIT INCLUDED: PAGE 1...........BLOCK DIAGRAM PAGE 2...........SCHEMATIC PAGE 3...........USERS MANUAL PAGE 4...........LABEL SAMPLE PAGE 5...........LABEL LOCATION PAGE 6...........EXTERNAL PHOTOGRAPHS PAGE 7...........INTERNAL PHOTOGRAPHS PAGE 8...........OPERATIONAL DESCRIPTION PAGE 9...........TEST SET UP PHOTOGRAPHS MOST TECHNOLOGY SERVICE CO., LTD. Tel:(86) 755-86170306 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: ALL BEST TECHNOLOGY LIMITED FCC ID: V3Y-ABTH08001 Page 1 of 9 EMC Equipment List Remark: Test Firm Name: Most Technology Service Co., Ltd. Test Firm Address: No. 5, 2nd Langshan Road, North District, Hi-tech Industrial Park,Nanshan, Shenzhen, Guangdong, China FCC Registered Test Site Number: 490827 Equipment Manufacturer Model No.Serial No.Last Cal. Cal. Interval EMI Test Receiver ROHDE&SCHWARZ ESCI 100492 Apr 06,2007 1 Year LISN ROHDE&SCHWARZ ENV216 100093 Apr 06,2007 1Year EMI Test Receiver ROHDE&SCHWARZ ESCI 101202 Apr 06,2007 1 Year Spectrum Analyzer ANRITSU MS2651B 6200238316 Apr 06,2007 1 Year 50Ω Coaxial Switch ANRITSU CORP MP59B 6200283933 Apr 06,2007 1 Year Bilog Antenna Sunol JB3 A121206 Apr 06,2007 1 Year Horn Antenna EMCO 3115 640201028-0 6 Apr 06,2007 1 Year 50Ω Coaxial Switch ANRITSU CORP MP59B 6200283933 Apr 06,2007 1 Year Cable Resenberger N/A NO.1 Apr 06,2007 1 Year Cable SCHWARZBECK N/A NO.2 Apr 06,2007 1 Year Cable SCHWARZBECK N/A NO.3 Apr 06,2007 1 Year Single Phase Power Line Filter Kikusui LIN40MA-PC R-L LM002352 Apr 06,2007 1Year AC Power Source Kikusui AC40MA LM003232 Apr 06,2007 1Year Test analyzer Kikusui KHA1000 LM003720 Apr 06,2007 1Year ESD Tester Kikusui KES4021 LM003537 Apr 08,2007 1 Year Signal Generator IFR 2032 203002/100 Apr 08,2007 1 Year Amplifier A&R 150W1000 301584 NCR NCR Dual Directional Coupler A&R DC6080 301508 Apr 06,2007 1 Year Power Head A&R PH2000 301193 Apr 06,2007 1 Year Power Meter A&R PM2002 302799 Apr 06,2007 1 Year Field Monitor A&R FM5004 300329 Apr 06,2007 1 Year Field Probe A&R FP5000 300221 Apr 06,2007 1 Year EMCPRO System EM Test UCS-500-M4 V064810202 6 Apr 06,2007 1 Year EMCPRO System EM Test UCS-500-M4 V064810202 6 Apr 06,2007 1 Year MOST TECHNOLOGY SERVICE CO., LTD. Tel:(86) 755-86170306 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: ALL BEST TECHNOLOGY LIMITED FCC ID: V3Y-ABTH08001 Page 2 of 9 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of MOST TECHNOLOGY SERVICE CO., LTD. The EUT was transmitting a test signal during the testing. POWER LINE CONDUCTED INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a 50ｕH LISN. Both Lines were observed. The bandwidth of the receiver was 10kHz with an appropriate sweep speed. The ambient temperature of the EUT was 25 °C with a humidity of 58%. RADIATION INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a ANRITSU spectrum analyzer with a pre-selector. The analyzer was calibrated in dB above a micro volt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. The ambient temperature of the EUT was 25 °C with a humidity of 58%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer and cable loss. The antenna correction factors and cable loss are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF + CABLE = FS 33 20 dBuV + 10.36 dB + 0.9 dB= 31.26 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The EUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The EUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the highest readings were converted to average readings based on the duration of "ON" time. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSI Standard C63.4-2003 10.1.7 with the EUT 40 cm from the vertical ground wall. MOST TECHNOLOGY SERVICE CO., LTD. Tel:(86) 755-86170306 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: ALL BEST TECHNOLOGY LIMITED FCC ID: V3Y-ABTH08001 Page 3 of 9 APPLICANT: ALL BEST TECHNOLOGY LIMITED FCC ID: V3Y-ABTH08001 NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: …
