V4NUC193CDMA 1xEVDO PCS Band USB Modem

CDMA 1X EV-DO Module M893 User’s Guide YISO Wireless Co., Ltd 0Propretary & Confidential UC193 User’s Guide YISO Wireless CO., LTD. 4F, Gold, 217, Yangjae-dong, Seocho-Gu, Seoul, Korea, 137-894 Tel : 070-7019-8461 www.yisowireless.com CDMA 1X EV-DO Module UC193 User’s Guide YISO Wireless Co., Ltd 1Propretary & Confidential 1. A Summery 1.1 Document Contents 1.2 Revision History 1.3 Pictures of Product 2. Block Diagram 3. Specification 3.1 General Specifications 3.2 Electrical Specifications 3.3 Structure Specifications Contents CDMA 1X EV-DO Module UC193 User’s Guide YISO Wireless Co., Ltd 2Propretary & Confidential 1. A Summary 1.1 Document Contents This document is a summary of UC193(one of YISO’s wireless modem)’s hardware and software specifications. Contents are as followings. zProduct summary and features : Describes about the UC193’s main features and provide pictures of product. zSpecification : Describes about the Environment specifications, Hardware, Software and Mechanism specifications. 1.2 Revision History Initial ReleaseDecember 28, 2007V1.0 DescriptionsDateVersion 1.3 Pictures of Product zUC193 Modem CDMA 1X EV-DO Module UC193 User’s Guide YISO Wireless Co., Ltd 4Propretary & Confidential 3. Specifications 3.1 General Specifications 3.1.1 Environmental zRelative Humidity : 5%~95% zStorage Temperature : -30 °C ~ 60 °C zOperation Temperature : -20 °C ~ +50 °C zVibration Stability : 1.5G peak 5 to 500Hz 3.1.2 Hardware zCDMA Protocol : CDMA 1x-EVDO zPower Consumption : 5V/500mA (Max Power) zIF Receiving Chip : RFL6000, RFR6000 zIF Transfer Chip : RFT6100 zChipset : Qualcomm MSM6500 zInterface ™Mini-USB 3.1.3 Software zData Service : IS-878P1,P2 and IS-835-B zBaud Rate ™DM : Default 230,400bps (variable) zTransmitting ™Forward-2.4Mbps ™Reverse-153.6kbps zSMS (IS-637) : MO,MT Support zNAM : 5 NAM zProduct Support Tool : PST zDM : Qualcomm CAIT CDMA 1X EV-DO Module UC193 User’s Guide YISO Wireless Co., Ltd 5Propretary & Confidential 3.2 Electronic Specifications 3.2.1 Transmitter zType of Multiplexing : Duplexer zNormal Output Power : 0.W zFrequency Range : 1851.25 ~ 1908.75MHz (USPCS) zFrequency Stability : Under defined Freq. ±150Hz(USPCS) zChannel : 42ch(USPCS) zChannel Spacing : 1.25MHz(USPCS) zOccupied Frequency Bandwidth : Below 1.25MHz zOscillation Method : PLL SYNTHESIZER zLocal Oscillation Frequency : 1720.87 ~ 1778.37MHz(USPCS) zAntenna Impedance : 50 ohm 3.2.2 Receive Specifications zReceive Method : Zero IF zFrequency Range : 1931.25 ~ 1988.75MHz(USPCS) zChannel : 42ch(USPCS) zChannel Spacing : 1.25MHz(USPCS) zOccupied Frequency Bandwidth : Below 1.25MHz zOscillation Method : PLL SYNTHESIZER zLocal Oscillation Frequency : 1720.87 ~ 1778.37MHz (USPCS) zAntenna Impedance : 50Ω CDMA 1X EV-DO Module UC193 User’s Guide YISO Wireless Co., Ltd 6Propretary & Confidential 3.3 Mechanical zDimension : 40 X 84 X 14(mm) zMechanical Drawing CDMA 1X EV-DO Module UC193 User’s Guide YISO Wireless Co., LtdPropretary& Confidential 4.1 Health and safety Information * Operating enviornment Remember to follow any special regulations in force in the area you are in, and always turn off your modem whenever it is forbidden to use it, or when it may cause interference or danger. When connecting the modem to another device, do not connect incompatible products. As with other mobile radio transmitting equipment, users are advised thatfor the satisfactory operation of the equipment and for the safety of personnel, itis recommended that the equipment shouldonlybeusedinthenormaloperating position Electronic Devices Most modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless modem. Consult the manufacturer to discuss alternatives. Pacemakers Pacemaker manufacturers recommend that a minimum distance of 15cm be maintained between a wireless device and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research and recommendations of Wireless Technology Research. If you haveany reason to suspect that interference istaking place, turn off your modem immediately. CDMA 1X EV-DO Module UC193 User’s Guide YISO Wireless Co., LtdPropretary& Confidential 4.2 Health and safety Information Hearing aids Some digital wireless devices may interfere with some hearing aids. In theevent of such interference, you may wish to consult your hearing aid manufacturer todiscuss alternatives. Other medical devices If you use any other personal medical devices, consult the manufacturer ofyour device to determine if it is adequately shielded from external RF energy.Your physician may be able to assist you in obtaining this informationTurn off your modem in health care facilities when regulations posted in these areas instructyoutodoso Vehicles RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle.You should also consult the manufacturer of ant equipment that hasbeen addedtoyourvehicle. * Care and maintenance -Keep your modem and accessories out of the reach of small children and pet.They may accidentally damage these things or choke on small parts -Keep your modem dry. Precipitation, humidity, and liquids contain minerals that corrode electronic circuits. CDMA 1X EV-DO Module UC193 User’s Guide YISO Wireless Co., LtdPropretary& Confidential 4.3 Health and safety Information -Do not drop, knock or shake the modem. Rough handling can break internal circuit boards. -Do not store the modem in hot areas. High temperatures can shorten the lifeof electronic devices and warp or melt certain plastics. -Do not store the modem in cold areas. When the modem warms up toits normal operating temperature, moisture can form inside the modem, which may damage the modem’s electronic circuit boards. -Do not put the modem in or on heating…

Text truncated - open the document above for the full version.

YISO Wireless Co., Ltd. Date: February , 20, 2008 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Kyu Chul, Shin /Application Examiner of CTK Co., Ltd.and hereafter referred to as CTK Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Kyu Chul, Shin of CTK Co., Ltd.on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Tae Hun Shin / Manager YISO Wireless Co., Ltd.

Suite 407,Gold, 217 Yangjiae-dong,Seocho-gu, Seoul,Korea Tel No : +82-70-7019-8520 Fax No : +82-2059-8164 February 20, 2008 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : YISO Wireless Co., Ltd. FCC ID : V4 NUC193 Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics, Parts List. Block diagram and Operational description. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, __________________________ Tae H u n S h i n /Manager

1 Mike Kuo From: ??? [[email protected]] Sent: Tuesday, March 18, 2008 3:27 AM To: Mike Kuo Subject: Re: YISO Wireless Co., Ltd., FCC ID: V4MUC193, Assessment NO.: AN08T7691, Notice#1 Attachments: [UC193] User Menual_modified.pdf; [UC193]Test report.pdf; [UC193] External Photo.pdf [UC193] User enual_modified.p [UC193]Test report.pdf (2 MB) [UC193] ernal Photo.pdf (2 Hi Mike Kuo Question #1: Request for confidentiality letter listed functional block diagram but such block diagram is also listed in the user manual. User manual can not be granted as confidential document. Please either remove the block diagram from the user manual or delete the block diagram from the request for confidentiality letter. - Attach user manual Question #2: On TCB application form, the max. output power entered is 0.277W (24.43dBm)/EIRP which does not agree the max. EIRP measured as documented in the test report. 25.89dBm (0.388W). Please confirm 0.388W/EIRP is the highest measured output power. - Sorry Did not input well TCB application form. 25.89dBm (0.388W)/EIRP FYI: The equipment classification for this device should be PCB ( PCS licensed transmitter). Please make sure to use this classification for the future application. - Attach Test report Question #3: by comparing to the internal photos and the SAR test setup photos, EUT is equipped with femal USB connector which can not connect to notebook computer directly. As indicated in the SAR test setup photos, looks like an USB adapter was used to enable UC193 to connect to notebook computer. Please provide a detail photo to show this USB adapter and confirm that this USB adapter will be shipped with UC193. - Attach External Photo Really sorry Best Regards Kyu chul ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "?????" <[email protected]> Cc: "Lucy Tsai" <[email protected]> Sent: Tuesday, March 18, 2008 3:42 AM Subject: FW: YISO Wireless Co., Ltd., FCC ID: V4MUC193, Assessment NO.: AN08T7691, Notice# 1 2 Hi Shin: Please address the following questions: Question #1: Request for confidentiality letter listed functional block diagram but such block diagram is also listed in the user manual. User manual can not be granted as confidential document. Please either remove the block diagram from the user manual or delete the block diagram from the request for confidentiality letter. Question #2: On TCB application form, the max. output power entered is 0.277W (24.43dBm)/EIRP which does not agree the max. EIRP measured as documented in the test report. 25.89dBm (0.388W). Please confirm 0.388W/EIRP is the highest measured output power. FYI: The equipment classification for this device should be PCB ( PCS licensed transmitter). Please make sure to use this classification for the future application. Question #3: by comparing to the internal photos and the SAR test setup photos, EUT is equipped with femal USB connector which can not connect to notebook computer directly. As indicated in the SAR test setup photos, looks like an USB adapter was used to enable UC193 to connect to notebook computer. Please provide a detail photo to show this USB adapter and confirm that this USB adapter will be shipped with UC193. Best Regards Mike Kuo / CCS The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. No virus found in this incoming message. Checked by AVG. Version: 7.5.519 / Virus Database: 269.21.7/1330 - Release Date: 3/15/2008 2:36 PM No virus found in this outgoing message. Checked by AVG. Version: 7.5.519 / Virus Database: 269.21.7/1330 - Release Date: 3/15/2008 2:36 PM

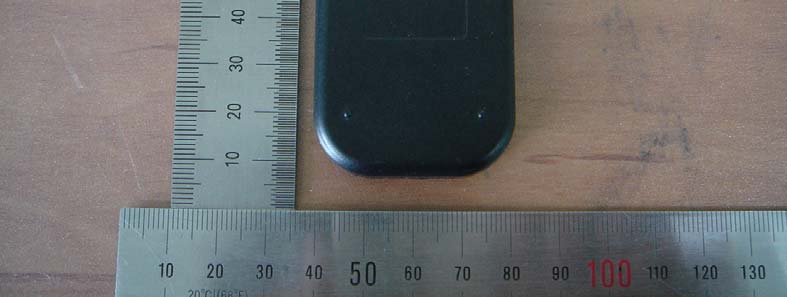

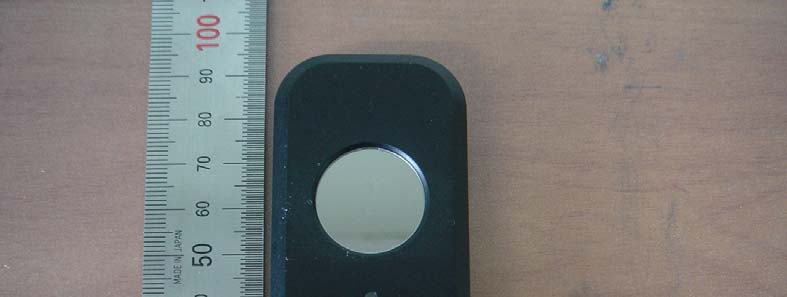

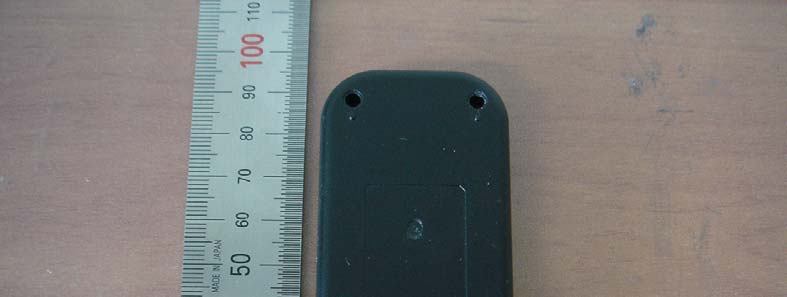

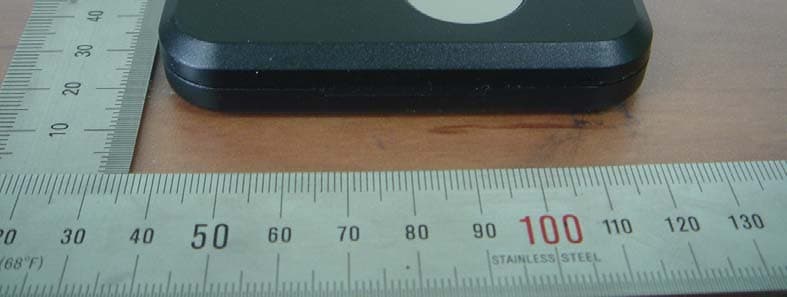

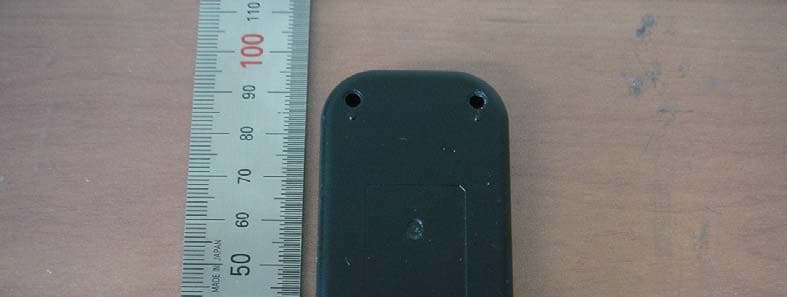

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: V4NUC193 Page 1 of 3 EUT External Photographs CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: V4NUC193 Page 2 of 3 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: V4NUC193 Page 3 of 3

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: V4NUC193 Page 1 of 1 FCC ID label and Location Label

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: V4NUC193 Page 1 of 4 EUT Internal Photographs CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: V4NUC193 Page 2 of 4 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: V4NUC193 Page 3 of 4 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: V4NUC193 Page 4 of 4

Applicant : YISO Wireless Co., Ltd. FCC ID : V4NUC193 TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this CDMA 1X RTT /1XEV-DO (USPCS Single Band USB Modem). All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments.

DEMC#DR50110803E Copyright ○ c 2008, DIGITAL EMC Co., Ltd. Page 1 of 25 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com SAR TEST REPORT Dates of Tests: February 27, 2008 Test Report S/N:DR50110803E Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification: Licensed Non-Broadcast Station Transmitter (TNB) EUT Type: CDMA 1xRTT/1x EV-DO(PCS Single Band USB Modem) Model Name UC193 Brand Name YISO Wireless Test Device Serial No.: Identical prototype TX Frequency Range: 1851.25~1908.75MHz(CDMA_PCS) RX Frequency Range: 1931.25~1988.75MHz(CDMA_PCS) Max. SAR Measurement: 1.390 mW/g CDMA _PCS Body SAR Application Type: Certification Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C[July 2001] Data of issue: March 5, 2008 Tested by : Reviewed by : Sun-Kyu Ryu (Engineer) Harvey Sung (Chief Engineering Director) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. V4NUC193 YISO Wireless CO., LTD. DEMC#DR50110803E Copyright ○ c 2008, DIGITAL EMC Co., Ltd. Page 2 of 25 1. INTRODUCTION ...................................................................................................... 3 SAR DEFINITION .................................................................................................... 3 2. SAR MEASUREMENT SETUP......................................................................................... 4 Robotic System.......................................................................................................... 4 System Hardware ....................................................................................................... 4 System Electronics...................................................................................................... 4 3. DASY4 E-FIELD PROBE SYSTEM................................................................................... 5 Probe Measurement System......................................................................................... 5 Probe Specifications .................................................................................................... 5 4. Probe Calibration Process............................................................................................ 6 Dosimetric Assessment Procedure.................................................................................. 6 Free Space Assessment ............................................................................................... 6 Temperature Assessment ............................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES.............................................................................. 7 SAM Phantom ........................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization ....................................................... 7 Device Holder for Transmitters..................................................................................... 7 6. TEST SYSTEM SPECIFICATIONS.................................................................................. 8 Automated Test System Specifications.......................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ........................................................... 9 Measurement Procedure............................................................................................. 9 Specific Anthropomorphic Mannequin (SAM) Specifications.............................................. 9 8. DEFINITION OF REFERENCE POINTS .......................................................................... 10 EAR Reference Point................................................................................................... 10 Handset Reference Points............................................................................................ 10 9. TEST CONFIGURATION POSITIONS ............................................................................. 11 Positioning for Cheek/Touch ........................................................................................ 11 Positioning for Ear /15° Tilt ......................................................................................... 12 Body Holster /Belt Clip Configurations .......................................................................... 13 10. ICNIRP GUIDELINES RF EXPOSURE LIMITS.................................................................. 14 Uncontrolled Environment ........................................................................................... 14 Controlled Environment............................................................................................... 14 11. MEASUREMENT UNCERTAINTIES............................................................................... 15 SAR Measurement Uncertainties .................................................................................. 15 12. SYSTEM VERIFICATION........................................................................................... 16 Tissue Verification...................................................................................................... 16 Test System Verification...........................................................................…

Text truncated - open the document above for the full version.

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Rep o r t No .: 2008030005 Date: March 5, 2008 Page 1 of 47 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TEST REPORT For FCC Test Report No. : 2008030005 Date of Issue : March 10, 2008 FCC ID : V4 NUC193 Model/Type No. : UC193 Classification : PCS licensed transmitter(PCB) Applicant : YISO Wireless Co., Ltd. Applicant Address : Suite 407,Gold, 217 Yangjiae-dong,Seocho-gu,Seoul,Korea Manufacturer : YISO Wireless Co., Ltd. Manufacturer Address : Suite 407,Gold, 217 Yangjiae-dong,Seocho-gu,Seoul,Korea Contact Person : Mr. Shin Tae Hun Telephone : +82-70-7019-8520 Received Date : February 5, 2008 Test period : Start : February 18, 2008 End : March 10, 2008 Test Results : In Compliance Not in Compliance The test results presented in this report relate only to the object tested. Tested by Reviewed by Kyu-Chul, Shin Test Engineer Young-Joon, Park Technical Manager Date: March 10, 2008 Date: March 10, 2008 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Rep o r t No .: 2008030005 Date: March 5, 2008 Page 2 of 47 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) REPORT REVISION HISTORY Date Revision Page No March 10, 2008 Issued (2008030005) All This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Rep o r t No .: 2008030005 Date: March 5, 2008 Page 3 of 47 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TABLE OF CONTENTS ◈ TEST REPORT 1.1 SCOPE 4 2.1 GENERAL INFORMATION 4 3.1 DESCRIPTION OF TESTS 5 4.1 TEST DATA 9 4.1.1 CONDUCTED OUTPUT POWER 9 4.1.2 EFFECTIVE RADIATED POWER OUTPUT 10 4.1.3 CDMA RADIATED MEASUREMENTS 11 4.1.4 FREQUENCY STABILITY(CDAM) 14 5.1 PLOTS OF EMISSIONS 18 6.1 LIST OF TEST EQUIPMENT 19 7.1 SAMPLE CALCULATIONS 20 8.1 CONCLUSION 21 9.1 TEST PLOTS 22 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Rep o r t No .: 2008030005 Date: March 5, 2008 Page 4 of 47 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TEST REPORT 1. 1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. 2.1 General Information Classification : PCS licensed transmitter(PCB) EUT Type : CDMA 1x RTT/1XEV-DO (PCS Single Band USB Modem) FCC Rule Part(s) : §24(E) §2 Model name : UC193 Serial number : Identical prototype Emission Designators: : 1M27F9W Tx Freq. Range : 1851.25 ~ 1908.75 MHz (PCS CDMA) Rx Freq. Range 1931.25 ~ 1908.75 MHz (PCS CDMA) Modulation(s): : PCS CDMA Frequency Tolerance: : ± 0.00025 % (2.5ppm) Maximum Output Power : 24.68dBm for 1xRTT 23.38dBm for 1XEV-DO Maximum EIRP 25.89dBm for 1xRTT 24.43dBm for 1XEV-DO Power Source : USB 5 Vdc CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Rep o r t No .: 2008030005 Date: March 5, 2008 Page 5 of 47 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) 3.1 DESCRIPTION OF TESTS 3.1.1 Occupied Bandwidth Emission Limits (a) On any frequency outside a licensee’s frequency block, the power of any emission shall be attenuated below the transmitter power (P) by at least 43 + 10 log(P) dB. (b) When measuring the emission limits, the nominal carrier frequency shall be adjusted as close to the licensee’s frequency block edges, both upper and lower, as the design permits. (c) The measurement of emission power can be expressed in peak or average values, provided they are expressed in the same parameters as the transmitter power. 3.1.2 Occupied Bandwidth The 99% power bandwidth was measured with a calibrated spectrum analyzer. 3.1.3 Spurious and Harmonic Emissions at Antenna Terminal The level of the carrier and the various conducted spurious and harmonic frequencies is measured by means of a calibrated spectrum analyzer. The spectrum is scanned from the lowest frequency generated in the equipment up to 20 GHz. CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Rep o r t No .: 2008030005 Date: March 5, 2008 Page 6 of 47 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) 3.1.4 Frequencies At the input terminals of the spectrum analyzer, an isolator (RF pad) and a high-pass filter are connected between the test transceiver (for conducted tests) or the receive antenna (for radiated tests) and the analyzer. The high- pass filter is to limit the fundamental frequency from interfering with the measurement of low-level spurious and harmonic emissions and to ensure that the preamplifier is not saturated. 3.1.5 Radiation Spurious and Harmonic Emissions Radiation and harmonic emissions are measured outdoors at our 3-meter test range. The equipment under test is placed on a wooden…

Text truncated - open the document above for the full version.

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com FCC ID: V4NUC193 Page 1 of 1 Test Setup Photos Radiated Electric Field Emissions
