V4X-WTMX01Motion Detector, PIR, Wireless

Rhein Tech Laboratories, Inc. Client: Sequel Technologies, LLC 360 Herndon Parkway Model: STWS-PIR Suite 1400 Standard: FCC 15.231 FCC ID: V4X-WTMX01 Herndon, VA 20170 http://www.rheintech.com Report #: 2008039 Page 20 of 29 Appendix G: Manual Please see the following pages. PIR Motion Sensor (PIR) Installation Instructions Sequel Technologies, LLC General Description The PIR Motion Sensor is a supervised, wireless sen- sor designed to detect movement. The sensor achieves consistent detection and superior false alarm immunity through PYROFLEX™ infrared detection. The PIR can handle a variety of applications, including coverage for hallways and corridors, large rooms, and pet immunity. Wireless technology makes installation easy by allowing the sensor to be installed anywhere protection is needed. Additional Information: PYROFLEX™ infrared detector and advanced HighBar™ intruder detection provide consistent detection sensitivity throughout the monitored area, over the full range of intruder motion speeds. 10x – 100x more signal than conventional detectors Less amplification needed in sensor 10x – 100x less amplification for false alarm signals High immunity to RF, shock, temperature changes, white light, electrical surges HighBar™ waveform processing rejects noise. After signal filtering, real pulses are separated from noise by length of time. In the next stage, alternating polarity (+ / – ) pulses are required to qualify for an alarm – better than many simple ASIC-based sensors. Three-Stage White Light Protection White diffusing lens Clear bug guard – avoids light concentration Large 4 x 5 mm white light filter window on detector, so elements can be far from filter Tamper detection switch Precise factory calibration for dependable performance Micro-current draw for long battery life Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust Selectable processing sensitivity for different environmental requirements LED enable function for testing 45-degree corner-mounting surfaces Swivel-mount accessory interface Special optics resist detection of animals up to 25 lb. • ◦ ◦ ◦ ◦ • • ◦ ◦ ◦ • • • • • • • • • Installation Placement Guidelines: Use the following guidelines to maximize reliability and reduce false alarms: Mount the sensor in a corner or on a flat wall approximately 7 to 10 feet from the floor. The sensor should face a solid reference point, such as a wall or door. Avoid pointing the sensor at windows, direct sunlight, heating vents, or other sources of temperature fluctuation. Select a sensor location within 100 feet of the control panel or host EXT. Maintain a clear line-of-sight from sensor to monitored area Mount the sensor to cover likely intruder paths - + J1 Tamper LED J2 3 2 Battery Alignment Figure 1: PIR Board Layout • • • • • • 1 Installing the PIR Remove the cover by inserting a screwdriver into the slot at the bottom of the sensor. Push inward on cover latch and remove the cover. Push outward on circuit board latch and gently lift circuit board and remove. 1 Corner mounting: Use a drill to open at least two holes at base side depressions. Use screws to mount on wall or in corner. Wall mounting: Knock out hole covers. Use screws to mount on wall 1. 2. 3. 4. Bracket mounting (optional): Remove the knock-out to open a hole in the center of the square recess at the rear of the sensor base. Use screws to mount bracket in desired location. Use screw to mount sensor base onto the bracket. Set the alignment post to position “0” or “1” to select a mounting height of 7.5 ft (“0”) or 9.8 ft (“1”) above the floor. The alignment post shifts the sensor’s field- of-view so that it is not necessary to tilt down the sensor when installing in a higher position. Replace the circuit board by placing the left edge into the mounting slots in left side of sensor base. On right side, gently press circuit board into place until latch snaps over circuit board. Setting the Sensitivity Jumper J2 determines the sensitivity mode of the sen- sor, either standard or high sensitivity. Place the jumper on pins 1 and 2 to select high sensitivity (pulse count 2). Place the jumper on pin 1 with the other end hanging over the end to select standard sensitivity (pulse count 3). Use the standard setting for wide-angle coverage and ordinary applications. Use high sensitivity if aggressive detection is required. Refer to Figure 1 for location of the jumpers. 5. 6. 7. 2 Enrolling the Sensor To enroll the PIR into system memory: Enter program mode (NEXT + NEXT + NEXT + <Prog> + Installer PIN) The keypad will display “Devices Available.” Select <Learn>. The display shows “Auto Enroll On.” To enroll the PIR, remove the sensor cover. Upon enrollment, the keypad emits one beep and the display shows the zone number and sensor ID. Replace the sensor cover. Continue enrolling additional sensors if desired. When finished, press <Done> to exit. The following default values are applied to PIR transmitters as they are enrolled. Initiating Group: Interior Delayed Response Group: Intrusion Alarm Note: These values can be modified at option “Zone Config” in the “ST - Zones” system programming menu. LED (Test) Mode Place the sensor in LED mode to determine the cover- age pattern of the sensor. The edge of the coverage area is determined by an LED indication. The LED is enabled by a three-pin jumper labeled J1. Refer to Figure 1 for location of the jumper. To initiate LED mode: Remove the sensor cover and place jumper J1 on the right two pins (Labeled “LED”). Walk across the coverage pattern to determine the coverage area, indicated by LED activation. Move the jumper back to the left two pins. Walk Test The system contains a walk test that allows you to acti- vate the PIR and verify wireless operation. No motion may exist in front of detector for at least 3 minutes prior to the walk test. Alternatively, enable LED mode to disable the 3 minute time-out. Disable LED mode when done to preserve battery. …

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Sequel Technologies, LLC 360 Herndon Parkway Model: STWS-PIR Suite 1400 Standard: FCC 15.231 FCC ID: V4X-WTMX01 Herndon, VA 20170 http://www.rheintech.com Report #: 2008039 Page 14 of 29 Appendix A: FCC/TCB Agency Authorization Letter Please refer to the following page. Sequel Technologies, LLC 8014 Olson Memorial Highway, Box 401 Golden Valley, MN 55427 (651) 342-0390 --- www.sequeltechnologies.com 5 March 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Sequel Technologies, LLC authorizes Rhein Tech Laboratories, Inc. to act on our behalf, until otherwise notified, for applications submitted to the Federal Communications Commission and/or American Telecommunications Certification Body, Inc. We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party to the application, as defined in 47 CFR 1.2002(b), is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Ted Nesse VP, Technology

Rhein Tech Laboratories, Inc. Client: Sequel Technologies, LLC 360 Herndon Parkway Model: STWS-PIR Suite 1400 Standard: FCC 15.231 FCC ID: V4X-WTMX01 Herndon, VA 20170 http://www.rheintech.com Report #: 2008039 Page 15 of 29 Appendix B: FCC Confidentiality Request Letter Please refer to the following page. Sequel Technologies, LLC 8014 Olson Memorial Highway, Box 401 Golden Valley, MN 55427 (651) 342-0390 --- www.sequeltechnologies.com 5 March 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to our disadvantage as in the market place. • Schematics • Technical Product Description • Block Diagram Sincerely, Ted Nesse VP, Technology

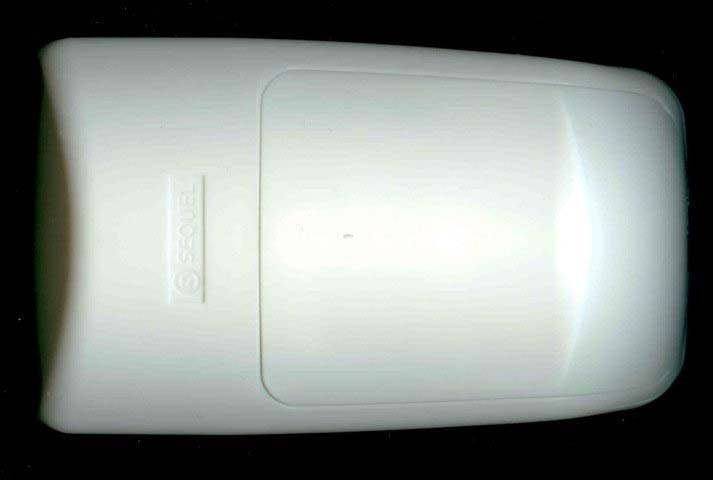

Rhein Tech Laboratories, Inc. Client: Sequel Technologies, LLC 360 Herndon Parkway Model: STWS-PIR Suite 1400 Standard: FCC 15.231 FCC ID: V4X-WTMX01 Herndon, VA 20170 http://www.rheintech.com Report #: 2008039 Page 22 of 29 Appendix I: External Photographs Photograph 3: Front Rhein Tech Laboratories, Inc. Client: Sequel Technologies, LLC 360 Herndon Parkway Model: STWS-PIR Suite 1400 Standard: FCC 15.231 FCC ID: V4X-WTMX01 Herndon, VA 20170 http://www.rheintech.com Report #: 2008039 Page 23 of 29 Photograph 4: Back

Rhein Tech Laboratories, Inc. Client: Sequel Technologies, LLC 360 Herndon Parkway Model: STWS-PIR Suite 1400 Standard: FCC 15.231 FCC ID: V4X-WTMX01 Herndon, VA 20170 http://www.rheintech.com Report #: 2008039 Page 16 of 29 Appendix C: ID Label and Label Location Photograph 1: ID Label Sample and Location on EUT Back

Rhein Tech Laboratories, Inc. Client: Sequel Technologies, LLC 360 Herndon Parkway Model: STWS-PIR Suite 1400 Standard: FCC 15.231 FCC ID: V4X-WTMX01 Herndon, VA 20170 http://www.rheintech.com Report #: 2008039 Page 24 of 29 Appendix J: Internal Photographs Photograph 5: PCB in Case Rhein Tech Laboratories, Inc. Client: Sequel Technologies, LLC 360 Herndon Parkway Model: STWS-PIR Suite 1400 Standard: FCC 15.231 FCC ID: V4X-WTMX01 Herndon, VA 20170 http://www.rheintech.com Report #: 2008039 Page 25 of 29 Photograph 6: Top of PCB Rhein Tech Laboratories, Inc. Client: Sequel Technologies, LLC 360 Herndon Parkway Model: STWS-PIR Suite 1400 Standard: FCC 15.231 FCC ID: V4X-WTMX01 Herndon, VA 20170 http://www.rheintech.com Report #: 2008039 Page 26 of 29 Photograph 7: Bottom of PCB with Shield Rhein Tech Laboratories, Inc. Client: Sequel Technologies, LLC 360 Herndon Parkway Model: STWS-PIR Suite 1400 Standard: FCC 15.231 FCC ID: V4X-WTMX01 Herndon, VA 20170 http://www.rheintech.com Report #: 2008039 Page 27 of 29 Photograph 8: Bottom of PCB without Shield Rhein Tech Laboratories, Inc. Client: Sequel Technologies, LLC 360 Herndon Parkway Model: STWS-PIR Suite 1400 Standard: FCC 15.231 FCC ID: V4X-WTMX01 Herndon, VA 20170 http://www.rheintech.com Report #: 2008039 Page 28 of 29 Photograph 9: Top of Secondary PCB Rhein Tech Laboratories, Inc. Client: Sequel Technologies, LLC 360 Herndon Parkway Model: STWS-PIR Suite 1400 Standard: FCC 15.231 FCC ID: V4X-WTMX01 Herndon, VA 20170 http://www.rheintech.com Report #: 2008039 Page 29 of 29 Photograph 10: Bottom of Secondary PCB

Engineering and Testing for EMC and Safety Compliance Accredited under A2LA Testing Certificate # 2653.01 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 FCC Part 15.231 Certification Application Report Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web: www.rheintech.com Herndon, VA 20170 Email: [email protected] Applicant: Sequel Technologies, LLC Phone: 651-342-0390 8014 Olson Memorial Highway Suite 401 Golden Valley, MN 55427 Contact: Ted Nesse FCC ID V4X-WTMX01 Test Report Date March 19, 2008 Platform N/A RTL Work Order Number 2008039 Model# STWS-PIR RTL Quote Number QRTL08-147 FCC Classification DSC – Part 15 Security/Remote Control Transmitter FCC Rule Part(s) Part 15.231: Periodic operation in the band 40.66 – 40.70 MHz and above 70 MHz (10-01-07) Digital Interface Information Digital Interface was found to be compliant Receiver Information Receiver was found to be compliant Frequency Range (MHz) Output Power (W) Frequency Tolerance Emission Designator 319.5 and 345.0 N/A N/A N/A I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. Modifications made to the equipment during testing in order to achieve compliance with these standards are listed in the report. Furthermore, there was no deviation from, additions to, or exclusions from the applicable parts of FCC Part 2, FCC Part 15 and ANSI C63.4. Signature: Date: March 19, 2008 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. and Sequel Technologies. This report may not be used to claim product endorsement by A2LA. The test results reported relate only to the item tested. Rhein Tech Laboratories, Inc. Client: Sequel Technologies, LLC 360 Herndon Parkway Model: STWS-PIR Suite 1400 Standard: FCC 15.231 FCC ID: V4X-WTMX01 Herndon, VA 20170 http://www.rheintech.com Report #: 2008039 Page 2 of 29 Table of Contents 1 General Information............................................................................................................................................4 1.1 Scope...........................................................................................................................................................4 1.2 Modifications.................................................................................................................................................4 1.3 Test Facility..................................................................................................................................................4 1.4 Related Submittal(s)/Grant(s).......................................................................................................................4 2 Test Information..................................................................................................................................................5 2.1 Test Justification...........................................................................................................................................5 2.2 Exercising the EUT.......................................................................................................................................5 2.3 Test Result Summary...................................................................................................................................5 2.4 Test System Details......................................................................................................................................5 2.5 Configuration of Tested System...................................................................................................................6 3 Conducted Limits – FCC §15.207.......................................................................................................................6 4 Duty Cycle Calculation - FCC §15.35(c).............................................................................................................6 5 Transmitter Deactivation – FCC §15.231(a)(2)..................................................................................................8 6 Modulated Bandwidth – FCC §15.231(c)...........................................................................................................8 6.1 Modulated Bandwidth Test Procedure..........................................................................................................8 6.2 FCC §15.231(c) Limits..................................................................................................................................8 6.3 Modulated Bandwidth Test Data...................................................................................................................9 7 Radiated Emissions – FCC §15.209, §15.231..................................................................................................11 7.1 Radiated Fundamental Emissions Test Procedure.....................................................................................11 7.1.1 Radiated Fundamental Emissions Limits Test Data....................................................................................................11 7.2 Radiated Harmonics/Spurious Emissions – FCC §15.231..........................................................................11 7.2.1 Radiated Emissions Harmonics/Spurious Test Procedure..........................................................................................11 7.2.2 Radiated Harmonics/Spurious Emissions Test Data...................................................................................................12 8 Conclusion.........................................................................................................................................................13 Rhein T…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Sequel Technologies, LLC 360 Herndon Parkway Model: STWS-PIR Suite 1400 Standard: FCC 15.231 FCC ID: V4X-WTMX01 Herndon, VA 20170 http://www.rheintech.com Report #: 2008039 Page 21 of 29 Appendix H: Test Photograph Photograph 2: Radiated Emissions
