V5PA35DBWPOS Terminal

1 A35 POS Terminal User Manual Note: Product images shown may be different than actual product received PAX TECHNOLOGY LIMITED 2 1. Product Description LCD Display Contactless Card Reader Keypad Privacy Shield Camera Magstripe Card Reader Smart card reader 3 2. Specifications Model A35 Processor Quad-core Cortex A53, 1.6GHz Memory 8GB Flash + 1GB DDR, 128GB MicroSD Optional Display 4'' WVGA 480 x 800 Pixels, Capacitive Touch Screen Keys / Buttons 13 keys: 0-9 | Enter | Clear | Cancel, Back-Lighting (Optional) Cards Handle Chip & PIN | NFC Contactless | Magnetic Stripe Cameras 0.3MP Fixed Front-Facing, 5MP Fixed Front-Facing Optional Audio 1 Speaker | 1 Audio Jack Communications RS232 | Ethernet (Gigabit Optional) | USB 2.0 | Wi-Fi® (2.4GHz / 5GHz ) + Bluetooth® (4.2/5.0) (Optional) Ports Multi-Functional Port |1 Kensington | MicroSD (Optional) SIM/SAM Up to 2 PSAM Power Supply Input: 100-240VAC, 50Hz/60Hz | Output: 5.0V DC, 1.0A Physical 163.69mm x 76.90mm x 30.10mm(L x W x H) Accessories Multiple Cabling Options | Stand Environmental 0°C ~ 50°C (32°F ~ 122°F) Operating Temperature -20°C ~ 70°C (-4°F ~ 158°F) Storage Temperature 5% ~ 93% Relative Humidity, Non-Condensing 3.Instructions A35 connects to a POS or an ECR by a communication cable for entering password，taping contactless card, swiping magstripe card, inserting smart card or reading 1D/2D code during transaction process. To use it correctly, you should refer to following instructions: 1) Power Connections Power can be supplied to the A35 by connecting the AC power adapter to the communication cable, as in the case of RS232 or USB configurations, or via a powered USB cable (12V Powered USB) where the connected POS terminal provides the power. 2) Reset Press and hold the 'X' and ‘O’ button for 5-8 seconds, the operation system will reboot. 3) Communication cable ① Remove the back cover (At the bottom of the terminal). ② Put the communication cable head to the Type-C interface. 4) SAM Cards ① Remove the back cover (At the bottom of the terminal). ② Insert the SAM cards to the corresponding card slot. 5) SD Card ① Remove the back cover (At the bottom of the terminal). ② Insert the SD card to the corresponding card slot. 6) Magnetic stripe card reader To use the magnetic stripe card reader, put magnetic stripe side of magnetic card towards device interior, swipe the card with a steady speed during through magnetic reader slot. (Support bi-directional swiping). 4 7) IC card reader To use the IC card reader, put IC card chip side upward, push in IC card slot and to bottom. 8) Contactless card reader To use the contactless card reader, tap the contactless card on the Top LCD screen area of the device, indicated by the universal contactless icon on the screen, when prompted. 9) 1D/2D code reader To use the 1D/2D code reader, put the 1D/2D code toward the top center area of the LCD. 10) Electronic signature A35 supports electronic signature. Please be sure to use the finger to sign, do not use metal or sharp objects to operate the touch screen, so as not to damage the touch screen. 11) Terminal Anti-theft A35 provides a Kensington security hole on the rear side of the terminal, the end users can lock the terminal on the countertop with a Kensington lock if necessary. 12) Audio Jack If required, a visually disabled person can connect a headphone to the terminal for audio prompting if the terminal application supports this using the 3.5mm output audio jack. 4. Installation and Usage Tips 1）Avoid putting the terminal in direct sunlight, high temperature, moist, or dusty environment. 2）Forbid non-professional to repair the terminal. 3）Before insert the card, please check internal and around of IC card slot . when you found some suspicious objects , must report to related administrator. 5. Password Entering Tips It is highly recommended to enter password as following ways: 1）Set up anti-peep shields. Enter password with shield by the structures of cashier desk. 2）Place the POS terminal at an appropriate angle and make sure it is difficult to peer the password. For example, the POS was installed above the movable bracket. 3）In enter password perspective, avoid surrounding video surveillance. 4）Paste text instructions to remind the customers to shelter with body or palm when enter password. 5）Merchants can also choose other ways to protect the customer input password. FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide 5 reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. RF Exposure Information This device meets the government’s requirements for exposure to radi…

Text truncated - open the document above for the full version.

Rev. 1/1/03 PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour, Hong Kong, China Tel: 86-755-86156663 ; Fax: 86-755-86156663 Date: April 1, 2021 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: V5PA35DBW Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Contact: Jenna Tan E-mail: [email protected]

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour, Hong Kong, China Tel: 86-755-86156663 ; Fax: 86-755-86156663 Date: April 1, 2021 Power of Attorney To whom it may concern, Please be notified that I, Jenna Tan, have designated Jim Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jim Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: V5PA35DBW If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact: Jenna Tan E-mail: [email protected]

1/1 PAX Technology Limited Date: April 1, 2021 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : V5PA35DBW To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which PAX Technology Limited deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact: Jenna Tan E-mail: [email protected]

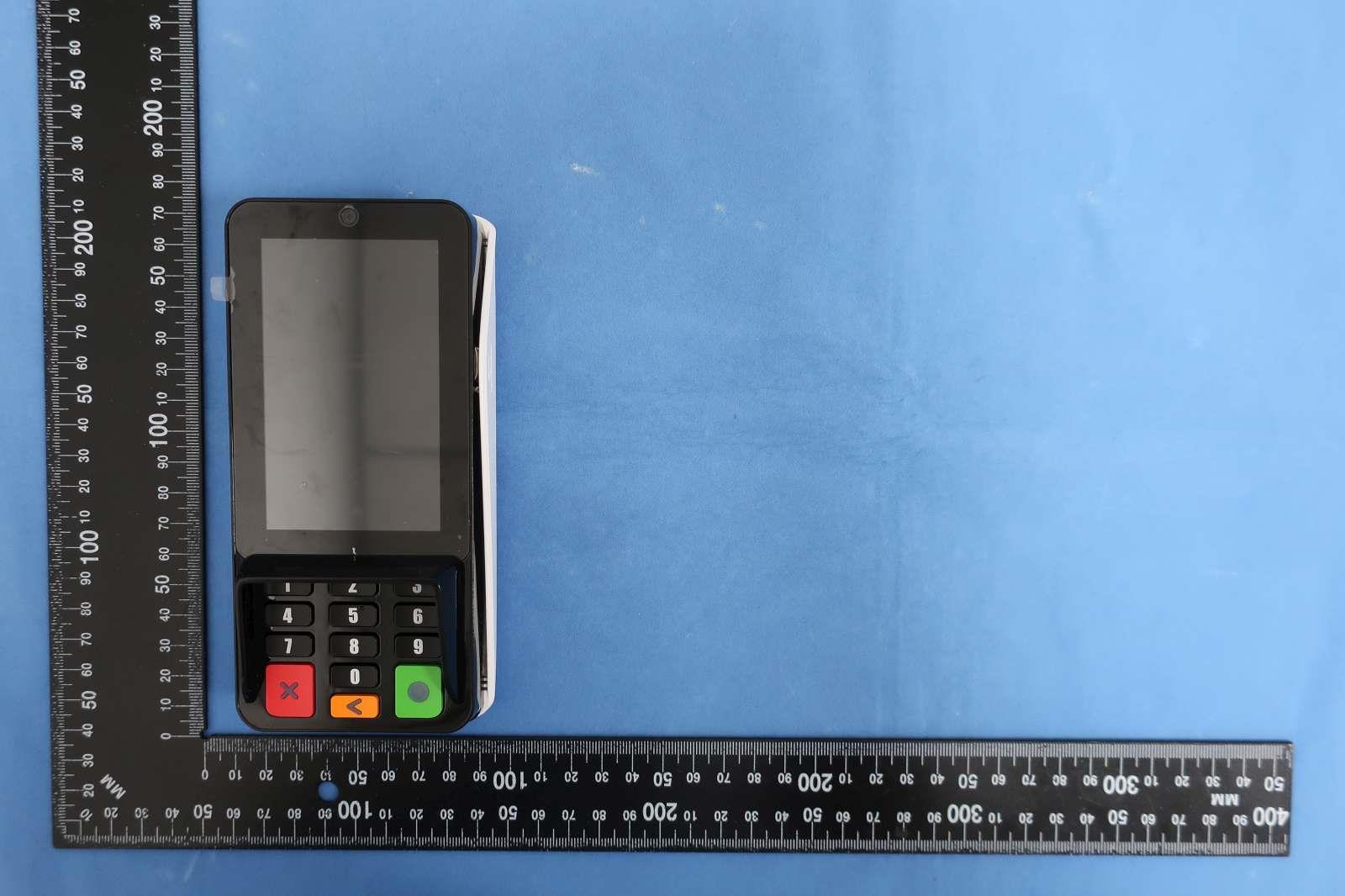

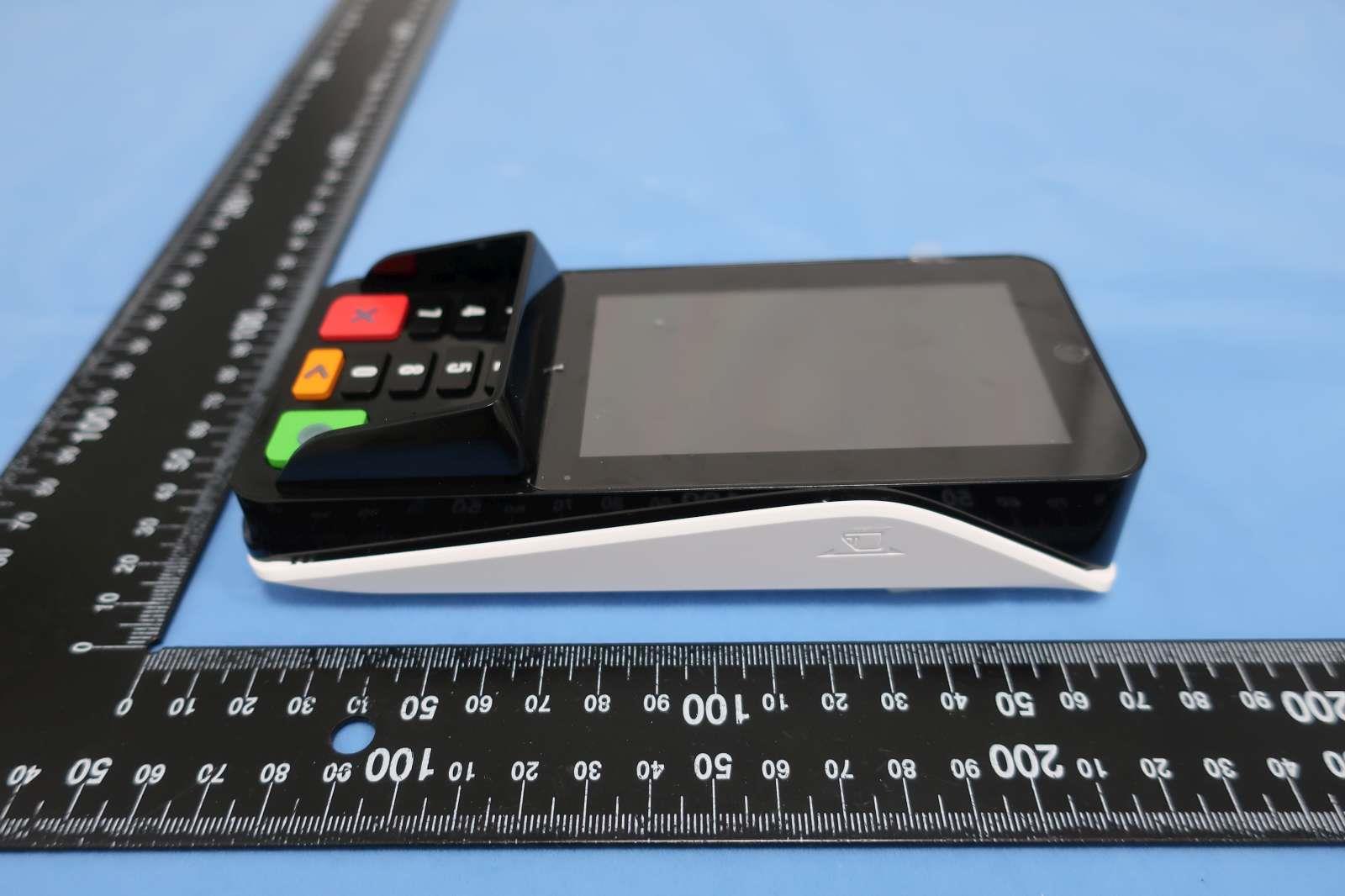

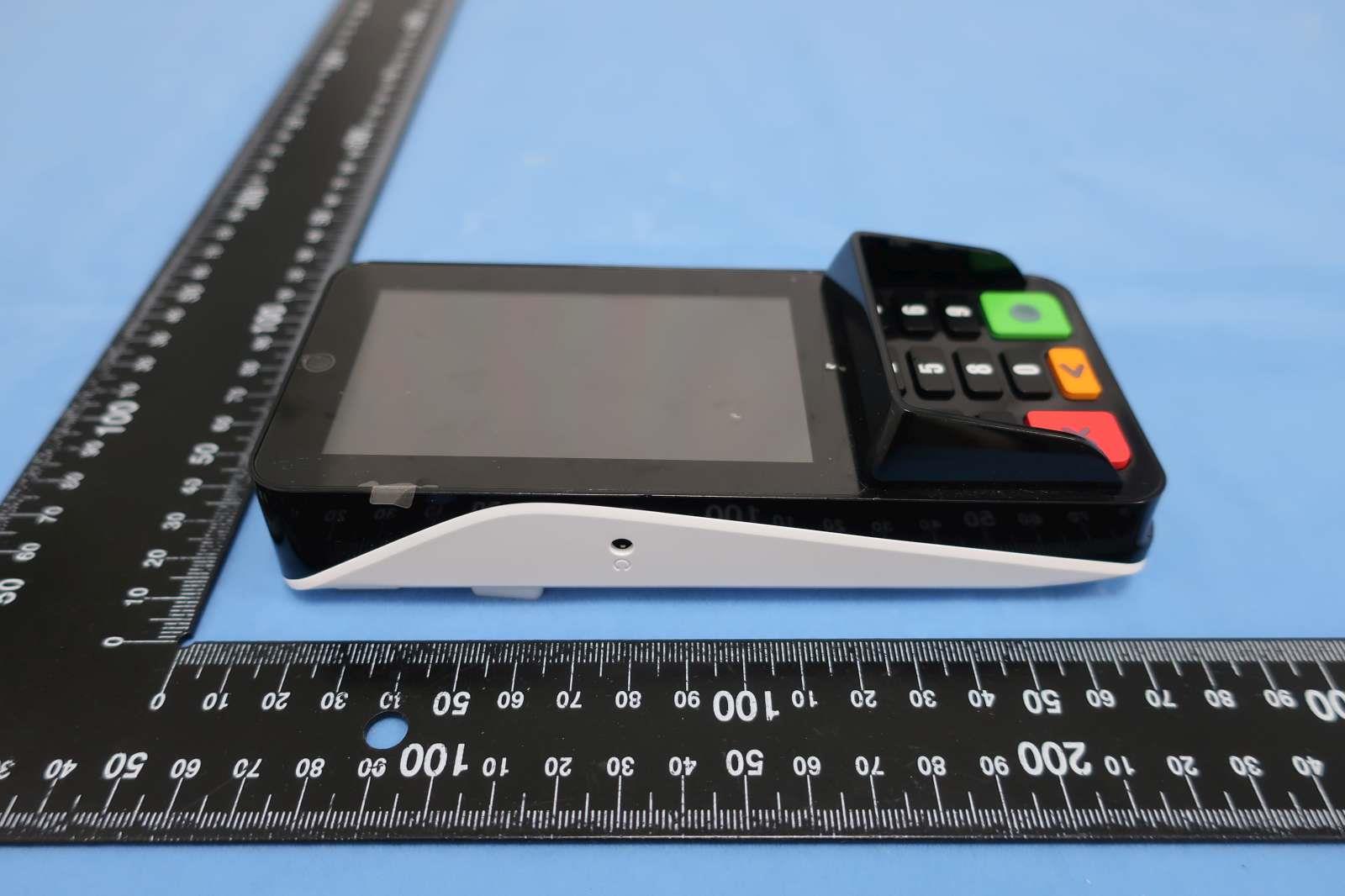

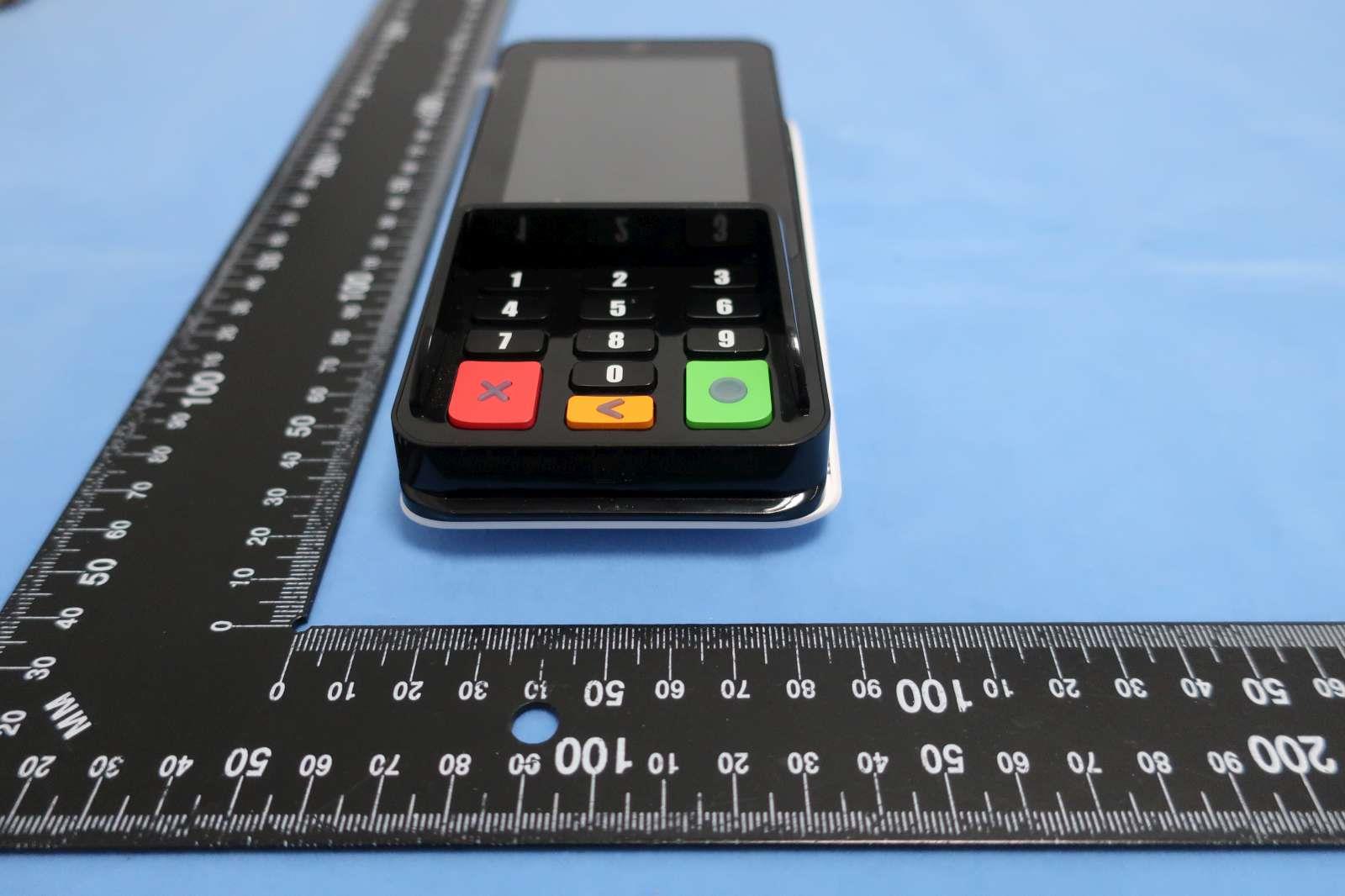

Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 1 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW 1. External Photograph of EUT NFC Antenna <Tx/Rx> Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 2 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 3 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 4 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 5 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 6 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 7 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW List of Accessory： Specification of Accessory AC Adapter Brand Name N/A Model Name GLH50D1000HW Power Rating I/P: 100-240 Vac, 400mA , O/P: 5Vdc, 1A USB Cable Brand Name N/A Model Name N/A TYPE C TO LAN+USB+RS232 Brand Name SMARTKONN Model Name SMK-003-256 Signal Line Type 4.0 meter, shielded cable, without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 8 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 9 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW AC Adapter Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 10 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW USB Cable Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 11 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW TYPE C TO LAN+USB+RS232 Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 12 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW

Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 13 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW 3. Internal Photograph of EUT Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 14 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Bluetooth & WLAN 2.4GHz &WLAN 5GHz Antenna <Tx/Rx> \ Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 15 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 16 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 17 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 18 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 19 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 20 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 21 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 22 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 23 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 24 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 25 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 26 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 27 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 28 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 29 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 30 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 31 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 32 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 33 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 34 of 42 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA35DBW Photographs of EUT Report No.: EP132310A Brand Name: PAX / Model Name: A35 Sporton International (Shenzhen) Inc. Page Number : 35 of 42 TEL : 86-755-8637-9589 Report Issued Da…

Text truncated - open the document above for the full version.

Sporton International (Shenzhen) Inc. Page Number : 1 of 8 TEL : +86-755-86379589 / FAX : +86-755-86379595 Report Issued Date : Jul. 27, 2021 FCC ID : V5PA35DBW Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA132310 RF Exposure Evaluation Report APPLICANT : PAX Technology Limited EQUIPMENT BRAND NAME : : POS Terminal PAX MODEL NAME : A35 FCC ID : V5PA35DBW STANDARD : 47 CFR Part 2.1091 FCC KDB 447498 D01 v06 We, Sporton International (ShenZhen) Inc., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091 and FCC KDB 447498 D01 v06, and pass the limit. Without written approval of Sporton International (ShenZhen) Inc., the test report shall not be reproduced except in full. Reviewed by: Hank Huang / Supervisor Approved by: Johnny Chen / Manager Sporton International (ShenZhen) Inc. 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International (Shenzhen) Inc. Page Number : 2 of 8 TEL : +86-755-86379589 / FAX : +86-755-86379595 Report Issued Date : Jul. 27, 2021 FCC ID : V5PA35DBW Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA132310 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 6 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 7 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 8 5.1. Standalone Power Density Calculation ............................................................................................. 8 5.2. Collocated Power Density Calculation ............................................................................................... 8 Sporton International (Shenzhen) Inc. Page Number : 3 of 8 TEL : +86-755-86379589 / FAX : +86-755-86379595 Report Issued Date : Jul. 27, 2021 FCC ID : V5PA35DBW Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA132310 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA132310 Rev. 01 Initial issue of report Jul. 27, 2021 Sporton International (Shenzhen) Inc. Page Number : 4 of 8 TEL : +86-755-86379589 / FAX : +86-755-86379595 Report Issued Date : Jul. 27, 2021 FCC ID : V5PA35DBW Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA132310 1. Administration Data 1.1. Testing Laboratory Sporton International (Shenzhen) Inc. is accredited to ISO/IEC 17025:2017 by American Association for Laboratory Accreditation with Certificate Number 5145.01. Testing Laboratory Test Firm Sporton International (Shenzhen) Inc. Test Site Location 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China TEL: +86-755-86379589 FAX: +86-755-86379595 Test Site No. FCC Designation No. FCC Test Firm Registration No. CN1256 421272 Applicant Company Name PAX Technology Limited Address Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong Manufacturer Company Name PAX Computer Technology (Shenzhen) Co., Ltd. Address 4/F, No.3 Building, Software Park, Second Central Science-Tech Road, High-Tech industrial Park, Shenzhen, Guangdong, P.R.C. Sporton International (Shenzhen) Inc. Page Number : 5 of 8 TEL : +86-755-86379589 / FAX : +86-755-86379595 Report Issued Date : Jul. 27, 2021 FCC ID : V5PA35DBW Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA132310 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type POS Terminal Brand Name PAX Model Name A35 FCC ID V5PA35DBW Wireless Technology and Frequency Range WLAN 2.4GHz Band: 2412 MHz ~ 2462 MHz WLAN 5.2GHz Band: 5180 MHz ~ 5240 MHz WLAN 5.3GHz Band: 5260 MHz ~ 5320 MHz WLAN 5.6GHz Band: 5500 MHz ~ 5700 MHz WLAN 5.8GHz Band: 5745 MHz ~ 5825 MHz Bluetooth: 2402 MHz ~ 2480 MHz NFC : 13.56 MHz Mode WLAN 2.4GHz : 802.11b/g/n/ HT20/HT40 WLAN 5GHz 802.11a/n/ac HT20/HT40/VHT20/VHT40/VHT80 Bluetooth BR/EDR/LE NFC:ASK Antenna Gain Bluetooth : 1.0 dBi WLAN 2.4GHz: 1.0 dBi WLAN 5GHz: 0.0 dBi Antenna Type Bluetooth : FPC Antenna WLAN 2.4GHz: FPC Antenna NFC: PCB Antenna HW Version N/A SW Version N/A EUT Stage Production Unit Remark: 1. The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. Comments and Explanations: 1. The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. 2. The maximum RF output tune up power, antenna gain also the safe distance used for evaluate RF exposure were declared by manufacturer. Sporton International (Shenzhen) Inc. Page Number : 6 of 8 TEL : +86-755-86379589 / FAX : +86-755-86379595 Report Issued Date : Jul. 27, 2021 FCC ID : V5PA35DBW Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA132310 3. Maximum RF average output power among production units <Bluetooth> Mode Maximum Average Power (dBm) Bluetooth BR/EDR 10.0 Bluetooth LE 9.0 <WLAN 2.4GHz> Mode Maximum Average Power (dBm) 802.11b 18.00 802.11g 17.00 802.11n-HT20 17.00 802.11n-HT40 17.00 <WLAN 5GHz> Mode Maximum Average Power (dBm) 5.2GHz 802.11a 17.00 802.11n-HT20 17.00 802.11n-HT40 17.00 802.11ac-VHT20 17.00 802.11ac-VHT40 17.00 802.11ac-VHT80 17.00 5.3GHz 802.11a 17.00 802.11n-HT20 17.00 802.11n-HT40 17.00 802.11ac-VHT20 17.00 802.11ac-VH…

Text truncated - open the document above for the full version.

Sporton International (Shenzhen) Inc. Page Number : 1 of 28 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: V5PA35DBW Report Template No.: BU5-FR15EWL AC MA Version 2.0 FCC RF Test Report Report No. : FR132310E FCC RF Test Report APPLICANT : PAX Technology Limited EQUIPMENT : POS Terminal BRAND NAME : PAX MODEL NAME : A35 FCC ID : V5PA35DBW STANDARD : FCC Part 15 Subpart E §15.407 CLASSIFICATION : (NII) Unlicensed National Information Infrastructure TEST DATE(S) : Apr. 02, 2021 ~ May 27, 2021 We, Sporton International (Shenzhen) Inc., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International (Shenzhen) Inc., the test report shall not be reproduced except in full. Reviewed by: Derreck Chen / Supervisor Approved by: Eric Shih / Manager Sporton International (ShenZhen) Inc. 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International (Shenzhen) Inc. Page Number : 2 of 28 TEL : 86-755-8637-9589 Report Issued Date : Jul. 27, 2021 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: V5PA35DBW Report Template No.: BU5-FR15EWL AC MA Version 2.0 FCC RF Test Report Report No. : FR132310E TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ........................................................................................ 5 1.4 Product Specification of Equipment Under Test ................................................................................ 5 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Testing Location ................................................................................................................................ 6 1.7 Test Software ..................................................................................................................................... 7 1.8 Applicable Standards ......................................................................................................................... 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Carrier Frequency and Channel ........................................................................................................ 8 2.2 Test Mode .......................................................................................................................................... 9 2.3 Connection Diagram of Test System ............................................................................................... 10 2.4 Support Unit used in test configuration and system ........................................................................ 11 2.5 EUT Operation Test Setup .............................................................................................................. 11 2.6 Measurement Results Explanation Example ................................................................................... 12 3 TEST RESULT ........................................................................................................................................... 13 3.1 26dB & 99% Occupied Bandwidth Measurement ........................................................................... 13 3.2 Maximum Conducted Output Power Measurement ........................................................................ 15 3.3 Power Spectral Density Measurement ............................................................................................ 17 3.4 Unwanted Emissions Measurement ................................................................................................ 19 3.5 AC Conducted Emission Measurement.........................................................…

Text truncated - open the document above for the full version.
