V5PA50Smart Mini Payment Terminal

A50 Smart Mini Payment Terminal 1. Contents Checklist Please check the components after unpacking. If any one of them is missing, or if there is a page missing from the product manual, etc., please contact the dealer.\ Name Q t y. A50 Smart Mini Payment Terminal 1 Mobile Phone Card Pick-up Needle 1 USB Cable 1 Product Manual 1 2. Production Description 3. Installation SIM/Micro-SD Card Installation 1) Take the Card Pick-up Needle out of the box 2) Insert the Card Pick-up Needle into the SIM/micro-SD card slot 3) Insert SIM /micro-SD card into the pop-up card slot 4. Instruction 1) Power ON/OFF Power on: Connect DC power supply or insert the battery, Pressbutton for 3 seconds until LCD backlight is on. If POS terminal is being turned on successfully, PAX LOGO can be seen and 'Di' from the buzzer can be heard. Power off: Press button for 3 seconds until Shutting down... can be seen. POS terminal is being turned off. 2) IC card Place the chip facing up, insert the IC card into the IC card slot, and push it to the end. 3) Swiping contactless card Place a contactless card close to the sensor area of swiping which is at the back of the terminal. 5. Installation and Usage Tips 1) Avoid exposing the terminal in direct sunlight, or hot / humid / dusty environment. 2) Forbid non-professional to repair the terminal. 3) Before inserting the card, please check the inside and periphery of IC card slot. If you find some suspicious objects, please report to related administrator. Working Environment： Temperature: 10°C~50°C (32°F~122°F) R.H.:5%~96% (non-condensing) Storage Environment： Temperature: -20°C~70°C ( -4°F~158°F) R.H.:5%~95% (non-condensing) 6. Lithium Ion Battery Usage Tips WARNING: 1) Don't use the battery in sunlight or smoky, dusty environment. 2) It's prohibited to strike, squeeze and tread on the battery or throw it into the liquid and fire. 3) If the battery is deformed, damaged or exothermic seriously, please stop using immediately and replace it! 4) If the continuous working time is only half of new one, the battery life may be end. Please replace it! 5) Please use the specified battery model and charger, otherwise it may cause explosion. 6) Charging time can not exceed 24 hours. If the battery is out of power, please recharge in time. Avoid damaging the battery in over-charge and over-discharge. 7) If you don't use it for a long time, please recharge the battery per 6 months to avoid shortening its life. 8) Suggest to replace it when the battery has been used for 2 years. 9) Be sure to follow the instructions to dispose the wasted batteries. 7. Icon shows Do not throw away, need professional recycling. Class II Equipment For indoor use only Energy Efficiency Marking AC voltage DC voltage The MAINS plug is used as the disconnected device. The full text of the EU declaration of conformity is available at the following Internet address: http://www.pax.com.cn/ProductCE.aspx FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. FCC RF Exposure Information (SAR) This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. During SAR testing, this device is set to transmit at its highest certified power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage near the body. Although the SAR is determined at the highest certified power level, the actual SAR level of the while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. The exposure standard for wireless employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. The FCC has granted an Equipment Authorization for this model device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: V5PA50 While there may be differences between the SAR levels of various devices and at various positions, they all meet the government requirement. ISED Notice This device complies with Innovation, Science and Economic Development Canada license-exempt RSS standard(s). Operation is subjec…

Text truncated - open the document above for the full version.

Rev. 1/1/03 PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour, Hong Kong, China Tel: 86-755-86156663 ; Fax: 86-755-86156663 Date: April 27, 2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: V5PA50 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Jenna Tan

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour, Hong Kong, China Tel: 86-755-86156663 ; Fax: 86-755-86156663 Date: April 27, 2020 Power of Attorney To whom it may concern, Please be notified that I, Jenna Tan, have designated Jim Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jim Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: V5PA50 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Jenna Tan Company: PAX Technology Limited TEL: 86-755-86156663 FAX: 86-755-86156663 E-mail: [email protected]

1/1 PAX Technology Limited Date: April 27, 2020 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : V5PA50 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily  External Photos withheld from public disclosure for an initial period of 180 da ys:  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which PAX Technology Limited deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Jenna Tan Company: PAX Technology Limited TEL: 86-755-86156663 FAX: 86-755-86156663 E-mail: [email protected]

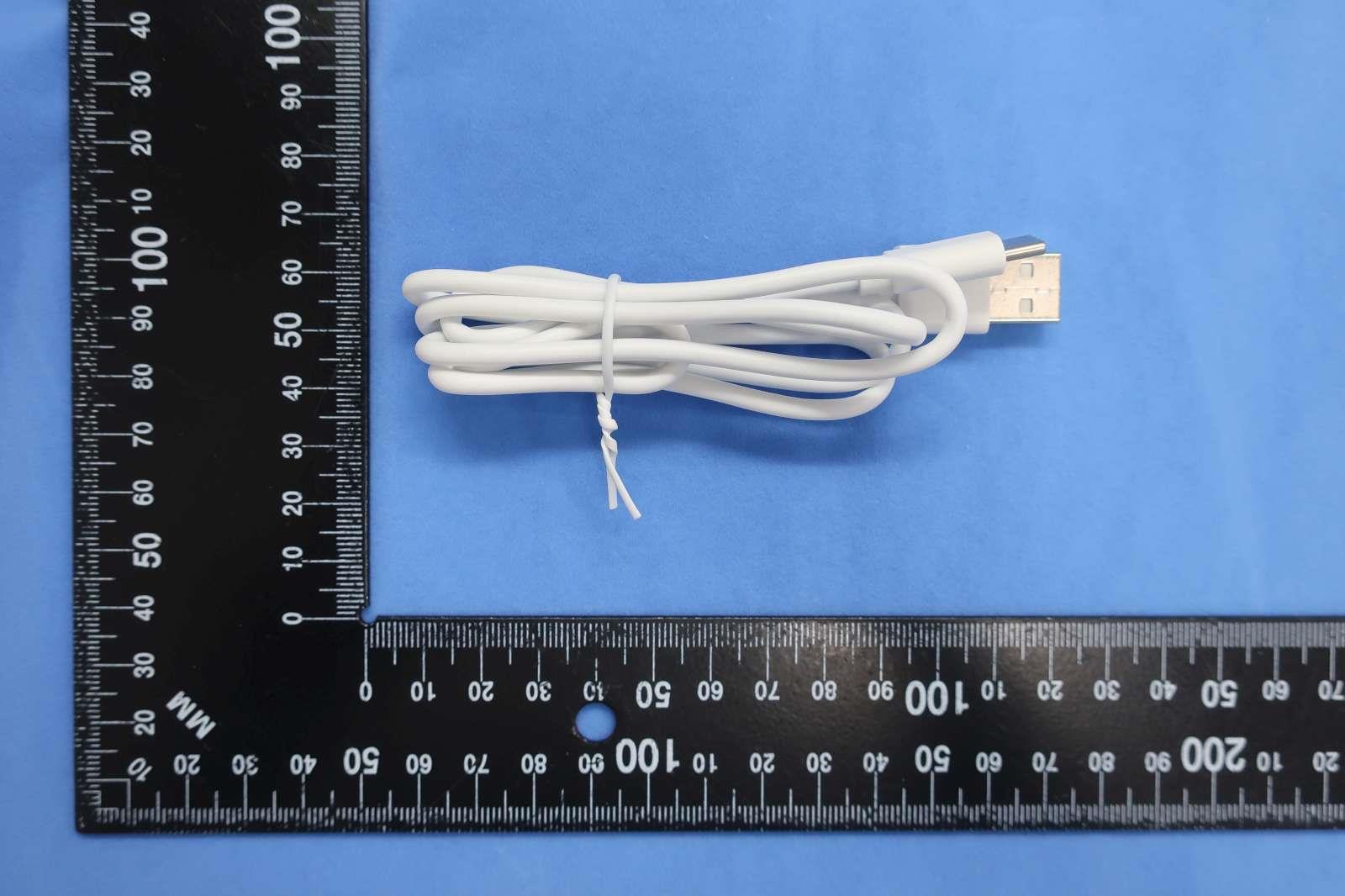

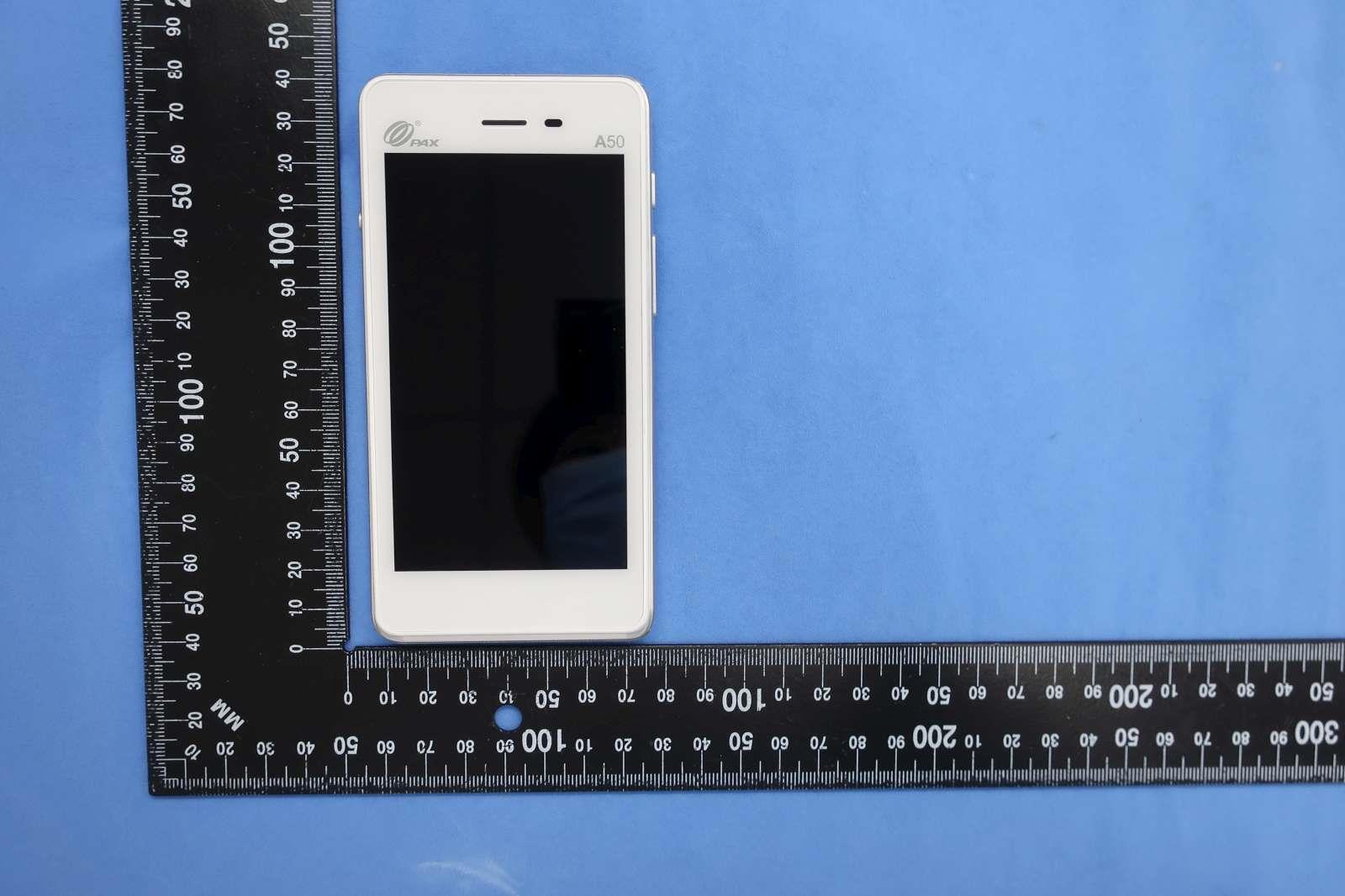

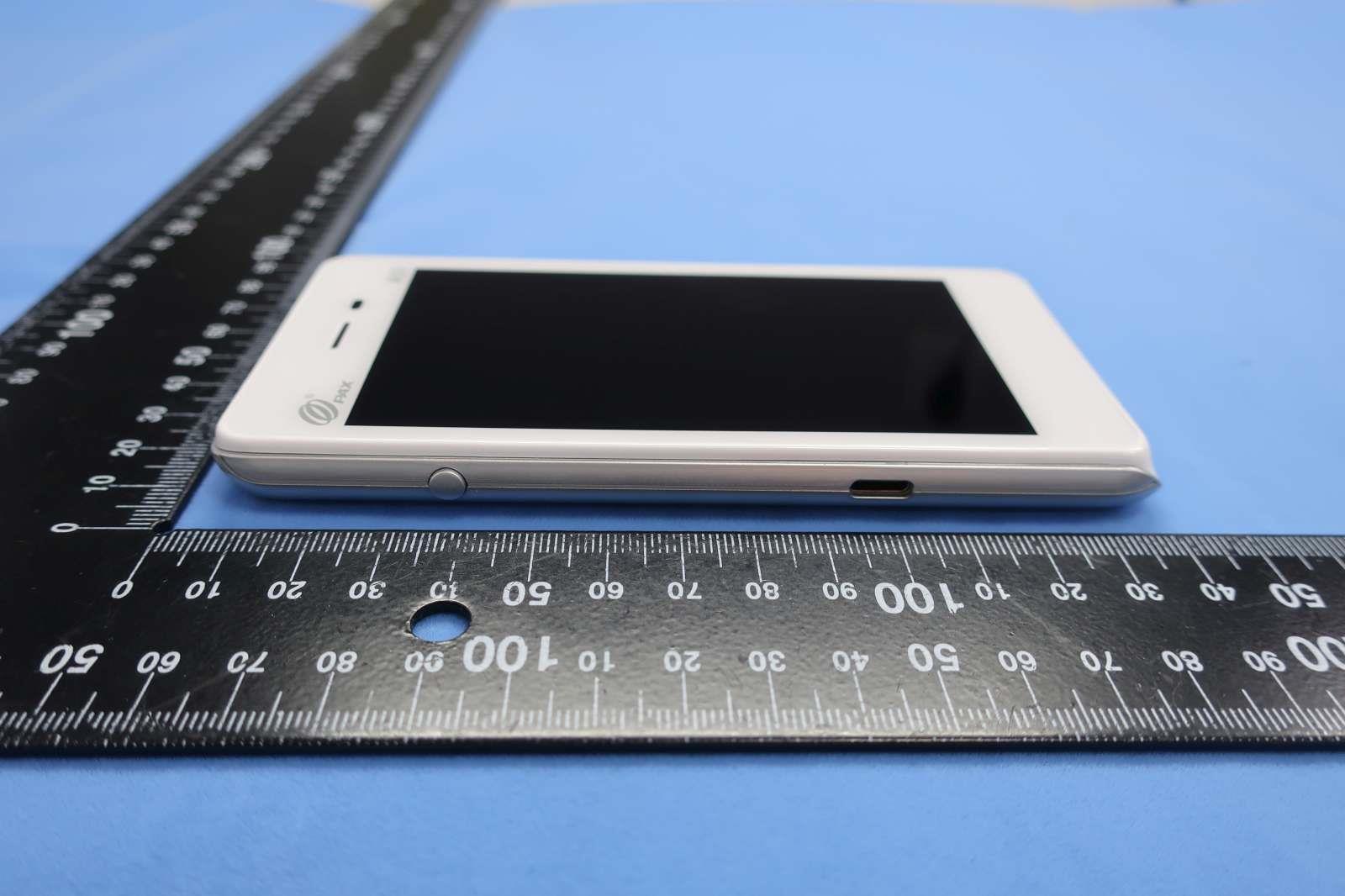

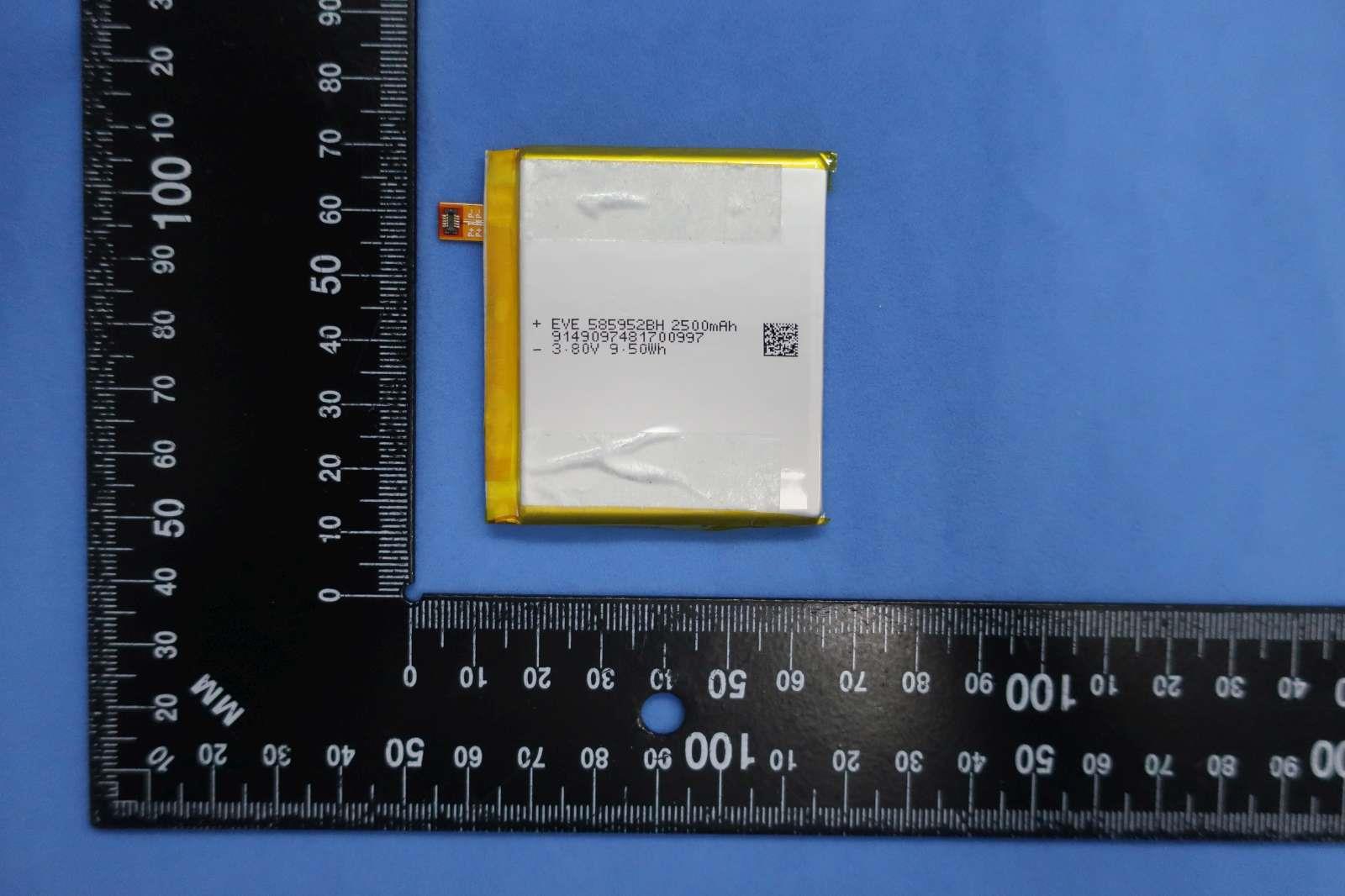

Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 1 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 1. External Photograph of EUT Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 2 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 3 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 4 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 5 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 6 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 720510 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 7 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 List of Accessory: Specification of Accessory AC Adapter Brand Name NA Model Name GLH50D2000HW Power Rating I/P: 100-240 Vac, 400mA, O/P: 5Vdc,2000mA Battery Brand Name EVE Model Name L0925-LF Power Rating 3.8V, 2500mAh Type Li-ion USB Cable Brand Name Shenzhen Milaishidai Communication Technology Co.,LTD. Model Name HY-033008 Signal Line 1.0 meter, shielded cable, without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 8 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 720510 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 9 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 AC Adapter Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 10 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Battery Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 11 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 12 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 USB Cable

Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 13 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 3. Internal Photograph of EUT WWAN Main Antenna < TX/Rx> Bluetooth & WLAN Antenna<Tx/Rx> GNSS Antenna <Rx> NFC Antenna<Tx/Rx> WWAN Diversity Antenna <Rx> Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 14 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 15 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 16 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 17 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 18 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 19 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 20 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 21 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 22 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 23 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 24 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 25 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 26 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 27 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 28 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 29 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 30 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 31 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 32 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 33 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 34 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PA50 Photographs of EUT Report No.: EP022603 Brand Name: PAX; Model Name: A50 Sporton International (ShenZhen) Inc. Page Number : 35 of 40 TEL : 86-755-8637-9589 Report Issued Date : Apr. 26, 2020 FAX : 86-755-8637-9595…

Text truncated - open the document above for the full version.

Sporton International (Shenzhen) Inc. Page 1 of 38 TEL : +86-755-86379589 / FAX : +86-755-86379595 Issued Date : Apr. 26, 2020 Form version: 181113 FCC SAR Test Report Report No. : FA022603 FCC SAR Test Report APPLICANT : PAX Technology Limited EQUIPMENT : Smart Mini Payment Terminal BRAND NAME : PAX MODEL NAME : A50 FCC ID : V5PA50 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 The product was received on Feb. 26, 2020 and te sting was started from Mar. 25, 2020 and completed on Mar. 29, 2020. We, Sporton International (Shenzhen) Inc., would like to declare that the tested sample has been evaluated in accordance with the test procedure s and has been in compliance with the applicable technical standards. The test re sults in thi s variant report apply exclusively to the tested model / sample. Without written approval of Sporton International (Shenzhen) Inc., the test report shall not be reproduced except in full. Reviewed by: Long Liang / Supervisor Approved by: Johnny Chen / Manager Sporton International (ShenZhen) Inc. 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International (Shenzhen) Inc. Page 2 of 38 TEL : +86-755-86379589 / FAX : +86-755-86379595 Issued Date : Apr. 26, 2020 Form version: 181113 FCC SAR Test Report Report No. : FA022603 Table of Contents 1. Statement of Compliance ............................................................................................................................................................... 4 2. Administration Data ......................................................................................................................................................................... 5 3. Guidance Applied ............................................................................................................................................................................. 5 4. Equipment Under Test (EUT) Information ................................................................................................................................. 6 4.1 General Information ................................................................................................................................................................. 6 4.2 General LTE SAR Test and Reporting Considerations ...................................................................................................... 7 5. RF Exposure Limits ......................................................................................................................................................................... 9 5.1 Uncontrolled Environment....................................................................................................................................................... 9 5.2 Controlled Environment ........................................................................................................................................................... 9 6. Specific Absorption Rate (SAR) .................................................................................................................................................10 6.1 Introduction..............................................................................................................................................................................10 6.2 SAR Definition.........................................................................................................................................................................10 7. System Description and Setup ...................................................................................................................................................11 7.1 E-Field Probe ..........................................................................................................................................................................12 7.2 Data Acquisition Electronics (DAE) .....................................................................................................................................12 7.3 Phantom...................................................................................................................................................................................13 7.4 Device Holder..........................................................................................................................................................................14 8. Measurement Procedures ............................................................................................................................................................15 8.1 Spatial Peak SAR Evaluation ...............................................................................................................................................15 8.2 Power Reference Measurement ..........................................................................................................................................16 8.3 Area Scan ................................................................................................................................................................................16 8.4 Zoom Scan ..............................................................................................................................................................................17 8.5 Volume Scan Procedures .....................................................................................................................................................17 8.6 Power Drift Monitoring ...........................................................................................................................................................17 9. Test Equipment List.................................................................................................................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-0755-8637-9589 FAX : 86-0755-8637-9595 D1750V2, Serial No. 1137 Extended Dipole Calibrations Referring to KDB 865664 D01 v01r02, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. D1750V2 – serial no. 1137 1750 Head 1750 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 2018.07.30 -40.7 50.3 -0.87 -24.3 44.8 -2.59 2019.10.23 -40.4 0.7 51 0.7 -0.15 0.72 -24.7 -1.6 46.1 1.3 -2.1 0.49 <Justification of the extended calibration> The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-0755-8637-9589 FAX : 86-0755-8637-9595 Dipole Verification Data> D1750V2, serial no. 1137 1750MHz - Head 1750MHz – Body in Collaboration with Add: No.51 Xueuan oad, Hadian District, Beijing,100191, China Tel:+86-lo-62304633-2079 Fax:+86-lo-62304633-2504 -mail: cchinal.com http://www.chinal.cn Client ;"; Certificate No: Z18-60536 CALIBRATION CNAS L0570 Object D1900V2-SN:5d182 Calibration Procedure(s) F-Z11-003-0 - alibration rocedures for dipole Xvalidation its Calibration date December 7, 2018 This calibration Certificate documents the traceability to national standards, which realize the physical units of measurements(SI). The measurements and the uncertainties with confidence probability are given on the following pages and are p^rt ofthe certificate. All calibrations have been conducted in the closed laboratory facility, environmenttemperature(223)c and humidity<70%. Calibration Equipment used (M&TE criticalfor calibration) Power Meter NRVD Power sensor NRV-Z5 Reference Probe EX3DV4 DAE4 ID# 102196 100596 SN7514 SN 1555 Cal Date(Calibrated by, Certificate No) 07-Mar-18 (CTTL, No.J18X01510) 07-Mar-18 (CTTL, NO.J18X01510) 27-Aug-18(SPEAG,No.EX3-7514_Aug18) 20-Aug-18(SPEAG,No.DAE4-1555_Aug18) Scheduled Calibration Mar-19 Mar-19 Aug-19 Aug-19 Secondary Standards Signal Generator E4438C NetworkAnalyzer E5071C MY49071430 MY46110673 Cal Date(Calibrated by, Certificate No.) 23-Jan-18 (CTTL, No.J18X00560) 24-Jan-18 (CTTL, NO.J18X00561) Scheduled Calibration Jan-19 Jan-19 Calibrated by Reviewed by Approved by Name Zhao Jing Lin Wao Qi Dianyuan Function SAR Test Engineer SAR Test Engineer SAR Project Leader Issued: December10, 2018 This calibration certificate shall not be reproduced exceptin full without written approval ofthe laboratory Certificate No: Zl8-60536 Page 1 of 8 taborationwith o e a Add: No.51 Xueyuan Road, Haidian District, Beijing,100191, China Tel: +86-lo-62304633-2079 Fax: +86-lo-62304633-2504 E-mail: [email protected]://www.chinattl.cn lossary: TSL ConvF N/A tissue simulating liquid sensitivity in TSL / NORMx.y.z not applicable or not measured Calibration is Performed According to the Following Standards: a)IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak Spatial-Averaged Specific Absorption Rate (SAR)in the Human Head from Wireless Communications Devices: Measurement Techniques", June 2013 b)IEC-62209-1, "Measurement procedure for assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices- Part1: Device used nextto the ear(Frequency range of 300MHzto 6GHz)", July 2016 c)IEC 62209-2, "Procedure to measure the Specific Absorption Rate (SAR) For wireless communication devices used in close proximity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d)KDB865664, SAR Measurement Requirements for100 MHz to 6 GHz Additional Documentation: e) DASY4/5 System Handbook Methods Applied and Interpretation of Parameters: @Measurement Conditions: Further details are available from the Validation Report atthe end ofthe certificate. Allfigures stated in the certificate are valid atthe frequency indicated. @Antenna Parameters with TSL: The dipole is mounted with the spacerto position its feed point exactly below the center marking ofthe flat phantom section, with the arms oriented parallelto the body axis. @Feed PointImpedance and Return Loss: These parameters are measured with the dipole positioned underthe liquid filled phantom. The impedance stated is transformed from the measurement atthe SMA connectorto the feed point. The Return Loss ensures low reflected power. No uncertainty required. @Electrical Delay: One-way delay …

Text truncated - open the document above for the full version.
