V5PA85004GSmart Desktop Terminal

1 Quick Setup Guide A8500 Smart Payment Terminal PAX Technology Limited 2 1. Checklist Congratulations on receiving your PAX Technology payment terminal. We do hope you enjoy it! The box you have just opened should contain the following items: ⚫ 1 x PAX A8500 Smart Payment Terminal ⚫ 1 x AC Power Adapter ⚫ 1 x AC Power Cable (optional) ⚫ 1 x Thermal Paper Roll (optional) ⚫ 1 x Multi-Functional Cable (optional) 2. Product Description A8500P A8500P supports USB output 5Vdc 1A A8500N ⚫ A8500N, support USB output 5Vdc 0.9A. ⚫ To avoid risk of fire, please just connect the product to an power supply of which output capability is less than 15W. 3 3. Installation ⚫ Power on: Plug in the DC power port by connecting the AC power adapter and the AC power cable, and start the machine directly , the main screen and guest screen display normally. ⚫ Swipe the magnetic stripe card: face the card's magstripe inwards toward the device, swipe the card completely up or down in a constant steady manner (bi-directional). ⚫ Smart IC Card: Place the IC chip face Up, then insert the IC card into the card slot, and push it to the end. ⚫ Contactless card: tap the contactless card or mobile wallet near the up central of the screen, indicated by the universal contactless icon. ⚫ 1D/2D Code Reader: Scan the 1D/2D code toward the top central area of the screen. ⚫ Electronic Signature: Use your finger to sign on the screen. Never use metal or sharp objects to operate the touch screen as it could get damaged. ⚫ Insert SAM/SIM/ microSD card: remove back cover & insert cards to corresponding card slots. ⚫ Install the printer paper : When the printer is out of paper, Open the printer cover; Load the paper roll into the paper bin and extend the end of the paper out of the printer; Close the printer cover. 4. General Usage Tips • Avoid placing this product in direct sunlight for extended periods, nor in environments with excessively high temperature, moisture or dust. • If repairs are required, please contact a professional technician instead of attempting them on your own. • Before using cards in the Smart Card Reader & Magnetic Card readers, please ensure they are free from any foreign objects. • To clean the screen, apply distilled water or mild glass cleaner onto a soft, lint-free cloth and gently wipe terminal. • This device has an electronic label for certification information. To access it, the is Swipe down from the upper right edge of the screen to display Control Panel and touch the Regulatory labels. Figure 1 Control Panel Figure 2 Regulatory labels 4 CAUTION: ⚫ Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ⚫ Hereby, PAX Technology Limited. declares that the radio equipment type A8500 is in compliance with Directive 2014/53/EU. ⚫ The full text of the EU declaration of conformity is available at the following internet address：https://www.pax.com.cn/ProductCE/index.aspx 5. Password & PIN Entry Tips PAX recommends entering passwords and inputting Personal Identification Numbers (PIN) as follows: • Place the product at an appropriate angle so that it is difficult for another person to see the PIN or password being entered. • Shield password entry from any nearby video surveillance. • Use body or free hand to block the view of keypad. 6. Environmental Parameters ⚫ Working Environment: Temperature: -10°C~45°C (14°F ~ 113°F) ⚫ Storage Environment: Temperature: -20°C~70°C (-4°F ~ 158°F) ⚫ Humidity:5%~95% (non-condensing) 7. Icons Dispose in a professional recycling manner Class II equipment For indoor use only Energy efficiency marking AC voltage DC voltage microSD logo 5 Trademark notice: ⚫ microSD logo is a trademark of SD-3C LLC. ⚫ “The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PAX Technology Limited is under license. Other trademarks and trade names are those of their respective owners.” P/N: FCC Regulations: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ⚫ Reorient or relocate the receiving antenna. ⚫ Increase the separation between the equipment and receiver. ⚫ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ⚫ Consult the dealer or an experienced radio/TV technician for help. FCC Caution: ➢ Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. ➢ This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 6 ISED Notice  This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the fo…

Text truncated - open the document above for the full version.

Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 1, 2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: V5PA85004G PAX Technology Limited certifies that the equipment for which authorization is sought is not the FCC rules. Sincerely, _______________ Jenna Tan PAX Technology Limited Tel: 86-755-86169676 Fax: 86-755-86155423 E-mail: [email protected] Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 1, 2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: V5PA85004G PAX Technology Limited certifies that, as of the date of the filing of the application, the applicant is not Sincerely, _______________ Jenna Tan PAX Technology Limited Tel: 86-755-86169676 Fax: 86-755-86155423 E-mail: [email protected]

Rev 2/6/2023 PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre,30 Harbour Hong Kong China Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date:May 30, 2023 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: V5PA85004G PAX Technology Limited certifies that, as of the date of the filing of the application, Pax Technology,Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. PAX Technology Limited accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Pax Technology,Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Pax Technology,Inc. Address: 8775 Baypine Road,Jacksonville,FL 32256 Contact Person: John Hallisey Tel.: 904-302-9424 Email: [email protected] Sincerely, PAX Technology Limited Pax Technology, Inc. FRN0017536285 FRN 0033507476 Jenna Tan John Hallisey DocuSign Envelope ID: 5C81E877-CCD7-4DE3-9581-340C45E629CD

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Hong Kong China Date: June 1, 2023 Declaration To whom it may concern, This is a WLAN/Bluetooth combination antenna with FCC ID: V5PA85004G. This WLAN/Bluetooth co-existence mechanism is to ensure that the WLAN and Bluetooth transmitters would not simultaneously operate. Therefore, WLAN and Bluetooth antenna in FCC ID: V5PA85004G should not be considered to be able to transmit simultaneously. Though the users can use WLAN and Bluetooth simultaneously, but the real situation is that WLAN and Bluetooth are used by time sharing and no overlap transmission. Should you have any question, please have my best attention. Sincerely yours, _______________ Jenna Tan PAX Technology Limited Tel: 86-755-86169676 Fax: 86-755-86155423 E-mail: [email protected]

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Hong Kong China Date: June 1, 2023 Declaration We, PAX Technology Limited, declare that the device, FCC ID: V5PA85004G, does not support any non-US channels in all the operational mode(s). All non-US frequencies, US 2.4G channel 12-13 and Country code selection are disabled through proprietary software and are not user changeable. Should you have any question or comment regarding this matter, please do not hesitate to contact me. Sincerely yours, _______________ Jenna Tan PAX Technology Limited Tel: 86-755-86169676 Fax: 86-755-86155423 E-mail: [email protected]

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre,30 Harbour Hong Kong China Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA E-Label declare for FCC ID: V5PA85004G Dear Sir/Madam, We hereby declare that the E-label Comply with the following regulations 1. Access to regulatory information provided without special codes, accessories, or permissions beyond the normal security protection to unlock the screen, sign-in page, or overall product access 2. The FCC ID, warning statements, or other information displayed electronically in a manner that is clearly legible without the aid of magnification. 3. Users able to access the regulatory information without requiring special access codes or permissions, and in all cases the information must be accessible in no more than three steps from a If you have any questions regarding this application, please free to contact me. _______________ Jenna Tan PAX Technology Limited Tel: 86-755-86169676 Fax: 86-755-86155423 E-mail: [email protected]

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Hong Kong China Date: June 1, 2023 Power of Attorney To whom it may concern, Please be notified that I, Jenna Tan, have designated Joey Lao of Bureau Veritas 7Layers Communications Technology (Shenzhen) Co., Ltd as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Joey Lao of Bureau Veritas 7Layers Communications Technology (Shenzhen) Co. Ltd on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.U.S.C. 862, we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act. This authorization is limited to the product of as following: FCC ID: V5PA85004G If you have any acknowledgement and response, please send it to Joey Lao of Bureau Veritas 7Layers Communications Technology (Shenzhen) Co., Ltd directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours, _______________ Jenna Tan PAX Technology Limited Tel: 86-755-86169676 Fax: 86-755-86155423 E-mail: [email protected]

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Hong Kong China Date: June 1, 2023 Federal Communications Commission 7435 Oakland Mills Road - Gate A Columbia, Maryland 21046 Subject: Request for Confidentiality FCC ID: V5PA85004G To Whom It May Concern, Pursuant to the (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Parts List Tune-up Procedure Software operational description Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the Grant Date of Equipment Authorizations. External Photos Internal Photos Test Setup Photos Users Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, _______________ Jenna Tan PAX Technology Limited Tel: 86-755-86169676 Fax: 86-755-86155423 E-mail: [email protected]

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre 30 Harbour Road Wanchai China (Peoples Republic Of) Product Equality Declaration We PAX Technology Limited declare that our product: Smart Desktop Terminal and its below model (s) / item(s): A8500N are identical on circuitry design, PCB layout, internal wiring and functions with the model/item No.: A8500P, and only different on below: Object A8500P A8500N PMN A8500P A8500N HVIN A8500P A8500N Printer Support NO support Adapter 1 Model Name : SW-0396A I/P: 100- 240Vac,800 mA, O/P: 9.0 Vdc, 1000 mA Model Name: SW-0983 I/P: 100- 240 Vac, 500 mA, O/P: 5.0 Vdc, 2000 mA Adapter 2 Model Name: G024A090100ZZUD I/P: 100- 240Vac,800 mA, O/P: 9.0 Vdc, 1000 mA Model Name: GLH50E2000HW I/P: 100- 240 Vac, 500 mA, O/P: 5.0 Vdc, 2000 mA LCD Panel 1 Supplier : Hubei Yiou Electronics Co., Ltd Model Name: YH-500BSC046C0-19A00-PTM0 Specifications : 5.0 inch/ 720*RGB*1280 Pixel LCD Panel 2 Supplier : Shenzhen Hongzhan Optoelectronics Co., Ltd Model Name: F6050812B-04 Specifications :5.0 inch/ 720*RGB*1280 Pixel Automatic operating voltage Minimum voltage: 8.55V Minimum voltage: 4.75V Normal voltage: 9V Normal voltage: 5V Maximum voltage: 9.9V Maximum voltage: 5.25V Note：When the operating voltage changes, It does not affect RF, baseband module Jenna Tan PAX Technology Limited Tel: 86-755-86169676 E-mail: [email protected] PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre 30 Harbour Road Wanchai China (Peoples Republic Of)

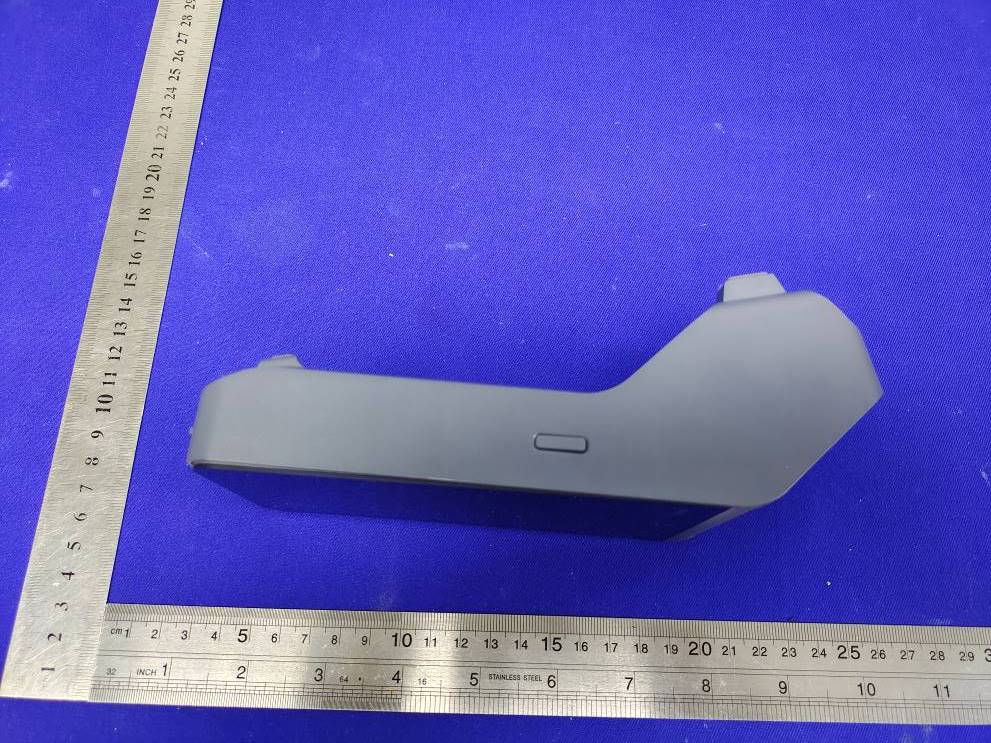

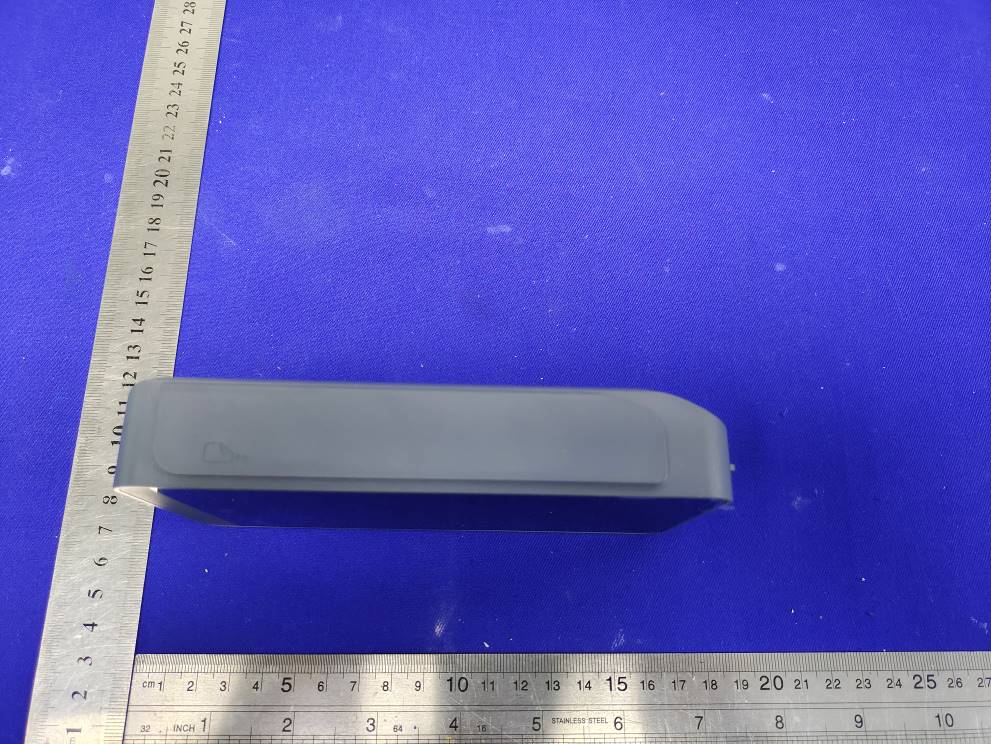

BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 1 of 12 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G PHOTOGRAPHS OF THE EUT A8500N BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 2 of 12 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 3 of 12 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 4 of 12 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 5 of 12 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 6 of 12 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 7 of 12 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G A8500P BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 8 of 12 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 9 of 12 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 10 of 12 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 11 of 12 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 12 of 12 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G

A8500N英文铭牌贴纸 -北美4G

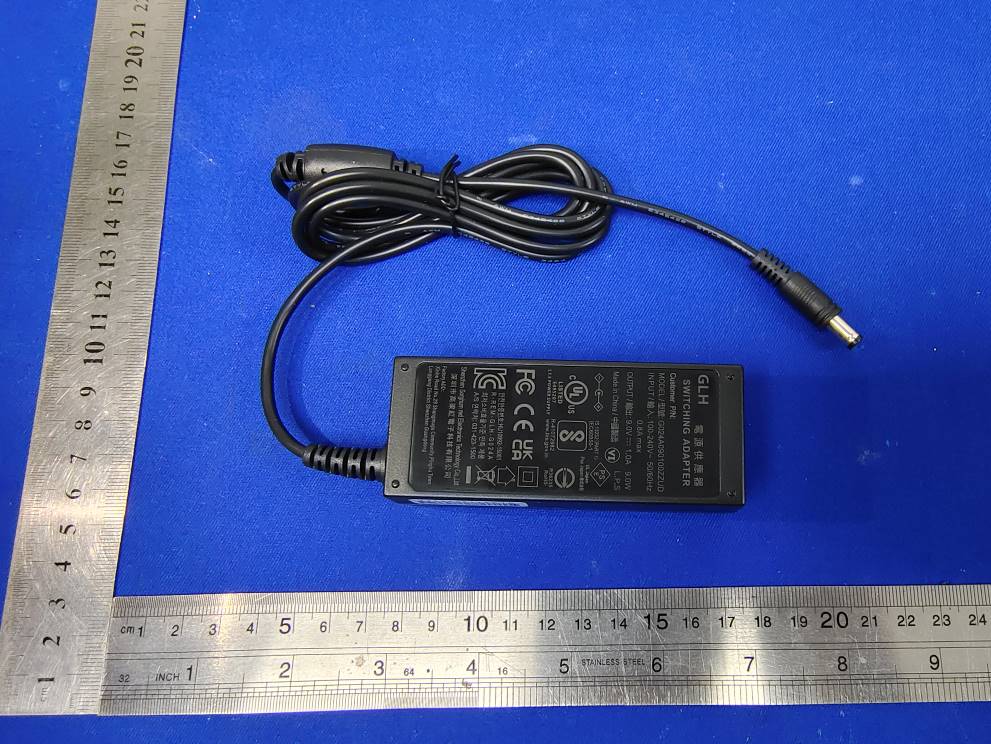

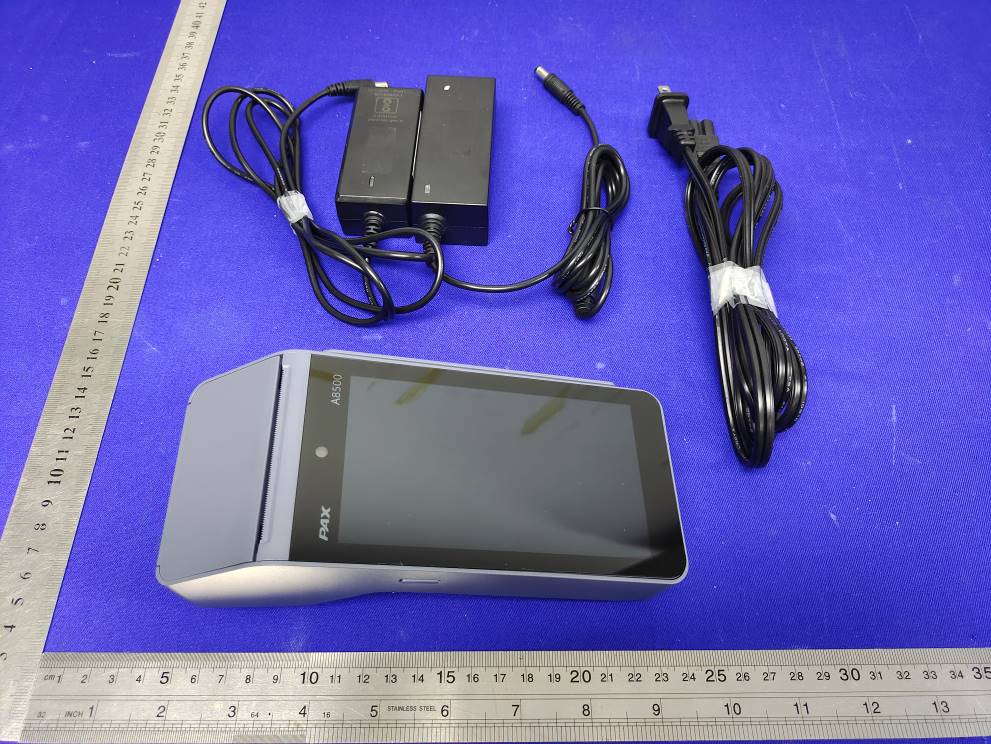

BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 1 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G PHOTOGRAPHS OF THE EUT A8500N BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 2 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 3 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 4 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 5 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 6 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 7 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 8 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 9 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 10 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 11 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 12 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 13 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G A8500P BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 14 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 15 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 16 of 22 Report Version 1 Reference No.: W7L-P23050004 FCC ID: V5PA85004G BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, N…

Text truncated - open the document above for the full version.

FCC RF Exposure Test Report Report Format Version 5.0.0 Issued Date : May. 29, 2023 Report No. : W7L-P23050004SA01 FCC RF Exposure Test Report Report No. : W7L-P23050004SA01 Applicant : PAX Technology Limited Address : Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour, Hong Kong China Product : Smart Desktop Terminal FCC ID : V5PA85004G Brand : PAX Model No. : A8500P, A8500N Standards : FCC Part 2 (Section 2.1091) KDB 447498 D01 General RF Exposure Guidance v06 Sample Received Date : May. 5, 2023 Date of Testing : May. 5, 2023 ~ May. 29, 2023 CERTIFICATION: The above equipment have been tested by BV 7LAYERS COMMUNICATIONS TECHNOLOGY (SHENZHEN) CO., LTD., and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by A2LA or any government agencies. Prepared By : Approved By : Jerry Chen / Engineer Luke Lu / Manager This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. FCC RF Exposure Test Report Report Format Version 5.0.0 Issued Date : May. 29, 2023 Report No. : W7L-P23050004SA01 Table of Contents RELEASE CONTROL RECORD .................................................................................................................................................... 3 1. DESCRIPTION OF EQUIPMENT UNDER TEST .................................................................................................................... 4 2. MPE(MAXIMUM PERMISSIBLE EXPOSURE) ASSESSMENT ............................................................................................. 5 2.1 INTRODUCTION .......................................................................................................................................................... 7 2.2 RF RADIATION EXPOSURE LIMITS ........................................................................................................................... 7 2.3 MPE ASSESSMENT METHOD .................................................................................................................................... 8 2.4 MPE CALCULATION FOR STANDALONE OPERATIONS .......................................................................................... 8…

Text truncated - open the document above for the full version.
