V5PA8700Smart Payment Terminal

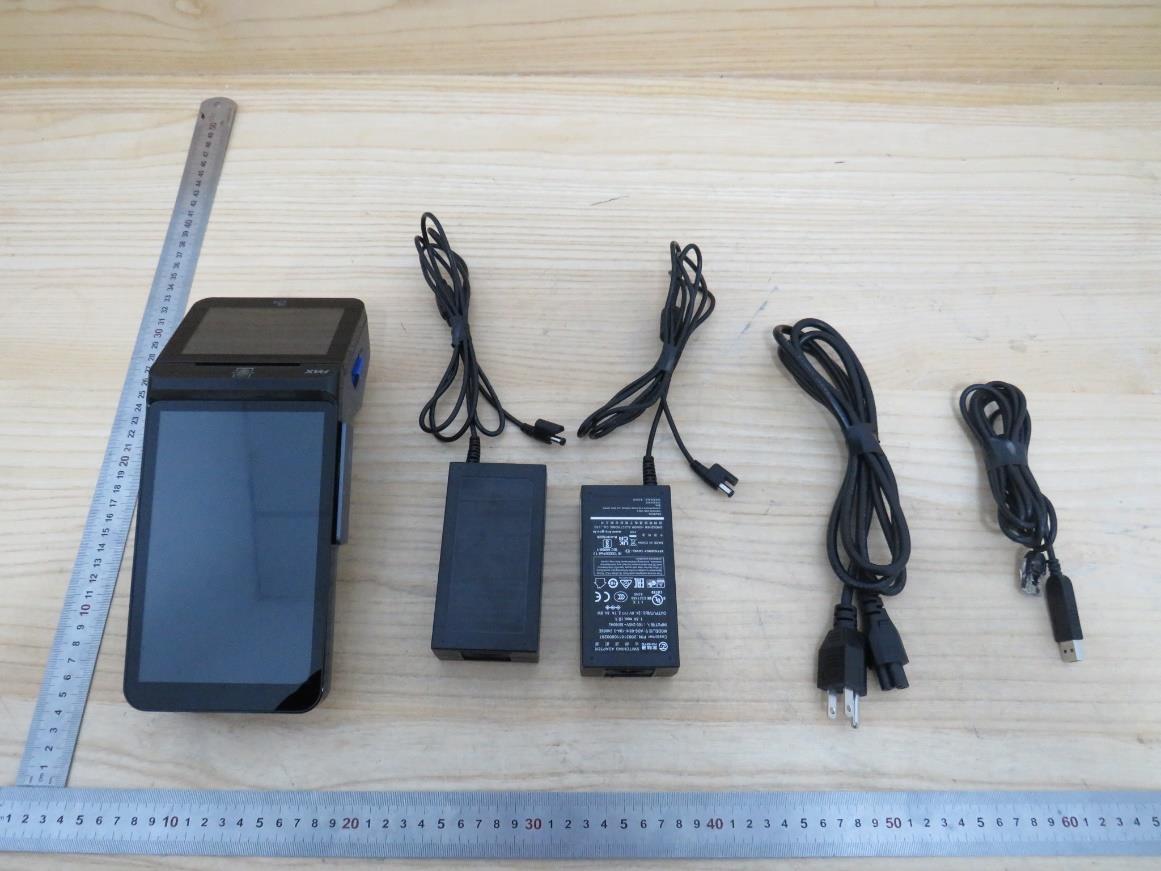

1 Quick Setup Guide A8700 Smart Payment Terminal PAX Technology Limited 2 1. Checklist Congratulations on receiving your PAX Technology payment terminal. We do hope you enjoy it! The box you have just opened should contain the following items:  1 x PAX A8700 Smart Payment Terminal  1 x AC Power Adapter  1 x AC Power Cable  1 x Quick Setup Guide  1 x Multi-Functional Cable (optional) 2. Product Description Contactless Card Reader, Guest MSR, Smart Card Reader, Guest Display，Printer， Camera，Main Magnetic Card，Main Display， Figure 1 The Front View 3 Figure 2 The Left Side View and Right Side View Mic，Audio Jack，Power Button，Volume +，Volume -，Kensington Lock； Printer Button； Figure 3 The Back View SIM2/SAM1,SIM1/SAM2,USB1,USB2,LAN,RS232,DC24V,USB Type C,MicroSD Card; 4 Figure 4 Diagram for Opening the Printer Cover 3. Installation  Power on: Plug in the DC power port by connecting the AC power adapter and the AC power cable, and start the machine directly , the main screen and guest screen display normally.  Power off: Press and hold the Power button for three seconds until the shutdown menu appears, tap “Shutdown”, and then “shutting...” appears. The terminal will be turned off after a few seconds.  Swipe the main/guest magnetic stripe card: face the card's magstripe inwards toward the device, swipe the card completely up or down in a constant steady manner (bi-directional).  Smart IC Card: Place the IC chip face Up, then insert the IC card into the card slot, and push it to the end.  Contactless card: tap the contactless card or mobile wallet near the Right central of the guest screen, indicated by the universal contactless icon.  1D/2D Code Reader: Scan the 1D/2D code toward the top central area of the guest screen.  Electronic Signature: Use your finger to sign on the main screen or guest screen. Never use metal or sharp objects to operate the touch screen as it could get damaged.  Tear paper: Press the print paper downward along the cutter and tear it leftward or rightward when getting close to the main display. 5  Anti-Theft Mechanism: a Kensington Lock on the lower left side of the product allows owners to secure the device if necessary, to a pole stand or other countertop fixture.  Audio Jack: supports a 3.5mm output audio jack, useful for software applications developed to allow visually impaired customers to connect a headphone for voice prompting.  Insert SIM/ microSD card: remove back cover & insert cards to corresponding card slots. 4. General Usage Tips  Avoid placing this product in direct sunlight for extended periods, nor in environments with excessively high temperature, moisture or dust.  If repairs are required, please contact a professional technician instead of attempting them on your own.  Before using cards in the Smart Card Reader & Magnetic Card readers, please ensure they are free from any foreign objects.  To clean the screen, apply distilled water or mild glass cleaner onto a soft, lint-free cloth and gently wipe terminal.  This device has an electronic label for certification information. To access it, there are two paths，one is select Settings > About device > Regulatory labels，and the other is Swipe down from the upper right edge of the screen to display Control Panel , and touch the Regulatory labels. CAUTION:  Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.  Hereby, PAX Technology Limited. declares that the radio equipment type A8700 is in compliance with Directive 2014/53/EU.  The full text of the EU declaration of conformity is available at the following internet address：www.pax.com.cn/product/ce/list/. 5. Password & PIN Entry Tips PAX recommends entering passwords and inputting Personal Identification Numbers (PIN) as follows:  Place the product at an appropriate angle so that it is difficult for another person to see the PIN or password being entered.  Shield password entry from any nearby video surveillance.  Use body or free hand to block the view of keypad.  Only the guest screen supports PIN entry. 6 6. Environmental Parameters  Working Environment: Temperature: -10°C~45°C (14°F ~ 113°F)  Storage Environment: Temperature: -20°C~70°C (-4°F ~ 158°F)  Humidity:5%~95% (non-condensing) 7. Icons Dispose in a professional recycling manner Class II equipment For indoor use only Energy efficiency marking AC voltage DC voltage microSD logo Trademark notice:  microSD logo is a trademark of SD-3C LLC.  “The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PAX Technology Limited is under license. Other trademarks and trade names are those of their respective owners.” FCC Regulations: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital 7 device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a …

Text truncated - open the document above for the full version.

PAX Technology Limited Date: 1/31/2024 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(5) Attestation FCC ID: V5PA8700 Grantee FRN: 0017536285 1. PAX Technology Limited certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. PAX Technology Limited certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Name: Jenna Tan Job Title: Certification Leader Company Name: PAX Technology Limited

PAX Technology, Inc. 3680 Clear Channel Place Jacksonville, FL 32224 (877) 859-0099 Date: August 24, 2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) FCC US Agent Letter of Attestation Grantee Code: V5P Grantee FRN: 0017536285 To whom it may concern: FCC US Agent Agent Company Name: Pax Technology, Inc. FCC FRN: 0033507476 Agent Contact Name: John Hallisey Agent US Address: 8775 Baypine Road, Jacksonville,FL 32256 Agent Email Address: [email protected] This letter is to confirm that we have accepted the responsibility to act as US Agent on behalf of PAX Technology Limited for the above-referenced FCC Grantee Code. We are aware of the requirements and responsibilities of the applicant’s agent for service of process as outlined in the FCC section 2.911(d)(7) and Report and Order FCC 22-84 paragraph 63. Sincerely, Authorized Agent Contact Person Name: John Hallisey Agent contact Job Title: General Counsel Agent Company name: PAX Technology,Inc DocuSign Envelope ID: B0601BC3-D26F-4D08-BDD6-9282D716F3BC

PAX Technology Limited Date: 1/31/2024 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation FCC ID: V5PA8700 Grantee FRN: 0017536285 PAX Technology Limited as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. U.S. Agent Information: Contact Person: John Hallisey Company Name: Pax Technology,Inc. FRN: 0033507476 Company Address: 8775 Baypine Road,Jacksonville,FL 32256 Email: [email protected] Sincerely yours, Name: Jenna tan Job Title: Certification Leader Company Name: PAX Technology Limited

PAX Technology Limited Date: 8/24/2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: PAX Technology Limited Contact Name: Jenna tan Title of Person: Certification Leader Address: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong, 518057, China

PAX Technology Limited DATE : 2024-01-31 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Request for Short-Term Confidentiality Company name: PAX Technology Limited FCC ID: V5PA8700 FCC Part 15 Certification Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: (1) Test Setup Photos (2) External Photos (3) Internal Photos (4) User Manual The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Sincerely, Signature Company Name: PAX Technology Limited Contact Name: Jenna tan Title of Person: Certification Leader Address: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong 518057 China

PAX Technology Limited Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: V5PA8700 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: PAX Technology Limited Contact Name: Jenna tan Title of Person: Certification Leader Address: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong 518057 China Date: 1/31/2024

PAX Technology Limited Confirmation Letter WE, PAX Technology Limited The product: Smart Payment Terminal And model No.: A8700 FCC ID: V5PA8700 We declare that the software and associated drivers will not initiate any transmission on DFS frequencies without initiation by a master. This includes restrictions on transmissions for beacons and support for ad-hoc peer-to-peer modes. Best Regards Company Name: PAX Technology Limited Contact Name: Jenna tan Title of Person: Certification Leader Address: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong 518057 China Date:1/31/2024

External Photographs Page 2 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2 Page 3 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-3 View of EUT-4 Page 4 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-5 View of EUT-6 Page 5 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-7 View of EUT-8 Page 6 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-9 View of EUT-10 Page 7 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-11 View of EUT-12

Note: 1. The FCC label statement will be included in the user manual which will be printed on a paper insert and sold with the device. 2. Product Label applied using permanent adhesive. It is user-accessible and non-detachable.

Internal Photographs Page 2 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-1 Internal View of EUT-2 WIFI/BT Antenna Page 3 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-3 Internal View of EUT-4 Page 4 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-5 Internal View of EUT-6 Page 5 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-7 Internal View of EUT-8 Page 6 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-9 NFC Antenna

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT CERTIFICATION TEST REPORT For Smart Payment Terminal MODEL NUMBER: A8700 REPORT NUMBER: 4791162494.3-RF-6 ISSUE DATE: March 4, 2024 FCC ID: V5PA8700 Prepared for PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong 518057 China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4791162494.3-RF-6 Page 2 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 March 4, 2024 Initial Issue REPORT NO.: 4791162494.3-RF-6 Page 3 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT NO.: 4791162494.3-RF-6 Page 4 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: PAX Technology Limited Address: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong 518057 China Manufacturer Information Company Name: PAX Computer Technology (Shenzhen) Co., Ltd. Address: Room 701, PAX Technology Building, Shanxia Community, Pinghu Sub-district, Longgang District, Shenzhen, China EUT Information EUT Name: Smart Payment Terminal Model: A8700 Brand: PAX Sample Received Date: January 18, 2024 Sample Status: Normal Sample ID: 6847696 Date of Tested: January 24, 2024 to March 4, 2024 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 PASS Prepared By: Checked By: Fanny Huang Denny Huang Engineer Project Associate Senior Project Engineer Approved By: Stephen Guo Operations Manager REPORT NO.: 4791162494.3-RF-6 Page 5 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 and KDB447498D01v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED (Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with ISED. The Company Number is 21320 and the test lab Conformity Assessment Body Identifier (CABID) is CN0046. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China. REPORT NO.: 4791162494.3-RF-6 Page 6 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT AND CALCULATION METHOD Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. Limits for General Population/Uncontrolled Exposure RF EXPOSURE LIMIT Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -…

Text truncated - open the document above for the full version.

Contents: 1.Antenna Specification 2.Test Procedure 3.Antenna Passive Test 4.Device Profile 5.WiFi /BT Antenna Test 6.Antenna size 东莞市一佳电子通讯科技有限公司 Tester : Liu tao Approval : Yin tao Date : 2024/02/02 Antenna Test Report 真诚 务实 开拓 创新 Test site: Dongguan Yijia Electronics Communication Technology Co., Ltd. Address: No.59 Muyu Road, Shatou District, Chang'an Town, Dongguan City, Guangdong Telephone: 0769-82586086 Fax: 0769-82586086 Project name A8700 Name of antenna FPC Antenna form WIFI/BT PIFA Radiate Omni-directional Polarization Line polarization 1. Antenna Specification Electrical Properties Frequency 2.4-2.5GHz 5.15-5.85GHz Impedance50 Ohm Nominal V.S.W.R2.0 Max Gain 0.4 dBi@ 2.4-2.5GHz 2.3 dBi@ 5.15-5.85GHz RadiationOmni-directional Polarization Linear Physical Properties ConnectorNone Cable TypeNone Cable LengthNone Cable ColorNone Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25 ± 5 ̊C / <70% Equipment Manufacturer Model No. Last Cal. Due Date Network Analyzer Agilent E5071C 2022.07.21 2024.07.20 149-2021 Equipment list: Test software being used: GTS MaxSign-RayZone1800NR_Z Software Version: V1.4.1 Test Step Flow 1. Maintain the test ambient temperature of 25°C, the instrument is powered on and preheated for more than 30 minutes. 2. Tum on the darkroom power supply, connect the test cable, and set up the sample according to the standard. 3. Outline sets the test content objectives and conducts calibration tests. 4. Run the GTS OTA software, the test is complete, export the corresponding test diagram and test data, and save to the corresponding directory. Test Principle The test principle can be seen in accordance with the standard ANSI/IEEE std 149-2021 Test Conditions 1.The analyte, the network analyzer for testing, the test equipment and the test cable connector should have good reliability, stability, dynamic range and measurement accuracy to ensure the correctness of the measurement accuracy. 2. The measuring instrument should have a certificate of conformity and be within the effective calibration period. 3. The analyte should be complete and undamaged, and the test environment should be kept clean. 2. Test Procedure Test standard: 3.Antenna Passive Test Please refer to Antenna set up photos Please refer to Antenna set up photos Device 4. Device Profile Please refer to external photos WIFI/BT Antenna 5. WiFi /BT Antenna Test Agilent E5071B S Parameter Test /WiFi/BT Antenna Passive Test For WiFi/BT Antenna(2.4G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 2400 39.4 -4.1 -0.4 2410 37.4 -4.3 -0.5 2420 35.9 -4.5 -0.7 2430 34.6 -4.6 -0.7 2440 34.3 -4.7 -0.7 2450 38.1 -4.2 -0.2 2460 39.3 -4.1 -0.4 2470 41.9 -3.8 -0.2 2480 42.4 -3.7 0.0 2490 44.7 -3.5 0.4 2500 45.9-3.40.9 Radiation Pattern For WiFi/BT Antenna(2400MHz) Radiation Pattern For WiFi/BT Antenna(2450MHz) Radiation Pattern For WiFi/BT Antenna(2500MHz) Passive Test For WiFi Antenna(5.8G) Freq (MHz) Effi (%) Effi (dB) Gain (dBi) 5150 35.3 -4.5 1.4 5200 39.9 -4.0 1.9 5250 39.3 -4.1 1.8 5300 43.0 -3.7 1.9 5350 46.3 -3.4 1.8 5400 44.7 -3.5 1.4 5450 41.1 -3.9 1.6 5500 39.2 -4.1 1.5 5550 35.3 -4.5 1.5 5600 36.6 -4.4 1.9 5650 50.9 -2.9 2.3 5700 43.8 -3.6 1.5 5750 38.4 -4.2 0.4 5800 37.3 -4.3 -0.4 5850 40.8 -3.9 0.2 Radiation Pattern For WiFi Antenna(5150MHz) Radiation Pattern For WiFi Antenna(5500MHz) Radiation Pattern For WiFi Antenna(5750MHz) Radiation Pattern For WiFi Antenna(5850MHz) 6.WIFI Antenna size

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 Issue 3 TEST REPORT For Smart Payment Terminal MODEL NUMBER: A8700 REPORT NUMBER: 4791162494.3-RF-1 ISSUE DATE: March 4, 2024 FCC ID: V5PA8700 IC: 11689A-A8700 Prepared for PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong 518057 China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4791162494.3-RF-1 Page 2 of 88 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 March 4, 2024 Initial Issue REPORT NO.: 4791162494.3-RF-1 Page 3 of 88 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) RSS-GEN Clause 6.8 Pass AC Power Line Conducted Emission ANSI C63.10-2013, Clause 6.2 FCC Part 15.207 RSS-GEN Clause 8.8 Pass Conducted Output Power ANSI C63.10-2013, Clause 11.9.1.3 FCC Part 15.247 (b)(3) RSS-247 Clause 5.4 (d) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2013, Clause 11.8.1 FCC Part 15.247 (a)(2) RSS-247 Clause 5.2 (a) ISED RSS-Gen Clause 6.7 Pass Power Spectral Density ANSI C63.10-2013, Clause 11.10.2 FCC Part 15.247 (e) RSS-247 Clause 5.2 (b) Pass Conducted Band edge and spurious emission ANSI C63.10-2013, Clause 11.11 FCC Part 15.247(d) RSS-247 Clause 5.5 Pass Radiat…
