V5PB210Wireless POS Terminal Base

Wireless POS Terminal Charging Base Instruction Manual (B210) 1. Installation POWER port connects to the external power adapter. 2. Instructions Power ON/OFF Power on：Plug in the external adapter to power on. Power off：Unplug the external adapter to power off. 3. Installation and Usage Tips 1）Avoid putting the terminal in direct sunlight, high temperature, moist, or dusty environment. 2）Forbid non-professional to repair the terminal. 3）Please cooperate with the corresponding handset. RF warning for Mobile device: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. PAX TECHNOLOGY LIMITED To know more product details, please visit http://www.pax.com.cn P/N：200312000000201 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 PAX Technology Limited 2015-11-12 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, PAX Technology Limited SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description: Wireless POS Terminal Base model name: B210 FCC ID: V5PB210 Sincerely, Client’s signature Client’s name / title Xudong An / Mnager Contact information / address: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 PAX Technology Limited 2015-11-12 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: V5PB210 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - . Schematics - . Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title Xudong An / Mnager Contact information / address: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong

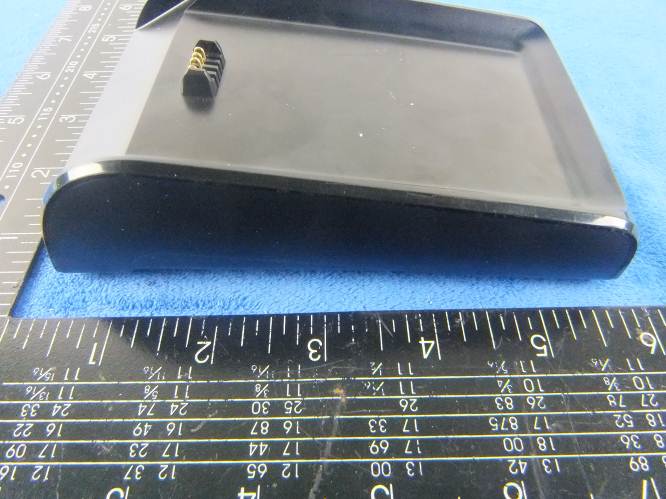

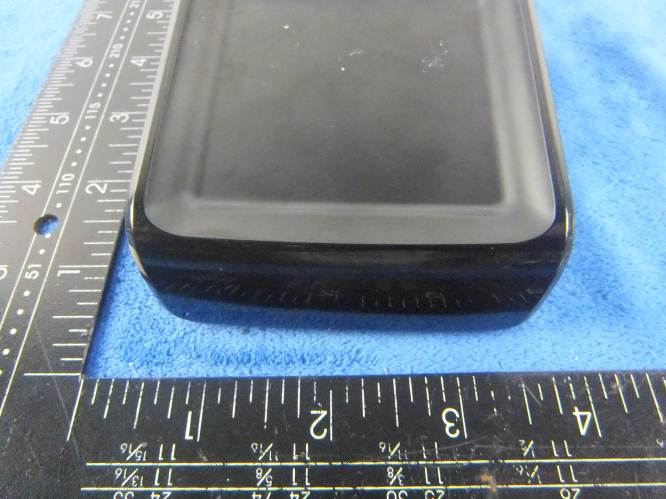

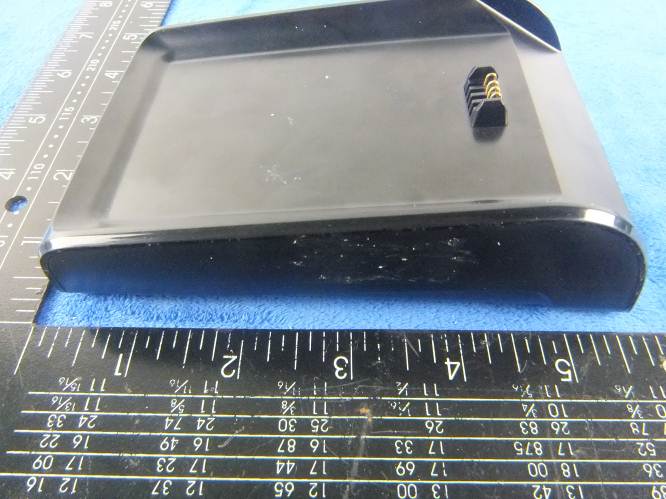

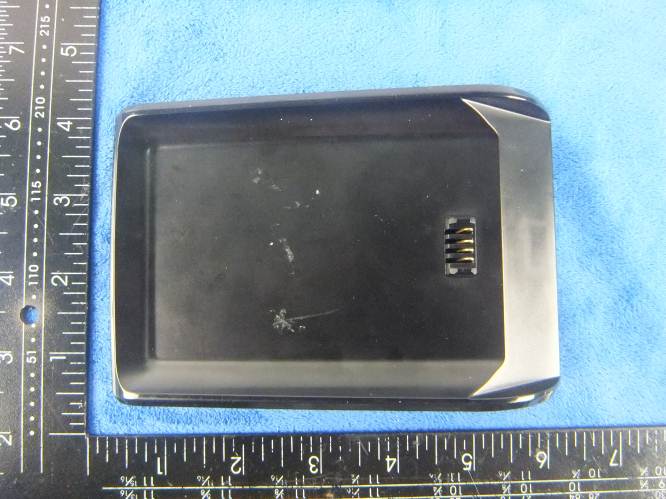

Test Report 15070690-FCC-R1 Page 47 of 56 Annex B. EUT And Test Setup Photographs Annex B.i. Photograph: EUT External Photo EUT - Front View EUT - Rear View EUT - Top View EUT - Bottom View EUT - Left View EUT - Right View Test Report 15070690-FCC-R1 Page 48 of 56 Port View

Label location

Test Report 15070690-FCC-R1 Page 49 of 56 Annex B.ii. Photograph: EUT Internal Photo Cover Off - Top View Small board - Front View Small board - Rear View Mainboard – Front View Mainboard - Rear View BT/BLE - Antenna View

RF EXPOSURE REPORT Report No.: 15070690-FCC-H Applicant PAX Technology Limited Product Name Wireless POS Terminal Base Model No. B210 Serial No. N/A Test Standard FCC 2.1091.2014 Test Date August 22 to October 13, 2015 Issue Date October 13, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Winnie Zhang Test Engineer David Huang Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report 15070690-FCC-H Page 2 of 9 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report 15070690-FCC-H Page 3 of 9 This page has been left blank intentionally. Test Report 15070690-FCC-H Page 4 of 9 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. FCC §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) ...................................................................... 7 6.1 APPLICABLE STANDARD ....................................................................................................................................... 7 6.2 TEST RESULT ........................................................................................................................................................... 8 Test Report 15070690-FCC-H Page 5 of 9 1. Report Revision History Report No. Report Version Description Issue Date 15070690-FCC-H NONE Original October 13, 2015 2. Customer information Applicant Name PAX Technology Limited Applicant Add Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong Manufacturer PAX Computer Technology (Shenzhen) Co., Ltd. Manufacturer Add 4/F No.3 Building, Software Park, Second Central Science-Tech Road, High-Tech industrial Park, Shenzhen,Guangdong, P.R.C. 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’ an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Labview of SIEMIC version 2.0 Test Report 15070690-FCC-H Page 6 of 9 4. Equipment under Test (EUT) Information Description of EUT: Wireless POS Terminal Base Main Model: B210 Serial Model: N/A Equipment Category： PCB Antenna Gain: Bluetooth/BLE: 1.5dBi Input Power: Rating: 9.0V, 1.0A Trade Name : PAX FCC ID: V5PB210 Type of Modulation: Bluetooth: GFSK, π /4DQPSK, 8DPSK BLE: GFSK RF Operating Frequency (ies): Bluetooth& BLE: 2402-2480 MHz Number of Channels: Bluetooth: 79CH BLE: 40CH Test Report 15070690-FCC-H Page 7 of 9 5. FCC §2.1091 - Maximum Permissible exposure (MPE) 6.1 Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’ s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Test Report 15070690-FCC-H Page 8 of 9 6.2 Test Result Bluetooth Mode: Type Test mode CH Freq (MHz) Conducted Power (dBm) Tune Up Power (dBm) Output power GFSK Low 2402 8.009 8±1 Mid 2441 7.519 8±1 High 2480 6.335 7±1 π/4 DQPSK Low 2402 8.044 8±1 Mid 2441 7.537 7±1 High 2480 6.359 7±1 8-DPSK Low 2402 8.670 8±1 Mid 2441 8.172 8±1 High 2480 7.073 8±1 Predication of MPE limit at a given distance Where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) For the antenna manufacturer provide only used limited to ERP/EIRP or ra…

Text truncated - open the document above for the full version.

RF TEST REPORT Report No.: 15070690-FCC-R2 Supersede Report No.: N/A Applicant PAX Technology Limited Product Name Wireless POS Terminal Base Model No. B210 Serial No. N/A Test Standard FCC Part 15.247: 2014, ANSI C63.10: 2013 Test Date August 22 to October 12, 2015 Issue Date October 12, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Winnie Zhang Test Engineer David Huang Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report No. 15070690-FCC-R2 Page 2 of 40 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report No. 15070690-FCC-R2 Page 3 of 40 This page has been left blank intentionally. Test Report No. 15070690-FCC-R2 Page 4 of 40 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. TEST SUMMARY .................................................................................................................................................... 7 6. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................... 8 6.1 ANTENNA REQUIREMENT ..................................................................................................................................... 8 6.2 DTS (6 DB) CHANNEL BANDWIDTH .................................................................................................................... 9 6.3 MAXIMUM OUTPUT POWER ............................................................................................................................... 11 6.4 POWER SPECTRAL DENSITY ............................................................................................................................. 14 6.5 BAND-EDGE & UNWANTED EMISSIONS INTO NON-RESTRICTED FREQUENCY BANDS ................. 16 6.6 AC POWER LINE CONDUCTED EMISSIONS ................................................................................................... 19 6.7 RADIATED SPURIOUS EMISSIONS ................................................................................................................... 25 ANNEX A. TEST INSTRUMENT ................................................................................................................................. 30 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 31 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 35 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PARTLIST .................................................. 39 ANNEX E. DECLARATION OF SIMILARITY ............................................................................................................ 40 Test Report No. 15070690-FCC-R2 Page 5 of 40 1. Report Revision History Report No. Report Version Description Issue Date 15070690-FCC-R2 NONE Original October 12, 2015 2. Customer information Applicant Name PAX Technology Limited Applicant Add Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong Manufacturer PAX Computer Technology (Shenzhen) Co., Ltd. Manufacturer Add 4/F No.3 Building, Software Park, Second Central Science-Tech Road, High-Tech industrial Park, Shenzhen,Guangdong, P.R.C. 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report No. 15070690-FCC-R2 Page 6 of 40 4. Equipment under Test (EUT) Information Description of EUT: Wireless POS Terminal Base Main Model: B210 Serial Model: N/A Date EUT received: August 21, 2015 Test Date(s): August 22 to October 12, 2015 Equipment Category： DTS Antenna Gain: Bluetooth/BLE: 1.5dBi Type of Modulation: Bluetooth: GFSK, π /4DQPSK, 8DPSK BLE: GFSK RF Operating Frequency (ies): Bluetooth& BLE: 2402-2480 MHz Max. Output Power: 3.267dBm Number of Channels: Bluetooth: 79CH BLE: 40CH Port: Power …

Text truncated - open the document above for the full version.

Test Report No. 15070690-FCC-R2 Page 34 of 40 Annex B.iii. Photograph: Test Setup Photo Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Radiated Spurious Emissions Test Setup Below 1GHz Radiated Spurious Emissions Test Setup Above 1GHz
