V5PD200WBWireless POS Terminal

D200 Wireless POS Terminal PAX TECHNOLOGY LIMITED 1. Production Description： LCD Di s p l a y RF An t e n n a Ar e a Rs 2 3 2 Co n n c e t Ca p a c it ive Ke y Ar e a Ic Ca r d Slo t Ma g n e t ic St r ip Ca r d So lt USB Co n n e c t Ba t t e r y Co ve r Front View Back View Sc r e w Ma g n e t i c St r i p Ca r d So lt Ba r c o d e La b e l Na m e p la t e La b e l Ba t t e r y Ar e a SAM / SIM Ca r d Slo t An t e n n a Back Layout Battery / Battery Cover View 2. Installation 1） SAM Card Installation ① Open up battery cover, which is at the bottom of the terminal; ② Take out battery; ③ Insert SAM card to corresponding SAM card slot. 2） Battery Installation ① Hold the battery with its facing up; ② Attach battery forelock to battery bayonet; ③ Press down the other side of the battery 3. Instruction 1） Power ON/OFF Power on: Plug in power adapter or insert the battery, Press button for 3 seconds until ‘Di’ is heard, and then PAX LOGO will display on LCD. Power off: Press button for 3 seconds until Shutting down... can be seen. POS terminal is being turned off. 2） Magnetic Stripe Card When user swipes magnetic stripe card along the slot, the backside of card, which contains magnetic strip information, should be facing to the terminal. Bi-directional swiping is supported. It is recommended to swipe starting from left to right (or from right to left) with a constant moving speed. 3） IC card When user insert IC card into the IC slot, the chip of IC card should be facing up; user is recommended to gently insert the card, in order to avoid any physical damage to the card or the IC slot of the terminal. If IC card is successfully read by the terminal, the IC card icon will be shown on LCD display screen. ICC Operation Process Before inserting the IC card, please check inside and around the IC card slot. If there is any suspicious object, please don‘t insert card and immediately report to the relevant staff. 4) Contactless Card Please refer to the picture below, the card read area is above the LCD. 4. Specifications Default CPU： 32-bit，MIPS Memory：32MB SDRAM, 32MB NOR Flash Display：2.4 -inch 240x320 pixel color TFT LCD；LED backlight； Keypad：10 alphanumeric keys, 5 functional keys，touch key; Magnetic Card Reader ：Track 1/2/3，bi-directional swipe IC Card Reader：1 user card （EMV2000） Slots：SAM *1 SAM *1+ SIM *1 (only for GPRS Version) Contactless Card Reader：ISO/IEC 14443 Type A/B, Mifare/Felica/NFC Communication：Bluetooth, WIFI, GPRS (Optional, depending on the version) Peripheral Ports：1 Micro USB(Device) 1 Mini USB(RS232) Power Supply：Input：100—240VAC ~0.2A 50/60HZ Output：5V DC 1A Battery：Li-on battery,1300mAh, 3.7V Working Environment： Temperature：0 °C~50°C(32°F~122°F) R.H.:10%~93%(non-condense) Storage Environment： Temperature:-20°C ~ 70°C (-4°F~158°F) R.H.:5% ~95%(non-condense) Dimensions：120mm  72mm  22.1mm（L  W  H） Weight：165g(no battery)/200g(with battery) 5. Installation and Usage Tips 1)Do not damage electric wire and power adapter. If electric wire or power adapter is damaged , please do not use the terminal any more. 2)Before power adapter is plugged into power socket, please make sure that voltage which the power socket supplies is appropriate working voltage for the terminal. 3)Do not expose the terminal in sunshine, or in humid, hot, or dusty environment 4)Keep the terminal away from liquid material 5)Do not plug any unknown material into any port of the terminal, since it may create serious damage to the terminal. 6)If the terminal is defective, please contact professional POS repair technicians. 7)When D200 power supplied by the USB port of PC,we don’t recommend the use of CTLS function. 8)When charged by the USB port of PC, charge time will be longer, we recommend charging using the adapter. 9)When D200 is in charging, if you can't turn on the device, and you just hear "Di Di", please charge it for longer, and try again later. 6.Battery Usage Tips 1) Charge indoor by PAX charger, where is cool and well ventilated; 2) Do not apart the battery; 3) Do not short circuit the battery; 4) Keep the battery away from sunshine, smog and dust; 5) Do not squeeze, punch the battery, put it into liquid or near fire; 6) Keep way from environment which is too hot , too cold, damp and highly explosive; 7) Once a failure happens such as heating or distortion, or it was broken down. Please change new battery; 8) Change new battery if it cannot satisfy your requirement; 9) Change new battery if using more than two years. P/N：200312000000171 FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to ope…

Text truncated - open the document above for the full version.

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: December 11, 2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: V5PD200WB To Whom It May Concern: We, PAX Technology Limited, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Contact Person: Xudong An Company: PAX Technology Limited TEL: 86-755-86169679 FAX: 86-755-86169634 E-mail: [email protected]

Rev. 1/1/03 PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: December 11, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: V5PD200WB Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Xudong An

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: December 11, 2014 Power of Attorney To whom it may concern, Please be notified that I, Xudong An, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: V5PD200WB If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Xudong An Company: PAX Technology Limited TEL: 86-755-86169679 FAX: 86-755-86169634 E-mail: [email protected]

1/1 PAX Technology Limited Date: December 11, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : V5PD200WB To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which PAX Technology Limited deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Xudong An Company: PAX Technology Limited TEL: 86-755-86169679 FAX: 86-755-86169634 E-mail: [email protected]

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: February 6, 2015 Statement We, PAX Technology Limited, states that our device, FCC ID: V5PD200WB. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Xudong An

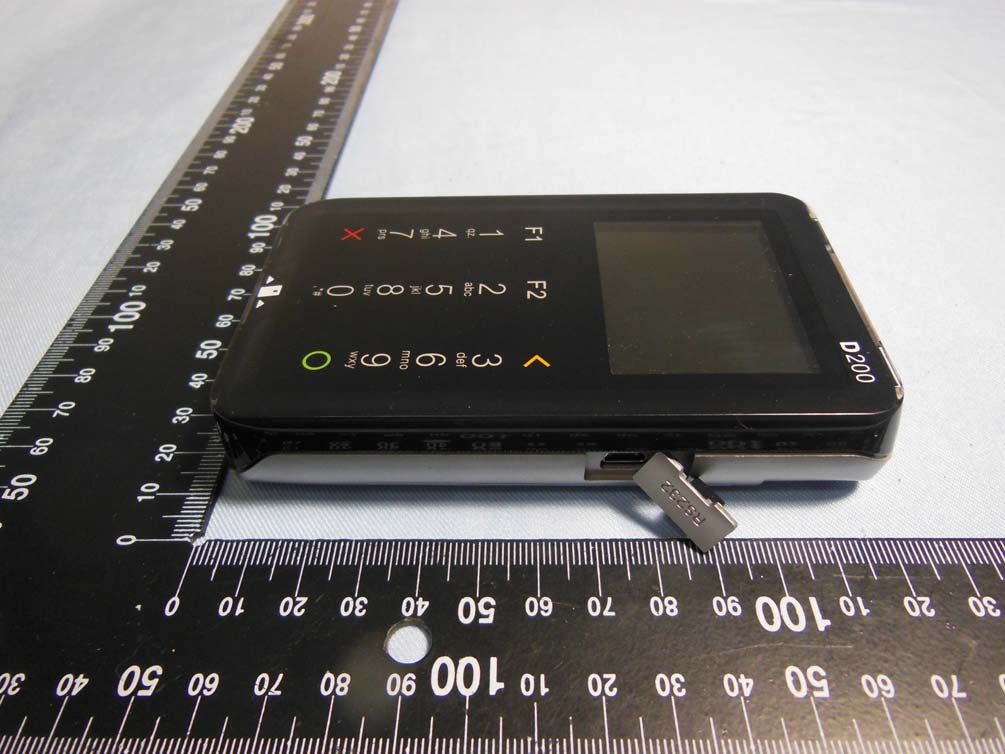

Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB 1. External Photograph of EUT Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB List of Accessory: Specification of Accessory AC Adapter Brand Name Huntkey Model Name HKA00605010-2H Battery Brand Name Icon Energy System (ShenZhen) Co. Ltd. Model Name IS275 USB Cable Signal Line Type 1.02m, shielded cable, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB AC Adapter Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Battery Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB

Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB 3. Internal Photograph of EUT Bluetooth Antenna <Tx / Rx> WLAN Antenna <Tx / Rx> RFID Antenna <Tx / Rx> Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 19 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 20 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 21 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 22 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 23 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 24 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 25 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 26 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 27 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 28 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 29 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 30 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 31 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB Photographs of EUT Report No.: EP4N2504 Brand Name: PAX; Model Name: D200; Marketing Name: D200 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 32 of 34 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : R…

Text truncated - open the document above for the full version.

SPORTON INT TEL : 86-755-8 FAX : 86-755-8 FCC ID : V5PD F APPL EQUIP BRAN MODE MARK FCC I STAN CLAS The pr o SPORT has bee the app The tes approva reprodu Re v Ap 1F & 2F TERNATIONAL 8637-9589 8637-9595 D200WB FCC RF Te LICANT PMENT ND NAME EL NAME KETING NA D DARD SSIFICATIO oduct was r TON INTERN en evaluated plicable tech st results in al of SPOR uced except viewed by: J pproved by: SP F,Building Nan s L (SHENZHEN) est Report FCC : P : W : P : D AME : D : V : F ON : (D received on NATIONAL ( d in accord hnical stand this report RTON INTE t in full. Joseph Lin / : Jones Tsai PORTON A, Morning shan Distric INC. t C RF PAX Techn Wireless P PAX D200 D200 V5PD200W FCC Part 1 DXX) Low Nov. 25, 20 SHENZHEN ance with th dards. apply excl u RNATIONAL / Supervisor i / Manager INTERNA g Business ct, Shenzhe Tes nology Lim POS Termi WB 5 Subpart w Power Co 014 and test N) INC., wou he test proc usively to th L (SHENZH r NATIONAL s Center, N en, Guangd t Re mited nal t C §15.22 ommunica ting was com uld like to d cedures and he tested mo HEN) INC., L (SHEN No. 4003 Sh dong, P. R. Page Numb Report Issu Report Vers R port 25 ation Devi mpleted on eclare that d has been i odel / samp the test re NZHEN) IN iGu Rd., Xi China ber : 1 o ued Date : Fe sion : Re Report No. : ice Transm Jan. 15, 20 the tested in complian ple. Without eport shall NC. Xili Town, of 17 eb. 09, 2015 ev. 01 FR4N2504C mitter 15. We, sample ce with written not be C SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 17 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB FCC RF Test Report Report No. : FR4N2504C Table of Contents SUMMARY OF THE TEST RESULT ........................................................................................................................... 4 1. GENERAL INFORMATION ...................................................................................................................................... 5 1.1 Applicant ..................................................................................................................................................................................................5 1.2 Manufacturer ............................................................................................................................................................................................5 1.3 Product Details .........................................................................................................................................................................................5 1.4 Modification of EUT ..................................................................................................................................................................................6 1.5 Testing Location .......................................................................................................................................................................................6 1.6 Applicable Standards ...............................................................................................................................................................................7 1.7 Test Modes ..............................................................................................................................................................................................7 1.8 Test Configurations ..................................................................................................................................................................................8 1.9 Table for Supporting Units .......................................................................................................................................................................8 2. CONDUCTED EMISSION TEST .............................................................................................................................. 9 2.1 Measuring Instruments ............................................................................................................................................................................9 2.2 Test setup ................................................................................................................................................................................................9 2.3 Test Result of Conducted Emission Test .................................................................................................................................................9 2.4 AC Power Line Conducted Emissions Measurement ............................................................................................................................10 3. CONDUCTED TEST ITEMS .................................................................................................................................. 11 3.1 Measuring Instruments ..........................................................................................................................................................................11 3.2 Test Setup ..............................................................................................................................................................................................11 3.3 Test Result of Conducted Test Items .....................................................................................................................................................11 3.4 20dB Spectrum Bandwidth Measurement .............................................................................................................................................12 3.5 Frequency Stability Measurement .........................................................................................................................................................12 4. RADIATED TEST ITEMS .............................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : D1 of D2 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB FCC RF Test Report Report No. : FR4N2504C Appendix D. Setup Photographs <Conducted Emission> SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : D2 of D2 TEL : 86-755-8637-9589 Report Issued Date : Feb. 09, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PD200WB FCC RF Test Report Report No. : FR4N2504C <Radiated Emission> From 9kHz~30MHz From 30MHz~1GHz
