V5PD900WMobile payment Terminal

D900UserManual D900 MobilePaymentTerminal PAXTECHNOLOGYLIMITED D900UserManual ProductDescription Figure2:Frontview 1.Receiver 2.LED indicator 3.Touchscreen 4.Androidfunctionkeys 5.USBconnector 6.Pinpadfunctionkeys 7.Pinpadscreen 8.Pinpadkeys 9.Multi-functionconnector 10.Microphone 11.Smartcardreader D900UserManual Figure2:Backview 1.Magneticstripecardreader 2.Speaker 3.Batterycompartmentcover 4.Barcode/Camera 5.Audiojack 6.POWERkey 1.Batteryslot 2.Barcodelabel 3.Nameplate 4.MicroSDslot 5.SAM2slot 6.SAM1slot 7.Battery 8.Batteryhook 9.Batterycompartmentcover Figure3:SIM/SAMcardslot&battery D900UserManual Figure4:Viewfromdifferentangles 1)SAMCard Figure5:Takeoffthebatterycompartmentcover ①Takeoffthebatterycompartmentcover. ②InsertSAMcardintotheslot. 2)Battery ①Removethebatterycompartmentcover. ②Installthebattery. 3)MicroSDCard ①Takeoffthebatterycompartmentcover. ②InsertMicroSDcardintotheslot. D900UserManual Instructions 1)Switchthedeviceon/off Switchon: PressandholdthePOWERbuttonuntilthedevicevibrates.. Switchoff: ①PressandholdthePOWERbuttonforafewseconds.② Whenthemenuappears,tapPoweroff. 2)Swipemagneticstripecard Figure6:Swipemagneticstripecard Whenusersswipemagneticstripecardalongtheslot,thebackofthecardmustbefacedupas showninFigure6.Bi-directionalswipingissupported.Itisrecommendedtoswipefromthetopofthe terminaltothebottomwithaconstantspeed. 3)ReadICcard WheninsertingICcardintoitsslot,thechipofICcardmustbefacedup.Inordertoavoidany physicaldamagetothecardortheICslotoftheterminal,itisrecommendedtoinsertthecard gently.IfICcardissuccessfullydetectedbytheterminal,theiconoftheICcardwillbeshownonthe topofscreen. 4)Tapcontactlesscard Figure7:TapContactlessCard D900UserManual AsshowninFigure7:whentappingcontactlesscard,pleaseputthecontactlesscardintothe sensingareaatthebackcoveroftheterminal. 4)LEDindicator TheLEDindicatorshow ①Solidbluewhenthesystemisstarting. ②Solidredwhenthebatteryisbeingcharged. ③Solidgreenwhenthebatteryisfullycharged. Specifications CPU:800MHzAndroidapplicationprocessor(AP) 32-bitsecureprocessor(SP) Memory:AP:512MBFLASH,512MBDDR SP:8MBFLASH,16MBSDRAM Display:HVGA(320×480),3.5"TFT Touchscreen Key:10alphanumerickeys 4androidfunctionkeys3 pinpadcommandkeys3 pinpadfunctionkeys1 powerbutton MagneticStripeCardReader:Encryptiontransmission,tripletrackl/2/3,bi-directional SmartCardReader:1Usercard(EMV4.3) Contactless(Opt.):ISO14443TypeA&TypeB,Mifare,Felica SAMSlots:2,ISO7816 Camera(Opt.):5megapixel,autofocus,withflash BarcodeScanner(Opt.):1Dbarcodescanning Communication:Wi-Fi802.11b/g/n Bluetooth PeripheralPorts:1RS232(MiniUSB),1USB2.0(MicroUSB) 1Handsetjack,1Multi-functionextensionport Battery:Li-ionbatteryl850mAh,3.7V PowerSupply:Input:100-240VAC,50Hz/60Hz Output:5VDC,1A WorkingEnvironment:Temperature:0°C～50°C(32°F～122°F) R.H.:10％～90％(non-condense) StorageEnvironment:Temperature:-20°C～70°C(-4°F～158°F) R.H.:5％～95％(non-condense) Dimensions:137mm×77mm×32mm(L×W×H) Weight:390g(batteryincluded) D900UserManual InstallationandUsageTips 1)Donotdamagethepowercordandtheadapter.Ifthepowercordortheadapterisdamaged, pleasedonotuseitanymore. 2)Beforetheadapterispluggedintothesocket.Pleasemakesurethatitsvoltageisappropriate fortheterminal. 3)Donotexposetheterminalinsunshine,orinhumid,hot,anddustyenvironmentalconditions 4)Keeptheterminalawayfromliquidmaterials. 5)Donotpluganyunknownmaterialintoanyportoftheterminal,sinceitmaycauseserious damagetotheterminal. 6)Iftheterminalisdefective,pleasecontactprofessionalPOStechnicians. 7)Donotassembletheterminalinexplosiveandhazardousarea. BatteryUsageTips 1)ChargeindoorwithPAXchargerundercoolandwellventilatedconditions. 2)Donotdismantlethebattery. 3)Donotshort-circuitthebattery. 4)Keepthebatteryawayfromsunshine,smoganddust. 5)Donotsqueezeandpunchthebattery,anddonotputitintoliquidornearfire. 6)Keepthebatteryawayfromenvironmentalconditionswhicharetoohot,cold,dampandhighly explosive. 7)Onceafailurehappenssuchasheatingordistortion,oritwasbrokendown,pleasereplaceit withanewbattery. 8)Pleasereplaceitwithanewbatteryiftheagingphenomenonhappens. 9)Pleasereplaceitwithanewoneifthebatteryisusedmorethantwoyearsaccumulatively. FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment.  RF Exposure Information This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour,Hong Kong,China Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: June 19, 2012 Power of Attorney To whom it may concern, Please be notified that I, Xudong An, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: V5PD900W If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Xudong An Company: PAX Technology Limited TEL: 86-755-86169679 FAX: 86-755-86169634 E-mail: [email protected]

Rev. 1/1/03 PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour,Hong Kong,China Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: June 19, 2012 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: V5PD900W Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: D900_Schem.pdf) Block Diagram (file: D900_BlkDia.pdf) Parts List (file: D900_PartsLst.pdf) Operation Description (file: D900_OpDes.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Xudong An

1/1 PAX Technology Limited Date: June 19, 2012 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : V5PD900W To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: z External Photos z Internal Photos z Test set-up photos z Users Manual The application contains technical information, which PAX Technology Limited deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Xudong An Company: PAX Technology Limited TEL: 86-755-86169679 FAX: 86-755-86169634 E-mail: [email protected]

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour,Hong Kong,China Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: June 19, 2012 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: V5PD900W To Whom It May Concern: We, PAX Technology Limited, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sporton Report No: FD242415 The FCC Registration No. of test site is: 722060 Sincerely yours, Xudong An

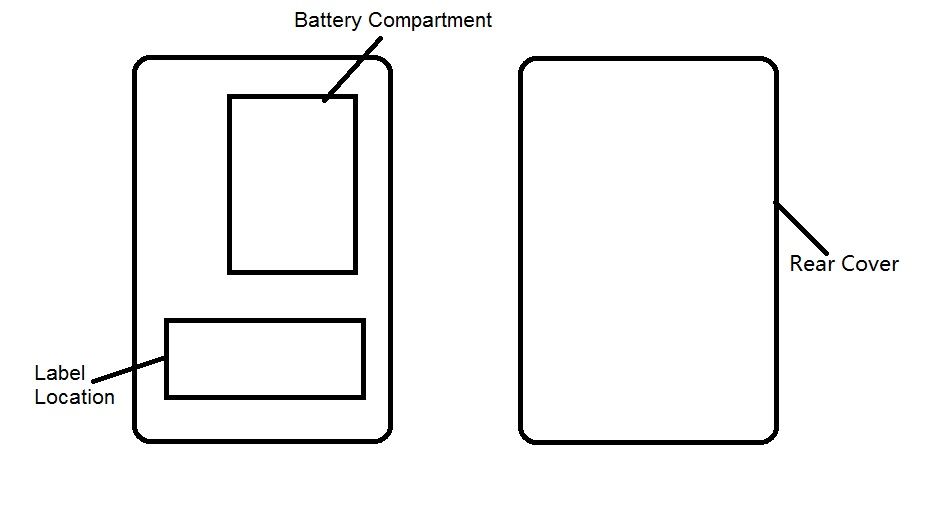

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour,Hong Kong,China Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: July 25, 2012 Statement We, PAX Technology Limited, states that our device, FCC ID: V5PD900W. The label will put below the battery compartment and it is visible to the users as they purchase the products and remove the rear cover. Sincerely yours, _______________ Xudong An
