V5PE770Integrated Smart Terminal

PAX Technology Limited

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Jul 31, 2022
Application Purpose: Original Equipment
Date of Application: Jul 30, 2022
Equipment Note: Integrated Smart Terminal
Frequency Range: 709.00000000 - 711.00000000
Company: PAX Technology Limited
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

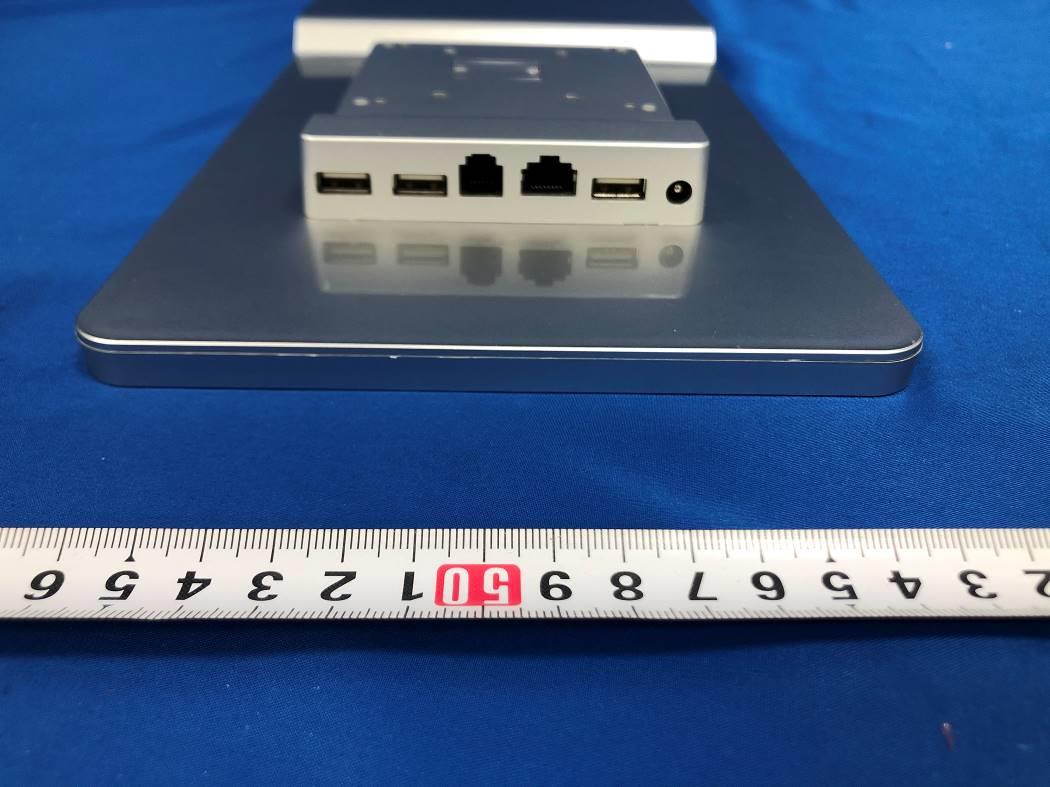

E770 Integrate Smart Terminal Note: Product images shown may be different than actual product received PAX TECHNOLOGY LIMITED 1. Contents Checklist Please check the components after unpacking. If any are missing, please contact the dealer. Part Qty E770 1 AC Power Adapter 1 AC Power Cable 1 SIM card ejector 1 2. Product Description 3. Terminal Ports The following ports are accessible on the back of the E700 Mini: • Power – Connect DC power supply to E770 • Cash Drawer – Insert the cable from cash drawer to connect with cash register • Audio Jack – Allows hearing impaired to connect assistive listening device • USB Host – Connect USB device • LAN – Used for bi-directional Ethernet connections Push SIM card ejector into the needle hole on the SIM card tray to eject SIM card: • MicroSD Card and SIM card share one card tray. SIM1 is always on SIM1 slot position. SIM2 and Micro SD card share the same slot, so SIM card tray only supports either 1 SIM and 1 Micro SD or 2 SIM cards. 4. Power ON/OFF Power on: Press and hold the Power button for three seconds until themain screen displays normally. Power off: Press and hold the Power button for three seconds until theshutdown menu displays. Select Power off. The terminal turns off aftera few seconds. 5. Specifications Operation System: Android 10.0 CPU: Quad-core Cortex™-A53,1.8GHz Memory: 2GB DDR+16GB eMMC Main Display: 10.1 inch, 1280x800 resolution, capacitive touch screen Payment screen：3.5” Audio: Built-in speaker, support headphone output L-Sensor (Ambient Light Sensor): Automatically adjusts the back light brightness of the main display. Wireless Communication: Supports LAN, Wi-Fi®, Bluetooth® Low Energy, 3G/4G Peripheral Ports: Power port x 1 USB A ports x 3 LAN x 1 Cash drawer x 1 Audio jack x 1 7. Installation and Usage Tips •Avoid exposing the device to an excessively hot, humid, dusty, orstrong electromagnetic environment. •Do not vibrate, shake, or drop the device. • Do not plug or unplug any part of the device while it is powered on. This may cause damage to an internal circuit. • Please contact PAX technical support for assistance with the device. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. FCC Regulations: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution:  Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.  This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. ISED Notice  This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device.  Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: 1) l'appareil ne doit pas produire de brouillage, et 2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.  This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios.  Cet appareil et son antenne ne doivent pas être situés ou fonctionner en conjonction avec une autre antenne ou un autre émetteur, exception faites des radios intégrées qui ont été testées.  The County Code Selection feature is disabled for products marketed in the US/ Canada.  La fonction de sélection de l'indicatif du pays est désactivée pour les produits commercialisés aux États-Unis et au Canada. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé …

Text truncated - open the document above for the full version.

Users Manual

E770 Integrated Smart Terminal Note: Product images shown may be different than actual productreceived PAX TECHNOLOGY LIMITED 1. Contents Checklist Please check the components after unpacking. If any are missing, please contact the dealer. Part Qty E770 1 AC Power Adapter 1 AC Power Cable 1 SIM card ejector 1 2. Product Description 3. Terminal Ports The following ports are accessible on the back of the E700 Mini: • Power – Connect DC power supply to E770 • Cash Drawer – Insert the cable from cash drawer to connect with cashregister • Audio Jack – Allows hearing impaired to connect assistive listeningdevice • USB Host – Connect USB device • LAN – Used for bi-directional Ethernet connections Push SIM card ejector into the needle hole on the SIM card tray to eject SIM card: •MicroSD Card and SIM card share one card tray. SIM1 is always on SIM1 slot position. SIM2 and Micro SD card share the same slot, so SIM card tray only supports either 1 SIM and 1 Micro SD or 2 SIM cards. 4. Power ON/OFF Power on: Press and hold the Power button for three seconds until themain screen displays normally. Power off: Press and hold the Power button for three seconds until theshutdown menu displays. Select Power off. The terminal turns off aftera few seconds. 5. Specifications Operation System: Android 10.0 CPU: Quad-core Cortex™-A53,1.8GHz Memory: 2GB DDR+16GB eMMC Main Display: 10.1 inch, 1280x800 resolution, capacitive touch screen Payment screen：3.5” Audio: Built-in speaker, support headphone output L-Sensor (Ambient Light Sensor): Automatically adjusts the backlightbrightness of the main display. Wireless Communication: Supports LAN, Wi-Fi®, Bluetooth® Low Energy, 3G/4G Peripheral Ports: Power port x 1 USB A ports x 3 LAN x 1 Cash drawer x 1 Audio jack x 1 7. Installation and Usage Tips •Avoid exposing the device to an excessively hot, humid, dusty, orstrong electromagnetic environment. •Do not vibrate, shake, or drop the device. • Do not plug or unplug any part of the device while it is powered on. This may cause damage to an internal circuit. • Please contact PAX technical support for assistance with the device. Caution: Changes or modifications not expressly approved by the partyresponsible for compliance could void the user's authority to operate theequipment. In a domestic environment, this product may cause radiointerference in which case the user may be required to take adequate measures. Mounting steps of wall bracket Four M4 screw holes are shown in the following Picture , fit into the corresponding holes of the standard VESA bracket with M4*12 screws FCC Regulations: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from thatto which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution:  Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.  This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. ISED Notice  This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device.  Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: 1) l'appareil ne doit pas produire de brouillage, et 2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.  This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios.  Cet appareil et son antenne ne doivent pas être situés ou fonctionner en conjonction avec une autre antenne ou un autre émetteur, exception faites des radios intégrées qui ont été testées.  The County Code Selection feature is disabled for products marketed in the US/ Canada.  La fonction de sélection de l'indicatif du pays est désactivée pour les produits commercialisés aux États-Unis et au Canada. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet …

Text truncated - open the document above for the full version.

Cover Letter(s)

PAX Technology Limited DATE :2022-7-13 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: V5PE770 Product Name: Integrated Smart Terminal Request for Short-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.:  Test Setup Photos  External Photos  Internal Photos  User Manual The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. <Signature> Name Jenna Tan Title Certification Leader Company PAX Technology Limited

Cover Letter(s)

Date:2022/7/13 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Jenna Tan Title: Certification Leader Company: PAX Technology Limited

Cover Letter(s)

PAX Technology Limited DATE :2022-7-13 Equipment Autorisation Division Federal Communications Commission 7345 Oakland Mills Road Columbia, MD 21046 FCC ID: V5PE770 Product Name: Integrated Smart Terminal Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description  Tune up  BOM These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2022-7-13 By: Jenna Tan Signature Printed Title: Certification Leader On behalf of : PAX Technology Limited Telephone: 86-755-86169679

Cover Letter(s)

DATE : 2022/7/13 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Jianyan Testing Group Shenzhen Co., Ltd. No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with PAX Technology Limited/ Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour, Hong Kong <Signature> Name: Jenna Tan Title: 䌀 Company: PAX Technology Limited

External Photos

Internal Photos

JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 13 of 43 Landline POS: JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 14 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 15 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 16 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 17 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 18 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 19 of 43 wall-mounted version POS： JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 20 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 21 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 22 of 43 Landline POS & wall-mounted version POS: JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 23 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 24 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 25 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 26 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 27 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 28 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 29 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 30 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 31 of 43 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2204112 No.101, Building 8…

Text truncated - open the document above for the full version.

RF Exposure Info

JianYan Testing Group Shenzhen Co., Ltd. Report No.: JYTSZ-R12-2200893 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in above the application standard version. Test results reported herein relate only to the item(s) tested. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page RF Exposure Evaluation Report Applicant: PAX Technology Limited Address of Applicant: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong Equipment Under Test (EUT) Product Name: Integrated Smart Terminal Model No.: E770 Trade mark: PAX FCC ID: V5PE770 Applicable standards: FCC CFR Title 47 Part 2 (§2.1091) Date of sample receipt: 26 Apr., 2022 Date of Test: 27 Apr., to 23 Jun., 2022 Date of report issue: 24 Jun., 2022 Test Result: PASS* Tested by: Date: 24 Jun., 2022 Test Engineer Reviewed by: Date: 24 Jun., 2022 Project Engineer Approved by: Date: 24 Jun., 2022 Manager Report No.: JYTSZ-R12-2200893 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-177-C Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 7 2 Version Version No. Date Description 00 24 Jun., 2022 Original Report No.: JYTSZ-R12-2200893 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-177-C Project No.: JYTSZR2204112 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 7 3 Contents Page 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 CLIENT INFORMATION ............................................................................................................................................ 4 4.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 4 4.3 OPERATING MODES .............................................................................................................................................. 4 4.4 ADDITIONS TO, DEVIATIONS, OR EXCLUSIONS FROM THE METHOD....................................................................... 4 4.5 LABORATORY FACILITY .......................................................................................................................................... 5 4.6 LABORATORY LOCATION ....................................................................................................................................... 5 5 TECHNICAL REQUIREMENTS SPECIFICATION IN FCC CFR TITLE 47 PART 2.1091 ............................ 6 5.1 LIMITS .................................................................................................................................................................... 6 5.2 TEST PROCEDURE ................................................................................................................................................. 6 5.3 RESULT .................................................................................................................................................................. 7 5.4 CONCLUSION ....................................................................................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jenna Tan

[email protected]86-755-86156663Fax: 86-755-86156663

Test Firm

JianYan Testing Group Shenzhen Co., Ltd.Bruce Zhang

[email protected]+86 (0) 755 23118282

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
19	27	709 MHz - 711 MHz	120.80 mW	9M00W7D	0.03 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for Part 22 and Part 27 below 1 GHz, EIRP for Part 24 and Part 27 above 1 GHz. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations.
