V5PIM15UNATTENDED PAYMENT TERMINAL

1 Quick Setup Guide IM15 UNATTENDED PAYMENT TERMINAL PAX TECHNOLOGY LIMITED 2 1. CONTENTS Please make sure the following items are included with your IM15 unattended payment terminal. If any items are missing, contact your dealer. 1. 1 x IM15 Unattended Payment Terminal 2. 4 x M4 nuts 3. 4 x M4 screws 4. 1 x IM15 Mounting Bracket 2. PRODUCT DESCRIPTION Figure 1: front view 1. LCD touchscreen 2. speaker 3. proximity and light detector 4. LED status indicator 5. camera flash LED 6. camera lens Figure 2: back view 1. Digital IO port 2. 4G antenna connector(Not include SIM card slot for configuration with only BT/WIFI/NFC or with only NFC) 3 3. MDB port 4. status LED 5. USB Type-A port 6. back cover 7. reset button 8. USB Type-C port 9. RJ45 port (RS233) 10. RJ45 port (Ethernet) Figure 3: view from all sides Hardware Version RF configuration IM154GBW BT+Wi-Fi+NFC+LTE IM15BW BT+Wi-Fi+NFC IM15 NFC 4 3. INSTALLATION 1. SIM Cards(Not include SIM card slot for configuration with only BT/WIFI/NFC or with only NFC) Figure 4: accessing SIM card slot Remove the back cover to reveal the 4G board. Hold the antenna connector and pull the 4G board away from the body of the IM15. Flip the 4G board over to access the SIM card slot. Open the card slot and insert the card into the slot with the contacts facing towards the 4G board and with the clipped corner of the card aligned with the slot, then lock the mount with the card inside. 2. SAM Cards Figure 5: SAM card slots The 2 SAM cards slots of the IM15 can be seen while the back cover and 4G board are removed. To install a SAM card, open the card slot and insert the card into the slot with the contacts facing towards the IM15 and with the clipped corner of the card aligned with the slot, then lock the mount with the card inside. Note Do not power on the IM15 while installing or removing SIM or SAM cards. To reassemble the device, slot the 4G board into the board to board connector while aligning 4 notches on the board with 4 plastic tabs on the body of the IM15, then replace the back cover and screw it in place. 3. Device Dimensions 5 Figure 6: device dimensions (mm) 4. Device Installation Figure 7: device installation 1) The back face of the installation should have four stud bolts corresponding to the mounting points located on mounting bracket. Slide the mounting bracket into place with the orientation shown in figure 7 and then fix it in place with four M4 nuts. 2) Slide the IM15 unit into place with the orientation shown in figure 7. The back portion of the device should rest securely inside the mounting bracket. 3) Apply a torque of 0.6 to 0.8 Nm to each of the four M4 screws to secure the IM15 unit to its mounting bracket. 6 4. INSTRUCTIONS 1. Power on/off Power on: Plug the IM15 into an appropriate power source (12 to 48 VDC) via the MDB port, the digital IO port, or the RS232 RJ45 port. Power off: Disconnect the IM15 from the power source it is connected to. 2. Contactless Transactions When the device is ready to accept a contactless transaction, the contactless icon should appear on screen. Orient the card or NFC device parallel to the screen and then hold it at a distance of 4 cm or less directly above the contactless icon. 3. Code Scanner Transactions When the device indicates on screen that it is ready to scan a 1D or 2D code, orient the code parallel to the code scanning camera and then place it directly in front of the camera. 4. Environmental Conditions Storage Temperature: -30°C ~ 70°C (-22°F ~ 158°F) Operating Temperature: -20°C ~ 70°C (-3°F ~ 158°F) Relative Humidity: 5% ~ 95% (non-condensing) 5. MAINTENANCE AND USAGE 1. If any cables become damaged, seek a replacement. 2. Do not insert unknown materials into any port on the IM15, this may cause serious damage to the device. 3. Only qualified personnel should repair this product. 4. Frequency from 5150 to 5250MHz is for indoor use，during normal use IM15 surface should still be keep clear of dirt and possible liquid contaminants. 5. While the IM15 is designed to resist ingress of dust and liquids, it is not designed to resist pressurized liquids such as water hoses. Keep the back of the device away from dust and liquids as much as possible. 6. Make sure the various cables connect to provide the appropriate voltages at the proper pins. 7. If the IM15 requires repair, contact a professional technician instead of attempting them yourself 6. COMPLIANCE STATEMENTS FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference 2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 3) Frequency from 5150 to 5250MHz is for indoor use. 7 Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician fo…

Text truncated - open the document above for the full version.

PAX Technology Limited Date: 2022-2-20 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: V5PIM15 To whom it may concern: We, the undersigned, hereby authorize Compliance Certification Services (Kunshan) Inc and Winkey Wang in Compliance Certification Services (Kunshan) Inc to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with PAX Technology Limited This authorization is valid until further written notice from the applicant. Print Name: Jenna Tan Title: Certification Leader Signature: On behalf of Company: PAX Technology Limited Telephone: 86-755-86156663 E-mail: [email protected]

PAX Technology Limited TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: Confidentiality Request regarding application for FCC ID: V5PIM15 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 0 days from the grant date, whichever is less. If the device is marketed within 0 days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Print Name: Jenna Tan Title: Certification Leader Signature: On behalf of Company: PAX Technology Limited Telephone: 86-755-86156663 E-mail: [email protected]

Applicant Declaration QSF27-14-04 Rev 1.0 Rev. Feb 6, 2023 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name PAX Technology Limited Address Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Hong Kong Grantee Code V5P FCC ID V5PIM15 Authorized Contact Name Jenna Tan Contact Email [email protected] Contact Phone 86-755-86156663 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List [PAX Technology Limited] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [PAX Technology Limited] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date: 2023/03/13 Print Name: Title: *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database Certification Leader Jenna Tan

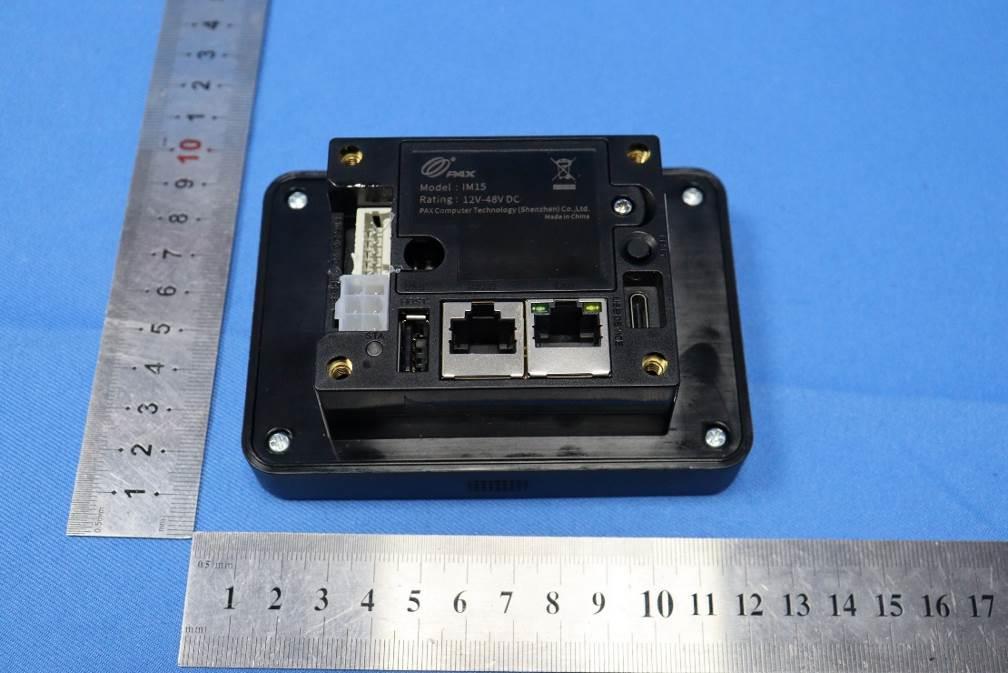

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A02 Rev.A/0 Page: 1 of 4 Appendix External Photos for FYCR2301000013AT FCC ID: V5PIM15 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A02 Rev.A/0 Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A02 Rev.A/0 Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A02 Rev.A/0 Page: 4 of 4

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 1 of 5 Appendix Internal Photos for FYCR2301000013AT FCC ID: V5PIM15 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 2 of 5 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 3 of 5 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 4 of 5 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 5 of 5 - End of the Appendix - NFC Antenna

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR230100001303 Page: 1 of 10 Winkey Wang EMC Technical Manager TEST REPORT Application No.: FYCR2301000013AT Applicant: PAX Technology Limited Address of Applicant: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Hong Kong Manufacturer: PAX Computer Technology (Shenzhen) Co., Ltd. Address of Manufacturer: 401 and 402, Building 3, Shenzhen Software Park, Nanshan District, Shenzhen City, Guangdong Province, P.R.C Equipment Under Test (EUT): EUT Name: UNATTENDED PAYMENT TERMINAL Model No.: IM15 Trade Mark: PAX FCC ID: V5PIM15 Standard(s) : 47 CFR Part 1.1307 47 CFR Part 1.1310 FCC Rules 47 CFR §2.1091 KDB 447498 D04 interim General RF Exposure Guidance v01 Date of Receipt: 2023-01-10 Date of Evaluation: 2023-01-16 to 2023-01-30 Date of Issue: 2023-03-06 Evaluation Result: Pass* * In the configuration evaluated, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR230100001303 Page: 2 of 10 Revision Record Version Chapter Date Modifier Remark 01 2023-03-06 Original Authorized for issue by: Tree Zhan/Project Engineer Winkey Wang/Reviewer Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR230100001303 Page: 3 of 10 2 Contents Page 1 Cover Page ................................................................................................................................................ 1 2 Contents .................................................................................................................................................... 3 3 General Information .................................................................................................................................. 4 3.1 General Description of E.U.T. ............................................................................................................ 4 3.2 Details of E.U.T. ................................................................................................................................. 4 3.3 Separation Distance ........................................................................................................................... 4 3.4 Test Location ...................................................................................................................................... 5 3.5 Test Facility ........................................................................................................................................ 5 3.6 Deviation from Standards ................................................................................................................... 5 3.7 Abnormalities from Standard Conditions ........................................................................................... 5 4 FCC Radiofrequency radiation exposure limits .................................................................................... 6 4.1 Blanket 1 mW Blanket Exemption ...................................................................................................... 6 4.2 MPE-based Exemption ...................................................................................................................... 6 4.3 SAR-based Exemption ....................................................................................................................... 7 5 Measurement and Calculation ............................................................................................................... 10 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR230100001303 Page: 4 of 10 3 General Information 3.1 General Description of E.U.T. Product Type: Portable device Mobile device Fixed device 3.2 Details of E.U.T. Power supply: DC5V from USB type C port Or DC12-48V by DC Source Or DC12V/1A by AC/DC adapter Operation Frequency: 13.56MHz Modulation Type: ASK Antenna Type: Loop Antenna Remark: The information in this section is provided by the applicant or manufacturer, CCS is not liable to the accuracy, suitability, reliability or/and integrity of the information. 3.3 Separation Distance Minimum test separation distance: 20cm Remark: This minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR230100001303 Page: 5 of 10 3.4 Test Location All tests were performed at: Compliance Certification Services（Kunshan）Inc. Shenzhen branch. Fuyong lab. Xinlong TechnoPark,Fengtang Road, Fuyong Subdistrict, Bao’an, Shenzhen, China Tel: +86 755 8866 3988 Fax: +86 755 2671 0594 No tests were sub-contracted. 3.5 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 6606.01) Compliance Certification Services（Kunshan）Inc. Shenzhen branch is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 6606.01. • FCC –Designation Number: CN1322 Compliance Certification Services（Kunshan）Inc. Shenzhen branch has been recognized as an accredited testing laboratory. Designation Number: CN1322. Test Firm Registration Number: 718073 • Innovation, Science and Economic Development Canada Compliance Certification Services（Kunshan）Inc. Shenzhen branch has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0129. IC#: 28189. 3.6 Deviation from Standards None 3.7 Abnormalities from Standard Conditions None Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,…

Text truncated - open the document above for the full version.

Justification statement for Antenna To: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: V5PIM15 Dear Sir/Madam, Only radiated measurements are used for EUT with FCC ID: V5PIM15 to show compliance with FCC limits for fundamental and spurious emissions. All measurements were performed radiated and therefore additional antenna gain documentation is not required. The detailed information for antenna as below shows: Design Specifications Typical Antenna Type Loop Antenna Working Frequency 13.56 MHz Overall Dimensions 8cm*6cm(two laps)

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR230100001302 Page: 1 of 30 Winkey Wang EMC Technical Manager TEST REPORT Application No.: FYCR2301000013AT Applicant: PAX Technology Limited Address of Applicant: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Hong Kong Manufacturer: PAX Computer Technology (Shenzhen) Co., Ltd. Address of Manufacturer: 401 and 402, Building 3, Shenzhen Software Park, Nanshan District, Shenzhen City, Guangdong Province, P.R.C Equipment Under Test (EUT): EUT Name: UNATTENDED PAYMENT TERMINAL Model No.: IM15 Trade Mark: PAX FCC ID: V5PIM15 Standard(s) : 47 CFR Part 15, Subpart C 15.225 Date of Receipt: 2023-01-10 Date of Test: 2023-01-16 to 2023-01-30 Date of Issue: 2023-03-06 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR230100001302 Page: 2 of 30 Revision Record Version Chapter Date Modifier Remark 01 2023-03-06 Original Authorized for issue by: Tree Zhan/Project Engineer Winkey Wang/Reviewer Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR230100001302 Page: 3 of 30 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.225 N/A 47 CFR Part 15, Subpart C 15.203 Pass Radio Spectrum Matter Part Item Standard Method Requirement Result 20dB Bandwidth 47 CFR Part 15, Subpart C 15.225 ANSI C63.10 (2013) Section 6.9 47 CFR Part 15, Subpart C 15.215 Pass Conducted Emissions at Mains Terminals (150kHz-30MHz) ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Emission Mask ANSI C63.10 (2013) Section 6.4 47 CFR Part 15, Subpart C 15.225(a)&(b)&(C ) Pass Frequency tolerance ANSI C63.10 (2013) Section 6.8 47 CFR Part 15, Subpart C 15.225(e) Pass Radiated Emissions (30MHz-1GHz) ANSI C63.10 (2013) Section 6.5 47 CFR Part 15, Subpart C 15.225(d) & 15.209 Pass Radiated Emissions (9kHz-30MHz) ANSI C63.10 (2013) Section 6.4 47 CFR Part 15, Subpart C 15.225(d) & 15.209 Pass Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR230100001302 Page: 4 of 30 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 6 4.1 DETAILS OF E.U.T. ......................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 6 4.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 6 4.4 TEST LOCATION ............................................................................................................................. 7 4.5 TEST FACILITY ............................................................................................................................... 7 4.6 DEVIATION FROM STANDARDS ......................................................................................................... 7 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 7 5 EQUIPMENT LIST ............................................................................................................................... 8 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................10 6.1 ANTENNA REQUIREMENT ................................................................................................................10 6.1.1 Test Requirement: ..................................................................................................................10 6.1.2 Conclusion ..............................................................................................................................10 7 RADIO SPECTRUM MATTER TEST RESULTS .................................................................................11 7.1 20DB BANDWIDTH .........................................................................................................................11 7.1.1 E.U.T. Operation .....................................................................................................................11 7.1.2 Test Mode Description ............................................................................................................11 7.1.3 Test Setup Diagram ................................................................................................................11 7.1.4 Measurement Procedure and Data .........................................................................................11 7.2 CONDUCTED EMISSIONS AT MAINS TERMINALS (150KHZ-30MHZ) ......................................................13 7.2.1 E.U.T. Operation .....................................................................................................................13 7.2.2 Test Mode Description ............................................................................................................13 7.2.3 Test Setup Diagram ................................................................................................................13 7.2.4 Measurem…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A04 Rev.A/0 Page: 1 of 3 Appendix Test Setup Photos for FYCR2301000013AT FCC ID: V5PIM15 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A04 Rev.A/0 Page: 2 of 3 Test Setup Photo Conducted Emissions at Mains Terminals (150kHz-30MHz) Radiated Emissions (30MHz-1GHz) Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A04 Rev.A/0 Page: 3 of 3 Radiated Emissions (9kHz-30MHz) Emission Mask - End of the Appendix -
