V5PQ58Countertop Payment Terminal

Q58 Desktop Terminal Instruction Manual 1. Installation POWER port connects to the external power adapter. LINE port connects to telephone line(optional). RS232 port connects to serial port. LAN port connects to the network cable. USB (OTG) port connects to the USB disk or other devices, and for the terminal download. SAM card: Remove the cover at the bottom of the terminal. Insert the SAM card to the corresponding card slot. SIM card(optional): Insert the SIM card to the corresponding card slot. 2. Instructions 1）Power ON/OFF Power on：Press the ON/OFF button for 2 seconds until the terminal turns on successfully. Power off：Press the ON/OFF button for 2 seconds, the Power OFF confirmation box appears, then click”YES” , the terminal turns off successfully. 2）Magnetic Stripe Card Put magnetic stripe side of magnetic card towards device interior, swipe the card with a steady speed during through magnetic reader slot. (Support bi-directional swiping) 3）IC Card Put IC card chip side upward, push-in IC card slot and to bottom. 4）Shred paper operating Instructions Make paper 45 degrees angle right to paper knife and shred paper. 5）Tap contactless card. Put the contactless card into the area above the printer cover. 3. Installation and Usage Tips 1）Avoid putting the terminal in direct sunlight, high temperature, moist, or dusty environment. 2）Forbid non-professional to repair the terminal. 3）Before insert the card, please check internal and around of IC card slot . when you found some suspicious objects , must report to related administrator. 4）The terminal is without battery and can only be used on the desktop through the adapter, please be noted that it cannot be moved away from the desktop while using. 4. Password Entering Tips It is highly recommended to enter password as following ways: 1）Set up peep shields. Enter password with shield by the structures of cashier desk; 2）Place the POS terminal at an appropriate angle and make sure it is difficult to peer the password. For Installation Manual example, the POS was installed above the movable bracket; 3）In enter password perspective, avoid surrounding video surveillance; 4）Paste text instructions to remind the customers to shelter with body or palm when enter password. 5）Merchants can also choose other ways to protect the customer input password. FCC Regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1 ) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. ISED compliance statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. FCC ID：V5PQ58 IC ID：11689A-Q58 RF Exposure Statement This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ouémetteur.Cet équipement devrait être installé et actionné avec une distance minimum de 20 centimètres entre leradiateur et votre corps. PAX Technology Limited Manufacturer: PAX Computer Technology (Shenzhen) Co. Ltd. Address: 4/F, No.3 Building, Software Park, Second Central Science-Tech Road,High-Tech Industrial Park, Shenzhen, Guangdong, China. Tel: +86 755 86169630 Website: www.pax.com.cn PAX continually invests to maintain its high quality products up to date with the latest certifications, therefore a comprehensive list can be requested via the website's contact form or on downloadable product brochures.

PAX Technology Limited Date: 8/24/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(5) Attestation FCC ID: V5PQ58 Grantee FRN: 0017536285 1. PAX Technology Limited certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. PAX Technology Limited certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Company Name: PAX Technology Limited Contact Name: Jenna tan Title of Person: Certification Leader Address: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong, 518057, China

PAX Technology, Inc. 3680 Clear Channel Place Jacksonville, FL 32224 (877) 859-0099 Date: August 24, 2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) FCC US Agent Letter of Attestation Grantee Code: V5P Grantee FRN: 0017536285 To whom it may concern: FCC US Agent Agent Company Name: Pax Technology, Inc. FCC FRN: 0033507476 Agent Contact Name: John Hallisey Agent US Address: 8775 Baypine Road, Jacksonville,FL 32256 Agent Email Address: [email protected] This letter is to confirm that we have accepted the responsibility to act as US Agent on behalf of PAX Technology Limited for the above-referenced FCC Grantee Code. We are aware of the requirements and responsibilities of the applicant’s agent for service of process as outlined in the FCC section 2.911(d)(7) and Report and Order FCC 22-84 paragraph 63. Sincerely, Authorized Agent Contact Person Name: John Hallisey Agent contact Job Title: General Counsel Agent Company name: PAX Technology,Inc DocuSign Envelope ID: B0601BC3-D26F-4D08-BDD6-9282D716F3BC

PAX Technology Limited Date: 8/24/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation FCC ID: V5PQ58 Grantee FRN: 0017536285 PAX Technology Limited as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. U.S. Agent Information: FRN: 0033507476 Contact Person: John Hallisey Company Name: Pax Technology,Inc. Company Address: 8775 Baypine Road,Jacksonville,FL 32256 Email: [email protected] Sincerely yours, Company Name: PAX Technology Limited Contact Name: Jenna tan Title of Person: Certification Leader Address: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong, 518057, China

PAX Technology Limited Date: 8/24/2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: PAX Technology Limited Contact Name: Jenna tan Title of Person: Certification Leader Address: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong, 518057, China

PAX Technology Limited DATE : 2023-08-24 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Request for Short-Term Confidentiality Company name: PAX Technology Limited FCC ID: V5PQ58 FCC Part 15 Certification Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: (1) Test Setup Photos (2) External Photos (3) Internal Photos (4) User Manual The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Sincerely, Signature Company Name: PAX Technology Limited Contact Name: Jenna tan Title of Person: Certification Leader Address: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong, 518057, China

PAX Technology Limited Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: V5PQ58 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: PAX Technology Limited Contact Name: Jenna tan Title of Person: Certification Leader Address: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong, 518057, China Date: 8/24/2023

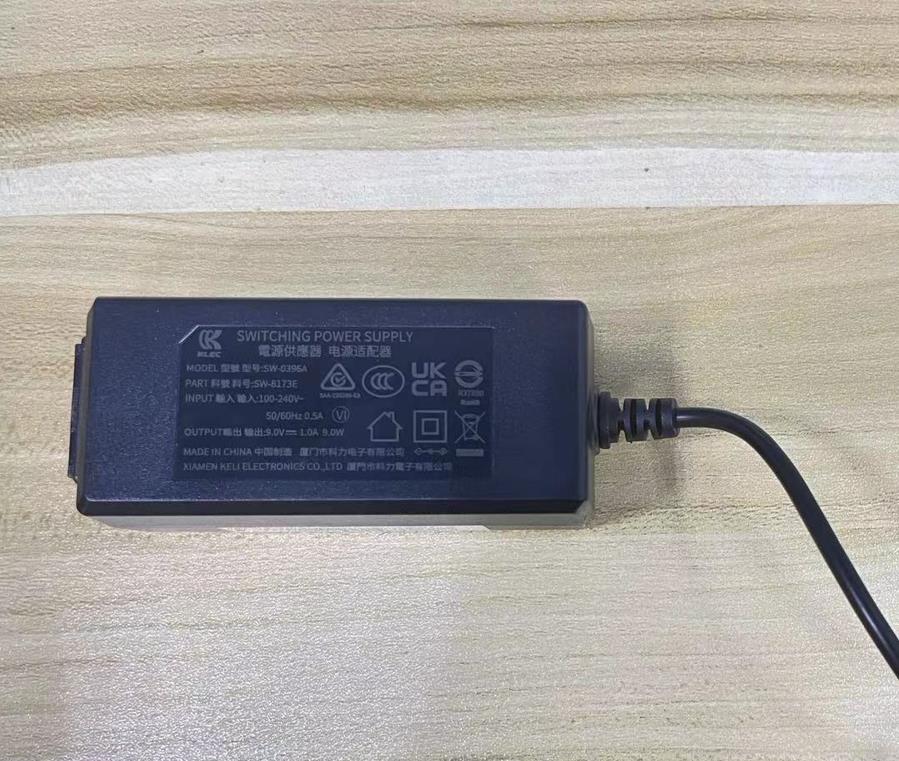

External Photographs Project No.:4790943504.2-1 Page 2 of 5 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-1 View of EUT-2 Page 3 of 5 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-3 View of EUT-4 Page 4 of 5 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-5 View of EUT-6 Page 5 of 5 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-7 View of EUT-8

Note: 1. This would be a plastic label with a permanent adhesive. 2. The FCC label statement will include in the user manual which will print on a paper insert and sell with the device.

Internal Photographs Project No.:4790943504.2-1 Page 2 of 6 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-1 Internal View of EUT-2 Page 3 of 6 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-3 Internal View of EUT-4 NFC 天线 Page 4 of 6 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-5 Internal View of EUT-6 Page 5 of 6 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-7 Internal View of EUT-8 Page 6 of 6 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-9 Internal View of EUT-10 WIFI ANTENNA WIFI module

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For Countertop Payment Terminal MODEL NUMBER: Q58 REPORT NUMBER: 4790943504.2-1-RF-3 ISSUE DATE: August 25, 2023 FCC ID: V5PQ58 Prepared for PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong 518057 China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4790943504.2-1-RF-3 Page 2 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 August 25, 2023 Initial Issue REPORT NO.: 4790943504.2-1-RF-3 Page 3 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT NO.: 4790943504.2-1-RF-3 Page 4 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: PAX Technology Limited Address: Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong 518057 China Manufacturer Information Company Name: PAX Computer Technology (Shenzhen) Co., Ltd. Address: 401 and 402, Building 3, Shenzhen Software Park, Nanshan District, Shenzhen City, Guangdong Province, P.R.C EUT Information EUT Name: Countertop Payment Terminal Model: Q58 Brand: PAX Sample Received Date: August 23, 2023 Sample Status: Normal Sample ID: 6334869 Date of Tested: August 24, 2023 to August 25, 2023 APPLICABLE STANDARDS STANDARD TEST RESULTS KDB 447498 D01 General RF Exposure Guidance v06 PASS FCC 47CFR§2.1091 PASS Prepared By: Checked By: Kebo Zhang Denny Huang Senior Project Engineer Senior Project Engineer Approved By: Stephen Guo Operations Manager REPORT NO.: 4790943504.2-1-RF-3 Page 5 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 and KDB 447498 D01 General RF Exposure Guidance v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED (Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with ISED. The Company Number is 21320 and the test lab Conformity Assessment Body Identifier (CABID) is CN0046. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China. REPORT NO.: 4790943504.2-1-RF-3 Page 6 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT AND CALCULATION METHOD Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. Limits for General Population/Uncontrolled Exposure RF EXPOSURE LIMIT Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power…

Text truncated - open the document above for the full version.

深圳市睿德通讯科技有限公司 Shenzhen Etheta Communication Technology Co., LTD. 1 供应商名称： 深圳市睿德通讯科技有限公司 Specificationfor Approval 供应商地址： Area B&D，floor 3,building 1，Baisha Technology Industrial Park，No.3011,，Shahe West Load，Nanshan District，Shenzhen（518055）， Guangdong Province，China. 客户名称 Client Name： 百富计算机技术（深圳）有限公司 品 牌 Brand Name： 睿德 物料规格 Part Description： Q58-WIFI-Antenna-V01-PCB-睿德 产品制造商： Manufacturer: 深圳市睿德通讯科技有限公司 百富物料类别 PAX Part Name： PCB天线 百富物料描述 PAX Description： Q58-WIFI -Antenna-V01-PCB-睿德 测试日期 Testing Date： 7/8/2023 测试工程师 Testing Engineer： 深圳市睿德通讯科技有限公司 Shenzhen Etheta Communication Technology Co., LTD. 2 Contents 1、 Table Contents 2、 Contents 3、 Antenna Specification 4、 Test &Item Equipment 5、 Matching Circuit 6、 S11 Parameter Test 7、 Passive Test 8、 Drawings 9、 The way of Packing 深圳市睿德通讯科技有限公司 Shenzhen Etheta Communication Technology Co., LTD. 3 Antenna Specification Sample Photo 1. Electrical Characteristics Frequency 2.400～2.4835GHz Polarization Linear Impedance 50 Ohm 2. Material & Mechanical Characteristics Material of antenna PCB Connector Type 3. Environmental Operation Temperature - 40 °C ~ + 65 °C Storage Temperature - 40 °C ~ + 80 °C Antenna Color Storage life < 2 year 深圳市睿德通讯科技有限公司 Shenzhen Etheta Communication Technology Co., LTD. 4 4、Test &Item Equipment List Test Item Equipment 1.S11 Parameter VSWR, Return Loss Agilent VNA 2.Active Test TRP, TIS Agilent 8960 Satimo Starlab 3.Passive Test Gain, Efficiency, Pattern Agilent VNA 设备清单 Equipment Manufactuer Model NO. Serial No. Last Cal. Due Date A darkroom test parameters The test system: SATIMO-SG24 Test environment: temperature 20 °C + 2 °C, humidity of 50% plus or minus 15% Agilent 8960 Active test equipment, test data, from using measuring Agilent 8960 深圳市睿德通讯科技有限公司 Shenzhen Etheta Communication Technology Co., LTD. 5 Network Analyzer Agilent E5071C 2022.12.29 2023.12.28 5、Matching Circuit We have changed the original matching circuit。 Element Value E1(0201) N/A E2(0201) OΩ E3(0201) N/A E4(0201) OΩ E5(0201) N/A 深圳市睿德通讯科技有限公司 Shenzhen Etheta Communication Technology Co., LTD. 6 6、S11 Parameter Test 6.1、 Test methods and specifications： Testing equipment: network analyzer (HP 8753 E) Test method: with a 50 ohm CABLE CABLE from the instrument test port export, calibration using a calibration after connection Rf fixture of the SMA connector, records related to the frequency points corresponding return loss and standing wave ratio. Test schematic diagram is as follows: 深圳市睿德通讯科技有限公司 Shenzhen Etheta Communication Technology Co., LTD. 7 7、Passive Test WiFi天线 f(MHz) 效率 效率 最大增 益 平均增 益 2400 39% -4.05 1.12 -4.27 2410 38% -4.22 1.05 -4.49 2420 37% -4.32 1.08 -4.62 2430 37% -4.35 1.14 -4.69 2440 36% -4.49 1.07 -4.88 2450 35% -4.55 1.04 -4.97 2460 35% -4.58 1.04 -5.02 2470 34% -4.68 0.97 -5.13 2480 34% -4.71 0.92 -5.16 2490 33% -4.84 0.75 -5.29 2500 32% -4.91 0.62 -5.34 2400MHZ 2450MHZ 深圳市睿德通讯科技有限公司 Shenzhen Etheta Communication Technology Co., LTD. 8 2500MHZ 8、Drawings 深圳市睿德通讯科技有限公司 Shenzhen Etheta Communication Technology Co., LTD. 9 深圳市睿德通讯科技有限公司 Shenzhen Etheta Communication Technology Co., LTD. 10

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 3 TEST REPORT For Countertop Payment Terminal MODEL NUMBER: Q58 REPORT NUMBER: 4790943504.2-1-RF-1 ISSUE DATE: August 25, 2023 FCC ID: V5PQ58 IC: 11689A-Q58 Prepared for PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong 518057 China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4790943504.2-1-RF-1 Page 2 of 113 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Rev. Issue Date Revisions Revised By V0 August 25, 2023 Initial Issue V1 September 1, 2023 Add the Accessory information in section 5.8 Kebo.Zhang REPORT NO.: 4790943504.2-1-RF-1 Page 3 of 113 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) RSS-GEN Clause 6.8 Pass AC Power Line Conducted Emission ANSI C63.10-2013, Clause 6.2 FCC Part 15.207 RSS-GEN Clause 8.8 Pass Conducted Output Power ANSI C63.10-2013, Clause 11.9.1.3 FCC Part 15.247 (b)(3) RSS-247 Clause 5.4 (d) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2013, Clause 11.8.1 FCC Part 15.247 (a)(2) RSS-247 Clause 5.2 (a) ISED RSS-Gen Clause 6.7 Pass Power Spectral Density ANSI C63.10-2013, Clause 11.10.2 FCC Part 15.247 (e) RSS-247 Clause 5.2 (b) Pass Conducted Band edge and spurious emission ANSI C63.10-2013, Clause 11.11 FCC Part 15.247(d) RSS-247 Clause 5.5 Pass Duty Cycle ANSI C63.10-2013, Clause 11.6 None; for reporting purposes only. Pass *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 3> when <Simple Acceptance> decision rule is applied. REPORT NO.: 4790943504.2-1-RF-1 Page 4 of 113 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 6 2. TEST METHODOLOGY ......................................................................................................... 7 3. FACILITIES AND ACCREDITATION ..................................................................................... 7 4. CALIBRATION AND UNCERTAINTY ................................................................................... 8 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 8 5. EQUIPMENT UNDER TEST .................................................................................................. 9 5.1. DESCRIPTION OF EUT ........................................................................................... 9 5.2. CHANNEL LIST ........................................................................................................ 9 5.3. MAXIMUM POWER .................................................................................................. 9 5.4. TEST CHANNEL CONFIGURATION ...................................................................... 10 5.5. THE WORSE CASE POWER SETTING PARAMETER .......................................... 10 5.6. WORST-CASE CONFIGURATIONS…
