V5PS900Wireless POS Terminal

S900 Mobile Payment Terminal PAX TECHNOLOGY LIMITED 1. Product Description： 2. Installation 1） SAM Card Installation ① Open up battery cover, which is at the bottom of the terminal; ② Take out battery; ③ Insert SAM card to corresponding SAM card slot. 2） SIM Card Installation ① Open up battery cover, which is at the bottom of the terminal ② Take out battery; ③ Insert SIM card to corresponding SIM card slot. 3） SD Card Installation ① Open up battery cover, which is at the bottom of the terminal; ② Take out battery; ③ Insert SD card to corresponding SD card slot. 4） Battery Installation ① Hold the battery with its sticker facing up; ② Attach battery forelock to battery bayonet; ③ Press down the other side of the battery 3. Instruction 1） Power ON/OFF Power on: Press “CANCEL” button for 2 seconds until LED backlight is on, if POS terminal is being turned on successfully. Power off: Press “CANCEL” button for 2 seconds until the displaying content vanishes. POS terminal is being turned off. 2） Magnetic Stripe Card When user swipes magnetic stripe card along the slot, the backside of the card, which contains magnetic stripe informat ion, should be facing to the terminal. Bi-directional swiping is supported. It is recommended to swipe starting from the top of the terminal to the bottom of the terminal with a constant moving speed. 3） IC card When user inserts IC card into the IC slot, the chip of IC card should be facing up; user is recommended to gently insert the card, in order to avoid any physical damage to the card or the IC slot of the terminal. If IC card is successfully read by the terminal, the IC card icon will be shown on LCD display screen. ICC Operation Process Before inserting the IC card, please check inside and around the IC card slot. If there is any suspicious object, please don‘t insert card and immediately report to the relevant staff. 4） Tearing off receipt from the terminal After the receipt is printed, pinch the end of the receipt and keep an angle of 45 degrees between receipt and the cutter of the terminal; tear off the receipt swiftly. 4. Specifications Default CPU： 32-bit，ARM11 Memory：64MB DDR RAM , 128MB NAND Flash Display：3.5 -inch 240x320 pixel color TFT LCD；LED backlight； Touch Screen：support Electronic signature Keypad：10 alphanumeric keys,8 functional keys Magnetic Card Reader ：Track 1/2/3，bi-directional swipe IC Card Reader：1 user card （EMV2000） SAM slots： 1) SIM slot  1 + SAM slot  3( without SD slot) 2) SIM slot  2 + SAM slot  2( without SD slot) 3) SIM slot  1 + SAM slot  2 + SD slot  1 4) SAM slot  3(WiFi , without SD slot) 5) SAM slot  3 + SD slot  1(WiFi) Communication：GSM, GPRS, or WCDMA or WiFi-BT Peripheral Ports: 1 RS232 port 1 USB port 1 Power Charge port Printer : Thermal printer; Speed:18 lines/sec; Paper width:58mm Paper roll outside diameter:38mm Power Supply：Input：100—240VAC ，1.0A 50/60HZ Output：9.0V DC 2.5A Battery：Li-ion bttery,1850mAh,7.4V Working Environment： Temperature：0 °C~50°C(32°F~122°F) R.H.: 10%~93%(non-condense) Storage Environment： Temperature:-20°C ~ 70°C (-4°F~158°F) R.H.:5% ~95%(non-condense) Dimensions：175mm  82mm  63mm（L  W  H） Weight：384g Optional: Support SD card Built-in WiFi-BT module (no GSM,GPRS or WCDMA) Double SIM slots Built-in contactless card reader module（ISO/IEC 14443 Type A/B, Mifare/Felica/NFC, card sensing area: LCD screen) 1D/2D barcode scanner 5. Installation and Usage Tips 1)Do not damage electric wire and power adapter. If electric wire or power adapter is damaged , please do not use the terminal any more. 2) Before power adapter is plugged into power socket, please make sure that voltage which the power socket supplies is appropriate working voltage for the terminal. 3)Do not expose the terminal in sunshine, or in humid, hot, or dusty environment 4)Keep the terminal away from liquid material 5) Do not plug any unknown material into any port of the terminal, since it may create serious damage to the terminal. 6) If the terminal is defective, please contact professional POS repair technicians. 7) When installing paper roll, please be aware of the cutter within paper bracket. 8) Please use standard thermal paper, in order to protect the printer and avoid paper jam. 9) Do not assemble the terminal in explosion hazardous area. 6.Battery Usage Tips 1) Charge indoor by PAX charger, where is cool and well ventilated; 2) Do not apart the battery; 3) Do not short circuit the battery; 4) Keep the battery away from sunshine, smog and dust; 5) Do not squeeze, punch the battery, put it into liquid or near fire; 6) Keep way from environment which is too hot , too cold, damp and highly explosive; 7) Once a failure happens such as heating or distortion, or it was broken down. Please change new battery; 8) Change new battery if it cannot satisfy your requirement; 9) Change new battery if using more than two years. FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the follow ing two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digita l device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions , may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular insta llation If this equipment does cause harmful interference to radio or te levis ion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receivin…

Text truncated - open the document above for the full version.

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour, Hong Kong, China Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: May 25, 2015 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: V5PS900 To Whom It May Concern: We, PAX Technology Limited, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Contact Person: Xudong An Company: PAX Technology Limited TEL: 86-755-86169679 FAX: 86-755-86169634 E-mail: [email protected]

Rev. 1/1/03 PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour, Hong Kong, China Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: May 25, 2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: V5PS900 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Xudong An

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour, Hong Kong, China Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: May 25, 2015 Power of Attorney To whom it may concern, Please be notified that I, Xudong An, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: V5PS900 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Xudong An Company: PAX Technology Limited TEL: 86-755-86169679 FAX: 86-755-86169634 E-mail: [email protected]

1/1 PAX Technology Limited Date: May 25, 2015 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : V5PS900 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which PAX Technology Limited deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Xudong An Company: PAX Technology Limited TEL: 86-755-86169679 FAX: 86-755-86169634 E-mail: [email protected]

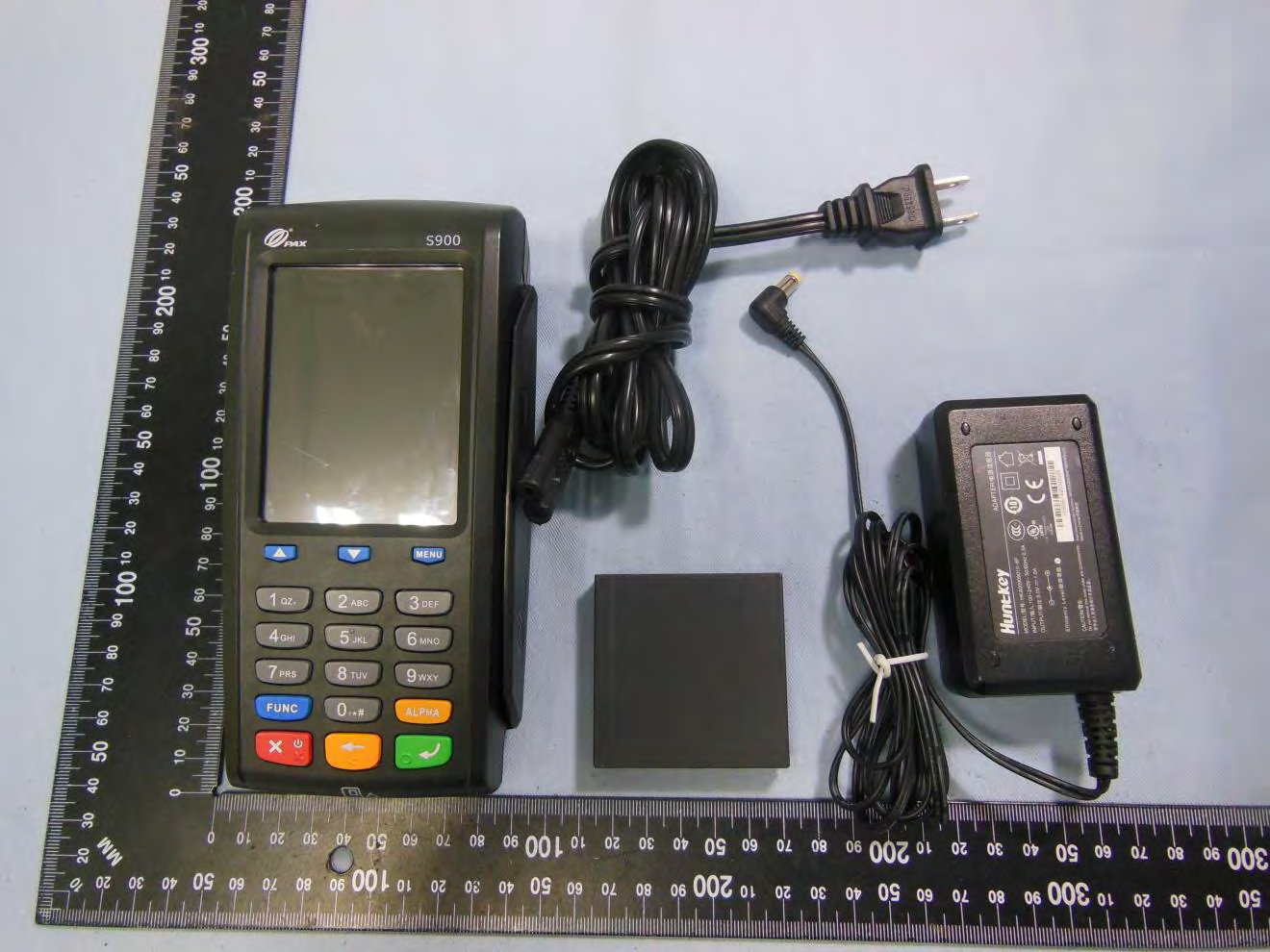

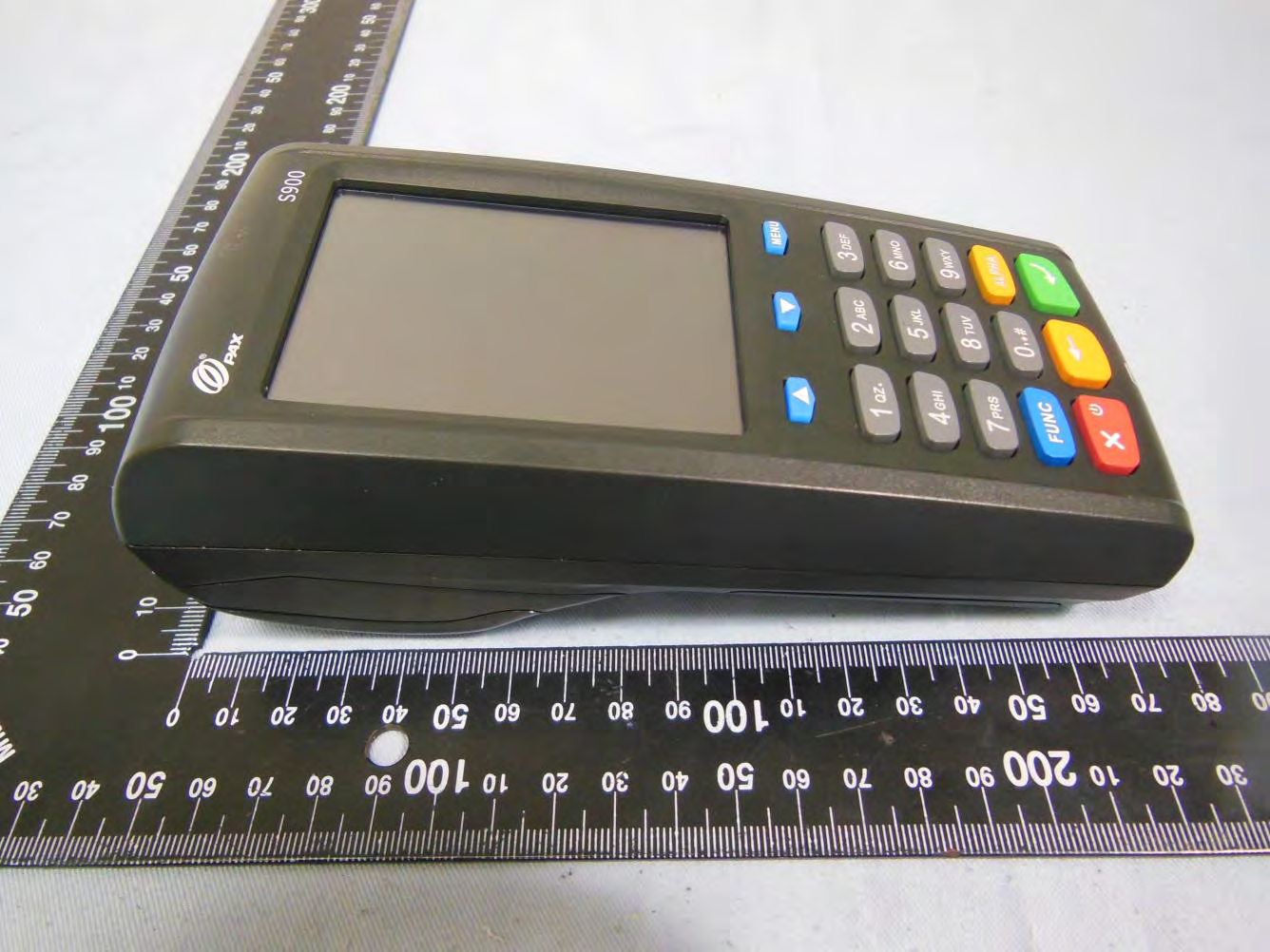

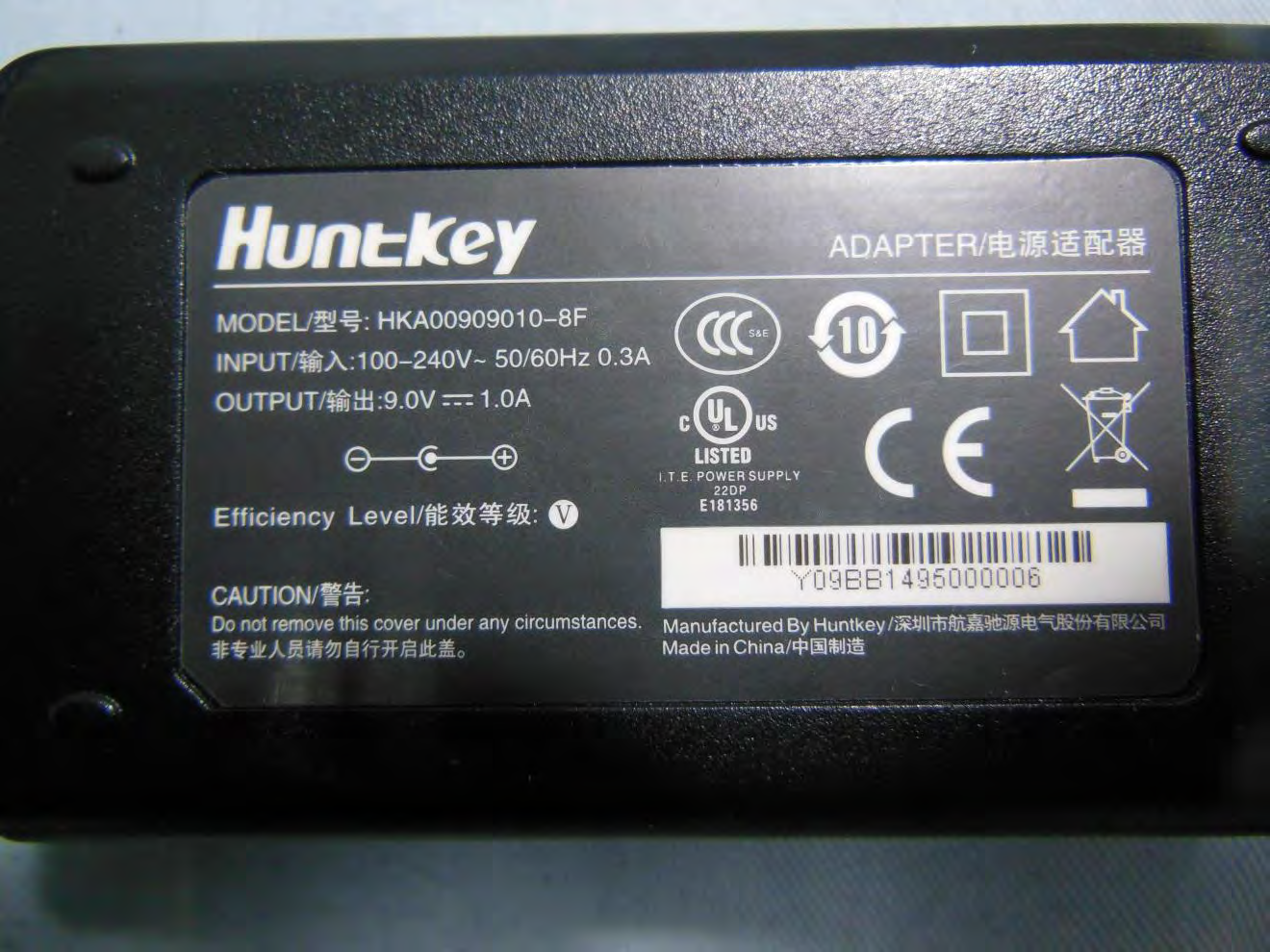

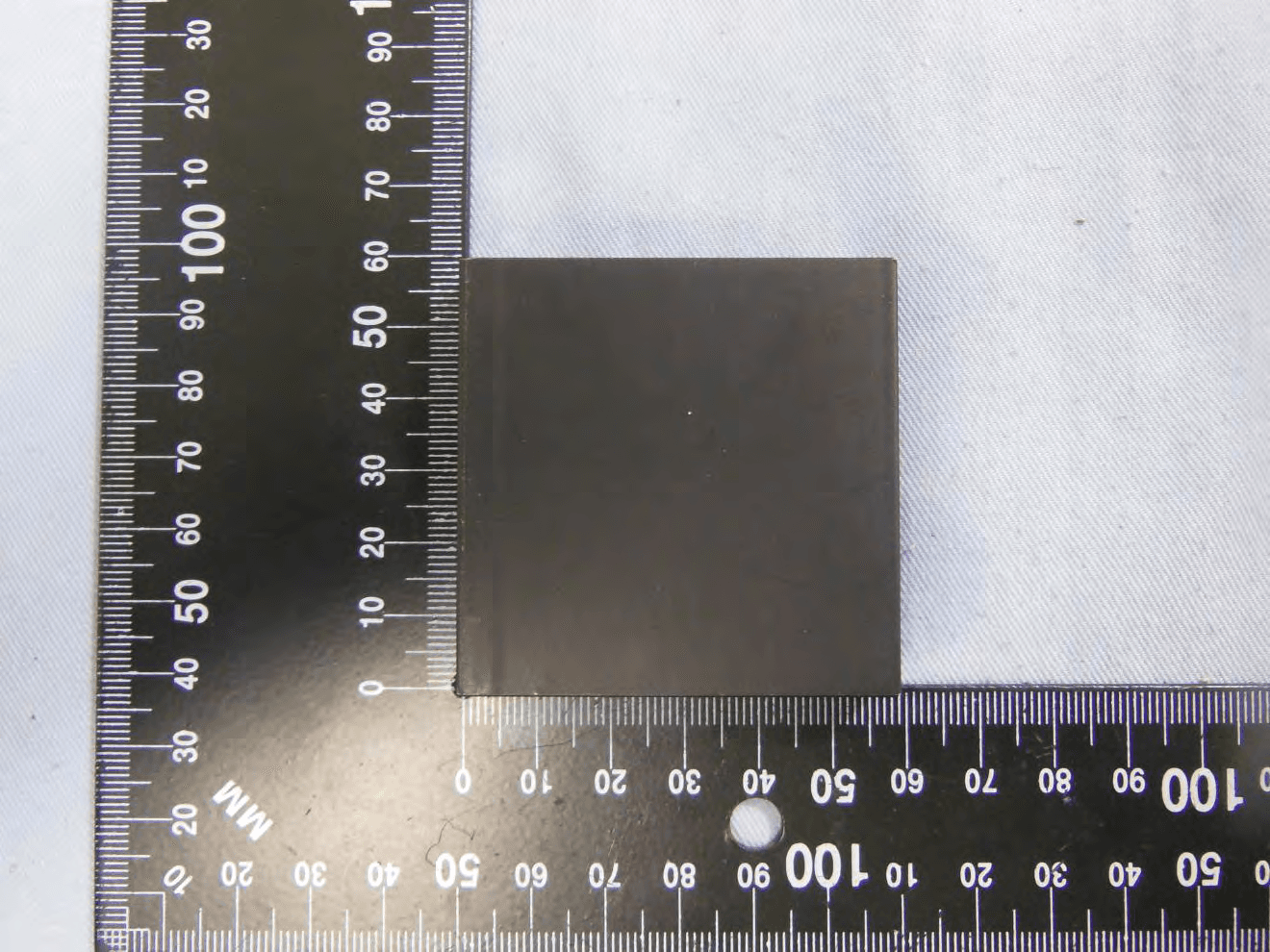

Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 1. External Photograph of EUT Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 List of Accessory: Specification of Accessory AC Adapter Brand Name HuntKey Model Name HKA00909010-8F Battery Brand Name PAX Model Name IS135 AC Cable Signal Line Type 1.8m, shielded cable, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 720510 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 AC Adapter Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Battery Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900

Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 720510 3. Internal Photograph of EUT WWAN Antenna<Tx/Rx> RFID Antenna<Tx/Rx> WLAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 19 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 20 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 21 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 22 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 23 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 24 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 25 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 26 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 27 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 28 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 29 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 30 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 31 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 32 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 33 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 34 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 35 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900 Photographs of EUT Report No.: EP542304 Brand Name: PAX; Model Name: S900 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 36 of 40 TEL : 86-755-8637-9589 Report Issued Date : Jun. 19, 2015 FAX : 86-755-8637-9595 Report Ver…
