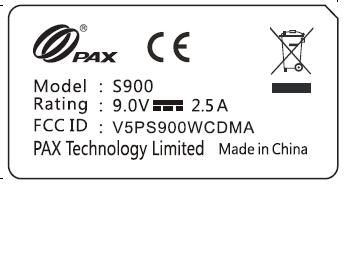

V5PS900WCDMAWireless POS Terminal

Rev. 1/1/03 PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: May 17, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: V5PS900WCDMA Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Xudong An

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: May 17, 2013 Power of Attorney To whom it may concern, Please be notified that I, Xudong An, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: V5PS900WCDMA If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Xudong An Company: PAX Technology Limited TEL: 86-755-86169679 FAX: 86-755-86169634 E-mail: [email protected]

1/1 PAX Technology Limited Date: May 17, 2013 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : V5PS900WCDMA To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which PAX Technology Limited deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Xudong An Company: PAX Technology Limited TEL: 86-755-86169679 FAX: 86-755-86169634 E-mail: [email protected]

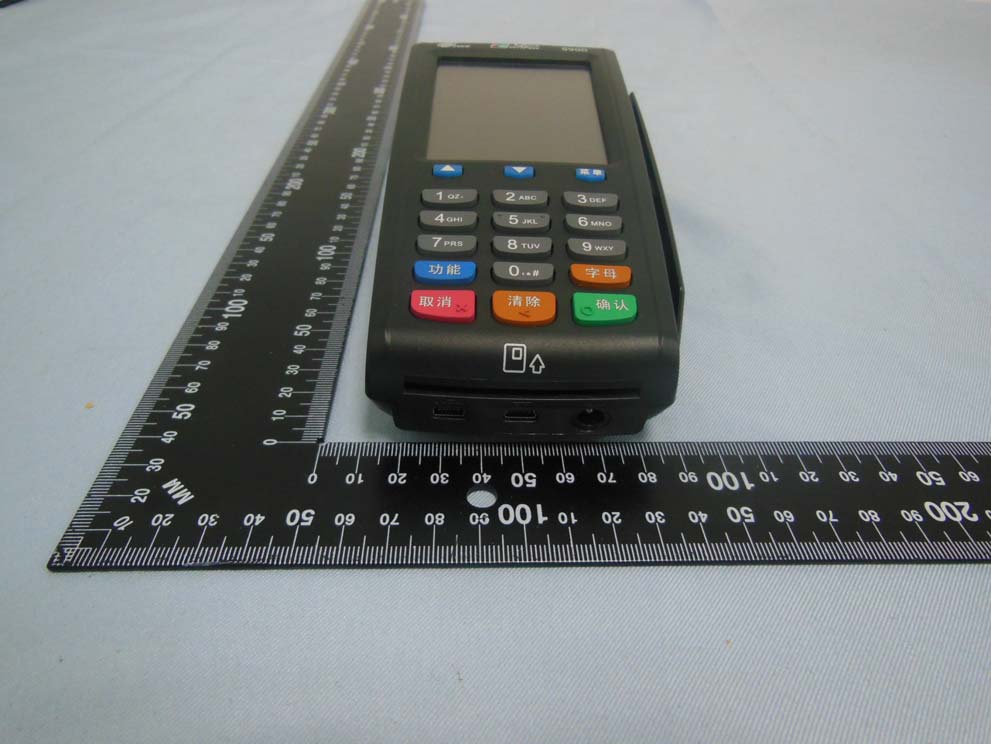

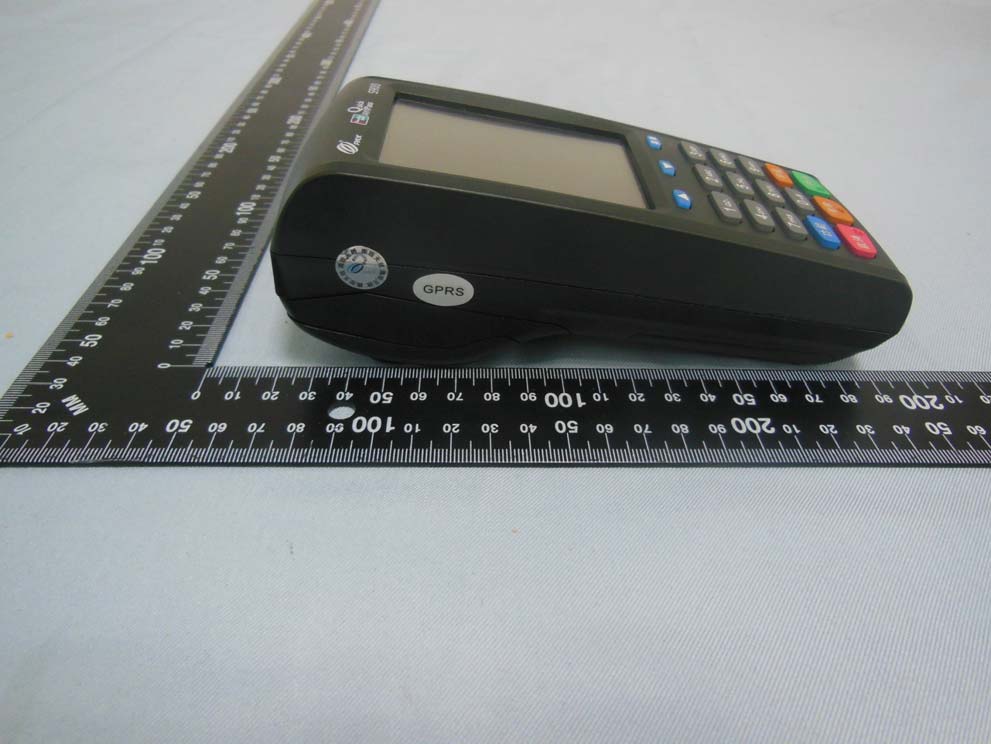

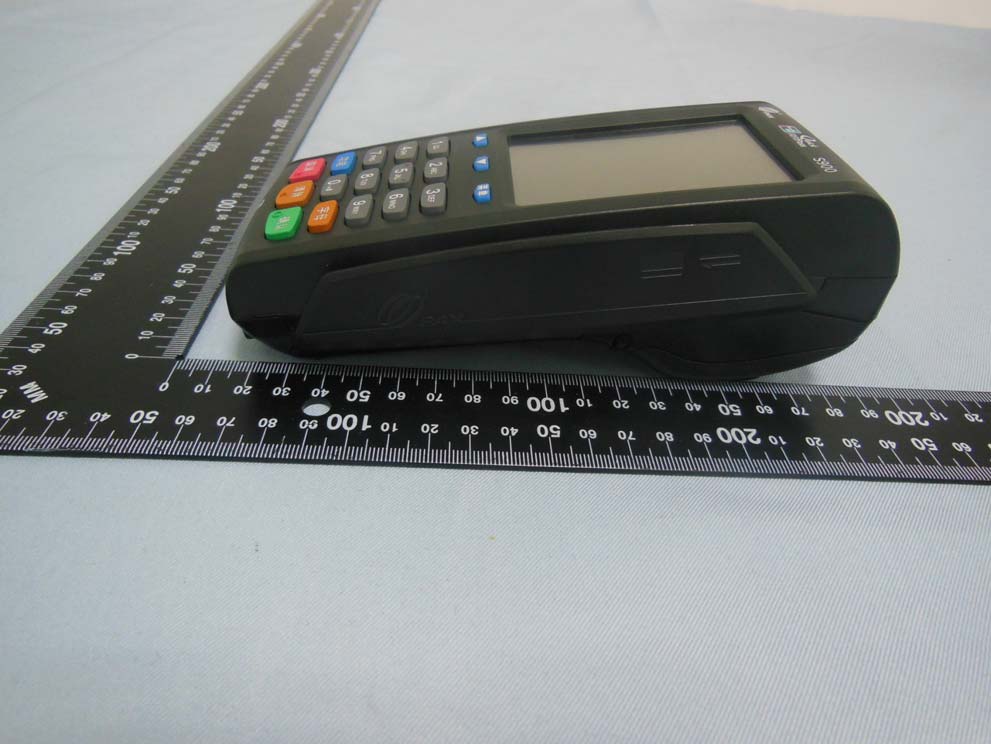

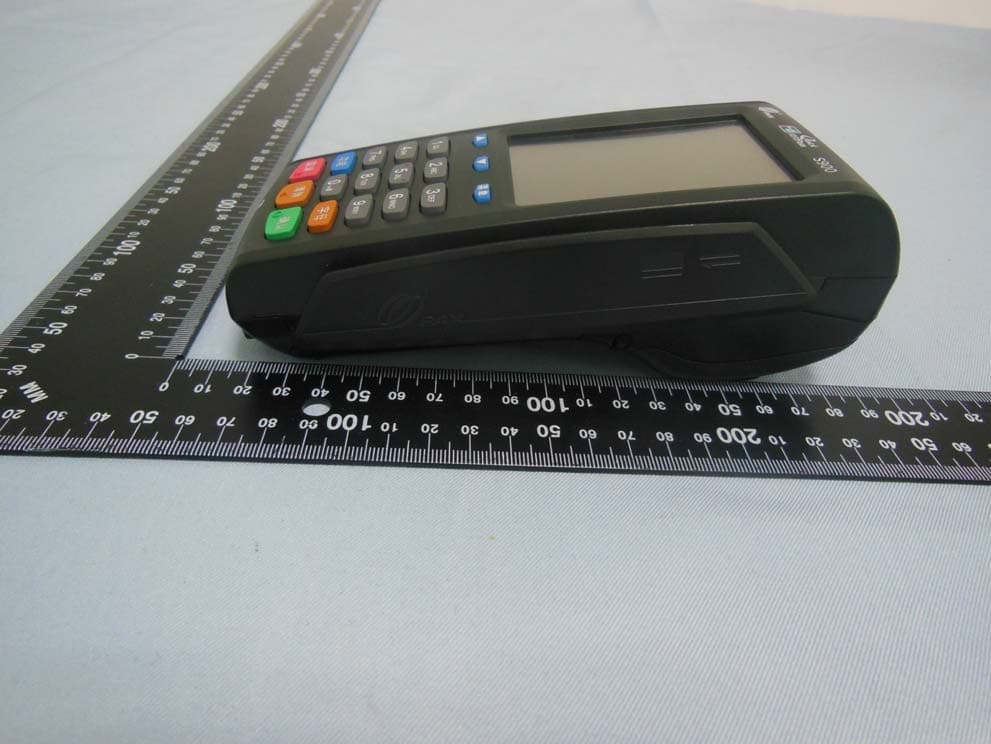

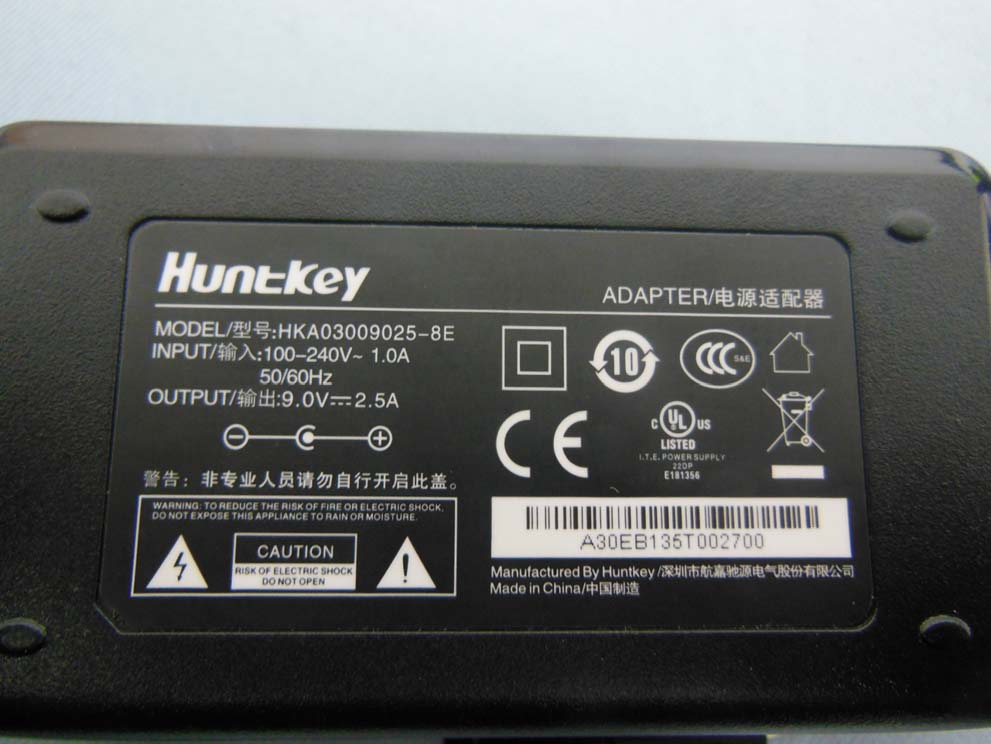

Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA 1. External Photograph of EUT Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA List of Accessory: Specification of Accessory AC Adapter Brand Name Huntkey Model Name HKA03009025-8E Battery Brand Name PAX Model Name IS135 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA AC Adapter Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Battery

Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA 3. Internal Photograph of EUT RFID Antenna WWAN Antenna Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : V5PS900WCDMA Photographs of EUT Report No.: EP3O0802 Brand Name: PAX; Model Name: S900; Marketing Name: S900 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 52 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 13, 2013 FAX : 86-…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 38 TEL: 86-755-8637-9589 Report Issued Date : Dec. 13, 2013 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900WCDMA FCC SAR Test Report Report No. : FA3O0802 FCC SAR Test Report APPLICANT : PAX Technology Limited EQUIPMENT : Wireless POS Terminal BRAND NAME : PAX MODEL NAME : S900 MARKETING NAME : S900 FCC ID : V5PS900WCDMA STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was completely tested on Nov. 21, 2013. We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (SHENZHEN) INC. No. 101, Complex Building C, Guanlong Village, Xili Town, Nanshan District, Shenzhen, Guangdong, P.R.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 38 TEL: 86-755-8637-9589 Report Issued Date : Dec. 13, 2013 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900WCDMA FCC SAR Test Report Report No. : FA3O0802 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory .............................................................................................................................................5 2.2 Applicant ............................................................................................................................................................5 2.3 Manufacturer .....................................................................................................................................................5 2.4 Application Details .............................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Equipment Under Test (EUT) ......................................................................................................6 3.2 Maximum RF output power among production units .........................................................................................7 3.3 Applied Standard ...............................................................................................................................................8 3.4 Device Category and SAR Limits ......................................................................................................................8 3.5 Test Conditions ..................................................................................................................................................8 4. Specific Absorption Rate (SAR) ....................................................................................................................................9 4.1 Introduction .............................................................................................................................................................9 4.2 SAR Definition .........................................................................................................................................................9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder .......................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. System Verification Procedures .................................................................................................................................18 7.1 Purpose of System Performance check ................................................................................................................18 7.2 System Setup ..........................................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : C1 of C1 TEL: 86-755-8637-9589 Report Issued Date : Dec. 13, 2013 FAX: 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PS900WCDMA FCC SAR Test Report Report No. : FA3O0802 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 98 TEL : +86-755-3320-2398 Report Issued Date : Dec. 13, 2013 FCC ID : V5PS900WCDMA Report Version : Rev. 01 FCC RF Test Report Report No. : FG3O0802 FCC RF Test Report APPLICANT : PAX Technology Limited EQUIPMENT : Wireless POS Terminal BRAND NAME : PAX MODEL NAME : S900 MARKETING NAME : S900 FCC ID : V5PS900WCDMA STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on Mar. 18, 2013 and completely tested on Dec. 13, 2013. We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL (SHENZHEN) INC. No. 3 Building, the third floor of south, Shahe River west, Fengzeyuan warehouse, Nanshan District, Shenzhen, Guangdong, P.R.C. SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 98 TEL : +86-755-3320-2398 Report Issued Date : Dec. 13, 2013 FCC ID : V5PS900WCDMA Report Version : Rev. 01 FCC RF Test Report Report No. : FG3O0802 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1GENERAL DESCRIPTION .......................................................................................................................... 5 1.1Applicant ............................................................................................................................................ 5 1.2Manufacturer ..................................................................................................................................... 5 1.3Feature of Equipment Under Test ..................................................................................................... 5 1.4Product Specification of Equipment Under Test ............................................................................... 6 1.5Modification of EUT ........................................................................................................................... 7 1.6Maximum ERP/EIRP Power, Frequency Tolerance, and Emission Designator ............................... 7 1.7Testing Site ....................................................................................................................................... 7 1.8Applied Standards ............................................................................................................................. 8 2TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 9 2.1Test Mode.......................................................................................................................................... 9 2.2Connection Diagram of Test System .............................................................................................. 11 2.3Support Unit used in test configuration and system ........................................................................ 11 2.4Measurement Results Explanation Example .................................................................................. 11 3TEST RESULT ........................................................................................................................................... 12 3.1Conducted Output Power Measurement ......................................................................................... 12 3.2Peak-to-Average Ratio .................................................................................................................... 14 3.3Effective Radiated Power and Effective Isotropic Radiated Power Measurement ......................... 22 3.499% Occupied Bandwidth and 26dB Bandwidth Measurement...................................................... 28 3.5Band Edge Measurement ................................................................................................................ 48 3.6Conducted Spurious Emission Measurement ................................................................................. 61 3.7Field Strength of Spurious Radiated Measurement ........................................................................ 77 3.8Frequency Stability for Temperature and Voltage Measurement ................................................... 92 4LIST OF MEASURING EQUIPMENT ........................................................................................................ 97 5UNCERTAINTY OF EVALUATION ........................................................................................................... 98 APPENDIX A. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 98 TEL : +86-755-3320-2398 Report Issued Date : Dec. 13, 2013 FCC ID : V5PS900WCDMA Report Version : Rev. 01 FCC RF Test Report Report No. : FG3O0802 REVISION HISTORY REPORT NO. VERSIONDESCRIPTIONISSUED DATE FG3O0802 Rev. 01 Initial issue of report Dec. 13, 2013 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 98 TEL : +86-755-3320-2398 Report Issued Date : Dec. 13, 2013 FCC ID : V5PS900WCDMA Report Version : Rev. 01 FCC RF Test Report Report No. : FG3O0802 SUMMARY OF TEST RESULT Report Section FCC Rule Description Limit Result Remark 3.1 §2.1046 Conducted Output Power N/A PASS - 3.2§24.232(d) Peak-to-Average Ratio < 13 dB PASS - 3.3 §22.913(a)(2) Effective Radiated Power < 7 Watts PASS - 3.3 §24…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 48 of 98 TEL : +86-755-3320-2398 Report Issued Date : Dec. 13, 2013 FCC ID : V5PS900WCDMA Report Version : Rev. 01 FCC RF Test Report Report No. : FG3O0802 3.5 Band Edge Measurement 3.5.1 Description of Band Edge Measurement The power of any emission outside of the authorized operating frequency ranges must be lower than the transmitter power (P) by a factor of at least 43 + 10 log (P) dB. 3.5.2 Measuring Instruments See list of measuring instruments of this test report. 3.5.3 Test Procedures 1. The EUT was connected to Spectrum Analyzer and Base Station via power divider. 2. The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator. The path loss was compensated to the results for each measurement. 3. The band edges of low and high channels for the highest RF powers were measured. Setting RBW as roughly BW/100. 4. The RF fundamental frequency should be excluded against the limit line in the operating frequency band. 5. The limit line is derived from 43 + 10log(P) dB below the transmitter power P(Watts) = P(W) - [43 + 10log(P) ] (dB) = [30 + 10log(P)] (dBm) - [43 + 10log(P) ] (dB) = -13dBm. 3.5.4 Test Setup SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 49 of 98 TEL : +86-755-3320-2398 Report Issued Date : Dec. 13, 2013 FCC ID : V5PS900WCDMA Report Version : Rev. 01 FCC RF Test Report Report No. : FG3O0802 3.5.5 Test Result (Plots) of Conducted Band Edge Band : GSM850 Test Mode : GSM Link Correction Factor : 0.24dB Maximum 26dB Bandwidth : 0.317MHz Band Edge : -14.03dBm Measurement Value : -14.27dBm Lower Band Edge Plot on Channel 128 (824.2 MHz) 1. Correction Factor(dB)= 10log(1% Emission BW/RBW) 2. Band Edge= Measurement Value + Correction Factor(dB) For example, -14.27dBm + 0.24dB = -14.03dBm SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 50 of 98 TEL : +86-755-3320-2398 Report Issued Date : Dec. 13, 2013 FCC ID : V5PS900WCDMA Report Version : Rev. 01 FCC RF Test Report Report No. : FG3O0802 Band : GSM850 Test Mode : GSM Link Correction Factor : 0.24dB Maximum 26dB Bandwidth : 0.317MHz Band Edge : -14.55dBm Measurement Value : -14.79dBm Higher Band Edge Plot on Channel 251 (848.8 MHz) 1. Correction Factor(dB)= 10log(1% Emission BW/RBW) 2. Band Edge= Measurement Value + Correction Factor(dB) SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 51 of 98 TEL : +86-755-3320-2398 Report Issued Date : Dec. 13, 2013 FCC ID : V5PS900WCDMA Report Version : Rev. 01 FCC RF Test Report Report No. : FG3O0802 Band : GSM850 Test Mode : EDGE 8 Link Correction Factor : 0.20dB Maximum 26dB Bandwidth : 0.314MHz Band Edge : -21.12dBm Measurement Value : -21.32dBm Lower Band Edge Plot on Channel 128 (824.2 MHz) 1. Correction Factor(dB)= 10log(1% Emission BW/RBW) 2. Band Edge= Measurement Value + Correction Factor(dB) SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 52 of 98 TEL : +86-755-3320-2398 Report Issued Date : Dec. 13, 2013 FCC ID : V5PS900WCDMA Report Version : Rev. 01 FCC RF Test Report Report No. : FG3O0802 Band : GSM850 Test Mode : EDGE 8 Link Correction Factor : 0.20dB Maximum 26dB Bandwidth : 0.314MHz Band Edge : -22.10dBm Measurement Value : -22.30dBm Higher Band Edge Plot on Channel 251 (848.8 MHz) 1. Correction Factor(dB)= 10log(1% Emission BW/RBW) 2. Band Edge= Measurement Value + Correction Factor(dB) SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 53 of 98 TEL : +86-755-3320-2398 Report Issued Date : Dec. 13, 2013 FCC ID : V5PS900WCDMA Report Version : Rev. 01 FCC RF Test Report Report No. : FG3O0802 Band : GSM1900 Test Mode : GSM Link Correction Factor : 0.24dB Maximum 26dB Bandwidth : 0.317MHz Band Edge : -16.65dBm Measurement Value : -16.89dBm Lower Band Edge Plot on Channel 512 (1850.2 MHz) 1. Correction Factor(dB)= 10log(1% Emission BW/RBW) 2. Band Edge= Measurement Value + Correction Factor(dB) SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 54 of 98 TEL : +86-755-3320-2398 Report Issued Date : Dec. 13, 2013 FCC ID : V5PS900WCDMA Report Version : Rev. 01 FCC RF Test Report Report No. : FG3O0802 Band : GSM1900 Test Mode : GSM Link Correction Factor : 0.24dB Maximum 26dB Bandwidth : 0.317MHz Band Edge : -17.96dBm Measurement Value : -18.20dBm Higher Band Edge Plot on Channel 810 (1909.8 MHz) 1. Correction Factor(dB)= 10log(1% Emission BW/RBW) 2. Band Edge= Measurement Value + Correction Factor(dB) SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 55 of 98 TEL : +86-755-3320-2398 Report Issued Date : Dec. 13, 2013 FCC ID : V5PS900WCDMA Report Version : Rev. 01 FCC RF Test Report Report No. : FG3O0802 Band : GSM1900 Test Mode : EDGE 8 Link Correction Factor : 0.28dB Maximum 26dB Bandwidth : 0.320MHz Band Edge : -21.52dBm Measurement Value : -21.80dBm Lower Band Edge Plot on Channel 512 (1850.2 MHz) 1. Correction Factor(dB)= 10log(1% Emission BW/RBW) 2. Band Edge= Measurement Value + Correction Factor(dB) SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5…

Text truncated - open the document above for the full version.
