V5PSP20PINPAD

SP20 PIN Pad PAX TECHNOLOGY LIMITED 1. Product Description 2. Specifications CPU 32-bit ARM Memory 256KB EEPROM, 100KB RAM Display 122x32 pixels, backlighting Keypad 10 alphanumeric keys, 6 functional keys Peripheral Ports 1 RJ11 Power Supply 5V DC, 300mA Working Environment Temperature: 0°C-50°C(32°F～122°F) R.H.: 10-93% (non-condense) Storage Environment Temperature: -20°C-70°C(-4°F～158°F) R.H.: 5%-95% (non-condense) Dimensions 142 x 76 x 61mm（LxWxH, incl. privacy shield） Weight 195g Optional LED shield Built-in contactless card reader module 3. Installation and usage tips 1) Please make sure that secure PIN pad is working under specified range of voltage, which is not too high and not too low; 2) Correctly connect secure PIN pad with other devices; 3) Do not damage the power cable. If power cable is damaged, please stop using the PIN pad; 4) Do not expose secure PIN pad in sunshine, or in humid, hot, dusty or corrosive environment; 5) Keep it away from liquid; 6) When the device is in failure, please contact designated personnel to maintain it. It is not allowed to repair it on your own. 4. Instructions on protecting password privacy SP20 Secure PIN Pad is a handheld device. Users are advised to protect their password privacy and confidentiality. １）Users are recommended to utilize the privacy shield and maintain vigilance when they are inputting their password. ２）Be aware of peeper when users are inputting password; ３）Camera monitoring system installed by merchant should avoid recording what customers are inputting on SP20 Secure PIN Pad. FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. RF Exposure Information This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.

Rev. 1/1/03 PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: July 8, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: V5PSP20 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Xudong An

1/1 PAX Technology Limited Date: July 8, 2013 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : V5PSP20 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which PAX Technology Limited deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Xudong An Company: PAX Technology Limited TEL: 86-755-86169679 FAX: 86-755-86169634 E-mail: [email protected]

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: July 8, 2013 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: V5PSP20 To Whom It May Concern: We, PAX Technology Limited, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Xudong An

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hong Kong Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: July 8, 2013 Power of Attorney To whom it may concern, Please be notified that I, Xudong An, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: V5PSP20 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Xudong An Company: PAX Technology Limited TEL: 86-755-86169679 FAX: 86-755-86169634 E-mail: [email protected]

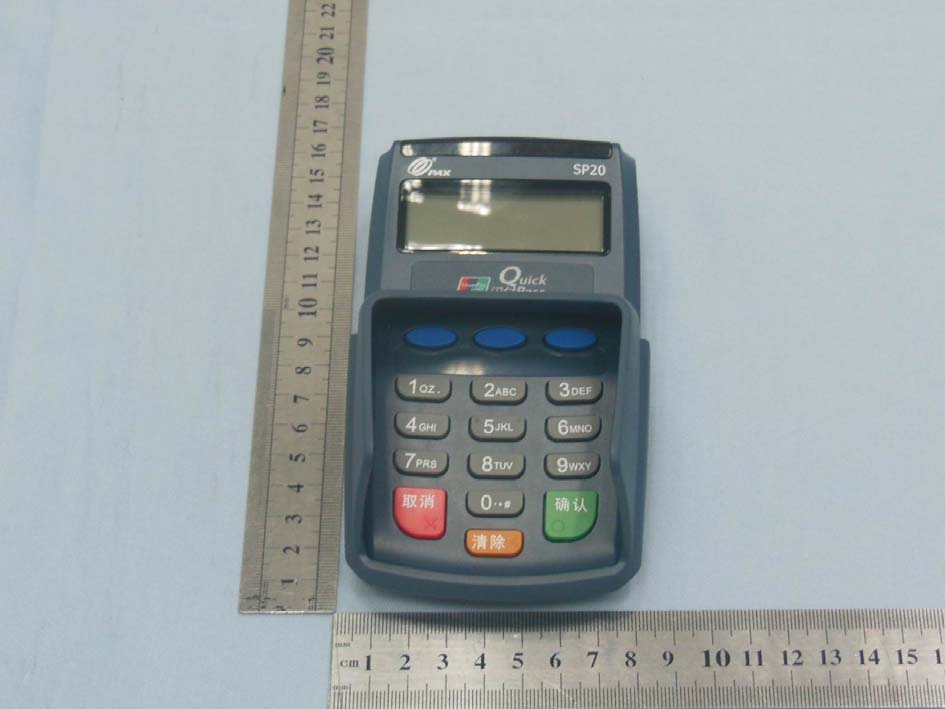

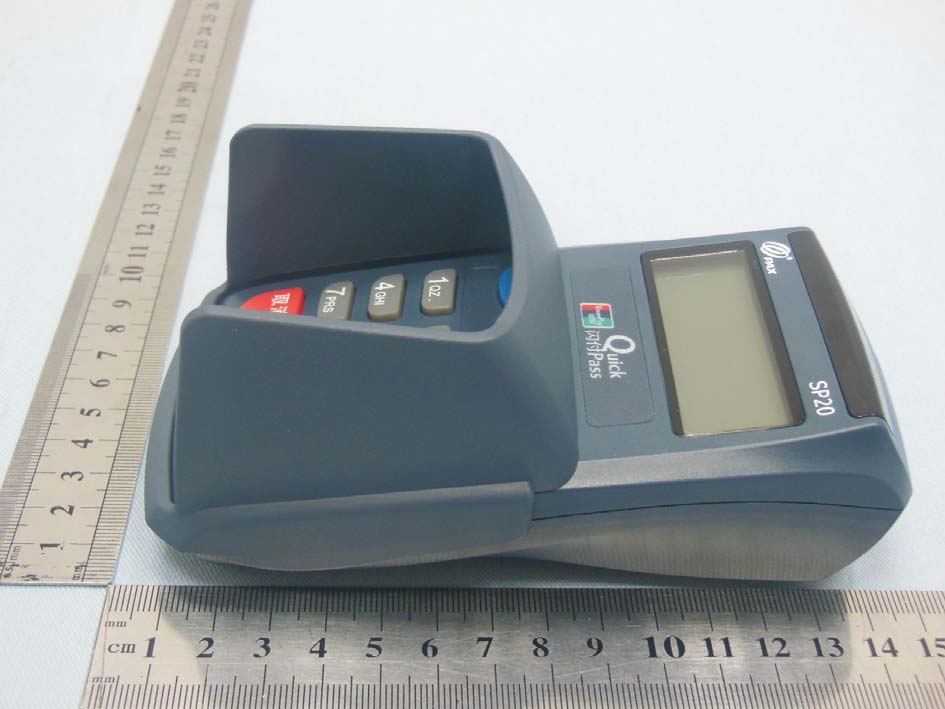

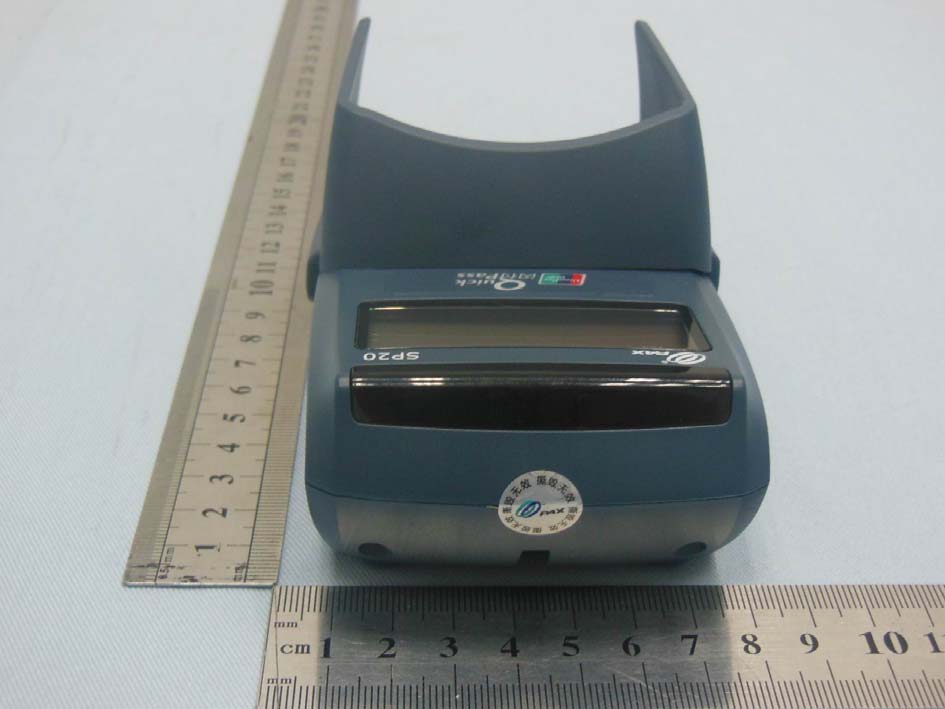

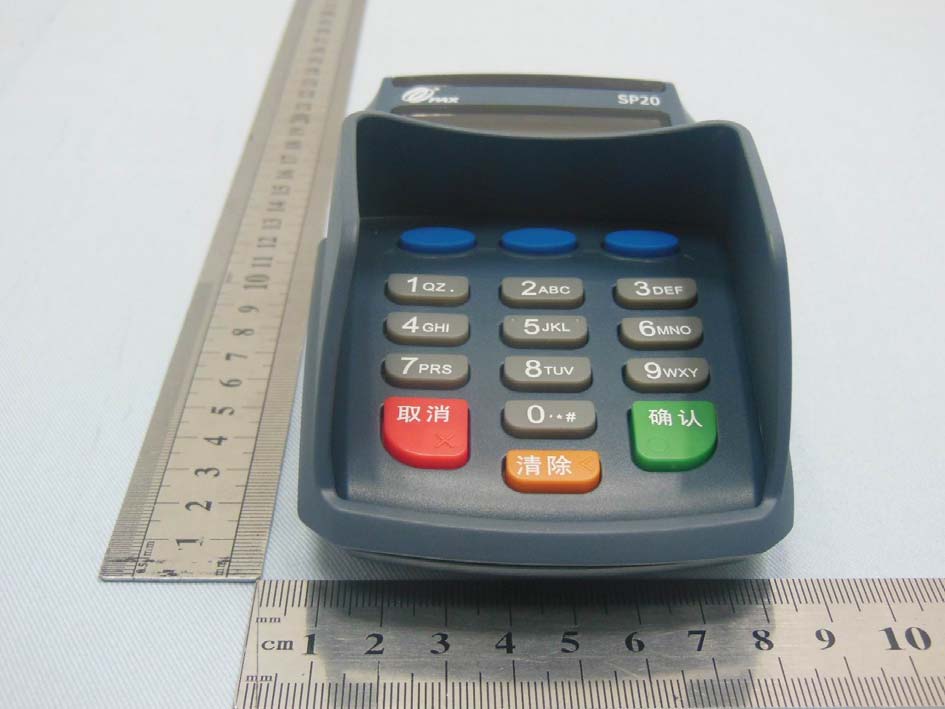

Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 1. External Photograph of EUT Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01

Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 2. Internal Photograph of EUT RFID Antenna Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 Photographs of EUT Report No.: EP370304 Brand Name: PAX; Model Name: SP20 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 18 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 RFID Antenna <Tx/Rx>

SPORTON INTERNATIONAL (SHENZHEN) INC. Report Format Version: a FCC TEST REPORT Report No. : FR370304 FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.225 Equipment : PINPAD Brand Name : PAX Model No. : SP20 Filing Type : New Application Applicant : PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour Road, Wanchai, Hon g Kong FCC ID : V5PSP20 Manufacturer PAX Computer Technology (Shenzhen) Co., Ltd. 4/F No.3 Building, Software Park, Second Central Science-Tech Road, High-Tech industrial Park, Shenzhen, Guan gdong, P.R.C. Received Date : Jul. 03, 2013 Final Test Date : Jul. 24, 2013 Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International (Shenzhen) Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON INTERNATIONAL (SHENZHEN) INC. No. 3 Building, the third floor of south, Shahe River west, Fengzeyuan warehouse, Nanshan District, Shenzhen, Guangdong, P.R.C. SPORTON INTERNATIONAL (SHENZHEN) INC. Page No. : i of ii TEL : 86-755- 3320-2398 Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 FCC TEST REPORT Report No. : FR370304 Table of Contents 1. SUMMARY OF THE TEST RESULT ....................................................................................................................... 1 2. GENERAL INFORMATION ...................................................................................................................................... 2 2.1 Product Details .................................................................................................................................................................. 2 2.2 Table for Test Modes ......................................................................................................................................................... 3 2.3 Table for Testing Locations ................................................................................................................................................. 3 2.4 Table for Supporting Units .................................................................................................................................................. 3 2.5 Test Configurations ............................................................................................................................................................ 4 3. TEST RESULT ......................................................................................................................................................... 5 3.1 AC Power Line Conducted Emissions Measurement .............................................................................................................. 5 3.2 Field Strength of Fundamental Emissions and Mask Measurement ........................................................................................ 10 3.3 20dB Spectrum Bandwidth Measurement ........................................................................................................................... 14 3.4 Radiated Emissions Measurement ..................................................................................................................................... 16 3.5 Frequency Stability Measurement ...................................................................................................................................... 23 3.6 Antenna Requirements ..................................................................................................................................................... 26 4. LIST OF MEASURING EQUIPMENT .................................................................................................................... 27 5. TEST LOCATION ................................................................................................................................................... 28 6. TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 29 APPENDIX A. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL (SHENZHEN) INC. Page No. : ii of ii TEL : 86-755- 3320-2398 Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 FCC TEST REPORT Report No. : FR370304 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR370304 Rev. 01 Initial issue of report Jul. 26, 2013 N FCC TES Eq Br Mo Ap Sport o sample found specifi Rev i Ap No. 3 Buildi ST REPOR CER quipment rand Name odel No. pplicant on Internation e received o to be in co m ed is true an iewed by: Jo proved by: SP ing, the thir RT RTIFIC 47 CFR : PIN e : PA : SP : PA Ro Ro nal as reque n Jul. 03, 20 mpliance with nd accurate f oseph Lin / Jones Tsai PORTON rd floor of s CATE ac R FCC Pa NPAD AX P20 AX Techno oom 2416, oad, Wanch ested by the 013 would lik the tested r for showing t Supervisor / Manager INTERNA south, Shah Shenzhen E OF ccording art 15 Sub ology Limi 24/F., Sun hai, Hong K applicant to ke to declare rule parts. Th the sample’s NATIONAL he River we n, Guangdo S F COM to bpart C § ted n Hung Kai Kong o evaluate th e that the tes he data recor EMC nature L (SHEN est, Fengzey ong, P.R.C. PORTON INTE MPLI § 15.225 Centre, 30 he EMC perf sted sample rded as well e. NZHEN) IN yuan wareh ERNATIONAL ( Repor Report No. IANC 0 Harbour formance of has been e v as the test c NC. house, Nans (SHENZHEN) I rt Format Versio : FR370304 CE fthe product valuated and configuration shan Distric INC. on: a 4 t d n ct, SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 30 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 FCC RF Test Report Report No. : FR…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : B1 of B2 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 FCC RF Test Report Report No. : FR370304 Appendix A. Setup Photographs <Conducted Emission> SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : B2 of B2 TEL : 86-755- 3320-2398 Report Issued Date : Jul. 26, 2013 FCC ID : V5PSP20 Report Version : Rev. 01 FCC RF Test Report Report No. : FR370304 <Radiated Emission> From 9kHz~30MHz From 30MHz~1GHz
