V5PX3SWireless Data Terminal

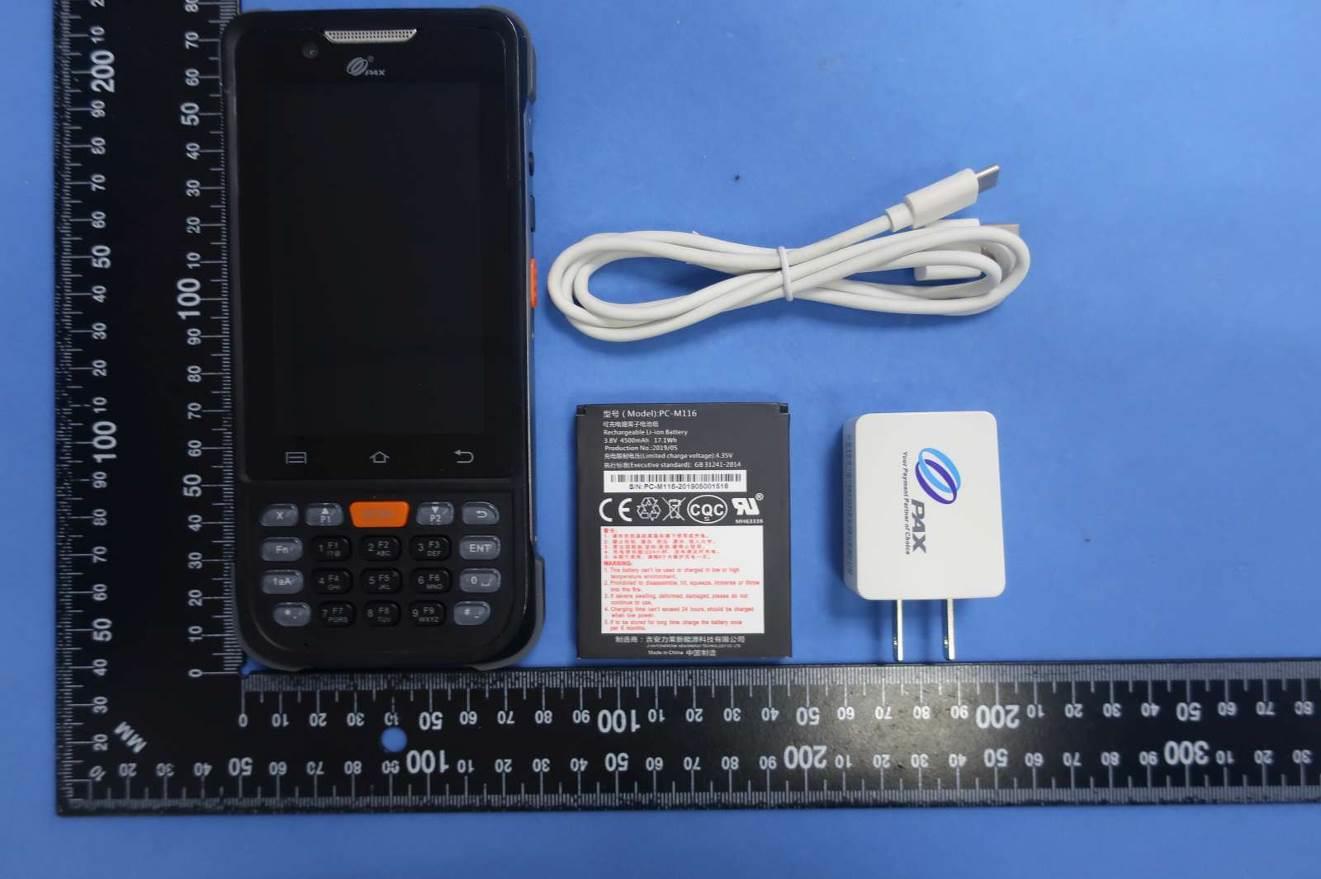

X3s Wireless Data Terminal PAX Computer Technology（Shenzhen）Co., Ltd. Contents Checklist Please check the components after unpacking. If any one of them is missing, or if there is a page missing from the product manual, etc., please contact the dealer. X3s wireless data terminal 1 pcs Adapter 1 pcs Data line 1 pcs Lithium battery 1 pcs Wrist strap (suite) 1 pcs Unscrew piece 1 pcs Product manual 1 pcs Base (optional) 1 pcs Product Description Installation 1. Unlock and Lock the Rear Cover 1) To unlock the rear cover: Unscrew the four screws on the cover with screwdriver, and then take the cover off the terminal. As figure shown below. Figure 1-1-1 2) To lock the rear cover: Put back the rear cover and make the 4 screws aligned with the 4 holes, then tighten the screws to lock the cover. As the figure shown b elo w. Figure 1-1-2 2. Install and Remove the Battery 1) To install battery: Put battery into the battery storehouse in the right direction as shown below. Figure 1-2-1 2) To remove battery: Place your finger in the position shown below and slightly dig out the battery. Figure 1-2-2 3. Install SIM Card/PSAM Card /TF Card 1) Install SIM card/PSAM card /TF card in the direction shown below. Figure 1-3-1 2) Remove SIM card/PSAM card /TF card in the direction shown below. Figure 1-3-2 4 Device Charging The device can be charged in two ways: Using Type-C port or base Pogo Pin 1) By Type-C port: Insert the USB cable into Type-C port for charging as shown in the following figure. Figure 1-4-1 2) By base Pogo Pin: Connect the Pogo Pin at the bottom of the terminal with the Pogo Pin of the base for charging. 5 Installation Diagram of Wrist Strap Figure 1-5-1 Instructions 1. Use of Two-dimensional Scanner (One-dimensional Optional) The scanner is on the top of the device. When using it, enter the “Menu”，select “DEMO”> two-dimensional (or one-dimensional) scan, align the scan window with the barcode, slightly press the left/right scan button on the device or click "Scan" on the interface, the scan window will emit the two-dimensional illumination region(or one-dimensional light beam), cover the barcode with the lighting beam emitted by the scanner, then the barcode will be read correctly. Note that the barcode cannot be read if it is scanned with tilted angles or without being covered the whole area. After reading successfully, the speaker of the device will make a short sound, the barcode and the read times will be rapidly displayed in the scanning area. Figure 2-1-1 Figure 2-1-2 Figure 2-1-3 2. Use of Contactless Card The reading area of the contactless card is on the back cover of battery with the reading distance is 0-4cm. You can use it by following steps: 1) When running the contactless card reading and writing program, the contactless card function, which is closed by default, will be opened automatically. 2) Enter the “Menu” >”DEMO”> select the type (14443A/B or 15693) according to the label protocol. When placing the card near the battery cover of the device, the selected contactless card can be read correctly. 3) After reading successfully, the speaker of the device will make a short sound and the information related to the card will be displayed quickly in the reading window area. 3. PSAM Card After the device is installed with PSAM card, you can use "DEMO" for PSAM card test. 1) Enter the “Menu”>”DEMO”> select "PSAM". 2) Open the PSAM application, if the status bar shows that initiation is successful, the PSAM card is recognized correctly. Then select the corresponding card slot, voltage and baud rate and other related settings. 3) Input an APDU instruction in the input box or use the default random command, then click "Send". 4) After sending, the message returned by the command is displayed in the result bar, and the status bar will prompt a successful send. Precautions for Installation and Use 1） Do not damage the USB cable and power adapter. Otherwise, they can't be used again. 2） Do not use battery chargers or batteries which are not special for the device to avoid damage to the device. 3） Do not scratch the screen. Do not use pen, pencil or other sharp objects on the screen. 4） If the surface of screen is dirty, please use soft cloth to clean the screen with diluent screen cleanser. 5） Discard the used polymer battery according to regulations. Do not throw the terminal into fire. Otherwise there is a risk of explosion. 6） Before connecting the power supply to the AC socket, check whether the power supply of the socket is in accordance with the device specified operating voltage. 7） Please contact the special maintenance personnel when the device fails. The user is not allowed to repair the device without authorization. 8） When using the device, do not irradiate human eyes to avoid injury. 9） Operating environment：temperature range：0—50°C humidity range：0—95% Precautions for Lithium Battery Usage WARNING: 1）Don't use the battery in sunlight or smoke, dust environment. 2）Prohibited to strike, squeeze and tread on battery or throw it into the liquid and fire. 3）If battery is impressive, deformed, damaged or exothermic seriously, please stop using immediately and replace it! 4）If the continuous working time is only half of new one, the battery life may be end. Please replace it! 5）Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types); 6）Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion; 7）Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; 8）A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. 9）Charging time can not exceed 24 hours. If the battery is out of power, please recharge in time. Avoid damaging the battery in over-charge and over-discharge. 10）If be…

Text truncated - open the document above for the full version.

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour, Hong Kong, China Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: January 15, 2020 Statement We, PAX Technology Limited, states that our device, FCC ID: V5PX3S. The label will put under the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Jenna Tan

Rev. 1/1/03 PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour, Hong Kong, China Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: December 3, 2019 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: V5PX3S Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Jenna Tan

PAX Technology Limited Room 2416, 24/F., Sun Hung Kai Centre, 30 Harbour, Hong Kong, China Tel: 86-755-86169679 ; Fax: 86-755-86169634 Date: December 3, 2019 Power of Attorney To whom it may concern, Please be notified that I, Jenna Tan, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: V5PX3S If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Jenna Tan Company: PAX Technology Limited TEL: 86-755-86156663 FAX: 86-755-86156663 E-mail: [email protected]

1/1 PAX Technology Limited Date: December 3, 2019 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : V5PX3S To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily  External Photos withheld from public disclosure for an initial period of 180 da ys:  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which PAX Technology Limited deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Jenna Tan Company: PAX Technology Limited TEL: 86-755-86156663 FAX: 86-755-86156663 E-mail: [email protected]

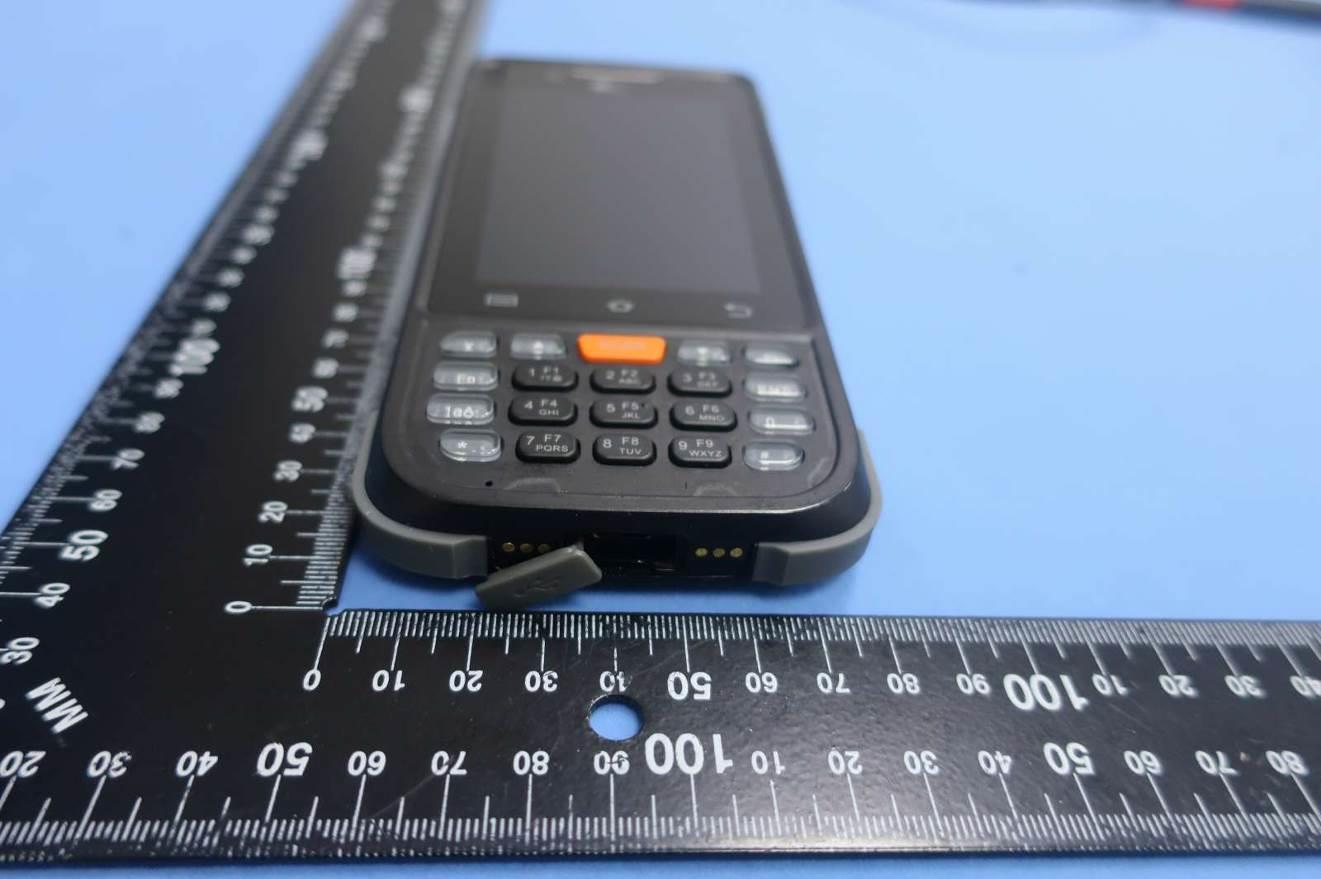

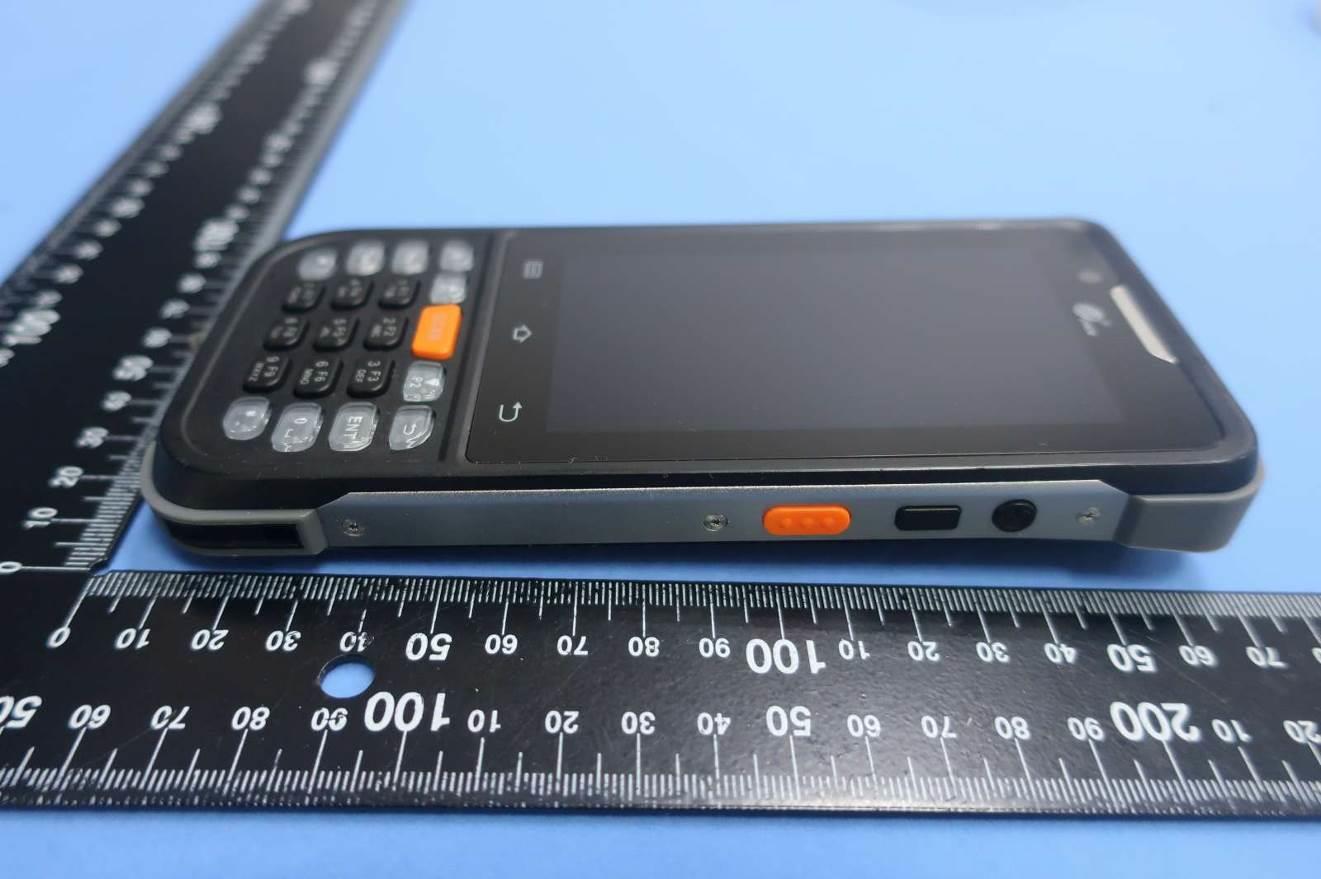

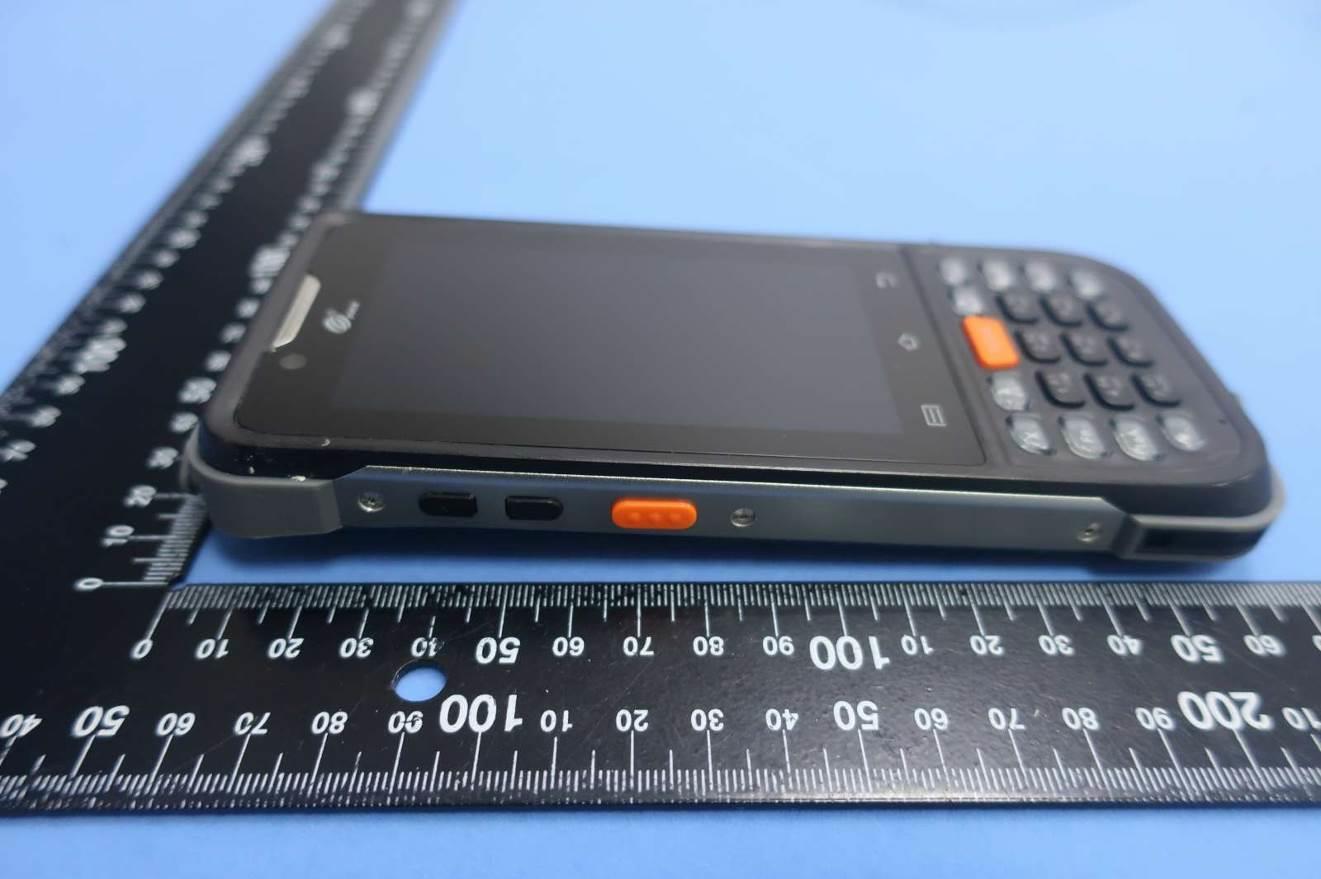

Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 1 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S 1. External Photograph of EUT Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 2 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 3 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 4 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 5 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 6 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S 720510 Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 7 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S List of Accessory: Specification of Accessory AC Adapter Brand Name N/A Model Name GLH50D2000HW Power Rating I/P: 100-240 Vac, 400mA, O/P: 5Vdc,2000mA Battery Brand Name N/A Model Name PC-M116 Power Rating 3.8 Vdc, 4500 mAh Type Li-ion, Polymer USB Cable Brand Name N/A Model Name N/A Signal Line 1.0 meter, shielded cable, without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 8 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S 720510 Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 9 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S AC Adapter Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 10 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Battery Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 11 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 12 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S USB Cable

Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 13 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S 3. Internal Photograph of EUT GPS Antenna<Rx> WWAN Diversity Antenna< Rx> NFC Antenna<Tx/Rx> Bluetooth & WLAN Antenna<Tx/Rx> WWAN Main Antenna< TX/Rx> Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 14 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 15 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 16 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 17 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 18 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 19 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 20 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 21 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 22 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 23 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 24 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 25 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 26 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 27 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 28 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 29 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 30 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 31 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 32 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 33 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 34 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : V5PX3S Photographs of EUT Report No.: EP962408 Brand Name: PAX; Model Name: X3s Sporton International (ShenZhen) Inc. Page Number : 35 of 46 TEL : 86-755-8637-9589 Report Issued Date : Jan. 16, 2019 FAX : 86-755-8637-9595 Re…

Text truncated - open the document above for the full version.

Sporton International (Shenzhen) Inc. TEL : +86-755-86379589 / FAX : +86-755-86379595 Issued Date : Jan. 16, 2020 FCC ID : V5PX3S Page 1 of 59 Form version : 181113 FCC SAR Test Report Report No. : FA962408 FCC SAR Test Report APPLICANT : PAX Technology Limited EQUIPMENT : Wireless Data Terminal BRAND NAME : PAX MODEL NAME : X3s FCC ID : V5PX3S STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 The product was received on Jun. 24, 2019 and testing was started from Nov. 26, 2019 and completed on Dec. 02, 2019. We, Sporton International (Shenzhen) Inc., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this variant report apply exclusively to the tested model / sample. Without written approval of Sporton International (Shenzhen) Inc., the test report shall not be reproduced except in full. Reviewed by: Long Liang / Supervisor Approved by: Johnny Chen / Manager Sporton International (ShenZhen) Inc. 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International (Shenzhen) Inc. TEL : +86-755-86379589 / FAX : +86-755-86379595 Issued Date : Jan. 16, 2020 FCC ID : V5PX3S Page 2 of 59 Form version : 181113 FCC SAR Test Report Report No. : FA962408 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Applied .......................................................................................................................................................... 5 4. Equipment Under Test (EUT) Information ................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 General LTE SAR Test and Reporting Considerations ........................................................................................... 7 5. RF Exposure Limits....................................................................................................................................................... 9 5.1 Uncontrolled Environment ...................................................................................................................................... 9 5.2 Controlled Environment .......................................................................................................................................... 9 6. Specific Absorption Rate (SAR) ..................................................................................................................................10 6.1 Introduction ...........................................................................................................................................................10 6.2 SAR Definition .......................................................................................................................................................10 7. System Description and Setup ...................................................................................................................................11 7.1 E-Field Probe ........................................................................................................................................................12 7.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 7.3 Phantom ................................................................................................................................................................13 7.4 Device Holder........................................................................................................................................................14 8. Measurement Procedures ...........................................................................................................................................15 8.1 Spatial Peak SAR Evaluation ................................................................................................................................15 8.2 Power Reference Measurement............................................................................................................................16 8.3 Area Scan .............................................................................................................................................................16 8.4 Zoom Scan ............................................................................................................................................................17 8.5 Volume Scan Procedures ......................................................................................................................................17 8.6 Power Drift Monitoring ...........................................................................................................................................17 9. Test Equipment List .....................................................................................................................................................18 10. System Verification ....................................................................................................................................................19 10.1 Tissue Simulating Liquids ....................................................................................................................................19 10.2 Tissue Verification .…
