Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Lighting Control System Remote Dimmer USER GUIDE V VV V.0 .0.0 .01 11 1 200 200 200 2009 99 9. .. .3 33 3 Avertronics INC DIMMER APPEARANCE CHAPTER 2 LINE INSTALL Remote Dimmer connecting Remote Dimmer connecting Halogen Light Transformer Transformer Halogen Light Remote Dimmer Remote Dimmer connecting Remote Dimmer connectingRemote Dimmer connecting Remote Dimmer connecting Halogen Light Halogen Light Halogen Light Remote Dimmer Transformer Transformer Transformer Remote Dimmer with multiform connecting Halogen Light Remote Dimmer Halogen Light Halogen Light Recommend Transformer: HEP, Lucky Dove, RAYUAN, ART, Light, EBE CHAPTER 4
- TO: SPECIFICATION FOR APPROVAL DESCRIPTION : ANTENNA PART NO : PART NO : 6602104081-000 DATE : 2009/2/6 PLEASE RETURN TO US ONE COPY OF “ SPECIFICATION FOR APPROVAL ” WITH YOUR APPROVED SIGNATURES APPROVED SIGNA TURES KINSUN INDUSTRIES INC. 路21120 TEL : 886-3-4353551 FAX : 886-3-4353951 Http://www.kinsun.com e-mail: [email protected] http://www.kinsun.com TEL(03) 4353551 FAX(03) 4353951 Date2005/04/29 Time0130 Brand / Model6602104081-000 Remark2450MHz Tested b yNick Dai --Max. deg *UnitdBi Frequency(MHz)2450.00 Pattern FieldE plane Average Gain(dB)-2.07dB Maximum Gain(dB)1.88dB Maximum Gain(degree)88.57 Minimum Gain(dB)-23.14dB Minimum Gain(degree)0.00 http://www.kinsun.com TEL(03) 4353551 FAX(03) 4353951 Date2005/04/29 Time0130 Brand / Model6602104081-000 Remark2450MHz Tested b yNick Dai --Max. deg *UnitdBi Frequency(MHz)2450.00 Pattern FieldH plane Average Gain(dB)1.43dB Maximum Gain(dB)1.88dB Maximum Gain(degree)231.60 Minimum Gain(dB)0.68dB Minimum Gain(degree)320.89 6602104081-000 S11 VSWR

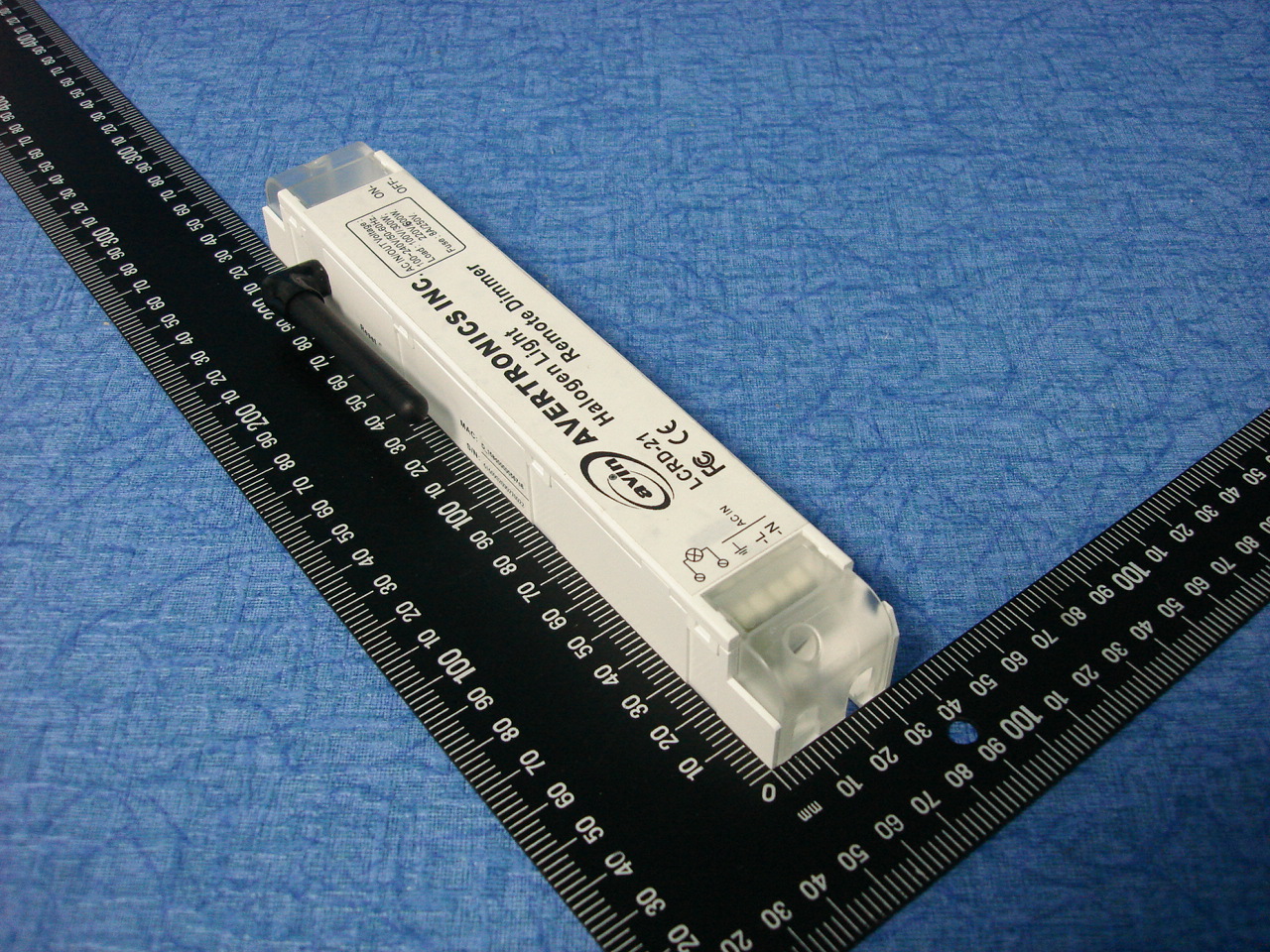

Compliance Certification Services Inc. Report No.:90406401 External Photo ( Model :LCRD-21)
Label Location Label Format
Compliance Certification Services Inc. Report No.:90406401 Internal Photo Compliance Certification Services Inc. Report No.:90406401 Compliance Certification Services Inc. Report No.:90406401
Compliance Certification Services Inc. Report No.:90406401-RP1 FCC ID:V5ULCRD21200903 Date of Issue: October 22, 2009 Page 19 7.4 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.:90406401-RP1 FCC ID:V5ULCRD21200903 Date of Issue: October 22, 2009 Page 20 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS S=0.0796*1.081434*1.5417/400=0.000332 No non-compliance noted Mode Minimum separation distance (cm) Output Power (dBm) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) CH High 20.0 0.34 1.88 1 0.000332 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.
Compliance Certification Services Inc. Report No.:90406401-RP1 FCC ID:V5ULCRD21200903 Date of Issue: October 22, 2009 Page 1 FCC 47 CFR PART 15 SUBPART C:2008 AND ANSI C63.4: 2003 TEST REPORT For Halogen Light Remote Dimmer Model Number: LCRD-21 Brand: AVIN Issued for Avertronics INC. No. 10, 19th Road Industrial, Nuntun Dist.,Taichung 408, Taiwan Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Issued Date: October 22, 2009 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Total Page: 53 Rev. 00 Compliance Certification Services Inc. Report No.:90406401-RP1 FCC ID:V5ULCRD21200903 Date of Issue: October 22, 2009 Page 2 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 October 22, 2009 Initial Issue ALL Selena.Chong Compliance Certification Services Inc. Report No.:90406401-RP1 FCC ID:V5ULCRD21200903 Date of Issue: October 22, 2009 Page 3 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ................................................................................................ 4 2. EUT DESCRIPTION....................................................................................................................... 5 3. DESCRIPTION OF TEST MODES ................................................................................................ 6 4. TEST METHODOLOGY ................................................................................................................ 7 5. FACILITIES AND ACCREDITATIONS ....................................................................................... 7 5.1 FACILITIES ............................................................................................................................... 7 5.2 EQUIPMENT ............................................................................................................................. 7 5.3 LABORATORY ACCREDITATIONS LISTINGS .................................................................. 7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................. 8 6. SETUP OF EQUIPMENT UNDER TEST...................................................................................... 9 6.1 SETUP CONFIGURATION OF EUT ....................................................................................... 9 6.2 SUPPORT EQUIPMENT...........................................................................................................9 6.3 EUT OPERATING CONDITION.............................................................................................. 10 7. APPLICABLE LIMITS AND TEST RESULTS ............................................................................ 11 7.1 6DB BANDWIDTH ................................................................................................................... 11 7.2 MAXIMUM PEAK OUTPUT POWER .................................................................................... 15 7.4 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................... 19 7.5 AVERAGE POWER .................................................................................................................. 21 7.6 POWER SPECTRAL DENSITY ............................................................................................... 22 7.7 CONDUCTED SPURIOUS EMISSION ................................................................................... 25 7.8 RADIATED EMISSIONS.......................................................................................................... 29 7.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS............................................... 29 7.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz .............................................. 33 7.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz............................................. 35 7.8.4 RESTRICTED BAND EDGES.......................................................................................... 41 7.9 POWERLINE CONDUCTED EMISSIONS ............................................................................. 45 8. ANTENNA REQUIREMENT.........................................................................................................49 8.1 STANDARD APPLICABLE ..................................................................................................... 49 8.2 ANTENNA CONNECTED CONSTRUCTION........................................................................ 49 9. APPENDIX I.................................................................................................................................... 50 Compliance Certification Services Inc. Report No.:90406401-RP1 FCC ID:V5ULCRD21200903 Date of Issue: October 22, 2009 Page 4 1. TEST REPORT CERTIFICATION Applicant Avertronics INC. Address No. 10, 19 th Road Industrial, Nuntun Dist., Taichung 408, Taiwan. Manufacture Avertronics INC. Address No. 10, 19 th Road Industrial, Nuntun Dist., Taichung 408, Taiwan. Equipment Under Test Halogen light Remote Dimmer Model Number LCRD-21 Trade Name AVIN Date of Test April 07, 2009 ~ May 08, 2009 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C : 2008 AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Section Manager Compliance Certification Services Inc. Eric Yang Engineer Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.:90406401-RP1 FCC ID:V5ULCRD21200903 Date of Issue: October 22, 2009 Page 5 2. EUT DESCRIPTION Product Name Halogen light Remote Dimmer Model Number LCRD-21 Brand Name AVIN Frequency Range 2405MHz~2480MHz Transmit Peak Power CH Low:0…
Text truncated - open the document above for the full version.
Compliance Certification Services Inc. Report No.:90406401-RP1 FCC ID:V5ULCRD21200903 Date of Issue: October 22, 2009 Page 50 9. APPENDIX I RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. Report No.:90406401-RP1 FCC ID:V5ULCRD21200903 Date of Issue: October 22, 2009 Page 51 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc. Report No.:90406401-RP1 FCC ID:V5ULCRD21200903 Date of Issue: October 22, 2009 Page 52 Compliance Certification Services Inc. Report No.:90406401-RP1 FCC ID:V5ULCRD21200903 Date of Issue: October 22, 2009 Page 53 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP END OF REPORT
No. 8, Jiu Cheng Ling, Jiaokeng Village, · Tainan · Taiwan
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 1.08 mW |

8 Scene Wall Switch
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
RS232 Wireless control
Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
