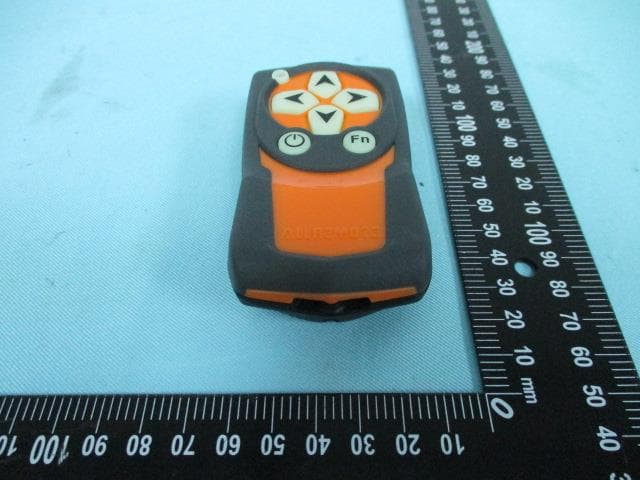

V78TXSL017Handheld Wireless remote Control for Searchlight

ALLREMOTE Wireless Technology Co., Ltd.
Handheld Wireless remote Control for Searchlight - FCC ID V78TXSL017 - ALLREMOTE Wireless Technology Co., Ltd.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Oct 04, 2021
Application Purpose
Original Equipment
Date of Application
Oct 03, 2021
Equipment Note
Handheld Wireless remote Control for Searchlight
Frequency Range
2404.00000000 - 2463.50000000
Company
ALLREMOTE Wireless Technology Co., Ltd.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC INFORMATION The Federal Communication Commission Radio Frequency Intererence Statement includes the following paragraph: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. --------------------------------------------------------------------------------------------------------------- This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. --------------------------------------------------------------------------------------------------------------- Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment 1. This Transmitter must not be co ­ located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. PACKING INCLUDED:  Model 220SG LED Searchlight  Handheld Wireless Remote Controller  TX-SL017  Dash-mount Wireless Remote Controller  TX-SL019 INSTALLATION : Unit : mm Screw Hole:9.05 ME-03-0025 V.2021 Jul. Motorized Remote Control Searchlight Model 220SG Series Instruction Guide FEATURES : LED lighting 360 ° Unlimited Rotation/135 ° Tilt Programmable Handheld Wireless Remote Controller UV Ray and Saltwater Resistant Automatically return to home position when searchlight is turned off *****Important Notice: If searchlight DC power is cut off (wires disconnected from battery or power supply switched off), after reconnected, make sure to turn on the searchlight, using wireless or wired remote to make a full 360 rotation, in order to reset the home position memory. SPECIFICATION : Housing Color: Black / White Dimension : Unit : mm LED module : LED chips X 10PCS / Watts: 50W Current consumption: 13.5V 3.3A (MAX) / 28V 1.5A (MAX) Color Temperature: 5,700~6,000K Beam Pattern : Spot Luminous intensity: 460,000 Candelas Beam distance: 1,356M Aluminum Housing as Heat Sink Polycarbonate lens Power: DC 12V ~ 24V (Multi-voltage) Weight: 1.9Kgs / 4.2 lbs (Permanent mount) OPERATION : Wireless Remote 1. Operation Press on/off button to Switch on or off searchlight. Operate directions of the light beam by pressing the direction buttons. Up = Down = Right = Left = 2. Button Fn : Dual speed (Fast / Slow speed switch) HANDHELD WIRELESS REMOTE PROGRAMMING PROCESS : 1. Switch off DC Power or disconnect from battery. 2. Make sure there is NO other transmitter operating at the same time. 3. Switch on DC Power, within 5 seconds press Remote up ▲ and down ▼ button once simultaneously. 4. Searchlight will flash to acknowledge the Remote, connection has been made. 5. To program the second Remote (up to 4 remotes may be used with the searchlight, programming a fifth will replace the first), within five seconds after the first Remote programmed, press the second Remote up and down button or repeat step 1. RADIO FREQUENCY : 2.4GHz Wireless Remote Battery: AAA*2pcs Wireless Remote Operation Distance: 65M Dash Mount Wired/Wireless Joystick (Optional) Wired Joystick= RX-SL008E Joystick Installation 1

External Photos

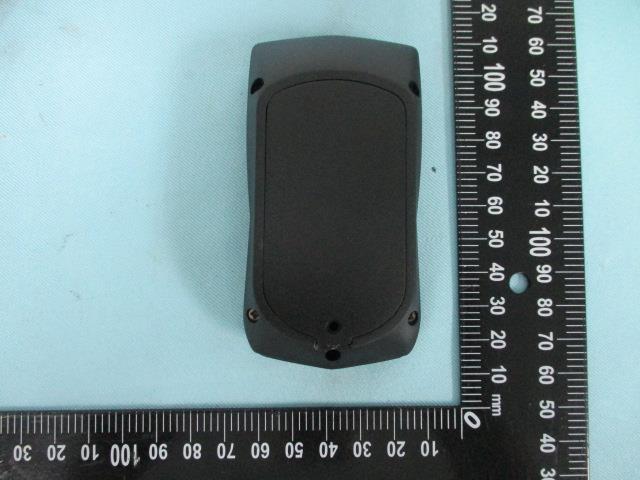

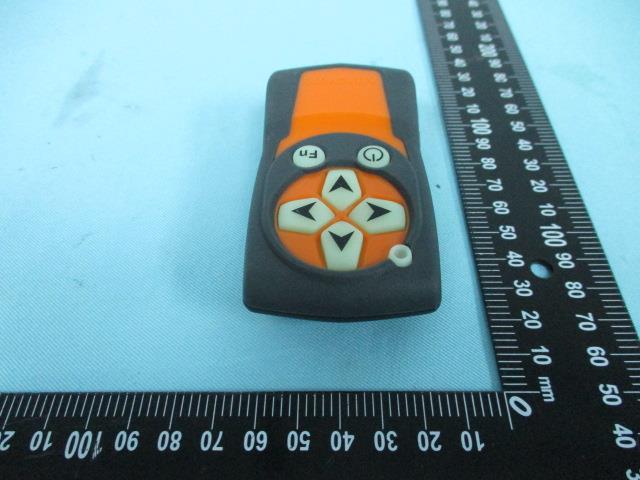

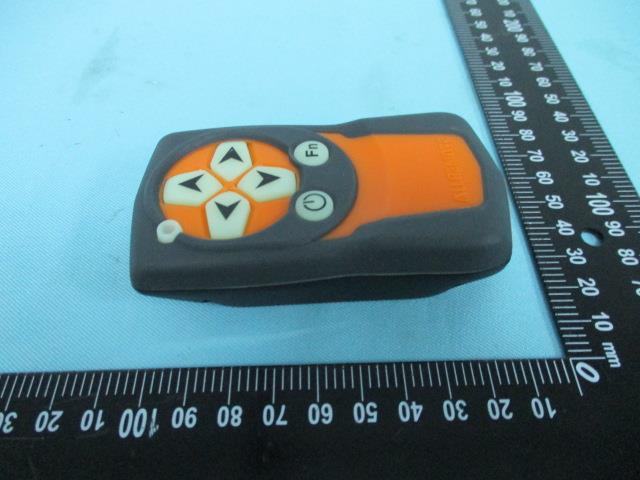

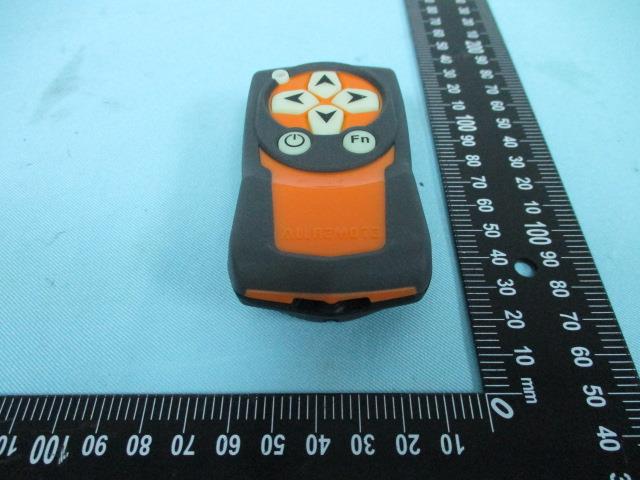

ETC Report No. : 20-07-RBF-032-01 Sheet 1 of 3 Sheets FCC ID: V78TXSL017 Constructed photos of EUT (1) (2) ETC Report No. : 20-07-RBF-032-01 Sheet 2 of 3 Sheets FCC ID: V78TXSL017 Constructed photos of EUT (3) (4) ETC Report No. : 20-07-RBF-032-01 Sheet 3 of 3 Sheets FCC ID: V78TXSL017 Constructed photos of EUT (5) (6)

Internal Photos

ETC Report No. : 20-07-RBF-032-01 Sheet 1 of 3 Sheets FCC ID: V78TXSL017 Constructed photos of EUT (1) (2) ETC Report No. : 20-07-RBF-032-01 Sheet 2 of 3 Sheets FCC ID: V78TXSL017 Constructed photos of EUT (3) (4) ETC Report No. : 20-07-RBF-032-01 Sheet 3 of 3 Sheets FCC ID: V78TXSL017 Constructed photos of EUT (5) PCB ANT (6)

RF Exposure Info

Rev. No 2.0 RF Exposure Evaluation of E.U.T. : Handheld Wireless Remote Control for Searchlight Model No. : TX-SL017 Serial Model : FCC ID : V78TXSL017 for APPLICANT : Allremote Wireless Technology Co., Ltd ADDRESS : 2F., No.8, Aly. 16, Ln. 235, Baoqiao Rd., Xindian Dist. New Taipei City 23145, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 20-07-RBF-032-01 FCC ID: V78TXSL017 Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : Carilex Medical Inc. No.77, Keji 1 st Road, Guishan District, Taoyuan City 33383, Taiwan(R.O.C) Manufacturer : Carilex Medical Inc. No.77, Keji 1 st Road, Guishan District, Taoyuan City 33383, Taiwan(R.O.C) Description of EUT a) Type of EUT : Handheld Wireless Remote Control for Searchlight b) Trade Name : Allremote c) Model No. : TX-SL017 d) Serial Model : e) Power Supply : 3Vdc Battery f) Frequency Range : 2404-2463.5 MHz Regulation Applied : FCC KDB447498 D01. The equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of section 1.1310 of FCC 47 CFR Part 1. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC FCC ID: V78TXSL017 Rev. No 2.0 Product Information: Type of EUT: Handheld Wireless Remote Control for Searchlight FCC ID: V78TXSL017 Model: Serial Model: TX-SL017 Description: Turn on the power of the remote. Maximum Field Strength (measured) : 99.38 dBuV/m EIRP (calculated): 4.180 dBm or 2.618 mW Below is an example of the RF Exposure Statement: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 0.5 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC ID: V78TXSL017 Rev. No 2.0 Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 614 1.63 *(100) 6 3-30 ..................... 1842/f 4.89/f *(900/f 2 ) 6 30-300 .................. 61.4 0.163 1.0 6 300-1500 ............... ...................... ...................... f/300 6 1500-100,000 ......... ...................... ...................... 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 614 1.63 *(100) 30 1.34-30 ............... 824/f 2.19/f *(180/f2) 30 30-300 .................. 27.5 0.073 0.2 30 300-1500 ............... ...................... ...................... f/1500 30 1500-100,000 ......... ...................... ...................... 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: V78TXSL017 Rev. No 2.0 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= (PG / 4πS) 1/2 For our device PG = 2.618 mW R = 0.5 cm S = (2.618) / (4*π*0.5 2 ) = 0.26526 mW/cm 2 < 1.0 mW/cm 2 For complying the FCC limits for general population/uncontrolled exposure, the power density limit is 1.0 mW/cm 2 . The calculation result of the power density at a distance of 0.5 cm of our device is less than the limit. This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of section 1.1310 of FCC 47 CFR Part 1. FCC ID: V78TXSL017 Rev. No 2.0 Radiated Test Equipment: Equipment Manufacturer Model No. Calibration Date Next Cal. Date EMI Test Receiver Rohde & Schwarz ESU40 (13054416-001) 2021/03/25 2022/03/24 Horn Antenna ETS-Lindgren 3117 (13059211-002) 2021/3/16 2022/3/15 Amplifier HP 8449B (13052901-001) 2020/10/6 2021/10/5 Measurement Uncertainty Where relevant, the following measurement uncertai…
