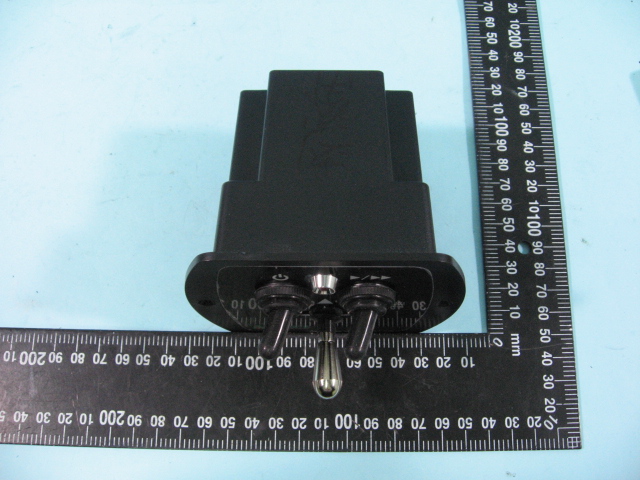

V78TXSL020Dash Mount Wireless Remote 2.4G

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2507000225P Page: 1 / 1 Report No.: TMWK2507002939KS FCC ID: V78TXSL020 Rev.: 00 According to 447498 D01 General RF Exposure Guidance v06 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[√f(GHz)] ≤ 7.5 for 10-g extremity SAR The Max. tune-up power is 4 dBm, therefore the highest tune-up power is 4.0 dBm(2.51 mW)@ 2480 MHz When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So, (2.51mW / 5mm)* (2.480GHz^0.5 )= 0.8 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] = 0.8 < 7.5 for 10-g extremity SAR Therefore, standalone SAR measurements is not required for extremity. Note: 1. The Max. tune up power referred the AVG power of the test report TMWK2507002938KR for SAR test exclusion purpose.

33850 桃園市蘆竹區吉林路 128號5樓之 1 5F-1, No.128, Ji Lin Rd.,Lu-Chu Dist.,33850 Taoyuan City, Taiwan TEL : 886-3-3526894 FAX : 886-3-3521384 http://www.hstnet.com.tw E-mail : [email protected] 貝倫企業股份有限公司 Hardware & Software Technology Co., Ltd. Subject Product Specification Rev 1.3 Marketing Name nRF52832QFAA BLE module Model No. M52832QFAA Page 1 of 8 Description nRF52832QFAA BLE and 2.4GHz Proprietary multiprotocol module Bluetooth Antenna Test Report Voltage Standing Wave Ration Peak Gain 3D Frequency (MHz) 2400 2450 2500 Peak EIRP (dBm) 0.89 1.94 2.26 Tot. Rad. Pwr. (dBm) -4.57-3.9-4.03 Efficiency (%) 34.94 40.75 39.55 Antenna Gain (dBi) -4.6-3.9-4 I、 Antenna Testing Conditions: Testing set up: Antenna Type PCB Antenna 33850 桃園市蘆竹區吉林路 128號5樓之 1 5F-1, No.128, Ji Lin Rd.,Lu-Chu Dist.,33850 Taoyuan City, Taiwan TEL : 886-3-3526894 FAX : 886-3-3521384 http://www.hstnet.com.tw E-mail : [email protected] 貝倫企業股份有限公司 Hardware & Software Technology Co., Ltd. Subject Product Specification Rev 1.3 Marketing Name nRF52832QFAA BLE module Model No. M52832QFAA Page 2 of 8 Description nRF52832QFAA BLE and 2.4GHz Proprietary multiprotocol module II、Test results 1.Return Loss (2.4GHz-2.5GHz) 2.VSWR (2.4GHz-2.5GHz) 33850 桃園市蘆竹區吉林路 128號5樓之 1 5F-1, No.128, Ji Lin Rd.,Lu-Chu Dist.,33850 Taoyuan City, Taiwan TEL : 886-3-3526894 FAX : 886-3-3521384 http://www.hstnet.com.tw E-mail : [email protected] 貝倫企業股份有限公司 Hardware & Software Technology Co., Ltd. Subject Product Specification Rev 1.3 Marketing Name nRF52832QFAA BLE module Model No. M52832QFAA Page 3 of 8 Description nRF52832QFAA BLE and 2.4GHz Proprietary multiprotocol module III、Radiation Pattern of 3D 2400MHz . 33850 桃園市蘆竹區吉林路 128號5樓之 1 5F-1, No.128, Ji Lin Rd.,Lu-Chu Dist.,33850 Taoyuan City, Taiwan TEL : 886-3-3526894 FAX : 886-3-3521384 http://www.hstnet.com.tw E-mail : [email protected] 貝倫企業股份有限公司 Hardware & Software Technology Co., Ltd. Subject Product Specification Rev 1.3 Marketing Name nRF52832QFAA BLE module Model No. M52832QFAA Page 4 of 8 Description nRF52832QFAA BLE and 2.4GHz Proprietary multiprotocol module III、Radiation Pattern of 3D 2400MHz . 33850 桃園市蘆竹區吉林路 128號5樓之 1 5F-1, No.128, Ji Lin Rd.,Lu-Chu Dist.,33850 Taoyuan City, Taiwan TEL : 886-3-3526894 FAX : 886-3-3521384 http://www.hstnet.com.tw E-mail : [email protected] 貝倫企業股份有限公司 Hardware & Software Technology Co., Ltd. Subject Product Specification Rev 1.3 Marketing Name nRF52832QFAA BLE module Model No. M52832QFAA Page 5 of 8 Description nRF52832QFAA BLE and 2.4GHz Proprietary multiprotocol module III、Radiation Pattern of 3D 2450MHz . 33850 桃園市蘆竹區吉林路 128號5樓之 1 5F-1, No.128, Ji Lin Rd.,Lu-Chu Dist.,33850 Taoyuan City, Taiwan TEL : 886-3-3526894 FAX : 886-3-3521384 http://www.hstnet.com.tw E-mail : [email protected] 貝倫企業股份有限公司 Hardware & Software Technology Co., Ltd. Subject Product Specification Rev 1.3 Marketing Name nRF52832QFAA BLE module Model No. M52832QFAA Page 6 of 8 Description nRF52832QFAA BLE and 2.4GHz Proprietary multiprotocol module III、Radiation Pattern of 3D 2450MHz . 33850 桃園市蘆竹區吉林路 128號5樓之 1 5F-1, No.128, Ji Lin Rd.,Lu-Chu Dist.,33850 Taoyuan City, Taiwan TEL : 886-3-3526894 FAX : 886-3-3521384 http://www.hstnet.com.tw E-mail : [email protected] 貝倫企業股份有限公司 Hardware & Software Technology Co., Ltd. Subject Product Specification Rev 1.3 Marketing Name nRF52832QFAA BLE module Model No. M52832QFAA Page7 of 8 Description nRF52832QFAA BLE and 2.4GHz Proprietary multiprotocol module III、Radiation Pattern of 3D 2500MHz . 33850 桃園市蘆竹區吉林路 128號5樓之 1 5F-1, No.128, Ji Lin Rd.,Lu-Chu Dist.,33850 Taoyuan City, Taiwan TEL : 886-3-3526894 FAX : 886-3-3521384 http://www.hstnet.com.tw E-mail : [email protected] 貝倫企業股份有限公司 Hardware & Software Technology Co., Ltd. Subject Product Specification Rev 1.3 Marketing Name nRF52832QFAA BLE module Model No. M52832QFAA Page 8 of 8 Description nRF52832QFAA BLE and 2.4GHz Proprietary multiprotocol module III、Radiation Pattern of 3D 2500MHz .

Project No.: TM-2507000225P Page: 1 / 40 Report No.: TMWK2507002938KR FCC ID: V78TXSL020 Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART C Test Standard FCC Part 15.247 Product name Dash Mount Wireless Remote 2.4G Brand Name Allremote Model No. TX-SL020 Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10-2020 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc.( Wugu Laboratory) Approved by: Sehni Hu Supervisor This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2507000225P Page: 2 / 40 Report No.: TMWK2507002938KR Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 September 2, 2025 Initial Issue ALL Peggy Tsai This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2507000225P Page: 3 / 40 Report No.: TMWK2507002938KR Rev.: 00 Table of contents 1. GENERAL INFORMATION ........................................................................................ 4 1.1 EUT INFORMATION .................................................................................................. 4 1.2 EUT CHANNEL INFORMATION ................................................................................ 5 1.3 ANTENNA INFORMATION ........................................................................................ 5 1.4 MEASUREMENT UNCERTAINTY .............................................................................. 6 1.5 FACILITIES AND TEST LOCATION .......................................................................... 6 1.6 INSTRUMENT CALIBRATION ................................................................................... 6 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT ................................................. 8 2. TEST SUMMARY ..................................................................................................... 10 3. DESCRIPTION OF TEST MODES............................................................................ 11 3.1 THE WORST MODE OF OPERATING CONDITION ................................................ 11 3.2 THE WORST MODE OF MEASUREMENT .............................................................. 11 3.3 EUT DUTY CYCLE ................................................................................................... 12 4. TEST RESULT ......................................................................................................... 13 4.1 AC POWER LINE CONDUCTED EMISSION ........................................................... 13 4.2 6dB BANDWIDTH AND OCCUPIED BANDWIDTH(99%) ........................................ 14 4.3 OUTPUT POWER MEASUREMENT ........................................................................ 17 4.4 POWER SPECTRAL DENSITY ................................................................................ 19 4.5 CONDUCTED BAND EDGE AND SPURIOUS EMISSION ...................................... 22 4.6 RADIATION BANDEDGE AND SPURIOUS EMISSION .......................................... 25 APPENDIX 1 - PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2507000225P Page: 4 / 40 Report No.: TMWK2507002938KR Rev.: 00 1. GENERAL INFORMATION 1.1 EUT INFORMATION Applicant ALLREMOTE Wireless Technology Co., Ltd. 2F, No. 8, Ally 16, Lane 235, Bau Chiau Road, Hsin Taipei,Taiwan 231 Manufacturer ALLREMOTE Wireless Technology Co., Ltd. 2F, No. 8, Ally 16, Lane 235, Bau Chiau Road, Hsin Taipei,Taiwan 231 Equipment Dash Mount Wireless Remote 2.4G Model No. TX-SL020 Model Discrepancy N/A Trade Name Allremote Received Date July 29, 2025 Date of Test August 8 ~ 19, 2025 Power Operation Powered from Battery. (DC 3V) (AAA 1.5V*2) HW Version V1.0 FW Version V1.0 Remark: 1. For more details, please refer to the User’s manual of the EUT. 2. Disclaimer: Antenna information…

Text truncated - open the document above for the full version.
