V92RGBOZIGBEE SHORT RANGE PERIODIC TRANSMITTER

Reference Guide Revision May 17 th 2010 ii COPYRIGHT © 2010 by Commtest Instruments Ltd. All rights reserved. No part of this book may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Commtest Instruments Ltd. For information, contact: Commtest Instruments Ltd. Level 2, 22 Moorhouse Avenue Christchurch New Zealand E-mail [email protected] Printed in New Zealand. Disclaimer Information in this document is subject to change without notice. Names and data used in examples are fictitious unless otherwise noted. This document is distributed as is, without warranty of any kind, either expressed or implied, respecting the contents of this document, including but not limited to implied warranties for the document’s quality, performance, merchantability, or fitness for any particular purpose. Neither Commtest Instruments Ltd nor its employees, dealers, agents or distributors shall be liable to the user of this document or any other person or entity with respect to any liability, loss, or damage caused or alleged to be caused directly or indirectly by this document. Trademark Notice Ranger™, Ranger Station™, Ranger Booster™, AscentView™, AscentWatcher™, AscentOPC™, vbSeries™, Commtest™, vbXManager™, vbRemote™ and PROFLASH™ are trademarks of Commtest Instruments Ltd. Ascent ® , Commtest ® and vbOnline ® are registered trademarks of Commtest Instruments Ltd. Other trademarks and registered trademarks are the property of their respective owners. iii Contents Section 1: Introduction ................................................. 1 Overview of the Ranger System ............................................. 3 Standard Features ....................................................................... 5 Standard Kit Items ....................................................................... 6 System Requirements ................................................................. 7 System Components ................................................................... 8 Components ................................................................................ 9 Ranger System Configuration ................................................... 12 Ranger Station LED Status Indicators ....................................... 16 Sensor Battery Pack .................................................................. 18 Replacing the Battery Pack ................................................. 19 Section 2: Hardware Installation ............................... 21 Ranger Station/Booster DC Power Supply ........................... 22 Installing a Ranger Station Device ....................................... 23 Choosing an Installation Location ............................................. 23 Ranger Station Housing Enclosure ........................................... 23 Mounting .................................................................................... 25 Removing a Ranger Station Device from a DIN Rail ................ 25 Install Speed Sensors (Tachometers) ....................................... 26 Connecting Tachometer Inputs ........................................... 27 Keyphasor® Sensors .......................................................... 29 Single Tachometer - Multiple Ranger Station Devices........ 30 Connecting Relay Outputs......................................................... 30 Wired Network Connection ........................................................ 32 Earthing/Grounding ................................................................... 32 Mounting Ranger Sensors ................................................... 33 Permanent Mounting ................................................................. 34 Speed Sensor Cable Types, Grounding and Routing ............... 34 Long Cable Runs ....................................................................... 35 Installing a Ranger Booster Device ...................................... 36 Connecting to the Power Supply ............................................... 36 Choosing an Installation Location ............................................. 38 Add a Ranger Booster to an Existing Network .......................... 38 iv Section 3: Software Installation and Setup .............. 40 Installing the Software .......................................................... 40 Uninstalling the Software ........................................................... 42 Creating Machines and Measurement Setups ...................... 42 Using the Online Device Setup Wizard ................................ 42 Step 1: Set up Communications with the Ranger Station ..... 44 Make a Direct Connection via Crossover Cable........................ 45 Windows Vista ..................................................................... 45 Windows XP ........................................................................ 45 Establish Ascent Communications with the Ranger Station ..... 46 Set the Ranger Station's Network IP Address ........................... 47 Set the Ranger Station IP via a Web Browser .................... 49 Reset IP Address to Factory Default ................................... 51 Configure Wireless (Wi-Fi) Connection ..................................... 51 Configuring the Ranger Station for WiFi ............................. 52 Activating Ranger Station Wi-Fi .......................................... 55 Step 2: Set Up Communications with the Ranger Sensor .... 56 Step 3: Assign Ranger Stations to Tach Measurement Locations ............................................................................. 57 Step 4: Assign Ranger Sensors to Measurement Locations . 59 Copying Items to Multiple Locations .......................................... 61 Step 5: Configure Recording Intervals .................................. 62 Step 6: Configure Online Relays .......................................... 69…

Text truncated - open the document above for the full version.

COMMTEST INSTRUMENTS LIMITED PO Box 9297, Level 2, 22 Moorhouse Ave Christchurch 8149, New Zealand Telephone: +64 (3) 943 0700 Facsimile: +64 (3) 943 0727 Email: [email protected] Date: 23 rd April 2010 To: Andrew Cutler, EMC Technologies New Zealand Ltd, 47 MacKelvie Street, Grey Lynn, Auckland. This letter authorises ‘EMC Technologies New Zealand Ltd’ to act on behalf of ‘Commtest Instruments Ltd’ of New Zealand during the Federal Communications Commission (FCC) Certification process of the Ranger Sensor, Ranger Station and Ranger Booster products. Signed John M. Cochrane General Manager

EMC Technologies (NZ) Ltd PO Box 68-307 Newton, Auckland Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au Federal Communications Commission 31 st May 2010 To whom it may concern CONFIDENTIALITY REQUEST: FCC ID V92RGBO Reference rule sections 0.457 (d) (ii) and pursuant to rule section 0.459 (a) confidentiality is requested as follows. Specific Information: Schematic diagrams, Part lists, Block Diagram, Operational Description This information contains trade secret information which is not routinely made available to the public or to our competitors. Disclosure of this information could result in an unfair advantage to my client’s competitors. It should be treated as confidential for the duration of the Grant of Equipment Authorisation. Yours sincerely Andrew Cutler General Manager EMC Technologies NZ Ltd

EMC Technologies (NZ) Ltd Test Report No 091216.2 Report date: 25 March 2010 EMC Technologies (NZ) Ltd Tf: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 22 of 27 Section 15.247 (i) – Radio Frequency Hazard Information As per Section 15.247 (b) (4) spread spectrum transmitters operating in the 2400 – 2483.5 MHz band are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). In accordance with this section, and also Section 2.1091, this device has been defined as a mobile device whereby a distance of 20 cm can normally be maintained between the user and the device. In accordance with Section 1.1310 the Maximum Permissible Exposure (MPE) limits for the General Population / Uncontrolled Exposure of 1.0 mW/cm 2 have been applied. The maximum distance from the antenna at which the MPE is met or exceeded is calculated from the equation relating field strength in V/m, transmit power in watts, transmit antenna gain and separation distance in metres: E, V/m = ( (30 * P * G)) / d Power density, mW/cm 2 = E 2 /3770 E for MPE: 1 = E 2 /3770 E = 1*3770 E = 61.4 V/m The highest radiated power measured was 13.0 dBm = 20 mW Therefore: E =  (30 * P * G) / d d =  (30 * P * G) / E d =  (30*0.020) / 61.4 d = 0.013 m or 1.3 cm This device will comply providing a safe distance of 20.0 cm is specified. Result: Complies

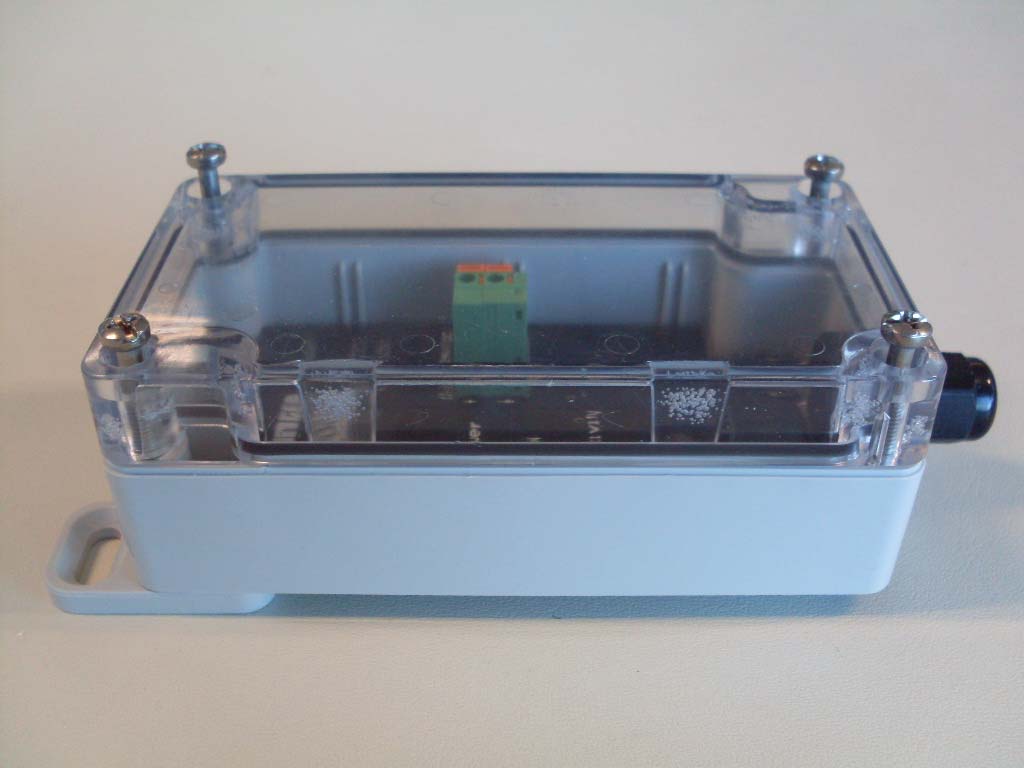

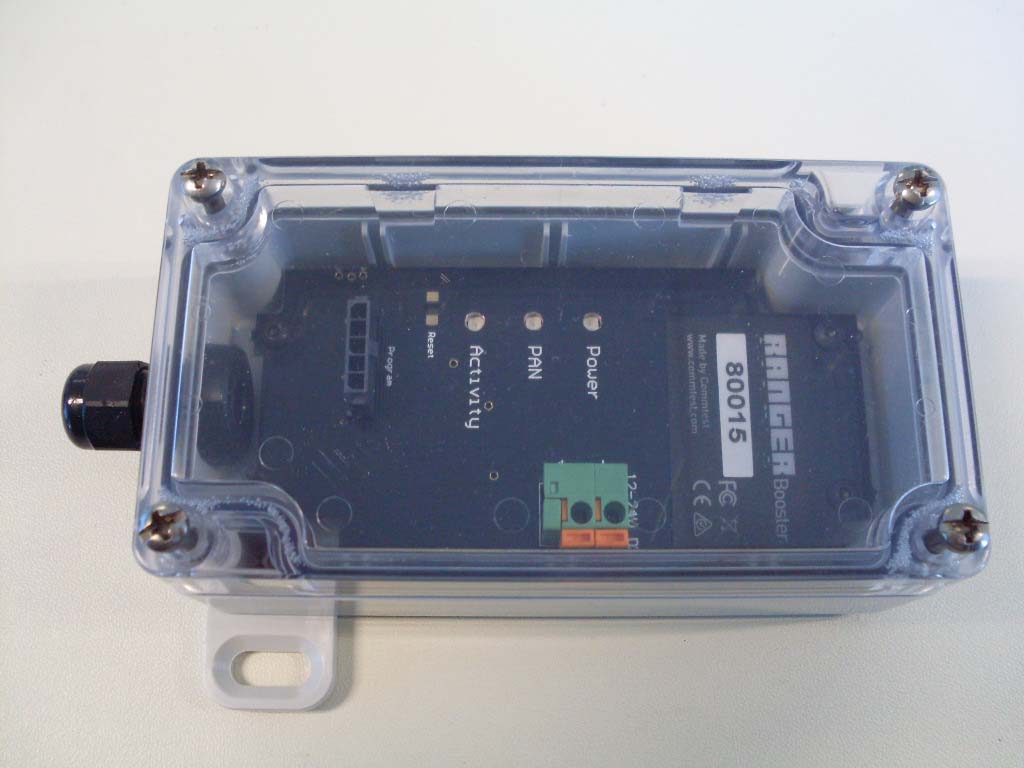

EMC Technologies (NZ) Ltd Test Report No 091216.2 Report date: 25 March 2010 EMC Technologies (NZ) Ltd Tf: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 24 of 27 9. PHOTOGRAPH (S)

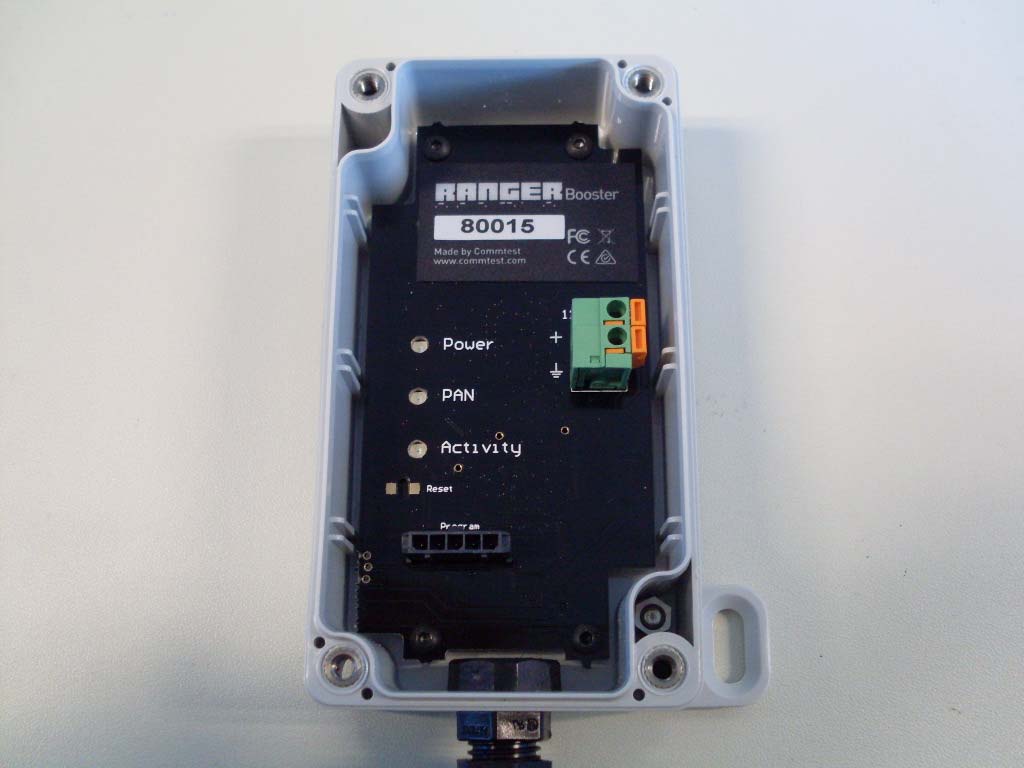

Label is printed on 8B35 0.25mm Polycarbonate backed by Scotch 467 Adhesive. Ink colours: Black & White Label size: 42mm x 25mm The label does not contain the FCC warning because of the size. The warning has been placed in the introduction of the Ranger System operating manual (page 1) and in the Appendices of the manual, at the bottom of each system specification (Ranger Station (page 142), Ranger Sensor (page 143) and Ranger Booster (spec still to be added)). Label on product

EMC Technologies (NZ) Ltd Test Report No 091216.2 Report date: 25 March 2010 EMC Technologies (NZ) Ltd Tf: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 25 of 27

EMC Technologies (NZ) Ltd Test Report No 091216.20 Report date: 14 April 2010 EMC Technologies (NZ) Ltd Tf: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 1 of 28 TEST REPORT Commtest Ranger Booster Transmitter tested for compliance with the Code of Federal Regulations (CFR) 47 Part 15 – Radio Frequency Devices, Subpart C – Intentional Radiators Section 15.247 – Operation in the band 2400 – 2483.5 MHz for Commtest Instruments Ltd This Test Report is issued with the authority of: ______________________________________ Andrew Cutler - General Manager EMC Technologies (NZ) Ltd Test Report No 091216.20 Report date: 14 April 2010 EMC Technologies (NZ) Ltd Tf: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 2 of 28 Table of Contents 1. CLIENT INFORMATION 3 2. DESCRIPTION OF TEST SAMPLE 3 3. RESULT SUMMARY AND COMPLIANCE STATEMENT 4 4. TEST SAMPLE DESCRIPTION 5 5. ATTESTATION 6 6. RESULTS 7 7. TEST EQUIPMENT USED 22 8. ACCREDITATIONS 22 9. PHOTOGRAPH (S) 23 EMC Technologies (NZ) Ltd Test Report No 091216.20 Report date: 14 April 2010 EMC Technologies (NZ) Ltd Tf: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 3 of 28 1. CLIENT INFORMATION Company Name Commtest Instruments Ltd Address PO Box 9297 City Christchurch Country New Zealand Contact Mr Brian Wood 2. DESCRIPTION OF TEST SAMPLE Brand Name Commtest Model Number Ranger Booster Product Transmitter Manufacturer Commtest Instruments Ltd Country of Origin New Zealand Serial Number 80030 FCC ID V92RGBO EMC Technologies (NZ) Ltd Test Report No 091216.20 Report date: 14 April 2010 EMC Technologies (NZ) Ltd Tf: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 4 of 28 3. RESULT SUMMARY AND COMPLIANCE STATEMENT The Commtest Sensor Router complies with 47 CFR Part 15 when the methods and procedures described in ANSI C63.4 – 2003 were applied The results from testing are summarised in the following table: Clause Parameter Result 15.201 Equipment authorisation requirement Certification required 15.203 Antenna requirement Complies 15.204 External PA and antenna modifications Complies 15.205 Restricted bands of operation Complies 15.207 Conducted limits Complies 15.209 Radiated emission limits Complies 15.247 (a)(2) Minimum 6 dB bandwidth Complies (b)(3) Peak output power Complies (c) Directional antenna gains greater than 6 dBi Not applicable (d) Out of band emissions Complies (e) Power spectral density Complies (f) Hybrid systems Not applicable (g) Use of all channels Not applicable (h) Intelligent frequency hopping Not applicable (i) Radio frequency hazards Complies EMC Technologies (NZ) Ltd Test Report No 091216.20 Report date: 14 April 2010 EMC Technologies (NZ) Ltd Tf: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 5 of 28 4. TEST SAMPLE DESCRIPTION Device Operational Description The router forms part of a wireless sensor system. It creates a link between a wireless sensor and a base station (central Ethernet enabled access point). The device forwards any RF packets received on to the appropriate network node, which can be a sensor, a base station or another router. The RF communications are driven by the CC2430 microprocessor. Under normal operation the device will send a MAC acknowledgement response to any packets received. A low noise amplifier (LNA) and power amplifier stages are included within the device to ensure maximum range is achieved. The LNA is driven by a MAX2644, the PA by a MAX2242. Testing was carried out using a supplied EMC tester programme which established a link between a supplied sensor and a computer. For testing purposes a representative AC power supply was used to supply 12 Vdc to the device. The device is capable of operating between 2400 – 2460 MHz in 5 MHz steps. Testing has therefore been carried out at 2405 MHz, 2440 MHz and 2460 MHz. IEEE 802.15.4 using Direct Sequence Spread Spectrum (DSSS) with CSMA and OQPSK modulation is used. EMC Technologies (NZ) Ltd Test Report No 091216.20 Report date: 14 April 2010 EMC Technologies (NZ) Ltd Tf: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au This report may not be reproduced except in full Page 6 of 28 5. ATTESTATION This report describes the tests and measurements performed for the purpose of determining compliance with the specification with the following conditions: The test sample was selected by the client. The report relates only to the sample tested. This report does not contain corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. In addition this equipment has been tested in accordance with the requirements contained in the appropr…
