V9Q-60065F27ROLLING RING - The Rock

8+ ASST #60065 Important! Carefully read the Owners Manual before play! CONTROLLERVEHICLE BATTERIES NOT INCLUDEDBATTERIES NOT INCLUDED x3 x4 1 PRECAUTION BATTERIES • Do not use this vehicle in water, mud, or sand. • This product and its accessories are not suitable for children under the age of 36 months, because of small parts that can be swallowed. • Intended for children age 8 and older. • Adult supervision strongly recommended. • Drive your vehicle in a safe area away from people, pets, cars, etc. • Do not drive on streets or after dark. • Do not touch or try to pick up the vehicle when it is in motion. Wait until it has stopped completely. • Keep hair, fingers, face and loose clothing away from front and rear wheels while the vehicle is switched on or while the transmitter is operating. • Do not drive the vehicle toward walls or other hard objects. • Be a responsible operator! • Do not drop or give impact to the product and its accessories. • Check if a near transmitter produces interference or signals with the same frequency. In such a case, move to another location or try again after a while. • Never attempt to disassemble or modify the product or its accessories. • Regularly inspect the antennas for cracks or breaks. Do not bend the transmitter antenna. Do not use the transmitter if the antenna is broken. • Make sure the batteries are inserted with correct polarity and follow the toy and battery manufacturer's instructions. • Use only battery type(s) recommended. • Do not attempt to short-circuit, charge, disassemble or heat batteries. • Do not dispose of batteries in fire or make them wet. • Do not mix or use new and old batteries together. • Do not mix or use different types of batteries together. • Non-rechargeable batteries are not to be recharged because of the danger of eruption. • Remove rechargeable batteries from the product before charging. • Rechargeable batteries are only to be charged under adult supervision and follow the battery and charger manufacturer's instructions. • Battery replacement should be done in presence of an adult. • Remove batteries from the product for storage. Batteries may be hot. • After use, be sure to turn the switch off. • Remove weak or exhausted batteries from the product. • Dispose batteries safely and properly, according to your local requirements. STRONG BATTERY MEANS OPTIMUM PERFORMANCE Save the battery by turning off vehicle when not in use. WARNING! CHOKING HAZARD Small parts. Not for Children under 3 years. IMPORTANT BATTERY SAFETY INFORMATION CAUTION: TO AVOID BATTERY LEAKAGE: NOTE: BATTERIES MUST BE RECYCLED OR DISPOSED PROPERLY. Contact your local area office of solid waste management or other appropriate local agency for information. Only operate the product and its accessories when fully assembled and in accordance with this manual! 1.5V AAA 1.5V AAA 1.5V AAA 3 2 1 2 1 ON OFF 3 4 2 VEHICLE BATTERY INSTALLATION TRANSMITTER 1. To remove battery lid, loosen screw to open. 2. Slide open the battery lid in the direction as shown in the figure, while lightly pressing its center. 3. Insert 1.5V (AAA/LR03) batteries x3 with the polarity (+/-) as shown on the bottom of battery compartment. Replace the battery lid, following the removal procedure in reverse. NOTE: There is no on/off switch on the Transmitter. Moving the sticks turns it on automatically. 3 21 ANTENNA ASSEMBLY 1. Insert antenna wire from product into tube. 2. Slide tube down antenna wire and into hole in product. 3. Tie knot with any remaining antenna wire (Do not pull wire tight). WARNING! THE ANTENNA IS NOT TO BE INSERTED INTO SOCKET-OUTLETS! 1. Turn off vehicle. 2. Loosen screw to unlock battery lid. 3. Open battery lid. 4. Insert 1.5V (AA/LR6) batteries x4 into battery compartment with correct polarity (+/-). Place battery lid back in position and lock properly. NOTE: For best performance, always use alkaline batteries only. To remove the batteries, reverse the installation procedure. LR ON OFF 3 TURN ON VEHICLE WHEEL ALIGNMENT FORWARDBACKWARDS LEFT TURN - FORWARD (Push at the same time) LEFT TURN - BACKWARD (Push at the same time) RIGHT TURN - BACKWARD (Push at the same time) RIGHT TURN - FORWARD (Push at the same time) NOTE: After play, always turn vehicle off. Remove batteries from controller and R/C vehicle when not in use or when storing. Leakage may occur and cause damage if left for a long period of time. OPERATING R/C VEHICLE TROUBLESHOOTING AND CARE FOR R/C VEHICLE TREAT YOUR R/C VEHICLE WELL R/C VEHICLE DOES NOT MOVE • Are the + and – contacts correctly matched in the controller? • Are the metal contact tabs touching, rusty or dirty in controller? • Are there batteries in the vehicle and controller? • Is the power switch turned to play? • Are the batteries weak or out of power? R/C VEHICLE MOVES BY ITSELF • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by. R/C VEHICLE RUNS SLOWLY • There is radio interference in the area. • Another R/C vehicle with the same frequency is close by. • Are the batteries weak or out of power? PERFORMANCE DROP, INCONSISTENT MOVEMENT OR FAILS TO RUN Check batteries. If necessary, recharge battery pack and/or replace the in the R/C vehicle and controller with new alkaline batteries. 4 INTERFERENCE Other radio signals may cause loss of control. Remove vehicle from an area of interference. LIMITED RADIO CONTROL RANGE While R/C vehicle may be visible at a distance, full operational control may be lost. Hold controller high in the air and direct vehicle back. Store in safe place.No direct sunlight.No sand or dust. No Collisions.R/C vehicle may get stuck on carpet or grass. Avoid running 2 vehicles with the same radio control frequencies. Radio waves control the R/C vehicle. Care for your vehicle and it will provide hours of fun! Avoid heat, sand and high impact crashes! No rain or water. FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE This toy and all accessories need to be periodically exami…

Text truncated - open the document above for the full version.

Dec2013 TOYSTATEINTERNATIONALLIMITED Unit905,9/F,WestWing,TsimShaTsuiCentre,66ModyRoad,TSTEast,Kowloon,H.K. Phone:(852)2757-8281Fax:(852)2318-1884E-mail:[email protected] LetterofAgency "I,anofficerofToyStateInternationalLimiteddoherebyauthorize IntertekTestingServices(Mr.TerryChan/KooWaiIp/KennethWong)to actonourbehalfinfrontoftheFederalCommunicationsCommissionwith respecttoallmattersrelatingtocertificationofequipmentunderPart15 andPart18oftheFCCRulesuntilfurthernotice." Ifurthercertifythatnoparty(asdefinedin§1.2002(b)ofCFR47,2004)to thisapplication,includingmyself,issubjecttoadenialoffederalbenefits, thatincludesFCCbenefits,pursuanttoSection5301oftheAnti-Drug AbuseActof1988,21U.S.C.,862. Datedthis22thdayJuneof2015 By Signature CheungYiuchung PrintedName QualityManager Title Remark:Thepersonwhosignsthisauthorizationlettermustbethegranteecontactofrecordinthe GranteeCodedatabase.

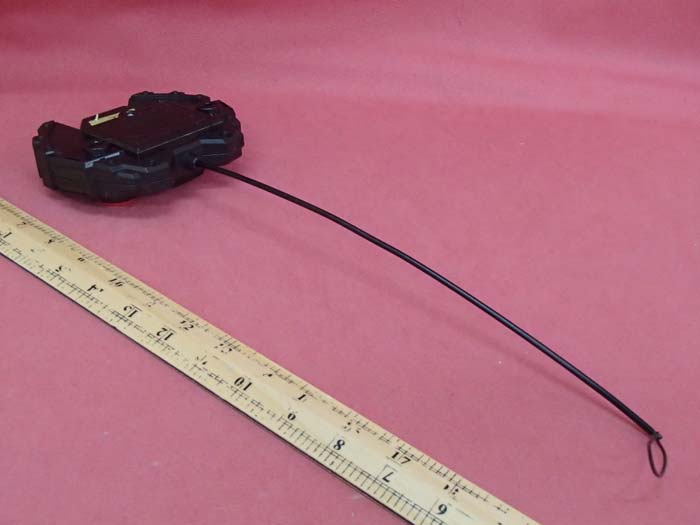

INTERTEK TESTING SERVICE Report No.: 15061174HKG-001 Equipment Photographs Model : 60066 (External) FCC ID: V9Q-60065F27

This devi ce compl ies with Part 1 5 of the F CC Rules . Operation is subj ect to t he foll o wing two conditio ns: 1).This d evice ma y not ca use ham f ul interf erence,a nd 2).This d evice mu st accep t any i n terferenc e receiv ed, including interfe rence th at may c ause unde sired op eration. C 27MHz FCC ID:V9Q-60065F27

INTERTEK TESTING SERVICE Report No.: 15061174HKG-001 Equipment Photographs Model : 60066 (Internal) FCC ID: V9Q-60065F27 INTERTEK TESTING SERVICE Report No.: 15061174HKG-001 Equipment Photographs Model : 60066 (Internal) FCC ID: V9Q-60065F27 INTERTEK TESTING SERVICE Report No.: 15061174HKG-001 Equipment Photographs Model : 60066 (Internal) FCC ID: V9Q-60065F27

FCC ID: V9Q-60065F27 Model: 60066 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. Control buttons: Consisting: LB, RB, BW and FW 2. An Encoding circuit Consisting: U2 (TT10S) 3. A RF Oscillator (27.145MHz) Consisting: X2, Q2 4. A Filter Network Consisting: L1, L2, C2, C3, C4 5. A RF Modulator and Amplifier Consisting: Q1 6. A Power Supply Consisting: 4.5VDC (3 X “1.5V” AAA batteries) Antenna Gain: 0dBi Nominal rated field strength: 60.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and integral antenna .

Analysis Report Report No.: 15061174HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 4.5 V DC source (3 x 1.5V size AAA batteries). The EUT has a left / right control stick and a forward / backward control stick. After switching ON the EUT and the receiver of the RC Car, activating the control sticks on the EUT can control the receiver moving forward, backward, left and right directions. Antenna Type: External, Integral antenna Antenna Gain: 0dBi Nominal rated field strength: 60.8dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 63.8dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00072mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00072mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

DATE: DWN. CHK.DATE: APP. DATE: TX 原 理 图 COMPANY: TOY STATE INDUSTRIAL LTD MODEL: VER: DATE:2015.04.10 DWN. 王平 CHK.DATE: APP. DATE: 深圳南岭玩具制品有限公司 ANT 27.145MHz 表号：28-F-004 半品货号 P02-COB/3-2712A(UP) 适用成品小货号 适用成品大货号 60066(15)BU27A(UP) 60065 ID A R8R7 C B NC 0R NC NC NC0R P02-COB/3-2712B(UP) P02-COB/3-2712C(UP) 60067(15)R27B(UP) 60068(15)G27C(UP) 27.145MHZ Q2 9014C Q1 9014C R3 100R C12 82p C4 100p C7 100p C3 47p R2 22K L3 NC L2 1uH L1 7.5UH FW R6 100K C11 47p L6 NC X2 27.145MHz BW RB LB R7 NC R8 0R C8 4.7UF C13 104p C2 47p R1 10R C5 103p C10 103p C1 NC L4 1uH L5 1uH C6 103p BAT 4.5V C9 104 1 NC 2 R 3 A0 4 GND 5 BW 6 TUR 7 FW 8 A1 16 NC 15 L 14 NC 13 OSCI 12 OSCO 11 PC 10 VDD 9 SO/SC U2 TT10S X1 455KHZ C14 20P C15 20P R5 NC R11 NC UnRegistered

lntertek \hluedQ¡d¡tf Doñv¡nd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 - TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. TEST REPORT Report No.: 15061 I 74HKG-001 Toy State lnternational Ltd. Application For Ceftification (Original Grant) (FCG lD: V9Q-60065F27) Transmitter Prepared and Checked by Approved by: Tse Ying, Cathy Ng Mei Nar, Chris Lead Engineer Date: Jul¡r 03,2015 Senior Lead Engineer lntertek's stendard Terms and Conditions can be obtained ât ourwebsite http://www ¡ntertek com/tems/ This report shall not be reproduced, except ¡n full This report ¡s for th6 exclus¡v€ use of lntertek's Client ând is prov¡ded pursuânt to the agreement between lntertek and its Client lntertek's rêsponsibility and liability are l¡m¡ted to the terms ând conditions of the agßement lntêrtek âssumês no lisb¡l¡ty to âny pârty, other than to the Client ¡n acærdance with the agreement, for any loss, expense or damage occasioned by thê use of th¡s rêport. Only the Client ¡s authorized to pemit copying or distribution of th¡s rêport and then only in its entirety Any use of thê lnt€rtek name or one of its marks for thê sale or advêrt¡sêment of the tested material, product or seru¡ce must f¡ßl be approved in writing by lnt€rtek Tho obsêrvat¡ons and test results in th¡s ßport are relevant only to the sampl€ t6sted. This roport by itsêlf does not imply that the metêrial, product, or seryice ¡s or has ever been undêr an lntêrtek ærtification program lntertek Testing Services Hong Kong Ltd. 2iF., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 21738888 Fax: (852) 27855487 Website: www.hk.intertek-etlsemko.com Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15061174HKG-001 i FCC ID: V9Q-60065F27 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Toy State International Ltd. Grantee Address: Unit 905, 9/F., West Wing, Tsim Sha Tsui Centre, 66 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Cheung Yiuchung Tel: 0755-3680 6243 Fax: 0755-2870 0487 e-mail: N/A Manufacturer: ShenZhen Nanling Toys Products Co., Ltd Manufacturer Address: 132 Busha Road, Nanling Village, Buji Town, 518114 Shenzhen, China Brand Name: N/A Model: 60066 Additional Model: 60067, 60068 Asst. No.: 60065 Type of EUT: Transmitter Description of EUT: ROLLING RING™ - The Rock (60066) ROLLING RING™ - John Cena (60067) ROLLING RING™ - Sheamus (60068) Serial Number: N/A FCC ID: V9Q-60065F27 Date of Sample Submitted: June 19, 2015 Date of Test: June 19, 2015 to June 29, 2015 Report No.: 15061174HKG-001 Report Date: July 03, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15061174HKG-001 ii FCC ID: V9Q-60065F27 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15061174HKG-001 iii FCC ID: V9Q-60065F27 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Measurement Uncertainty .................................................................................. 2 2.5 …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15061174HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 60066 60066 FCC ID: V9Q-60065F27 INTERTEK TESTING SERVICE Report No: 15061174HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 60066 60066 FCC ID: V9Q-60065F27
