V9Q-94155R49VAPORIZR 2

x3 8+ #94155 CONTROLLER VEHICLE Important! Carefully read the Owners Manual before play! BATTERIES INCLUDED BATTERY INCLUDED CAUTION-ELECTRICALLY OPERATED PRODUCT: OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK,INPUT:120V AC 60Hz 300mA,OUTPUT: 7.5V DC 1000mA. NOT RECOMMENDED FOR CHILDREN UNDER 8 YEARS OF AGE, AS WITH ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE RECHARGABLE 6.0V Ni-MH x1 This product and its accessorries are not suitable for children under the age of 36 months, because of small parts that can be swallowed. Intended for children age 8 and older. Adult supervision strongly recommended. Drive your vehicle in a safe area away from people, pets, cars, etc. Do not drive on streets or after dark. Do not touch or try to pick up the vehicle when it is in motion. Wait until it has stopped completely. Keep hair, fingers, face and loose clothing away from front and rear wheels while the vehicle is switched on or while the transmitter is operating. Do not drive the vehicle toward walls or other hard objects. Be a responsible operator! Do not drop or give impact to the product and its accessories. Check if a near transmitter produces interference or signals with the same frequency. In such a case, move to another location or try again after a while. Never attempt to disassemble or modify the product or its accessories. Regularly inspect the antennas for cracks or breaks. Do not bend the transmitter antenna. Do not use the transmitter if the antenna is broken. The vehicle wire antenna is fragile. Never pull or tug on the antenna, as it may loosen or detach from the vehicle. Use extra caution when playing near water or ice. Intended to be used on land and in water. Do not use the product in salt water or water with strong currents. WARNING! CHOKING HAZARD Small parts. Not for Children under 3 years. Only operate the product and its accessories when fully assembled and in accordance with this manual! CAUTION BATTERIES AND CHARGER 1 Make sure the batteries are inserted with correct polarity and follow the toy and battery manufacturer's instructions. Use only battery type(s) recommended. Do not attempt to short-circuit, charge, disassemble or heat batteries. Do not dispose of batteries in fire or make them wet. Do not mix or use new and old batteries together. Do not mix or use different types of batteries together. Non-rechargeable batteries are not to be recharged because of the danger of eruption. Remove rechargeable batteries from the product before charging. Recharge batteries only under adult supervision and follow the battery and charger manufacturer's instructions. Only children of age 8+ are allowed to use the charger and only if used under adult supervision. Battery replacement should be done in presence of an adult. Never pull a battery pack out of the vehicle by the wire of the plug. Remove batteries from the product for storage. Battery may be hot. After use, be sure to turn the switch off. Failure to do so may adversely affect batteries, resulting in disabled charged. Remove weak or exhausted batteries from the product. Dispose batteries safely and properly, according to your local requirements. Included: 6.0V Rechargeable NiMH Battery Pack and Battery Charger for NiMH Battery Pack and AAA/LR03 battery x3. IMPORTANT BATTERY SAFETY INFORMATION CAUTION: TO AVOID BATTERY LEAKAGE (AAA/LR03 and the 6.0V NiMH RECHARGEABLE BATTERY PACK): BATTERY CHARGING AND CARE RUNNING AND CHARGING TIME BATTERY CHARGING INSTRUCTIONS 2 Regularly examine charger and battery pack for leaking, corrosion, damage, including plugs, casings and all other parts. If damaged, do not use. Do not short-circuit the charger. Do not charge batteries with a charger other than the included one. Do not charge batteries other than the included NiMH battery pack with the charger and do not use the charger as the power source for other equipment. Do not charge batteries in a place within the reach of small children. Do not short-circuit battery terminals, otherwise the battery may swell and get hot, leading to a dangerous situation. Do not use, store or charge batteries in a place near a heater or in high temperature or in humid or damp situations. Vehicle will not run without a 6.0V rechargeable NiMH battery pack and matching charger, commonly available for R/C vehicles at many toy and hobby dealers. Always follow the instructions that come with your battery pack and charger. Toy must only be used with recommended transformer/ charger. NOTE: NICKEL-METAL HYDRIDE BATTERIES MUST BE RECYCLED OR DISPOSED PROPERLY. Contact your local area office of solid waste management or other appropriate local agency for information. NOTE: "CONDITION" BATTERY PACK FOR BEST RESULTS BY CHARGING ACCORDING TO THESE INSTRUCTIONS ON EVERY CHARGE. ON THE FIRST CHARGE, EXPECT A SHORTER RUN TIME. RUN TIMES WILL INCREASE OVER THE NEXT 6 CHARGES. WARNING: The transformer/ charger is not a toy. NiMH battery packs are not like alkaline batteries. They lose all their power suddenly, not gradually, and the vehicle will stop very soon after slowing down becomes noticeable, with little warning. This is normal, but keep it in mind, since you need to get the vehicle back before the battery power runs out. Battery pack running times depend on the conditions you operate in. Running time may vary over the life of the battery pack, with the first few charge cycles yielding shorter run times than later charges. Drain Down-Cool Down-Charge Up After the first charge, for best performance always run the battery pack fully empty before recharging. Run until vehicle wheels/rotors/propellers/motors slow to stop. Allow the battery pack to cool before recharging. Battery Pack Heat Battery pack gets hot after use! This is normal, but be careful. Wait until battery pack is cool (20 minutes or more if needed) before charging. Charging battery packs when they are hot will severely reduce the number of times they can be recharged. After charging, battery pack w…

Text truncated - open the document above for the full version.

SHEET: OF DRAWING NO: MODEL: CHECK BY: DATED: DATED: DRAWN BY: REV: APP.BY: DATED: COMPANY: TOY STATE INDUSTRIAL LTD 94155 RX 49M BLOCK DIAGRAM 1.0 1 2 Chen 2015-6-15 APPLICANT:-TOY STATE INDUSTRIAL LTDMODEL NO:-94155 BLOCK DIAGRAM OF VERSION:- RX 49.860MHz XiaoXiao PAGE NO:- 1 OF 2 MODEL NO:- 94155 Clock Timing Generator Super Circuit Regenerative Batteries Q1 RX ANTENNA 49.860MHz Motor Driver U2 MOTOR M1 MOTOR LFWLBW CPU Generator Synthesizer H/W Mixer PWM DAC I/O Ports Generator Dual-tone RAMROMWDTLVR MODE SwitchON/OFF SW1 B+3 B+3 B+1 MOTOR M2 MOTOR RFWRBW 2015-6-15 2015-6-15 Motor Driver U3 B+1 CP2119 CP2119 U1RX2 NI-MH 6V MODEL NAME:VaporizR

Dec2013 TOYSTATEINTERNATIONALLIMITED Unit905,9/F,WestWing,TsimShaTsuiCentre,66ModyRoad,TSTEast,Kowloon,H.K. Phone:(852)2757-8281Fax:(852)2318-1884E-mail:[email protected] LetterofAgency "I,anofficerofToyStateInternationalLimiteddoherebyauthorize IntertekTestingServices(Mr.TerryChan/KooWaiIp/KennethWong)to actonourbehalfinfrontoftheFederalCommunicationsCommissionwith respecttoallmattersrelatingtocertificationofequipmentunderPart15 andPart18oftheFCCRulesuntilfurthernotice." Ifurthercertifythatnoparty(asdefinedin§1.2002(b)ofCFR47,2004)to thisapplication,includingmyself,issubjecttoadenialoffederalbenefits, thatincludesFCCbenefits,pursuanttoSection5301oftheAnti-Drug AbuseActof1988,21U.S.C.,862. Datedthis16thdayJuneof2015 By Signature CheungYiuchung PrintedName QualityManager Title Remark:Thepersonwhosignsthisauthorizationlettermustbethegranteecontactofrecordinthe GranteeCodedatabase.

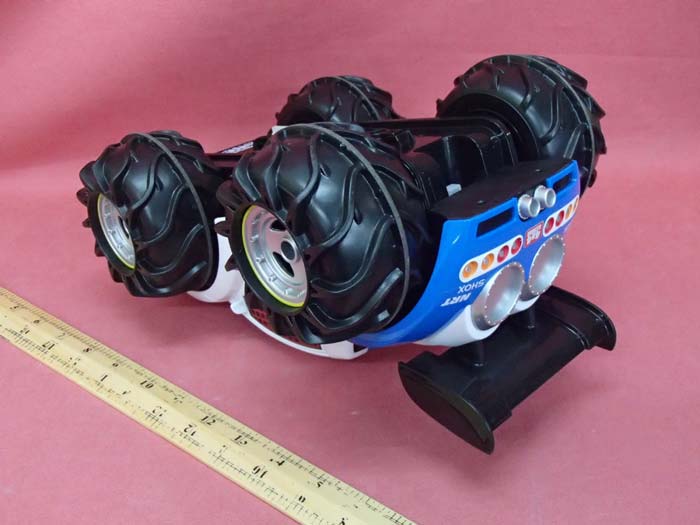

INTERTEK TESTING SERVICE Report No.: 15070329HKG-001 Equipment Photographs Model : 94156 (External) FCC ID: V9Q-94155R49

This device complies with Part 1 5 of the FCC Rules. Operation is subject to the foll owing two conditions: 1).This device may not cause ham ful interference,and 2).This device must accept any i nterference received, including interference that may cause undesired operation. Lock Open Lock Open C 49MHz FCC ID: V9Q-94155R49

INTERTEK TESTING SERVICE Report No.: 15070329HKG-001 Equipment Photographs Model : 94156 (Internal) FCC ID: V9Q-94155R49 INTERTEK TESTING SERVICE Report No.: 15070329HKG-001 Equipment Photographs Model : 94156 (Internal) FCC ID: V9Q-94155R49 INTERTEK TESTING SERVICE Report No.: 15070329HKG-001 Equipment Photographs Model : 94156 (Internal) FCC ID: V9Q-94155R49

FCC ID: V9Q-94155R49 Model: 94156 (Receiver portion) Technical Description of Receiver The receiver operates at 49.860 MHz, and controls by the corresponding transmitter to move forward, backward and right. The circuit of the receiver comprises of, 1. Super-regenerative circuit Consisting: Q1 2. Decoder: Consisting: RX-2 3. Motor driver Consisting: U2 and U3 (CP2119) 4. A Power Supply Consisting: 6.0V DC source ( 1 X 6.0V rechargeable battery)

DATE: APP. BY: DATE: CHECK BY: DRAWN BY: DATE: VER: MODEL: COMPANY: TOY STATE INDUSTRIAL LTD RX SCHEMATIC FOR MODEL NO.94155-49.860MHz 49.860MHz 94155-RX-49MHz 1.0 Xiao Xiao Chen 2015-6-15 2015-6-15 2015-6-15 SHEET:2 OF 2 Model Name:VaporizR 1 VO2 2 GND 3 SI 4 OSCI 5 OSCO 6 RIGHT 7 LEFT 8 NC 9 NC1 10 BACKWARD 11 FORWARD 12 TURBO 13 VDD 14 V11 15 V01 16 V12 U1 RX_TWO L1 6.8uH C1 220UF C2 222 Q1 1815GR C3 15P R2 180K R3 560 C6 103 ANT C73P C8 22P R4 2K2 R5 2M2 C10 390P R7 1M R8 2K2 C11104 R9 4.3K C12 104 R12 220R T1 0.35uH C13104 R6 5K6 R13 180K C14 104 C15 104 C4 332 C5 4U7F R1 2K2 M1 M C16 220UF C9 220UF 1 INA 2 INB 3 GND 4 VCC 5 OUTA 6 OUTA 7 OUTB 8 OUTB U2 CP2119 1 INA 2 INB 3 GND 4 VCC 5 OUTA 6 OUTA 7 OUTB 8 OUTB U3 CP2119 BATTERY 6V SW1 VCC GND2 L2 22uH L3 22uH C17 104 C18 104 C19 104 M2 M L4 22uH L5 22uH C20 104 C21 104 C22 104 FWBW RT LT PVDD PVDD FWBW PVDD RT LT PVDD

lntertek t ¡l¡¡d Qr¡C]U Delhreæd, lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (Reg. No. HOKLAS 005) under HOKLAS for specific laboratory activ¡ties as listed in the HOKLAS directory of accredited laboratories. TEST REPORT Report No.: I 5070329HKG-001 Toy State lnternational Ltd. Application For , Certification (Original Grant) (FGC lD: V9Q-94155R49) Superregenerative Receiver Approved by: Prepared and Checked by: Tse Ying, Cathy Senior Lead Engineer Ng Mei Nar, Chris I Lead Engineer Date: August 03, 2015 ¿1,"t7. lntertek's stândard Terms and Cond¡t¡ons €n be obtained ât ourwebsit€ http://www.¡ntêrtek com/tems/ This report shall not be reproduced, except ¡n full, This rêport is for th6 êxclusive use of lnterteks Client ând ¡s providêd pursuant to the agreemenl between lntertek and ¡ts Cl¡ent lntertek's responsib¡lity end liabil¡ty are limited to the terms end ænditions of ths agßement lntertek assumes no l¡ab¡lity to any p¿rty, other lhan to the Client in acærdanæ w¡th thê agreêment, for any loss, expense or dâmagê occasioned by the use of this report Only th6 Cliênt ¡s âuthorized to pêrmit copy¡ng or distribut¡on of this report and then only in its entir€ty Any usê of the lntert€k name or one of its mârks for the salo or âdvert¡sement of thê tosted mâterial, product or seruiæ must Îìrst be âpprovod¡nwritingbylntertek Theobs€ryâtionsândtestresultsinthisreportarerelevantonlytothesampletested Thisreportbyltsêlfdoesnot¡mplythatthe materiâ|, product, or servico ¡s or has over been under an lnt€rtek certiflcåtlon progrâm, lntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. f eli (852) 2173 8888 Fax: (854 27A5 5487 Website: www.hk.intertek-etlsemko.com Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (Reg. No. HOKLAS 005) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15070329HKG-001 i FCC ID: V9Q-94155R49 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Toy State International Ltd. Grantee Address: Unit 905, 9/F., West Wing, Tsim Sha Tsui Centre, 66 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Cheung Yiuchung Tel: 0755-3680 6243 Fax: 0755-2870 0487 e-mail: N/A Manufacturer: ShenZhen Nanling Toys Products Co., Ltd. Manufacturer Address: 132 Busha Road, Nanling Village, Buji Town, 518114 Shenzhen, China Brand Name: N/A Model: 94156 Additional Model: 94157 Asst. No.: 94155 Type of EUT: Superregenerative Receiver Description of EUT: VAPORIZR 2 Serial Number: N/A FCC ID: V9Q-94155R49 Date of Sample Submitted: July 07, 2015 Date of Test: July 07, 2015 to July 30, 2015 Report No.: 15070329HKG-001 Report Date: August 03, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (Reg. No. HOKLAS 005) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15070329HKG-001 ii FCC ID: V9Q-94155R49 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Receiver / Digital Device Radiated Emissions 15.109 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (Reg. No. HOKLAS 005) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 15070329HKG-001 iii FCC ID: V9Q-94155R49 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Measurement Uncertainty .................................................................................. 2 2.5 Support Equipment List and Description.......…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15070329HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 94156 FCC ID: V9Q-94155R49 INTERTEK TESTING SERVICE Report No: 15070329HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 94156 FCC ID: V9Q-94155R49
