VA5A1000-2WSPKeyless Entry System

Remote & AntennaFCC ID Number (US Only) IC ID Number (International Only) 2W902R-SP VA5REC500-2WSP 7087A-2WREC500SP ANT-2WSP VA5A1000-2WSP 7087A-2WA1000SP User Manual By Firstech LLC, Version: 1.0 Applicable to the following remote(s); 2W902R-SP 2 Way 5 Button LED Remote & ANT-2WSP 2Way Antenna This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions; This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following conditions; (1) This device may not cause harmful interference. (2) This device may accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. WWW.COMPUSTAR.COM 2 Introduction ..................................................................................................................................................3 Warranty Coverage ......................................................................................................................................3 Quick Reference ...........................................................................................................................................4 Button Lock .................................................................................................................................................4 Full or Half Paging Mode ............................................................................................................................4 Valet Mode..................................................................................................................................................4 Remote Maintenance – Battery Replacement ...........................................................................................4 2 Way Remote Button Functions ...............................................................................................................5 Function Button Menu ................................................................................................................................6 Remote Option Menu Table .......................................................................................................................6 Remote LED Functions and Descriptions .................................................................................................6 Alarm LED Notifications ..............................................................................................................................7 1 Way Remote Button Functions ...............................................................................................................7 General System Functions .........................................................................................................................8 Sending Commands ...................................................................................................................................8 Receiving Commands .................................................................................................................................8 Active Lock/Arm and Unlock/Disarm ..........................................................................................................8 Passive Lock/Arm .......................................................................................................................................8 Automatic Transmission Remote Start Function .......................................................................................9 Manual Transmission Remote Start Function (Reservation Mode) ..........................................................9 Trunk Release ......................................................................................................................................... 10 Auxiliary Outputs/Window Roll-Down/Sliding Doors............................................................................... 10 Silent Arm/Disarm.................................................................................................................................... 10 Remote Mute ........................................................................................................................................... 11 Shock Sensor On/Off .............................................................................................................................. 11 Automatic Button Lock ............................................................................................................................ 11 Advanced System Functions ................................................................................................................... 12 Drive Lock/Ignition Controlled Door Locks .............................................................................................. 12 Turbo Timer Mode ................................................................................................................................... 12 2 nd Car Mode (Multiple Vehicle Control) ................................................................................................. 12 RPS Touch and RPS (Remote Paging Sensor) ..................................................................................... 12 Secure Valet Switch ................................................................................................................................ 15 Timer Start Mode ..................................................................................................................................... 15 Cold/Hot Start Mode ................................................................................................................................ 15 Remote Coding / Programming Routine ................................................................................................ 1…

Text truncated - open the document above for the full version.

Date: June 20, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. CY_Choi/ RAPA, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. CY_Choi / RAPA on our behalf shall have the same effect as acts of our own. I, t he u ndersigned, h ereby cert ify that we are not su bject to a denial o f f ederal benefits, th at includes FCC b enefits, pursuant to Section 5301 of the Anti-Drug Abuse Act o f 1988, 21 U.S.C. 853(a). In authorizing RAPA as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Name: Young il / President Company: SEGI LIMITED REMARK: 1. This aut horization letter wi ll be sent along wi th yo ur application wh en fi ling wi th t he Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

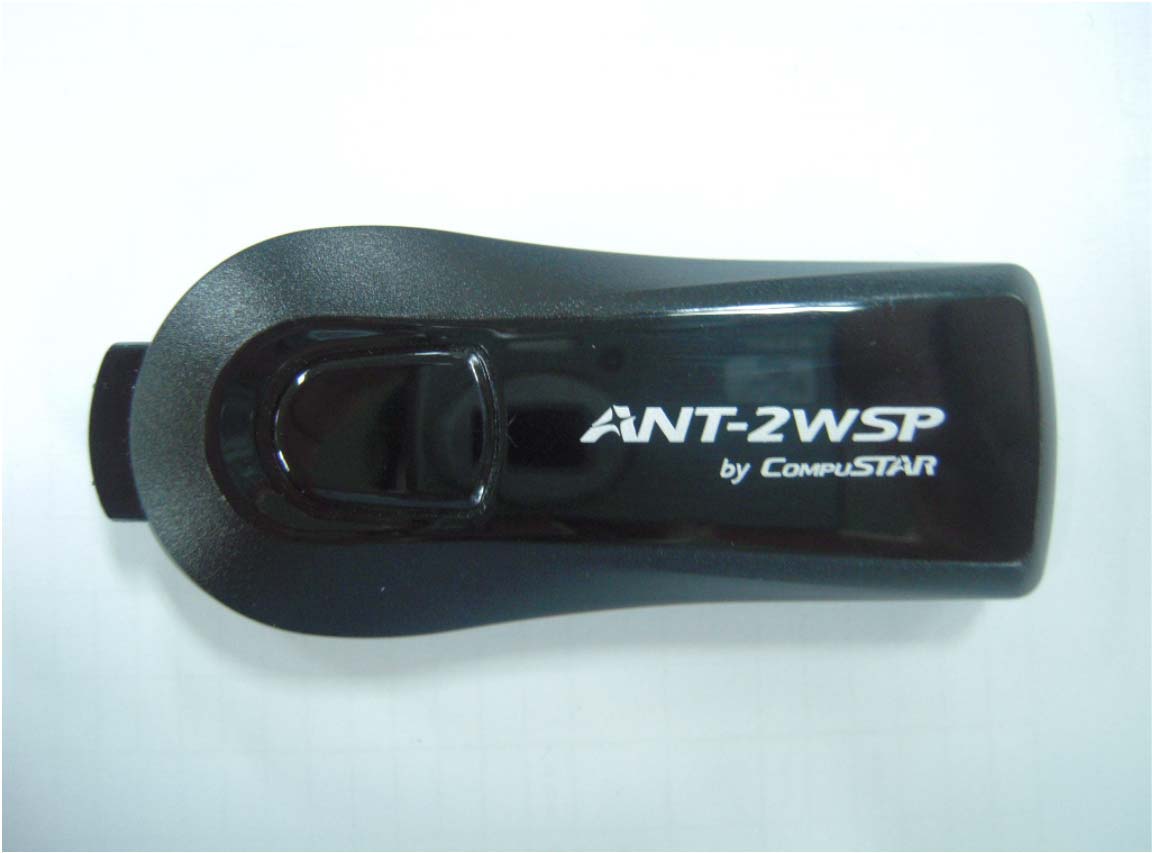

SEGI LIMITED Keyless Entry System ANT-2WSP It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 3. External Photos of EUT 1. Front SEGI LIMITED Keyless Entry System ANT-2WSP It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 3. External Photos of EUT 2. Back

SEGI LIMITED Keyless Entry System ANT-2WSP It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 2. FCC ID Label and Location

SEGI LIMITED Keyless Entry System ANT-2WSP It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 4. Internal Photos of EUT 1. Front SEGI LIMITED Keyless Entry System ANT-2WSP It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 4. Internal Photos of EUT 2. Back

Page : 2 of 19 Report No. : RAPA12-O-414 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part15.231(Rev.0) Testing and Certification Laboratory CONTENTS 1. General description of EUT ........................................................................................................... 3 1.1 Applicant................................................................................................................................... 3 1.2 Manufacturer ............................................................................................................................ 3 1.3 Basic description of EUT .......................................................................................................... 3 1.4 Technical specification of EUT ................................................................................................. 4 2. General information of test ........................................................................................................... 5 2.1 Standard for measurement methods ........................................................................................ 5 2.2 Description of EUT modification ............................................................................................... 5 2.3 Test configuration ..................................................................................................................... 5 3. Measurement data ......................................................................................................................... 6 3.1 Transmission time .................................................................................................................... 6 3.2 Field strength of fundamental and spurious emission ............................................................ 14 3.3 20 dB Bandwidth .................................................................................................................... 17 4. Test equipment list ...................................................................................................................... 19 Page : 3 of 19 Report No. : RAPA12-O-414 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part15.231(Rev.0) Testing and Certification Laboratory 1. General description of EUT 1.1 Applicant • Company name : SEGI LIMITED • Address : Room 1808, 18/F, Tower II, Admiralty Centre, 18 Harcourt Rd., Admiralty, Hong Kong • Contact person : Eui Seok, Chung • Phone/Fax : 82-32-623-5550 / 82-32-623-6667 1.2 Manufacturer • Company name : SEGI ELECTRONICS CO., LTD • Address : Chenjiapucun, Liaobu Town, Dongguan City, Guangdong Province, P.R.China • Contact person : Eui Seok, Chung • Phone / Fax : 82-32-623-5550 / 82-32-623-6667 1.3 Basic description of EUT • Product name : Keyless Entry System • Model name : ANT-2WSP • Serial number : Not available(Proto Type) • Frequency : 433.92 MHz(Tx) • Channel number : 1 Channel • Modulation method : ASK • FCC Rule Part(s) : FCC CFR47 Part 15 Subpart C Section 15.231 • IC Rule Part(s) : IC RSS-210 Issue8 Annex 1-2010 • FCC classification : DSC / Part 15 Security/Remote control Transmitter • IC classification : Annex 1 / Momentarily Operated Devices and Remote Control • Date of test : June 18, 2012 to July 2, 2012 • Date of issue : July 3, 2012 • Place of test : Head office 824, B104, Anyang Megavalley, 799, Gwanyang-dong, Dongan-gu, Anyang-si, Gyeonggi-do, Korea, 483-060 Open area test site 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-825 (FCC Registration Number : 337229) (IC Submission Number : 143881) (KCC Designation Number : KR0027) Page : 4 of 19 Report No. : RAPA12-O-414 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part15.231(Rev.0) Testing and Certification Laboratory 1.4 Technical specification of EUT Model Name ANT-2WSP Product Name Keyless Entry System Size(mm) 32.4 x 77.0 x 14.8 (W x L x H) Battery Size 12 Vdc Transmit Frequency 433.92 MHz Modulation Method ASK Page : 5 of 19 Report No. : RAPA12-O-414 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part15.231(Rev.0) Testing and Certification Laboratory 2. General information of test 2.1 Standard for measurement methods 2.2 Description of EUT modification During the test, there was no mechanical or circuitry modification to improve RF and spurious characteristic, and any RF and spurious suppression device(s) was not added against the device tested. 2.3 Test configuration • Type of peripheral equipment used Description Model Name Serial No.Manufacturer FCC ID IC Number EUT ANT-2WSP N/A SEGI Electronics Co., Ltd. VA5A1000-2WSP 7087A-2WA1000SP • Type of cable used Device from Device to Type of Cable Cable Number Length - - - - - Applied Standard : FCC CFR47 Part 15 Subpart C, IC RSS-210 Issue8 Annex 1-2010 FCC IC Description of Test Limit Result 15.231(a) A1.1.1 Transmission Time(s) 5 Pass 15.231(b) A1.1.2 Field Strength of Fundamental (dBμV/m) 100.8(Peak) / 80.8(AVG) Pass 15.231(b) & 15.209 A1.1.2 Radiated Emission(dBμV/m) 80.8(Peak) / 60.8(AVG) Pass 15.231(c) A1.1.3 Occupied Bandwidth(kHz) 1084.8 kHz Pass Page : 6 of 19 Report No. : RAPA12-O-414 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part15.231(Rev.0) Testing and Certification Laboratory EUT Spectrum Analyzer 3. Measurement data 3.1 Transmission time 3.1.1 Definitions A transmission time is a switching time that will automatically deactivate the transmission of transmitter of EUT. 3.1.2 Specification FCC Rules Part 15 Subpart C Section 15.231(a)(1) IC Rules RSS-210 Issue8 Annex 1-2010 A1.1.1 3.1.3 Measurement method The device output is connected to the spectrum analyzer. 3.1.4 Set-Up 3.1.5 Test equipment list Equipment Model Name Manufacturer EUT ANT-2WSP SEGI Electronics Co., Ltd. Spectrum Analyzer N9020A Agilen…

Text truncated - open the document above for the full version.

SEGI LIMITED Keyless Entry System ANT-2WSP It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 1. Photos of Test Setup 1. Test Setup of Radiation (30 MHz ~ 300 MHz) SEGI LIMITED Keyless Entry System ANT-2WSP It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 1. Photos of Test Setup 2. Test Setup of Radiation (300 MHz ~ 1 GHz) SEGI LIMITED Keyless Entry System ANT-2WSP It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 1. Photos of Test Setup 3. Test Setup of Radiation (1 GHz ~ 5 GHz)
