VA5A900R-1A315LF Transmitter

Date: May 16, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. CY_Choi/ RAPA, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. CY_Choi / RAPA on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Name: Young il / President Company: SEGI LIMITED REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

SEGI LIMITED Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: VA5A900R-1A315 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Young il Chang President SEGI LIMITED 17 of May. 2013

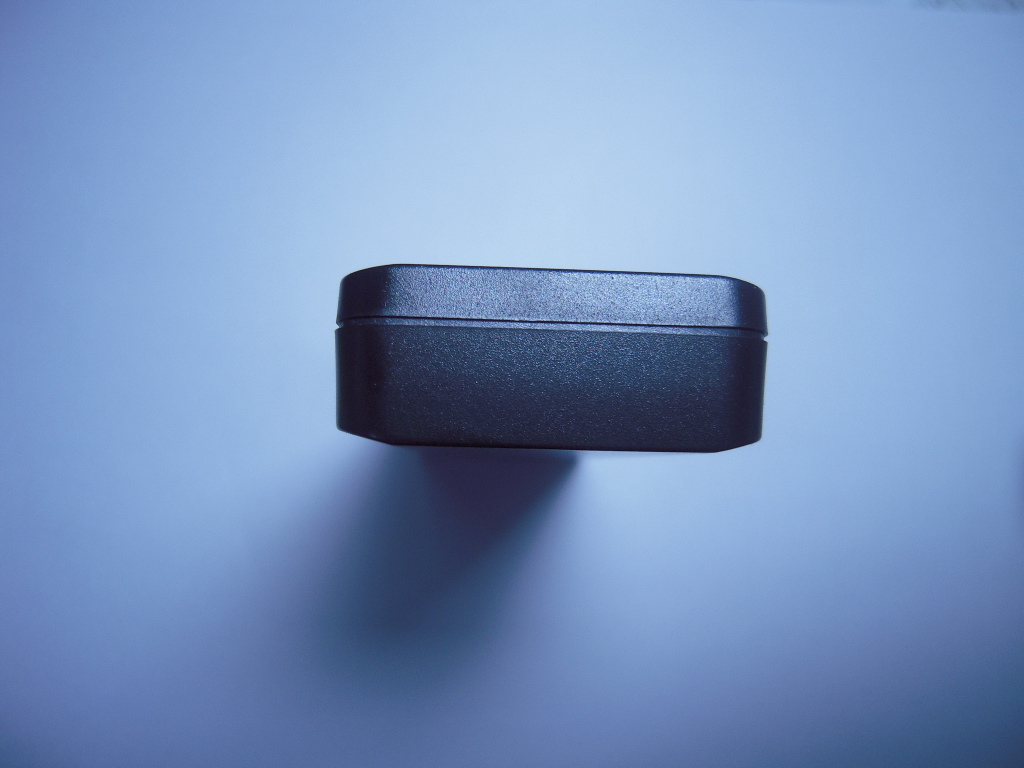

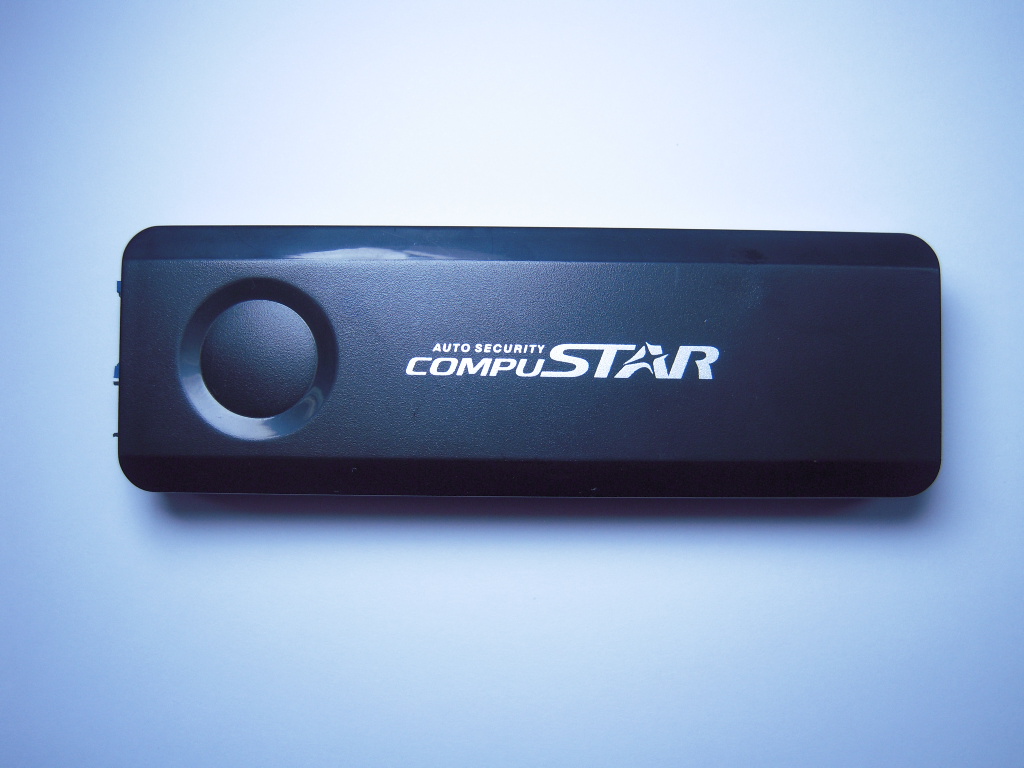

SEGI LIMITED LF Transmitter ANT-RFID-315 It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 1. Front SEGI LIMITED LF Transmitter ANT-RFID-315 It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 2. Back SEGI LIMITED LF Transmitter ANT-RFID-315 It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 3. Top Side SEGI LIMITED LF Transmitter ANT-RFID-315 It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 4. Bottom Side

SEGI LIMITED LF Transmitter ANT-RFID-315 It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 2. FCC ID Label and Location 1. Label sample 2. Location

SEGI LIMITED LF Transmitter ANT-RFID-315 It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209Rev.0) Testing and Certification Agency Appendix 4. Internal Photos of EUT 1. Front SEGI LIMITED LF Transmitter ANT-RFID-315 It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209Rev.0) Testing and Certification Agency Appendix 4. Internal Photos of EUT 2. Back

Page : 1 / 9 Report No. : RAPA13-O-340 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.209(Rev.0) Testing and Certification Laboratory TEST REPORT Report Number RAPA13-O-340 Type of Equipment LF Transmitter Model Name ANT-RFID-315 FCC ID VA5A900R-1A315 IC Number 7087A-A900RA315 Applicant Name SEGI LIMITED Logo Address 1808, 18/F, Tower II, Admiralty Centre, 18 Harcourt Rd., Admiralty, Hong Kong Manufacturer Name SEGI ELECTRONICS CO., LTD. Address Chenjiapucun, Liaobu Town Dongguan City, Guangdong Province, 523-408, P.R.China Test period May 11, 2013 to May 12, 2013 Issuing date of report June 10, 2013 Total page 9 pages (including this page) SUMMARY The equipment complies with FCC CFR 47 Part 15 Subpart C Section 15.209 and IC RSS-Gen Issue3 and RSS- 210 Issue8 2010. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass-production. Date : June 10, 2013 Date : June 10, 2013 Prepared and tested by Tae Yang, Yoon Reviewed by Sukil Park Manager /TCL of RAPA Executive Managing Director/TCL of RAPA Page : 2 / 9 Report No. : RAPA13-O-340 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.209(Rev.0) Testing and Certification Laboratory CONTENTS 1. GENERAL DESCRIPTION .............................................................................................................. 3 1.1 Applicant ................................................................................................................................................ 3 1.2 Manufacturer .......................................................................................................................................... 3 1.3 Basic description of EUT ...................................................................................................................... 3 1.4 Electrical specification .......................................................................................................................... 4 2. GENERAL INFORMATION OF TEST ............................................................................................. 4 2.1 Standard for measurement methods ................................................................................................... 4 2.2 Description of EUT modification .......................................................................................................... 4 2.3 Description of test system configuration............................................................................................ 4 3. MEASUREMENT DATA .................................................................................................................. 5 3.1 Radiated emission ................................................................................................................................. 5 3.2 Occupied bandwidth ............................................................................................................................. 7 4. TEST EQUIPMENT LIST ................................................................................................................. 9 Page : 3 / 9 Report No. : RAPA13-O-340 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.209(Rev.0) Testing and Certification Laboratory 1. GENERAL DESCRIPTION 1.1 Applicant • Company name : SEGI LIMITED • Address : 1808, 18/F, Tower 2, Admiralty Center, 18 Harcourt Rd., Admiralty, Hong kong • Contact person : Eui Seok, Chung • Phone/Fax : +82-32-623-5550 / +82-32-623-6667 1.2 Manufacturer • Company name : SEGI ELECTRONICD CO., LTD • Address : Chenjiapucun, Liaobu Town, Dongguan City, Guangdong Province, 523-408, P.R.China • Contact person Eui Seok, Chung • Phone/Fax : +82-32-623-5550 / +82-32-623-6667 1.3 Basic description of EUT • Product name : LF Transmitter • Model name : ANT-RFID-315 • Serial number : N/A • Frequency : TX : 20 kHz, RX : 315 MHz • Output power : 1 Channel • Modulation method : ASK • FCC Rule Part(s) : FCC CFR47 Part 15 Subpart C Section 15.209 • IC Rule Part(s) : IC RSS-Gen Issue3 2010 & RSS-210 Issue8 2010 • FCC classification : DCD / Part 15 Low Power Transmitter Below 1 705 kHz • IC classification : Licence-exempt Radio Apparatus(All Frequency Bands) Category II Equipment • Test period : May 11, 2013 to May 22, 2013 • Issuing date of report : May 28, 2013 • Place of test : Head office 824, B104, Anyang Megavalley, 799, Gwanyang-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-767, Korea Open area test site 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-825, Korea (FCC Registration Number : 337229) (FCC Conformity Assessment Body, Registration No: 608365) (IC Submission Number : 143881) (KCC Designation Number : KR0027) Page : 4 / 9 Report No. : RAPA13-O-340 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.209(Rev.0) Testing and Certification Laboratory 1.4 Electrical specification Item Specifications Product Name LF Transmitter Product Type One Way Antenna Size(mm) 115 x 38 x 15 (W x L x H) Power DC 12 V from Main Unit Transmit Frequency 20 kHz by Ferrite coil and Mylar condenser for RFID Receive Frequency 315 MHz by pattern antenna Modulation Method ASK 2. GENERAL INFORMATION OF TEST 2.1 Standard for measurement methods Applied Standard : FCC CFR47 Part 15 Subpart C, IC RSS-310 Issue8 Annex 3-2010 FCC IC Description of Test Limit Result 15.207 RSS-210 Conducted Emission(dBμV/m) See 15.207 N/A[note 1] 15.209 RSS-210 Radiated Emission(dBμV/m) See 15.209 Pass - RSS-Gen Occupied Bandwidth - 13.3 kHz Note1 : This equipment is supplied DC from main unit. 2.2 Description of EUT modification During the test, there was no mechanical or circuitry modification to improve any RF specification including spuriou…

Text truncated - open the document above for the full version.

SEGI LIMITED LF Transmitter ANT-RFID-315 It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup 1. Test Setup of Radiation (9 kHz ~ 30 MHz) SEGI LIMITED LF Transmitter ANT-RFID-315 It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup 2. Test Setup of Radiation (30 MHz ~ 300 MHz) SEGI LIMITED LF Transmitter ANT-RFID-315 It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup 3. Test Setup of Radiation (300 MHz ~ 1 GHz)
