VA5JA1000-2WSSL2Keyless Entry System

SEGI LIMITED

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Apr 16, 2013
Application Purpose: Original Equipment
Date of Application: Apr 16, 2013
Equipment Note: Keyless Entry System
Frequency Range: 910.92000000 - 919.08000000
Company: SEGI LIMITED
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

éàà Manuel de l’utilisateur AVERTISSEMENT FCC ID Number (US Only)IC ID Number (International Only) VA5JR1040-1WSSL7087A-1WR1040SSL VA5JR1040-2WSSL7087A-2WA1000SSL VA5JA1000-2WSSL7087A-2WA1000SSL2 VA5JA1000-2WSSL7087A-2WA1000SSL2 Remote & Antenna MA1000-2WAY2 MA1000-1WAY MR1040-2WAY MR1040-1WAY FCC ID (US seulement)IC ID (International seulement) VA5JR1040-1WSSL7087A-1WR1040SSL VA5JR1040-2WSSL7087A-2WA1000SSL VA5JA1000-2WSSL7087A-2WA1000SSL2 VA5JA1000-2WSSL7087A-2WA1000SSL2 Télécommande & Antenne MR1040-1WAY MR1040-2WAY MA1000-1WAY MA1000-2WAY2 T a ble o f C o n t e n ts FCC Radiation Exposure Statement for car remote control: The antenna(s) used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. FCC Radiation Exposure Statement for integral antenna module: The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. 5 Page Page 4 Introduction This is a state-of-the-art remote car starter system. The system is packed with advanced features such as priority access to the driver ੝s door (commodity feature). With its manyadvanced functions, this product will act as a remote starting device and security system. Using the remote control d@@r@a b@f RMw@r@QMw@r@ RMw@r@ R@c@led@i@T QMw@r@ Q@c@led@i@Q lock@O@panic unlock car@check@O@trunk start@O@stop@Z@ r@@@@@ n@Z@t@@@ L@@lock@L@@S L@@@start@O@stop N t@@@@@ start@O@stop@@@@QOR N t@@@@@@@@@@L@@@@@@@@@@@@@@@@@@@@@@@@@@@PNU@N {o@]@@L@o@]@@} Button(s) 0.5 Second 2.0 Second LOCKPANIC UNLOCKUNLOCK Car CheckTrunk Release Remote START / STOP Valet Mode ON / OFF Passive Arming ON / OFF Time Start ON / OFFLow Battery Start ON / OFF 7 Page Page 6 w@wL@h t@b@r Certain vehicles require windshield wipers and / or headlights circuits to become active while running under remote start. When leaving the vehicle,you must ensure that the windshield wipers and headlights switches are OFF. Leaving the windshield wipers ON, it could damage wipers when remote engine starts and the headlight switch ONon certain types of vehicles could cause them to remain ONeven after remote starter shutdown, resulting in a dead battery. 1. You may use a coin to separate the top and bottom section of the transmitter’s case. 2. 2-Way Transmitter - When inserting the battery (CR2450/620mAH), ensure the “+” terminal is on TOP, as illustrated. 3. 1-Way transmitter - Insert the 2 batteries in the poly bag (CR2016 x 2EA). For the 2-way remote: 1. Tap the button. The remote will beep once and display the icon. Then, tap the button within 3 seconds. The remote will beep once and display the icon. 2. Approximately 5 seconds later, the remote will confirm the remote starter ੝s activation by beeping three times and displaying the icon, and scrolls through the LED icons. 3. To stop the engine, tap the button for a 1/2 second. For the 1-way remote: 1. Tap the button. Then, tap the button within 3 seconds. 2. To stop the engine, tap the button for a 1/2 second. If your vehicle does not start at the first attempt, the system will shut down, wait a few seconds and try to start the engine again. There will be 3 start attempts before the system gives up. With the vehicle running remotely, tap the button to disarm the immobilizerand/or the OEM alarm and unlock the doors. Enter the vehicle and do the following: 1. Turn the ignition key to the IGNITION ON (RUN) position. (Do not turn the key to the STARTpositionwhile the engine is running. This would cause the starter motor to reengage.) 2. Press the brake pedal to disengage the remote starter unit. (Once the key is in the IGNITION ON position, vehicle is ready to run after pressing the brake pedal.) Note: In remote engine start status, engine activation will be off for the following reasons. - You press the brake pedal while thekey was not placed on IGNITION ON position. - You did not activate the engine within 30 seconds after opening the door. Remote Starting your VehicleVehicle Presets r@s d@@r@s@@N ⚦ ⚧⚨ ⚩ NOTE:When you press a button and the 2-way transmitter LED changes from blue to “RED”, it is time to replace the battery. 9 Page Page 8 Remote Starter Features v@m When your vehicle is in Valet Mode, the remote starter functionsare disabled. If the vehicle needs to be serviced, or if you park it indoors, the Valet Mode will prevent the engine from being remote-started by accident. Any of the following features will put your remote car starter into Valet Mode: Ignition Valet: This feature allows you to put your system into Valet Mode by using the ignition key. Remote Valet: This feature allows you to put your system into Valet Mode by using the transmitter. To put the system into Valet Mode: Ignition Valet: Insert your key into the ignition and turn the ignition on, then off (between ACC and ON), five times within 10 seconds. Remote Valet: Tap the and buttons simultaneously for a 1/2 second. The remote will beep once and display the and icons (2-way), and the parking lights of vehicle flash once. To take the system out of Valet Mode: Ignition Valet: Insert your key into the ignition and turn the ignition on, then off (between ACC and ON), five times within 10 seconds. Remote Valet: Tap the and buttons simultaneously for a 1/2 second. The remote will beep twice and …

Text truncated - open the document above for the full version.

Cover Letter(s)

Date: March 5, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. CY_Choi/ RAPA, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. CY_Choi / RAPA on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Name: Young il / President Company: SEGI LIMITED REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

External Photos

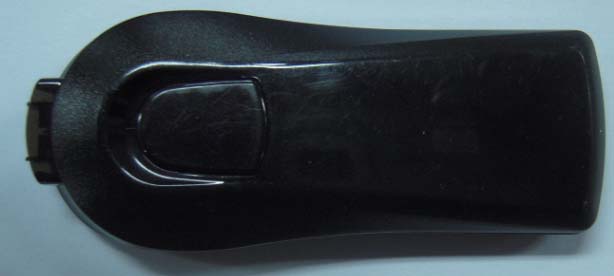

SEGI LIMITED Keyless Entry System MA1000_2WAY2 It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 3. External Photos of EUT 1. Top 2. Bottom

ID Label/Location Info

Internal Photos

RF Exposure Info

Page : 29 of 30 Report No. : RAPA13-O-126 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory 4. RF Exposure Compliance Requirement Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 Sൌ PG 4πR ଶ Where : S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (20cm) The Max Co nducted Peak Output Power is below; Channel Number Frequency Field strength at 3 meter Output power Power density [MHz] [dBμV/m] [V/m] [mW] [mW/cm 2 ] 1 910.92 114.8 0.550 91.2 0.018 153 13 915.00 114.7 0.543 89.1 0.017 740 25 919.08 114.8 0.550 91.2 0.018 153 Result: Complied with FCC/IC limit: 1mW/cm 2 / 10mW/cm 2

Test Report

Page : 1 of 30 Report No. : RAPA13-O-126 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory TEST REPORT Report Number RAPA13-O-126 Type of Equipment Keyless Entry System Model Name MA1000-2WAY2 FCC ID VA5JA1000-2WSSL2 IC Number 7087A-2WA1000SSL2 Applicant Name SEGI LIMITED Logo Address 1808, 18/F, Tower 2, Admiralty Centre, 18 Harcourt Rd., Admiralty, Hong Kong Manufacturer Name SEGI ELECTRONICS CO., LTD. Address Chenjiapucun, Liaobu Town Dongguan City, Guandong Province, 523-408, China Test period February 18, 2013 to March 03, 2013 Issuing date of report March 07, 2013 Total page 25 pages (including this page) SUMMARY The equipment complies with FCC Part 15.247: Operation within the bands 902 MHz to 928 MHz, 2 400 MHz to 2 483.5 MHz, and 5 725 MHz to 5 850 MHz. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass-production. Date : March 07, 2012 Date : March 07, 2012 Prepared and tested by Chang Young Choi Reviewed by Sukil Park Deputy General Manager /TCL of RAPA Executive Managing Director/TCL of RAPA Page : 2 of 30 Report No. : RAPA13-O-126 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory CONTENTS 1. GENERAL DESCRIPTION ................................................................................................................ 3 1.1 Applicant ..................................................................................................................................................... 3 1.2 Manufacturer ............................................................................................................................................... 3 1.3 Basic description of EUT ............................................................................................................................. 3 1.4 Electrical specification ................................................................................................................................. 4 2. General information of test ............................................................................................................. 5 2.1 Standard for measurement methods .......................................................................................................... 5 2.2 Description of EUT modification .................................................................................................................. 5 2.3 Description of test system configuration ..................................................................................................... 5 3. Measurement data ............................................................................................................................ 6 3.1 Radiated emission in restricted band .......................................................................................................... 6 3.2 Frequency separation ................................................................................................................................. 9 3.3 Number of hopping channels .................................................................................................................... 11 3.4 Occupied bandwidth .................................................................................................................................. 13 3.5 Average time of occupancy ....................................................................................................................... 17 3.6 Maximum peak output power .................................................................................................................... 20 3.7 Conducted emission and band edge ........................................................................................................ 24 4. RF Exposure Compliance Requirement ....................................................................................... 29 5. Test equipment list ........................................................................................................................ 30 Page : 3 of 30 Report No. : RAPA13-O-126 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory 1. GENERAL DESCRIPTION 1.1 Applicant • Company name : SEGI LIMITED • Address : 1808, 18/F, Tower 2, Admiralty Center, 18 Harcourt Rd., Admiralty, Hong kong • Contact person : Eui Seok, Chung • Phone/Fax : +82-32-623-5550 / +82-32-623-6667 1.2 Manufacturer • Company name : SEGI ELECTRONICD CO., LTD • Address : Chenjiapucun, Liaobu Town, Dongguan City, Guandong Province, 523-408, China • Contact person Eui Seok, Chung • Phone/Fax : +82-32-623-5550 / +82-32-623-6667 1.3 Basic description of EUT • Product name : Keyless Entry System • Model name : MA1000-2WAY2 • Serial number : N/A • Frequency : 910.92 MHz ~ 919.08 MHz • Output power : 25 Channel • Modulation method : FHSS • FCC Rule Part(s) : FCC CFR47 Part 15 Subpart C Section 15.247 • IC Rule Part(s) : IC RSS-210 Issue8 Annex 8-2010 • FCC classification : DSS / Part 15 Spread Spectrum Transmitter (FHSS) • IC classification : Annex 8 / Frequency Hopping and Digital Modulation Systems Operating in the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz • Test period : February 18, 2013 to March 03, 2013 • Issuing date of report : March 07, 2013 • Place of test : Head office 824, B104, Anyang Megavalley, 799, Gwanyang-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-767, Korea Open area test site 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-825, Korea (FCC Registration Number : 337229) (IC Submission Number : 143881) (KCC Designation Number : KR0027) Page : 4 of 30 Report No. : RAP…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Youngil Chang

[email protected](852)26826432Fax: (852)26826422

Test Firm

LTA Co.,Ltd.Michael AHN

[email protected]82-31-323-6008Fax: 82-31-323-6010

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	910.92 MHz - 919.08 MHz	31.00 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
