VA5JA1000-2WSSL3Keyless Entry System

2-WAY REMOTE STARTING SYSTEM WITH 1 BUTTONS FOR AUTOMATIC TRANSMISSION RED301-2WAY / MA1000-2WAY3 User Guide For Key WARNING It is the responsibility of the vehicle operator to ensure that their vehicle is parked in a safe and responsible manner. 1. When leaving the vehicle, it is the user’s responsibility to ensure that the gearshift lever is in “Park” in order to avoid accidents upon remote starting. (Note: Make sure that the automatic vehicle cannot start in “Drive”.) 2. It is the user’s responsibility to ensure that the remote starter is disabled or put into valet mode before servicing. FCC COMPLIANCE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void user’ s authority to operate this device. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Using the remote control Description of Remote Appearance 2Way Remote 1Way Remote Button Functions Button Press buttons for LED Function Press 1time Lock Press 2 times Press 2times x 2 Unlock driver’s door Unlock all doors 2 seconds Remote start/stop Note: You make sure press button only after LED lighting ends to activate each feature properly. Lock, Unlock and Remote Starting icon is displaying with Two LED color. START/STOP: Note : Remote Engine Start - Press the button 1 time and then, within 3 seconds, press and hold the button for 2 seconds Remote Engine Stop - Press the button for 2 seconds Lock/Unlock Note: Press the button 1 time on the remote control transmitter to lock the vehicle. Press the button 2 times to unlock the driver’s door, 2 additional times to unlock all doors. Lock, Unlock and Remote Starting icon is displaying with One LED color. Vehicle Presets Heater When leaving the vehicle it is recommended to preset the accessory controls in preparation for the Next remote start. Settings for the blower motor(fan),front and rear (if equipped),should not be left on HIGH. It is recommended to leave the settings on LOW or MEDIUM instead. Windshield Wipers, Headlights Certain vehicles require the windshield wipers and headlights circuits to become energized while running under remote start. When leaving the vehicle you must ensure that the windshield wipers and headlights switches are OFF. Leaving the headlights switch ON on certain types of vehicles could cause them to remain ON even after remote starter shutdown, resulting in a dead battery. Leave Windshield Wipers off to avoid damage wipers/motor with remote start. Changing the Remote Control Transmitter Battery Remote transmitter should be provided with two 3-volt lithium battery (Model: CR-2025). Please pay attention that with low battery LED in the remote might not work and the remote start distance might get shorter. Batteries can be purchased at any electronic device stores. Following the instructions below to change the remote control battery 1. You may use a coin to pry the remote control halves apart 2. Remove the old battery and replace with a new one 3. Be sure to observe the (+) sign when inserting the new battery. 4. Before assembling transmitter case, you should test the remote control. Note: LED icon of 2way transmitter indicates firstly blue color and then change to “RED” color when you press any button. In this case, it’s time to change CR2025 battery newly Description of Antenna Appearance 2Way Antenna Antenna Harness Note: Use the power of the antenna car battery 12volts. Remote-Starting your Vehicle Remote-Starting For the 2-way remote: 1. Press the button one time. The remote will beep once and display the Lock icon. Then, press the button within 2 seconds. The remote will beep once and display the KEY icon. 2. 5 seconds later, the remote will activate starter. The Key icon will be shown with 3 different tones of beeping then the LED Icon will be scrolled.. For the 1-way remote: 1. Press button one time and Lock LED will be displayed. Then press button for 2 seconds within 3 seconds. 2. Remote Stop - Press button for 2 seconds. If your vehicle does not start at the first attempt, the system will shut down, wait a few seconds and try to start the engine again. There will be 3 start attempts before the system gives up. Note: Please make sure press to button only after LED lighting ends to activate each feature properly. Driving Off (Steps from Remote Start to Driving) With the vehicle running remotely, press button 2 times to disarm the OEM Starter Kill and/or the OEM alarm and unlock the doors. Enter the vehicle and do the following: 1. Turn the ignition key to the IGNITION ON (RUN) position. (Do not turn the key to the CRANK position while the engine is running. This would cause the starter motor to reengage. Disarm the remote starter mode by pressing the foot brake) 2. Press the brake pedal to disengage the remote starter unit. With the vehicle key is in the IGNITION ON position, pr…

Text truncated - open the document above for the full version.

SEGI LIMITED UNIT F, 7/F, CENTURY INDUSTRIAL CENTER, 33-35 AU PUI WAN STREET, SHATIN, NT, HONGKONG, CHINA Date: September 12, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize KT Kang of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by KT Kang of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; SEGI LIMITED UNIT F, 7/F, CENTURY INDUSTRIAL CENTER, 33-35 AU PUI WAN STREET, SHATIN, NT, HONGKONG, CHINA h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Youngil Chang / CEO SEGI LIMITED REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

SEGI LIMITED UNIT F, 7/F, CENTURY INDUSTRIAL CENTER, 33-35 AU PUI WAN STREET, SHATIN, NT, HONGKONG, CHINA Date: September 12, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: VA5JA1000-2WSSL3 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT Exhibit Type File Name Part List CONF APPENDIX_ Part List_ MA1000-2WAY3.PDF Schematics Diagram(s) CONF APPENDIX_ Schematics_ MA1000-2WAY3.PDF Block diagram CONF APPENDIX_ Block diagram_ MA1000-2WAY3.PDF Operation description CONF APPENDIX_ Operation description_ MA1000-2WAY3.PDF SHORT-TERM Exhibit Type File Name PCB layout CONF APPENDIX_ PCB layout_ MA1000-2WAY3.PDF Transmission Data Format CONF APPENDIX_ Transmission Data Format_ MA1000-2WAY3.PDF A request for short-term confidentaility duration is 45 days. And the above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Youngil Chang /CEO SEGI LIMITED

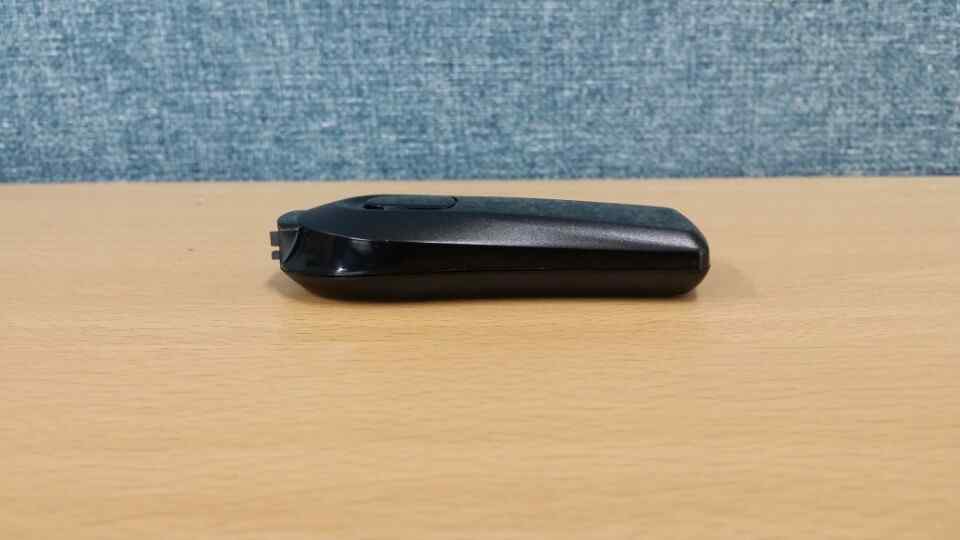

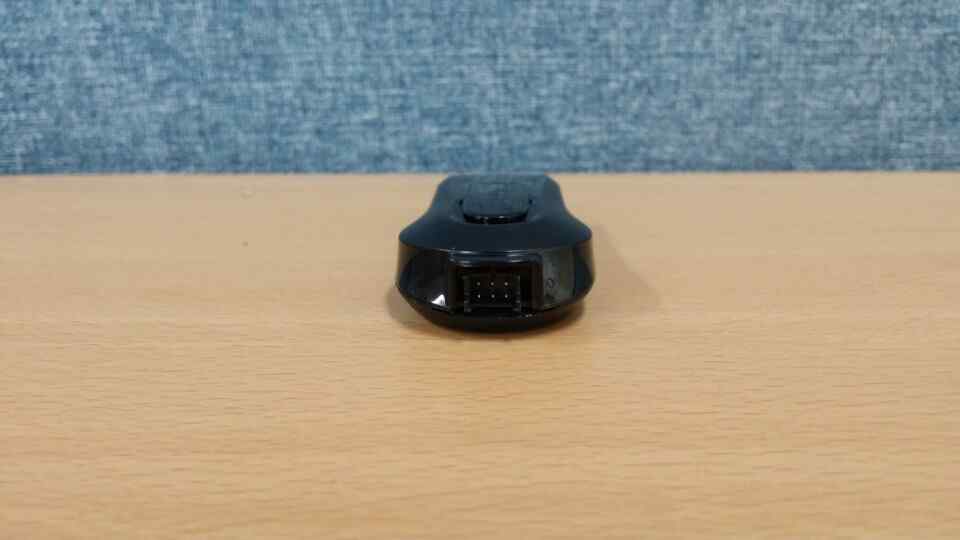

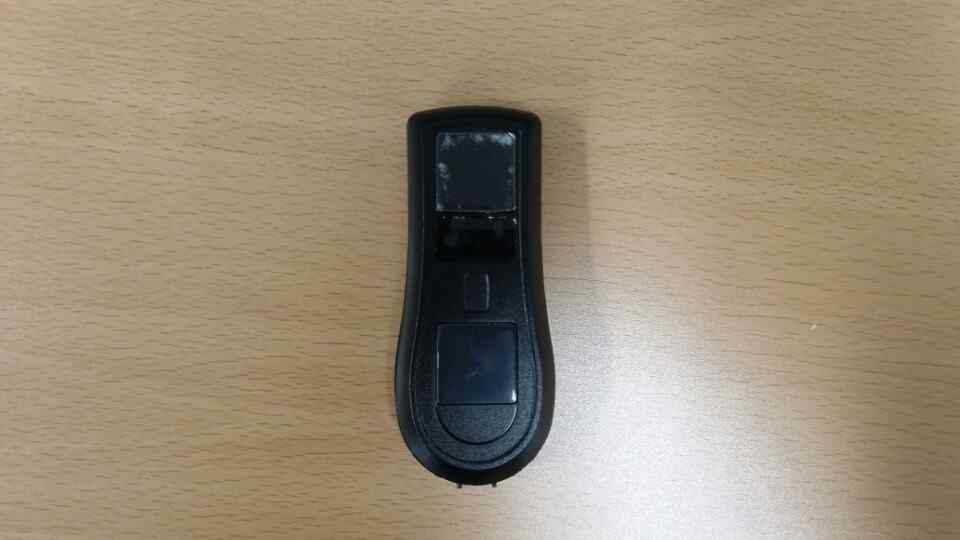

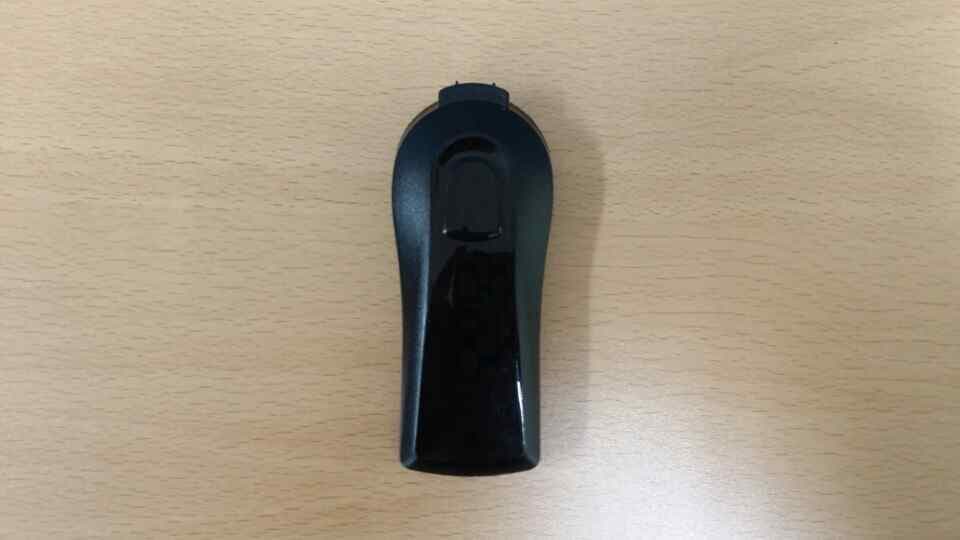

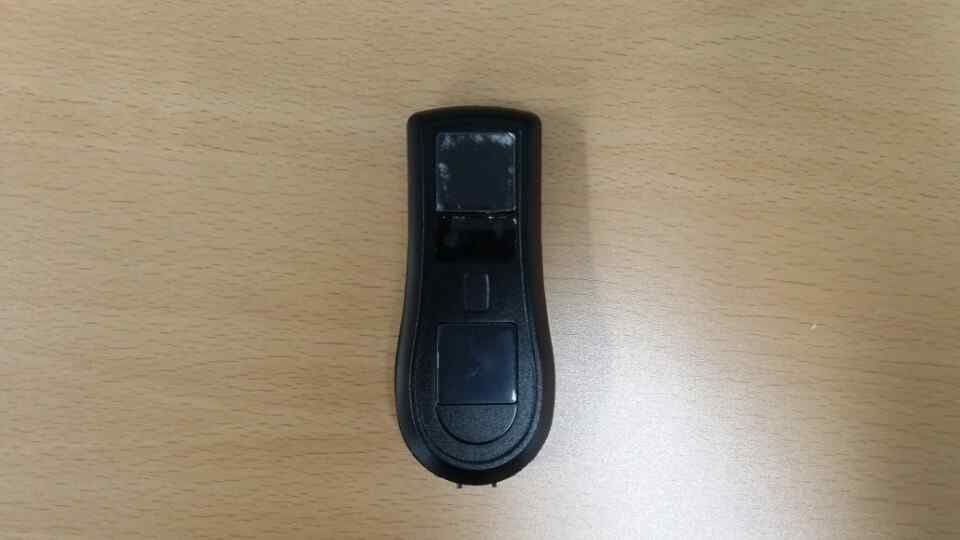

External photos Model: MA1000-2WAY3 Page 1 of 3 External photos Model: MA1000-2WAY3 Page 2 of 3 External photos Model: MA1000-2WAY3 Page 3 of 3

Label and Location Model No.: MA1000-2WAY3 Page 1 of 1 SEGI LIMITED Model: MA1000-2WAY3 FCC ID: VA5JA1000-2WSSL3 IC: 7087A-2WA1000SSL3 Made In China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

< FCC ID : VA5JA1000-2WSSL3 / IC Number : 7087A-2WA1000SSL3 > Transmission Data Format Data Format LEADING BIT0 BIT1 END 1Word Data Format 0.800msec0.560msec5.440 ~ 8.960msec0.640 ~ 0.960msec 6.960 ~ 10.160msec DUMMY DATASYNCDATA8BIT CRC BIT0 X 10LEADING X3BIT0(BIT0 OR BIT1) X 72(BIT0 OR BIT1) X 8 ●●●●●●●●● Content - 1-Word Data Time Length : 6.960msec ~ 10.160msec - If operating of button, transmit 1 channel - If operating of paging, transmit 25 channels - 1 Channel is comprised of 37 ~ 54 words - Data Time Length of 1 Channel: Average 380msec 40 / 120us 40us 40/80us40/40us

Internal photos Model No.: MA1000-2WAY3 Page 1 of 2 Antenna Internal photos Model No.: MA1000-2WAY3 Page 2 of 2 N/A

RF exposure According to FCC part 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b) Limits for Maximum Permissible Exposure (MPE) f= frequency in ㎒ Friis transmission formula: Pd = (Pout×G)/(4×pi×R 2 ) Where, Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, f/1500 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Results Channel Frequency (㎒) Peak output power (㏈m) Antenna gain (㏈i) Power density at 20 ㎝(㎽/㎠) Limit (㎽/㎠) Low 910.920 16.11 -9.153 0.000 44 0.61 Middle 915.000 15.95 -9.153 0.000 42 0.61 High 919.080 15.93 -9.153 0.000 42 0.61 Frequency range (㎒) Electric field strength(V/m) Magnetic field strength (A/m) Power density (㎽/㎠) Average time (A) Limits for Occupational / Control Exposures 300 – 1 500 -- -- f/300 6 1 500 - 100000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300 – 1 500 -- -- f/1500 6 1 500 – 100 000 -- -- 1 30

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0047 Page (2 ) of (34) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Revision history Revision Date of issue Test report No. Description - 2014.10.07 KES-RF-14T0047Initial KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0047 Page (3 ) of (34) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 TABLE OF CONTENTS 1. General information ................................................................................................................................... 4 1.1. EUT description ......................................................................................................................... 4 1.2. Frequency/channel operations .................................................................................................... 5 1.3. Information about derivative model ........................................................................................... 5 2. Summary of tests ........................................................................................................................................ 6 3. Test results .................................................................................................................................................. 7 3.1. Radiated restricted band and emissions ...................................................................................... 7 3.2. Conducted band edge and out of band emissions ..................................................................... 15 3.3. 20 ㏈ bandwidth & 99 % occupied bandwidth ...................................................................... 22 3.4. Output power ............................................................................................................................ 25 3.5. Carrier frequency separation .................................................................................................... 28 3.6. Number of hopping frequency ................................................................................................. 30 3.7. Time of occupancy ................................................................................................................... 31 Appendix A. Measurement equipment .......................................................................................................... 33 Appendix B. Test setup photo ........................................................................................................................ 34 KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0047 Page (4 ) of (34) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 1. General information Applicant: SEGI LIMITED Applicant address: UNIT F, 7/F, CENTURY INDUSTRIAL CENTER, 33-35 AU PUI WAN STREET SHATIN, NT, HONGKONG, CHINA Test site: KES Co., Ltd. Test site address: C-3701, Simin-daero 365-40, Dongan-gu, Anyang-si, Gyeonggi-do,431-716, Korea 473-29, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea FCC rule part(s): 15.247 Model: MA1000-2WAY3 FCC ID: VA5JA1000-2WSSL3 IC Certification: 7087A-2WA1000SSL3 Test device serial No.: Production Pre-production Engineering 1.1. EUT description Equipment under test Keyless Entry System Frequency range 910.92 ㎒ ~ 919.08 ㎒ Modulation technique FHSS Number of channels 25 Antenna specification Antenna type : Helical Antenna // Peak gain: -3.62 ㏈i Power source DC 12.0 V 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): The system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Pseudorandom frequency hopping sequence The channel is represented by a pseudo-random hopping sequence hopping through the 25 RF channels. Equal hopping frequency use All channels are used equally on average. Example of a 79 hopping sequence in data mode: 18, 22, 17, 14, 11, 15, 10, 05, 02, 06, 03, 09, 13, 08, 04, 01, 07, 12, 16, 21, 25, 20, 24, 19, 23 KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0047 Page (5 ) of (34) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 1.2. Frequency/channel operations Ch. Frequency (㎒) 01 910.92 . . . . 13 915.00 . . . . 25 919.08 1.3. Information about derivative model N/A KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0047 Page (6 ) of (34) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 2. Summary of tests Reference Test descrip…

Text truncated - open the document above for the full version.

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0047 Page (34 ) of (34) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Appendix B. Test setup photo Radiated spurious
