VA5JA900R-1A433LF Transmitter

alarm and remote start combo, and Drone DR-2000. Replacing your EZ100-R Battery Statement : The term "IC" before the radio certification number only signifies that Industry Canada technical specifications were met. CAUTION : The User that modifications to the unit may void the user's authority to operate the unit. This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions; (1) This device may not cause harmful interference. (2) This device may accept any interference received, including interference that may cause undesired operation. CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device. To maintain compliance with RF energy exposure guidelines, the antenna used for this transmitter must be maintained a separation distance of at least 20cm from the user body when transmitting. Co-located or operated in conjunction with any other antenna or transmitter is prohibited. Siren Chirps and/or Parking Light Flashes Function Locks/Arms and Unlocks/Disarms your vehicle. Half Second 1 - On 2 - Off Turns Automatic Unlock on and off. 8 Seconds FT-EZGO Quick Setup Card Your FT-EZGO is designed to operate with a Firstech compatible alarm, remote start, Thank you for purchasing FT-EZGO system from Firstech. This system will automatically or usat 888-820-3690 Monday through Friday 8 AM to 5 PM PST. setup your FT-EZGO. If you have any questions please contact your place of purchase unlock and remotely lock and unlock your vehicle. This guide will help you properly you can only use 2 other remotes plus your EZ100-R on your system. FT-EZGO system includes 1 remote (EZ100-R) and 1 antenna (ANT-RFID). Also note Your system has between 5 and 10 feet of range before your vehicle will Unlock/Disarm. unlock/disarm. FT-EZGO will wait a minimum of 15 seconds before it will initiate the automatic Button image 1 - Lock/Arm 2 - Unlock/Disarm Trunk PopTap Then Hold your remote case near where the keychain loop is. Your remote requires 1 CR2032 battery. It can be replaced by carefully prying apart Duration 2 - Chirps and/or Flashes Nous vous remercions d’avoir acheté le système FT-EZGO de Firstech. Ce système déverrouillera automatiquement et verrouillera et déverrouillera à distance votre véhicule. Ce guide vous aidera à programmer correctement votre FT-EZGO. Si vous avez des questions, contactez votre détaillant ou contactez-nous au 888-820-3690 du lundi au vendredi de 8h00 à 17h00, heure normale du Pacifique. Votre FT-EZGO a été conçu pour fonctionner avec une alarme, un démarreur à distance, DR-2000. Le système FT-EZGO inclut 1 télécommande (EZ100-R) et 1 antenne (ANT-RFID). Veuillez aussi noter que vous pouvez utiliser seulement 2 télécommandes additionnelles en plus de votre EZ100-R sur votre système. Votre système a entre 5 et 10 pieds de portée avant le déverrouillage/désactivation de votre véhicule. FT-EZGO attendra un minimum de 15 secondes avant d’initier le déverrouillage/désactivation automatique. Remplacement de la batterie de votre EZ100 Votre contrôle à distance nécessite 1 batterie CR2032. Vous pouvez la remplacer en ouvrant soigneusement la boite de la télécommande près de la boucle pour le porte-clé. FonctionDuréeButton image Carte de Mise en Route Rapidu FT-EZGO un combo alarme et démarreur à distance compatibles avec Firstech et avec Drone Active et désactive le déverrouillage automatique 8 Seconds Demi-seconde Verrouille/active et dé verrouille/désactive votre véhicule. Bips de la sirène et/ou clignotements des feux de stationnement 1 - Verrouille/active 2 - déverrouille/dé sactive 2 - Bips et/ou clignotements Ouvre le coffre Pressez et ensuite tenez 1 - Active 2 - Désactive lock/arm and unlock/disarm the vehicle when you press the button on the EZ100-R. Installing The FT-EZGO Step 1 : Flash your CM6 Series control module for FT-EZGO compatible firmware. Step 2 : Set Option 1-14 to Setting 3 Step 3 : Connect included 6 Pin to 6 Pin with Ground Wire to control module. If connecting to a 4 Pin to 4 Pin antenna, use the included 6 Pin to 4 Pin adapter. Step 4 : Connect the ground wire from the included 6 Pin to 6 Pin cable to vehicle’s ground. Warning: Failure to connect this wire WILL result in damage to your FT-EZGO antenna (ANT-RFID). Step 5 : Connect your antenna to the ANT-RFID. This is the blue 6 Pin port. If you have a 4 Pin antenna cable, use the included 4 Pin to 6 Pin adapter. Step 6 : Find a spot to mount your ANT-RFID on the windshield. This is recommended for optimum range. For more specific mounting location information visit us at www.firstechonline.com under the Authorized Tech section document titled: “FT-EZGO Recommended Mounting Locations.” Step 7 : Program your EZ100-R and additional RF Kit remotes to the control module. (Maximum 3 Remotes including EZ100-R). You are now ready to test your FT-EZGO system. Testing The FT-EZGO Step 1 : Turn the auto unlock feature by holding the button on the EZ100-R for at least 8 seconds. You will get one parking light flash and/or siren chirp. Hold the button again for at least 8 seconds and you will get two parking light flashes and/or chirps showing that the auto unlock feature is off. Step 2 : Arm/Lock the vehicle and wait at least 15 seconds. Step 3 : Walk up to the vehicle and it will automatically unlock/disarm. The FT-EZGO from Firstech will unlock/disarm the vehicle when in range. It will also FT-EZGO Installer Setup Card Le FT-EZGO de Firstech déverrouillera/désactivera le véhicule quand il est à portée. Aussi, il verrouillera/activera le véhicule quand vous pressez le bouton sur la EZ100-R. Installation du FT-EZGO Étape 1 : Cherchez dans votre module de contrôle de la série CM6 pour un micro logiciel compatible avec le FT-EZGO. Étape 2 : Ajustez l’option 1-14 au réglage 3. Étape 3 : Connectez le 6 connecteurs à 6 connecteurs inclus avec connexion à terre au module de contrôle. Si vous le connectez …

Text truncated - open the document above for the full version.

Date: August 26, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. CY_Choi/ RAPA, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. CY_Choi / RAPA on our behalf shall have the same effect as acts of our own. I, t he u ndersigned, h ereby cert ify that we are not su bject to a denial o f f ederal benefits, th at includes FCC b enefits, pursuant to Section 5301 of the Anti-Drug Abuse Act o f 1988, 21 U.S.C. 853(a). In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Name: Young il Chang/ President Company: SEGI LIMITED REMARK: 1. This aut horization letter wi ll be sent along wi th yo ur application wh en fi ling wi th t he Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

SEGI LIMITED Room 1808, 18/F, Tower 2, Admiralty Center, 18 Harcourt Road, Admiralty, Hongkong E-MAIL : [email protected] Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section pertaining to confidential material SEGI LIMITED would like the following documents regarding this submission for FCC ID : VA5JA900R-1A433 to be kept confidential. 1. Block Diagram 2. Schematic Diagram 3. Circuit Description 4. Internal Photo The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Date 12th of AUGUST , 2011 By Young il Chang Title : President ============================================================

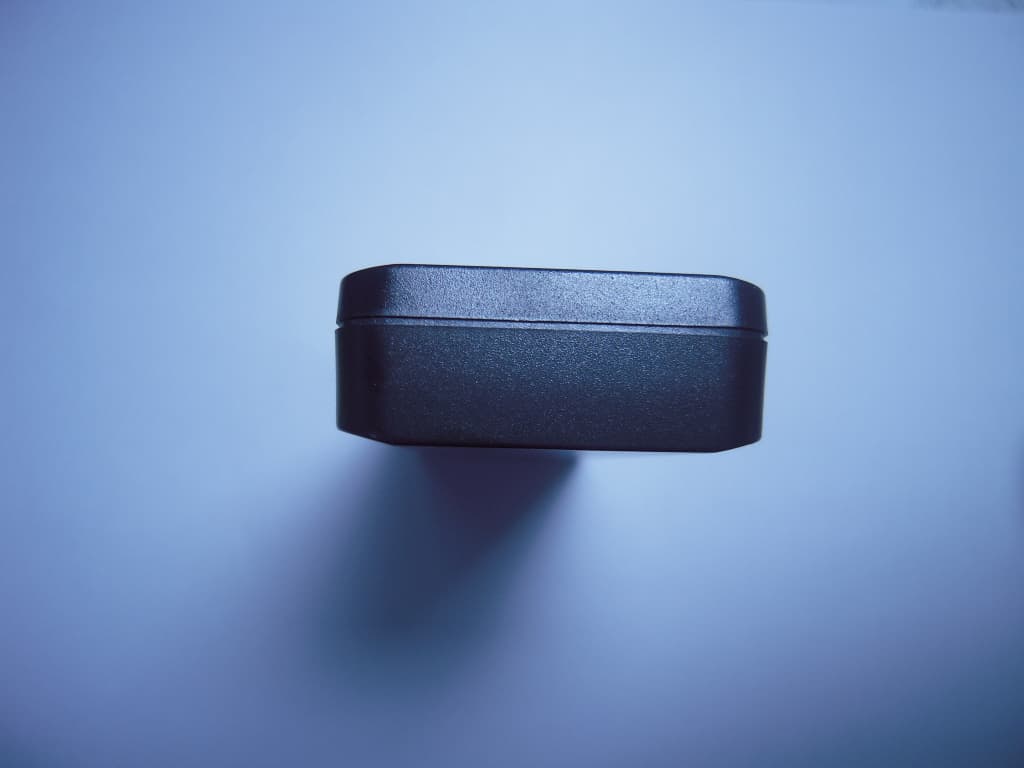

SEGI LIMITED LF Transmitter MA900R It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 1. Front SEGI LIMITED LF Transmitter MA900R It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 2. Back SEGI LIMITED LF Transmitter MA900R It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 3. Top Side SEGI LIMITED LF Transmitter MA900R It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 4. Bottom Side

SEGI LIMITED LF Transmitter MA900R It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 2. FCC ID Label and Location

SEGI LIMITED LF Transmitter MA900R It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209Rev.0) Testing and Certification Agency Appendix 4. Internal Photos of EUT 1. Front SEGI LIMITED LF Transmitter MA900R It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209Rev.0) Testing and Certification Agency Appendix 4. Internal Photos of EUT 2. Back

VA5JA900R-1A433 Circuit Descriptions. It is used to keep track of time, to provide a stable clock signal for digital integrated circuits, and to stabilize frequencies for LF transmitter. Block2 : The micro-controller. It generate LF clock and signal, and transmit that to trigger and flip-flop respectively. Block3 : That part of the circuit modulates LF clock and signal. Block4 : These chip amplify clock and data signal, and transmit that to LC resonant circuit. Block5 : LF antenna transmitting LF signal. It consist of Ferrite core which is operated as Inductor and Mylar condenser which is operated as capacitor. Both resonate at 20kHz, and transmit LF signal by making magnetic field. Block6 : RF pattern antenna receiving RF signal. This antenna is made of pattern on PCB and receive RF signal, and transmit that to Super-regeneration circuit to demodulate. Block7 : Super-regeneration circuit. It amplifies the received signal after demodulating. Block8 : Phase-Compensator. The op-amp is used for comparison both input signal, and operate when both input signals are same to stabilize signal. The output signal flow into MCU. Block1 : The Resonator.

Page : 2 of 9 Report No. : RAPA11-O-313 It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency CONTENTS Page 1. General description of EUT 3 1.1 Applicant 3 1.2 Manufacturer 3 1.3 Basic description of EUT 3 1.4 Technical specification of EUT 4 2. General information of test 5 2.1 Standard for measurement method 5 2.2 Description of EUT modification 5 2.3 Test configuration 5 3. Measurement data 6 3.1 Radiated Emission 6 4. List of measuring equipments 9 Appendix 1 : Test Setup Photos Appendix 2 : FCC ID Label and location Appendix 3 : External Photos of EUT Appendix 4 : Internal Photos of EUT Appendix 5 : Block Diagram Appendix 6 : Schematics Appendix 7 : Parts list Appendix 8 : Antenna Specification Appendix 9 : Operational Description Appendix 10 : User’s Manual Page : 3 of 9 Report No. : RAPA11-O-313 It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency 1. General description of EUT 1.1 Applicant • Company name : SEGI LIMITED • Address : Room 1808, 18/F, Tower 2, Admiralty Center, 18 Harcourt Rd., Hongkong • Contact person : Eui Seok, Chung • Phone/Fax : +82-32-623-5550 / +82-32-623-6667 1.2 Manufacturer • Company name : SEGI ELECTRONICS CO., LTD. • Address : Chenjiapucun, Liaobu Town, Dongguan City, Guandong Province, China • Contact person : Eui Seok, Chung • Phone / Fax : 82-32-623-5550 / 82-32-623-6667 1.3 Basic description of EUT • Product name : LF Transmitter • Model name : MA900R(U.S.A.) / ANT-RFID(Canada) • Serial number : Not available(Proto Type) • Frequency : TX : 20 kHz, RX : 433.92 MHz • Channel number : 1 Channel • Modulation method : ASK • FCC Rule Part(s) : FCC CFR47 Part 15 Subpart C Section 15.209 • IC Rule Part(s) : IC RSS-Gen Issue3 2010 & RSS-210 Issue8 2010 • FCC classification : DCD / Part 15 Low Power Transmitter Below 1 705 kHz • IC classification : Licence-exempt Radio Apparatus(All Frequency Bands) Category II Equipment • Date of test : July 18, 2011 to August 25, 2011 • Date of issue : August 26, 2011 • Place of test : Head office C-3601, Dongil Technotown, 889-1, Gwanyang-dong, Dongan-gu, Anyang-si, Gyeonggi-do, Korea, 483-060 Open area test site 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-825 (FCC Registration Number : 337229) (IC Submission Number : 143881) (KCC Designation Number : KR0027) Page : 4 of 9 Report No. : RAPA11-O-313 It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency 1.4 Technical specification of EUT Product Name LF Transmitter Product Type One Way Antenna Size(mm) 115 x 38 x 15 (W x L x H) Power DC 12 V from Main Unit Transmit Frequency 20 kHz by Ferrite coil and Mylar condenser for RFID Receive Frequency 433.92 MHz by pattern antenna Modulation Method ASK Page : 5 of 9 Report No. : RAPA11-O-313 It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency 2. General information of test 2.1 Standard for measurement methods Applied Standard : FCC CFR47 Part 15 Subpart C, IC RSS-210 Issue 8 2010 FCC IC Description of Test Limit Result 15.207 - Conducted Emission(dBμV/m) Various N/A[note 1] 15.209 RSS-210 Radiated Emission(dBμV/m) Various Pass Note1 : This equipment is supplied DC from main battery unit. 2.2 Description of EUT modification During the test, there was no mechanical or circuitry modification to improve RF and spurious characteristic, and any RF and spurious suppression device(s) was not added against the device tested. 2.3 Test configuration • Type of peripheral equipment used Description Model Name Serial No. Manufacturer FCC ID EUT MA900R N/A SEGI LIMITED VA5JA900R-1A433 Main Unit MM1090 N/A SEGI LIMITED - • Type of cable used Device from Device to Type of Cable Cable Number Length Main Unit EUT Normal - 1 m Page : 6 of 9 Report No. : RAPA11-O-313 It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency 3. Measurement data 3.1 Radiated Emission 3.1.1 Definitions A field strength emission is emission from the equipment when transmitting into a non- radiating load over fundamental frequency and frequencies that are outside an occupied band sufficient to ensure transmission of information of required quality for the class of communications desired. 3.1.2 Specification FCC Rules Part 15 Subpart C Section 15.209 IC Rules RSS-Gen Issue3 2010 and RSS-210 Issue8 2010 3.1.3 Measurement method ANSI Standard C63.4-2009 8.3 3.1.4 Set-Up 3.1.5 Test equipment list Equipment Model Name Manufacturer EUT MR1060 SEGI LIMITED Spectrum Analyzer N9020A Agilent Loop Antenna EMCO 6502 EMCO Bi-conical Antenna VHA9103 Schwarzbeck Log Periodic Antenna VULP9118A Schwarzbeck Test Receiver Turn Table Antenna EUT Page : 7 of 9 Report No. : RAPA11-O-313 It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency 3.1.6 Test procedure The EUT is placed on a turntable, which is 0.8 meter high above ground. The turntable rotates 360 degrees to determine the position of the maximum emission level. EUT is set 3.0 meters away from the receiving antenna, loop antenna and broadband antenna, which is mounted on an antenna mast. The antenna moved up and down between 1 meter and 4 meters to find out the maximum emission level form the EUT. Both horizontal and vertical polarizations of the antenna are set on measurement. In order to find out the maximum emission levels, all of the EUT location were manipulated according to ANSI 63.4 during the radiated emission measurement. The EUT was tested in 3 orthogonal planes and worst case was reported. The bandwidth of test receiver is set at 200 Hz …

Text truncated - open the document above for the full version.

SEGI LIMITED LF Transmitter MA900R It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup 1. Test Setup of Radiation (9 kHz ~ 30 MHz) SEGI LIMITED LF Transmitter MA900R It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup 2. Test Setup of Radiation (30 MHz ~ 300 MHz) SEGI LIMITED LF Transmitter MA900R It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup 3. Test Setup of Radiation (300 MHz ~ 1 GHz)
