VA5JR901-2WSSCAR Alarm transceiver

2W901R-SS (USER’S GUIDES) Remote FCC ID Number IC ID Number 2W901R-SS VA5JR901-2WSS 7087A-R901WSS Statement : The term IC before the radio certification number only signifies that Industry Canada technical specifications were met. CAUTION : The User that modifications to the unit may void the users authority to operate the unit This device complies with Part 15 /RSS-GEN of the FCC/IC rules. Operation is subject to the following conditions; (1) This device may not cause harmful interference. (2) This device may accept any interference received, including interference that may cause undesired operation. CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate this device. This device can’t be co-located with other transmitter as the RF exposure statements. 2 I. Button Functions If you install Starter only or Alarm only, your functionality w ill be limited accordingly. Alar m/Starter Combo units will have all of the functions listed hereunder . Some of the above button functions require additional programming by the installer. Here is a list of options that you may want to review before installation. These are features that may not be normally set up at the time of installation. Therefore, there may be extra charge for these programming. Please noti fy your installer if you would like some of these features. Some of these features require extra installation. You can match the function from the above menu with the o ption of the below menu by finding the corresponding starred numbers. Example: Valet Mode Function (*2) matches Option 3-10 (*2). Press once then Press twice then Press three times then 0.5 second Arm AUX #1 Drive Lock On/Off 4 seconds Panic 0.5 second AUX #2 Turbo Timer On/Off 2 seconds AUX #5 0.5 second Turn On Backlight AUX #3 2nd Car On/Off Valet On/Off 2 seconds Trunk AUX #6 0.5 second Car Check Run time extender AUX #4 Timer Start On/Off 2 seconds Start On/Off Aux #7 0.5 second Function 5 seconds Button Lock On/Off 10 secconds Power On/Off 0.5 second Siren On/Off 2 seconds Shock On/Off 0.5 second 2 seconds Option #1 0.5 second 2 seconds Option #2 0.5 second Passive Arming On/Off 2 seconds Remote Menu Double tap button Extended button function Disarm Normal button Button 3 Option Number Feature Setting Applicable To Default(I) Optional(II) Optional(III) Optional(IV) Alarm/Starter Starter Alarm 1-3 Driver's priority unlock Off On V V V 1-6 Reservation Lock (Manual transmission) Locks When Reservation Mode is Set Does Not Lock When Reservation is Set Reservation Sets 10 Seconds After the Last Door is Closed V V 1-7 (*7) Unlock / Disarm With Trunk Release Unlock, Factory Disarm, and Trunk Release Factory Disarm, Trunk Release Only Trunk Release Only V V V 1-8 Locking while in Passive Arming Passive locking w/ Passive Arming No Passive Locking w/ Passive Arming V V V 1-9 (*3) Ignition controlled door locks Off On RPM Locks (Tach Sensing Mode Only) V V V 1-10 Auto Relock (If a door is not opened within this amount of time.) Off 30 sec 60 sec 5 min V V V 2-2 (*5) Turbo mode. Off 2 Min 1Min 4 Min V V 2-5 (*4) Cold Start with Thermister Assembly Off On V V 2-6 (*4) Timer Start, or, Minimum Interval Between Cold Starts 3 Hour (4 minute runtime, double for Diesel) 1.5 Hour (4 minute runtime, double for Diesel) Reservation (Runtime 2-7) 24 Hour Repeat with Cold Starting of 2-8 (Runtime 2-7) V V 2-7 Remote Start Runtime 15 Min 25 Min 45 Min 3 Min V V 2-8 (*4) Temperature of Cold Starting Off -10° C / 14° F -5° C / 23° F 0° C / 32° F V V 2-9 (*4) Temperature of Hot Starting Off 30° C / 86° F 35° C / 95° F 40° C / 104° F V V 2-11 (*6) Turbo, Remote Start Runtime Extension w/ #1 for 2 seconds No Yes V V 3-1 Parking lights While Remote Started Constant Output Flashing Output Off V V 3-4 Starter-Kill relay. Anti-Grind Anti-Grind + Starter Kill Anti-Grind + Passive Starter Kill V V 3-5 (*8) Anti-Jacking Starter-kill Ignition-Kill (no Anti-Grind) Auto kill (Auto-door locks Off) Canadian Remotes w/ AUTO Function Only Auto kill (Auto-door locks On) Canadian Remotes w/ AUTO Function Only V V 3-6 Factory Alarm Option Off On (4200DX Only) V 3-7 Siren Duration (Upon Alarm Trigger) 30 sec 60 sec 120 Sec Chirps for 20 seconds V V 3-8 Horn Output On Double Lock Only On Lock and Unlock On Lock, Unlock, and Start On Double Lock and Start V 3-10 (*2) Valet Key 5 times, or Remote (I+III) while Ignition is On Key 5 times or Remote (I+III) Secure Valet (Default code 3,3) V V V 4-5 (*1) Secure Aux Output (1 and 2 Only) On Off V V V 4 1. I for 0.5 Seconds – Lock/Unlock – Tapping this button for a split second will lock/arm and unlock/disarm your CompuStar system. 2. I for 2.5 Seconds – Auto Mode is activated (Auto Icon shows up) or Remote Start Run Time is reset during remote start. 1) Auto Mode: There are 3 different Auto Modes. A. Auto Mode 1 – Low Power, Auto Icon On. When holding button I for 2.5 seconds, Auto Mode engages on the low power setting. Once you go out of range of your vehicle the system will automatically lock and arm. Once you come back into range, your system will automatically unlock and disarm your Co mpuStar. B.. Auto Mode 2 – High Power, Auto Icon flash. This will increase the range of auto arms and disarms. C. Auto Mode 3 – High Power, Auto icon flash rapidly. Same as 2, except: If you remain on the border of range between your remote and vehicle and your CompuStar automatically locks and unlocks, a fail safe will engage. Once your system Auto locks and unlocks tw ice in a 2 minute period then Auto Mode will cancel. You will have to tap button I to unlock yo ur CompuStar and turn Auto Mode back on. When you hold button I for a fourth time the Auto icon will turn off and Auto Mode is disabled. 2) If your vehicle is running with remote start, you can Reset Remote Start Run time by pressing button I for 2.5 secon ds. 3. Tapping button II or III will activate Aux 1 or Aux 2, which can be used to activate sid…

Text truncated - open the document above for the full version.

ATTESTATION STATEMENT This device (FCC ID : VA5JR901-2WSS ) complies with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters Sincerely Yours, Date : 12th of December, 2010 By : Chang Young Il Title : CEO

SEGI LIMITED Date 15 th of July, 2010 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize Korea Testing Laboratory, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Korea Testing Laboratory on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KTL as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Chang Young Il SEGI LIMITED, CEO REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

SEGI LIMITED Room 1808, 18/F, Tower 2, Admiralty Center, 18 Harcourt Road, Admiralty, Hongkong E-MAIL : [email protected] Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID : VA5JR901-2WSS Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematic Diagram 3. Operational description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understans that pursuant ot Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Date : 12 th of December, 2010 By : Chang Young Il Title : CEO

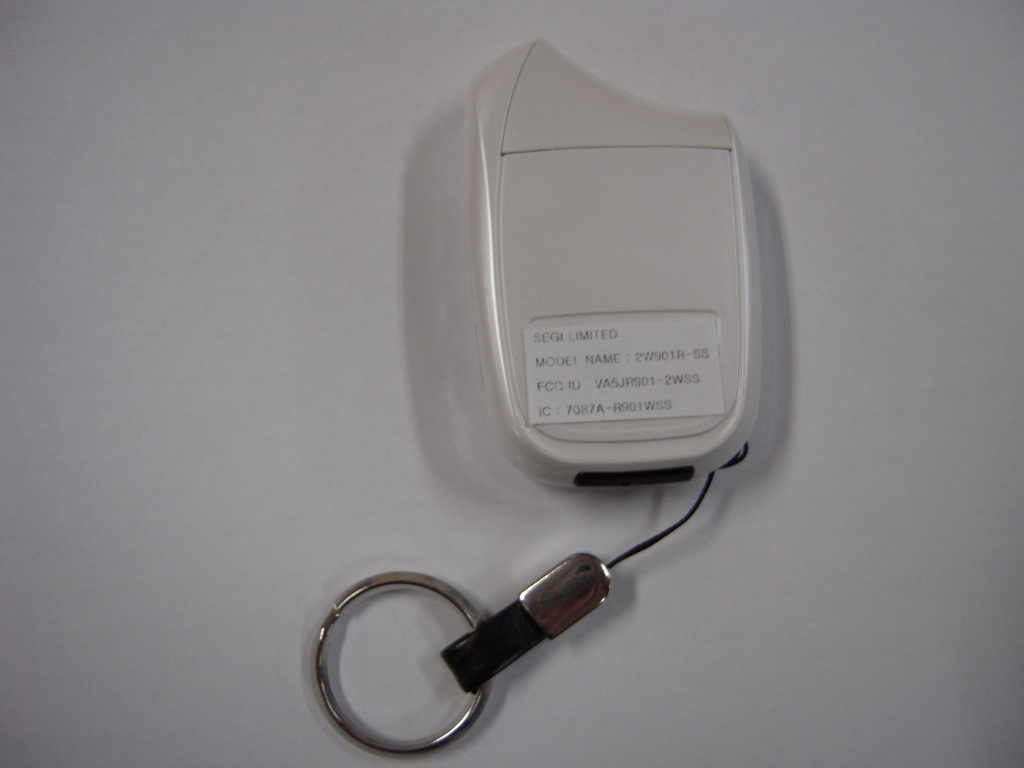

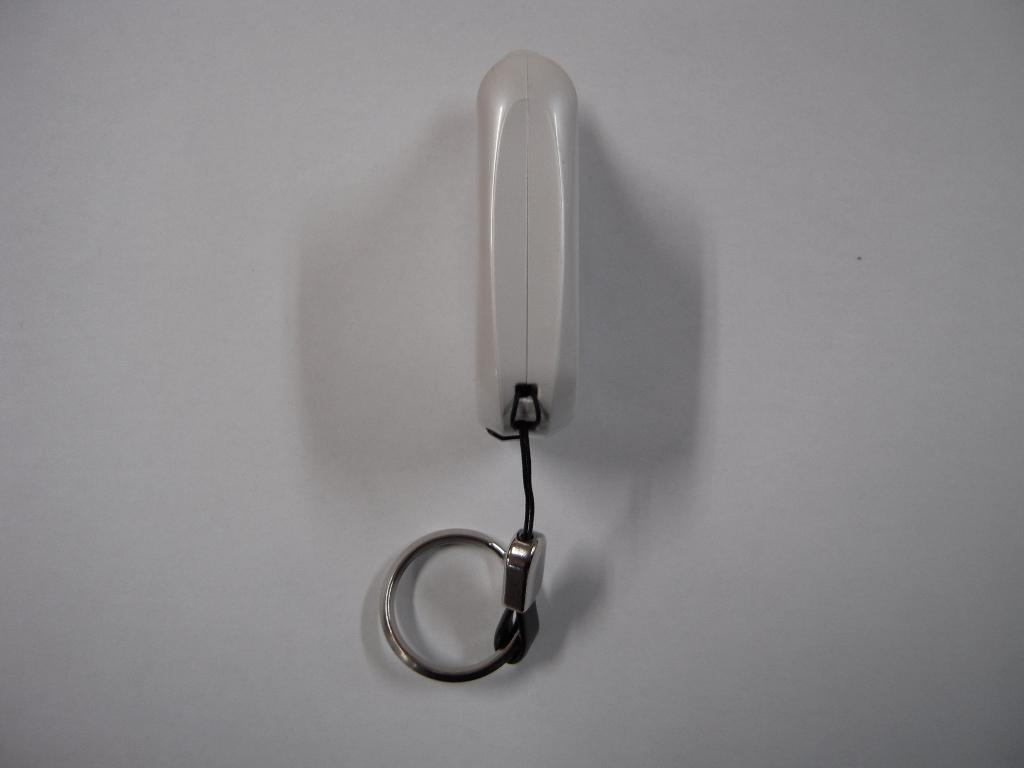

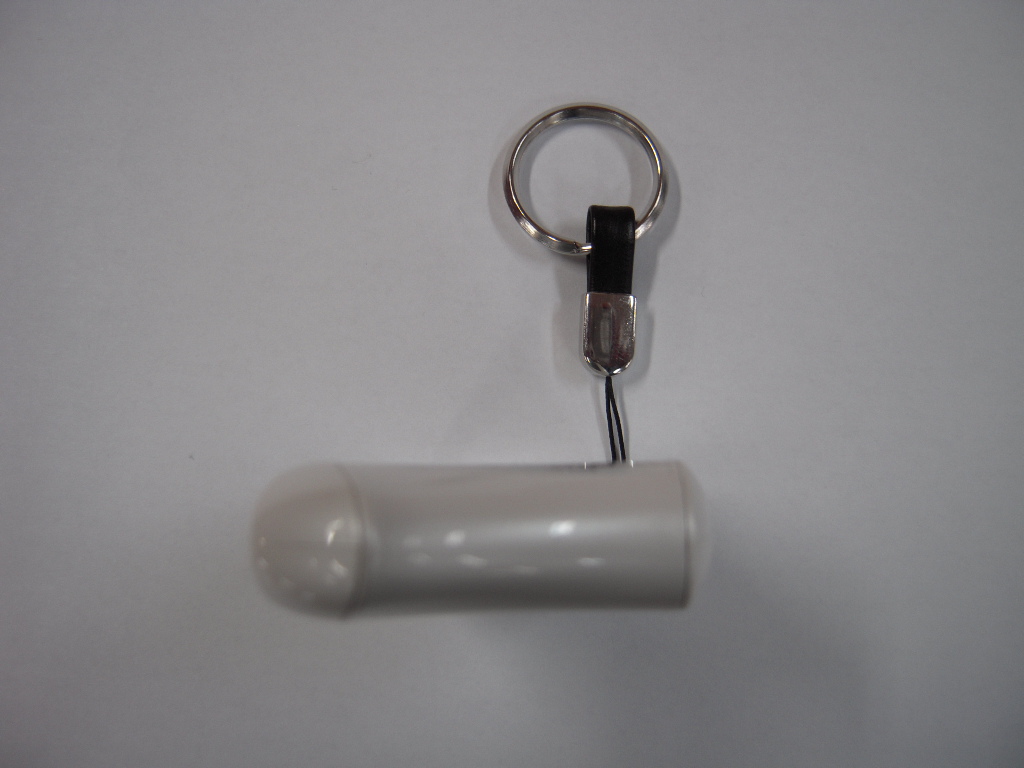

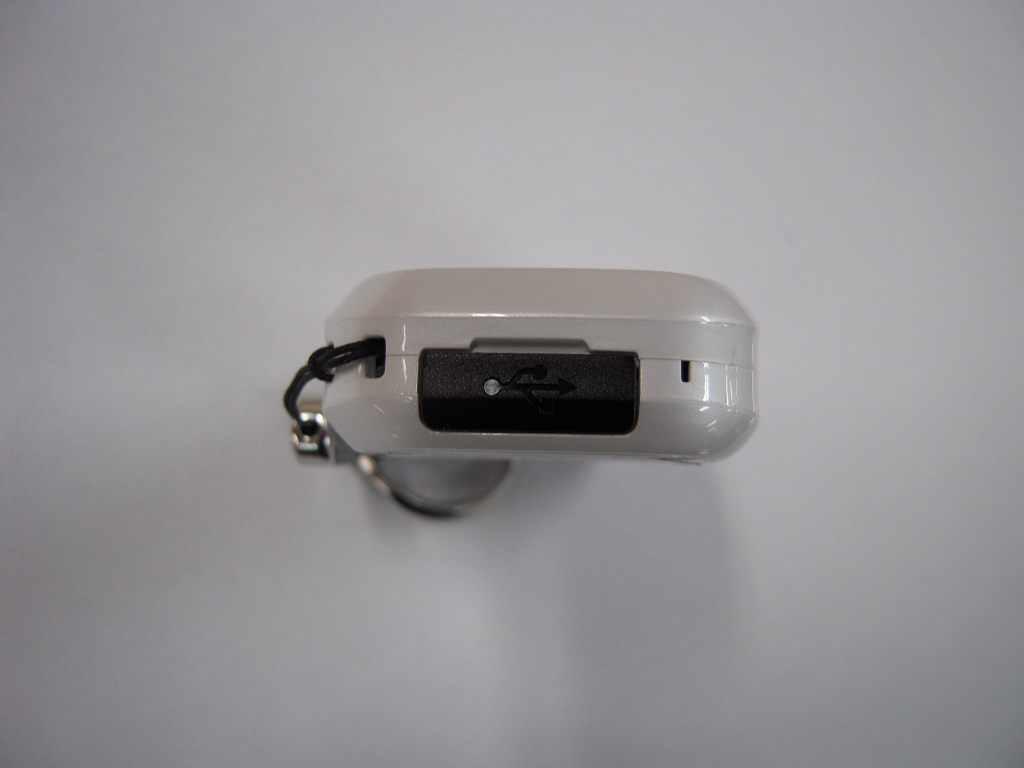

Model number : 2W901R-SS Photographs (Outside) Model number : 2W901R-SS Photographs (Outside) Model number : 2W901R-SS Photographs (Outside)

Model Number : 2W901R-SS Label Information

Model Number : 2W901R-SS Photographs (Inside) Model Number : 2W901R-SS Photographs (Inside)

Report No.: 10-2341-059 Page 1 of 34 Pages 693, Haean-ro, Sangnok-Gu, Ansan-si Gyunggi-Do , Korea(426-901) Tel. : +82-31-5000-132 http://www.ktl.re.kr Fax. : +82-31-5000-149 FP-204-03-01 TEST REPORT 1. Applicant Name : SEGI LIMITED Address : Room 1808, 18/F, Tower 2, Admiralty Center, 18 Harcourt road, Hongkong City, 186, CHINA 2. Products Name : CAR Alarm Transceiver Model/Type : 2W901R-SS Manufacturer : SEGI LIMITED 3. Test Standard : FCC CFR 47 Part 15, Subpart C section 15.247 4. Test Method : ANSI C63.4-2009 5. Test Result : Positive 6. Date of Application : November. 04, 2010 7. Date of Issue : December. 21, 2010 Tested by Approved by ` Sung-kyu Cho Jeong-min Kim Telecommunication Center Engineer Telecommunication Center Manager The test results contained apply only to the test sample(s) supplied by the applicant, and this test report shall not be reproduced in full or in part without approval of the KTL in advance. Report No.: 10-2341-059 Page 2 of 34 Pages 693, Haean-ro, Sangnok-Gu, Ansan-si Gyunggi-Do , Korea(426-901) Tel. : +82-31-5000-132 http://www.ktl.re.kr Fax. : +82-31-5000-149 FP-204-03-01 TABLE OF CONTENTS 1. GENERAL INFORMATIONS ................................................................................................. 4 1.1. Applicant (Client) .............................................................................................................................................. 4 1.2. Equipment (EUT) ............................................................................................................................................... 4 1.3. Testing Laboratory ........................................................................................................................................... 5 2. SUMMARY OF TEST RESULTS ........................................................................................... 6 3. MEASUREMENT & RESULTS .............................................................................................. 7 3.1. 20 dB Bandwidth : Session 15.247(a)(1) ......................................................................................................... 7 3.1.1. Test Setup Layout .................................................................................................................................... 7 3.1.2. Limit ......................................................................................................................................................... 7 3.1.3. Test result ................................................................................................................................................. 7 3.2. Maximum Peak Power : Section 15.247(b)(1) .............................................................................................. 10 3.2.1. Test Setup Layout .................................................................................................................................. 10 3.2.2. Limit ....................................................................................................................................................... 10 3.2.3. Test result ............................................................................................................................................... 10 3.3. 100 KHz Bandwidth of Frequency Band Edges : Section 15.247(d) .......................................................... 13 3.3.1. Test Setup Layout .................................................................................................................................. 13 3.3.2. Limit ....................................................................................................................................................... 13 3.3.3. Test result ............................................................................................................................................... 13 3.4. Hopping Channel Separation : Section 15.247(a)(1) ................................................................................... 15 3.4.1. Test Setup Layout .................................................................................................................................. 15 3.4.2. Limit ....................................................................................................................................................... 15 3.4.3. Test result ............................................................................................................................................... 15 3.5. Number of Hopping Channels : Session 15.247(a)(1)(i) ............................................................................. 16 3.5.1. Test Setup Layout .................................................................................................................................. 16 3.5.2. Limit ....................................................................................................................................................... 16 3.5.3. Test result ............................................................................................................................................... 16 Report No.: 10-2341-059 Page 3 of 34 Pages 693, Haean-ro, Sangnok-Gu, Ansan-si Gyunggi-Do , Korea(426-901) Tel. : +82-31-5000-132 http://www.ktl.re.kr Fax. : +82-31-5000-149 FP-204-03-01 3.6. Dwell Time : Session 15.247(a)(1)(i) .............................................................................................................. 17 3.6.1. Test Setup Layout .................................................................................................................................. 17 3.6.2. Limit ....................................................................................................................................................... 17 3.6.3. Test result ..............................................................................................................................…

Text truncated - open the document above for the full version.

693, Haean-ro, Sangnok-gu, Ansan-si, Gyeonggi-do, KOREA (426-901) Tel. : +82-31-5000-133 http://www.ktl.re.kr Fax. : +82-31-5000-149 FP-204-03-01 RF EXPOSURE INFORMATION 1. EUT information Type of equipment CAR Alarm Transceiver Device Category Mobile Device Model Name 2W901R-SS FCC ID VA5JR901-2WSS IC Number 7087A-R901WSS Tx Frequency Band 910.92 MHz ~ 919.08 MHz Antenna Gain -0.68 dBi 2. FCC MPE Limits The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1. According to FCC §1.1310: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in §1.1307(b). Table1. FCC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f= frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... ... 6 1500-100,000 ... ... ... 6 (B) Limits For General Population / Uncontrolled Exposure (f=frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 693, Haean-ro, Sangnok-gu, Ansan-si, Gyeonggi-do, KOREA (426-901) Tel. : +82-31-5000-133 http://www.ktl.re.kr Fax. : +82-31-5000-149 FP-204-03-01 3. IC MPE Limits The limit for Maximum Permissible Exposure (MPE), specified in IC RSS-102, is listed in Table 2. According to IC RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in RSS-102 Table2. IC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Average Time (Minutes) 0.003-1 280 2.19 - 6 1-10 280/f 2.19/f - 6 10-30 28 2.19/f - 6 30-300 28 0.073 2 * 6 300-1500 1.585 f 0.5 0.0042 f 0.5 f/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/f 1.2 150000-300000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000/f 1.2 4. PROCEDURES The procedure used to determine the RF power density was based upon a calculation for determining compliance with the MPE requirements. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering the limit of uncontrolled exposure limit. The power density level is calculated at a distance of 20 cm. And Minimum distance is also calculated. MPE evaluations are calculated under Maximum Power condition in the band. Formula P d =PG / (4πr 2 ) Where, P d = Power Density (mW/cm 2 ) P= Power input to the antenna (in appropriate units, e.g., mW) G= Power gain of the antenna in the direction of interest relative to an isotropic radiator π=3.1416 r=distance between observation point and centre of the radiator (cm) 693, Haean-ro, Sangnok-gu, Ansan-si, Gyeonggi-do, KOREA (426-901) Tel. : +82-31-5000-133 http://www.ktl.re.kr Fax. : +82-31-5000-149 FP-204-03-01 5. Calculated MPE Result The power density limit for General Population/Uncontrolled Exposure at each frequency is determined based on the information in Table 1(FCC) & Table 2(IC). MPE evaluations are calculated under Maximum Power condition. Table3. Calculated MPE Data according to FCC/IC limit Frequency 915 MHz Limit 0.61 mW/cm 2 Distance (cm), R 20 cm Power (dBm), P 65.34 mW Ant. Gain, G -0.68 dBi Power Density (mW/cm 2 ) 0.01 mW/cm 2

Model Number : 2W901R-SS Test setup Photo Model Number : 2W901R-SS Test setup Photo
