VA5JR940-2WSSCAR Alarm

Statement : The term “IC”. before the radio certification number only signifies that Industry Canada technical specifications were met. CAUTION : The User that modifications to the unit may void the user’s authori-ty to operate The unit  7RPDLQWDLQFRPSOLDQFHZLWK5)HQHUJ\H[SRVXUHJXLGHOLQHVWKHDQWHQQDXVHGIRUWKLVWUDQVPLWWHUPXVW EHPDLQWDLQHGDVHSDUDWLRQGLVWDQFHRIDWOHDVWFPIURPWKHXVHUERG\ZKHQWUDQVPLWWLQJ &RORFDWHGRURSHUDWHGLQFRQMXQFWLRQZLWKDQ\RWKHUDQWHQQDRUWUDQVPLWWHULVSURKLELWHG RemoteFCC ID Number IC ID Number 2WNANO VA5JR940-2WSS 7087A-R940WSS User Manual This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions; (1) This device may not cause harmful interference. (2) This device may accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. 2 Quick Reference Remote Maintenance – Battery Replacement The only regular maintenance this system requires is remote control battery replacement. No programming is required when replacing the battery. Two Way Remotes: First, remove the small Phillips screw located on the back of the remote. Once the screw has been removed, gently pull the remote apart taking care to not damage the circuit board. Your battery size should be listed on the battery. IMPORTANT: Be sure to observe correct polarity when installing the battery. 3 2 Way Remote Button Functions Button(s) Duration Function LEDChirp(s) 0.5 second Locks doors and/or arms alarm. Once

3.5 seconds Panic/vehicle locater (flashes vehicle’s parking lights and sounds siren and horn). N/A

0.5 second Unlocks doors and/or disarms alarm. Twice 0.5 second Aux 1. Triggers the auxiliary 1 output (most commonly used for rear defrost or window roll-down). Once

2.5 seconds Trunk release. Triggers the trunk release output and opens the vehicle’s trunk. Twice 0.5 second Aux 2. Triggers the auxiliary 2 output (most commonly used for rear defrost or window roll-down). Once




2.5 seconds Activates the remote start. Repeat and remote start will shut off. Will activate Stop and Go Mode if held when vehicle is running with the key. Once On / Twice Off 0.5 second Turns siren chirps on/off (Note: With the siren chirps off, it will still sound in the event the alarm is triggered). Once On / Twice Off

2.5 seconds Option programming menu 1 - Installers Only. Once

0.5 second Valet mode (see Valet Mode Section for details) Once On / Twice Off 0.5 second Drive lock. Activates ignition controlled door locks. Once On / Twice Off

2.5 seconds Option programming menu 2 - Installers Only. Once 0.5 second Activates passive arming (vehicle will arm/lock 30 seconds after the vehicle is disarmed) Once On / Twice Off

2.5 seconds Activates the 2nd Car function. Your remote has the ability to control two systems with the same remote. You must have the same RF Kit in both of your vehicles. Once On / Twice Off

0.5 second Activates timer start mode. Timer start mode has multiple programmable settings: duration settings, temperature settings and self start settings. Once On / Twice Off 0.5 second Activates the built in Turbo Timer function. Additional installation is required when using this feature on automatic transmission vehicle’s. Once On / Twice Off




2.5 seconds Car Check (updates vehicle status on remote pager) / Secure Auxiliary Twice 4 General System Functions The remote transmitter functions have been predetermined and programmed from the factory. The four button configuration allows for many functions to be performed through a series of tapping, holding and / or multiple presses of buttons. Sending Commands When in range and a command has been sent, the remote will receive a page back and LED command. For example, to send a remote start command from the 2 Way remote, hold down the button for 2.5 seconds. The remote will beep once to confirm the command has been sent and that the remote is in range. Once the vehicle has successfully remote started, the remote will receive a command indicating the vehicle is running. Receiving Commands The remote pager will receive commands indicating the status of the vehicle, confirmation of sending commands and alarm notifications. For example, after sending the lock command, the pager will receive LED and chirp signals confirming that the vehicle has been successfully locked/armed. To see if your pager is in range, hold the (+ ) buttons for 2.5 seconds – if the remote receives an audible and visual confirmation then it is in range. IMPORTANT: the 2WG5R-900SH does not receive page back alerts if an alarm is triggered only while your vehicle is remote started. Active Lock/Arm and Unlock/Disarm Tap button for 0.5 second to lock/arm and unlock/disarm. The LED will flash on your remote. If your vehicle is locked, tap button to unlock; if your vehicle is unlocked, tap button to lock. IMPORTANT: If the alarm has been triggered (Siren is going off), you must wait up to 5 seconds before disarming the alarm – the first button tap will shut off the alarm and the second will unlock/disarm the system. Passive Lock/Arm The system can be configured to passively lock and arm the vehicle. Put the system in passive by tapping buttons (+) simultaneously for 0.5 second. The remote will beep once and the LEDs will illuminate to indicate the system is in passive lock and arming mode. While in passive mode, the system will lock and arm the alarm 30 seconds after the last door is closed. As an indicator that the vehicle is going to passively lock and arm, the remote and siren will chirp once and the parking lights will flash once at both 10 and 20 seconds prior to passively locking and arming. If you want the system to passively arm and not passively lock, ask your local Firstech dealer to…

Text truncated - open the document above for the full version.

SEGI LIMITED Date 15 th of July, 2010 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize Korea Testing Laboratory, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Korea Testing Laboratory on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KTL as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Chang Young Il SEGI LIMITED, CEO REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

SEGI LIMITED Room 1808, 18/F, Tower 2, Admiralty Center, 18 Harcourt Road, Admiralty, Hongkong E-MAIL : [email protected] Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID : VA5JR940-2WSS Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematic Diagram 3. Operational description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understans that pursuant ot Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Date : 09 th of July, 2010 By : Chang Young Il Title : CEO

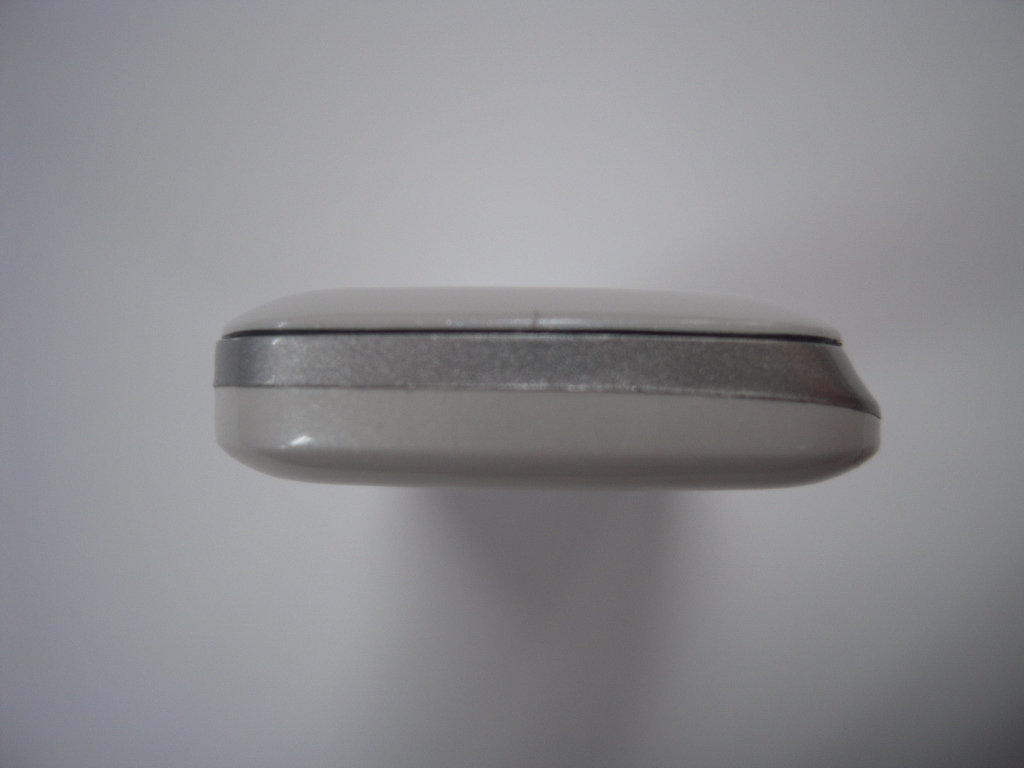

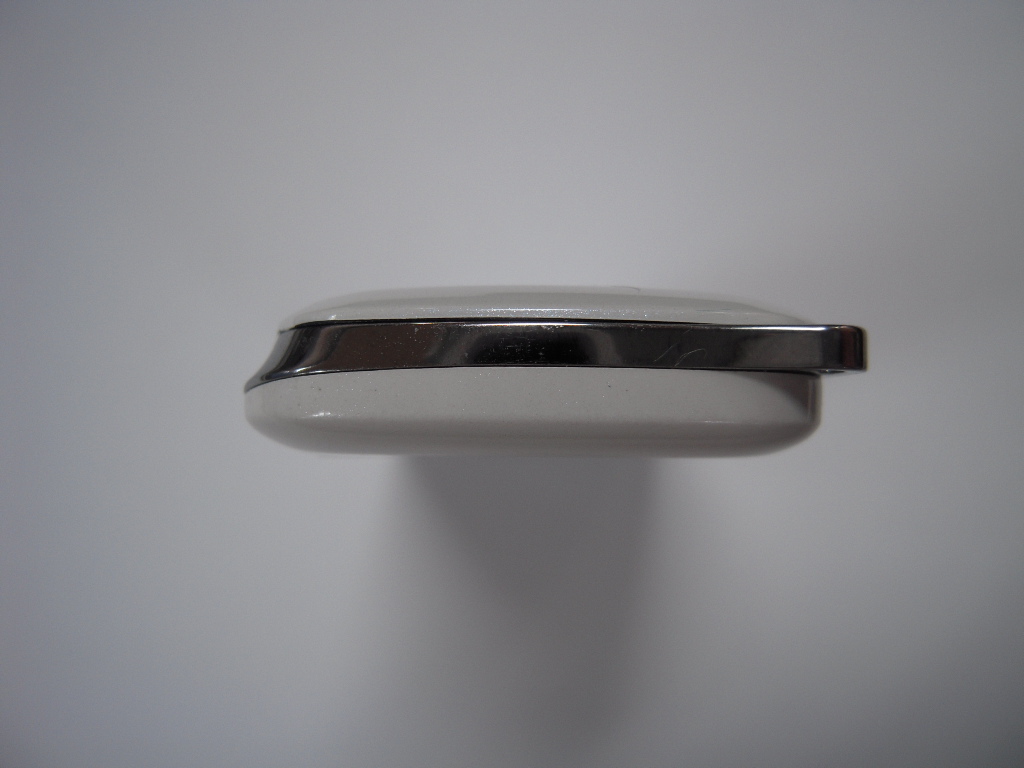

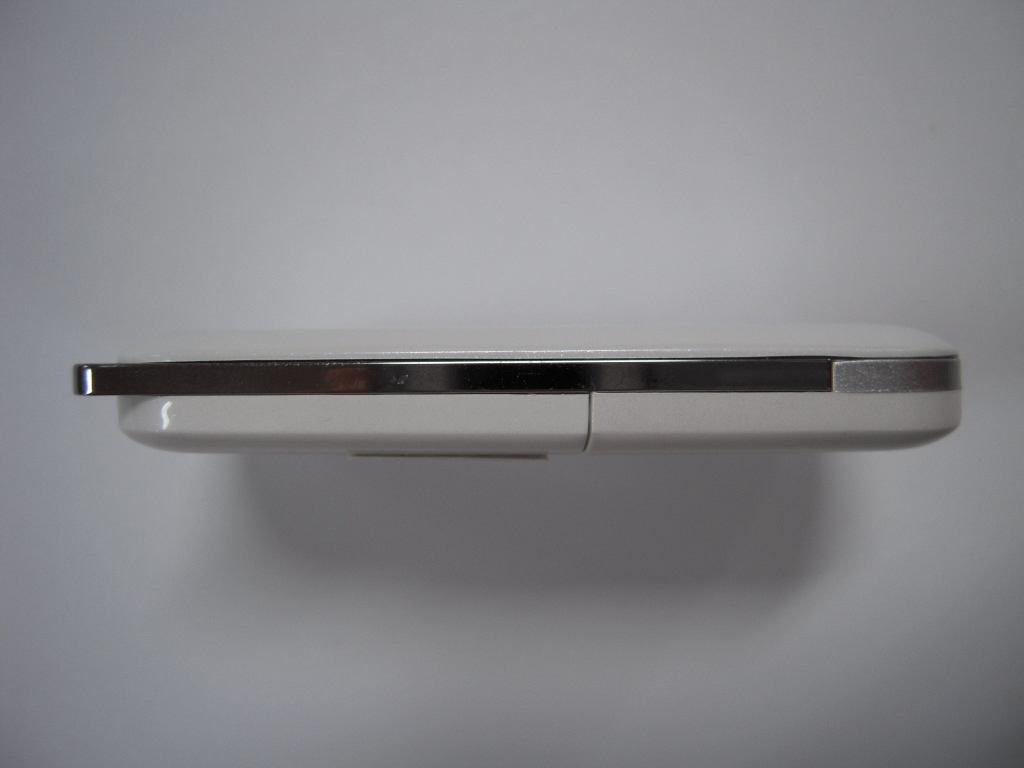

Model number : 2WNANO Photographs (Outside) Model number : 2WNANO Photographs (Outside) Model number : 2WNANO Photographs (Outside) Model number : 2WNANO Photographs (Outside)

Model Number : 2WNANO Label Information

Model Number : 2WNANO Photographs (Inside) Model Number : 2WNANO Photographs (Inside)

Page 1 of 2 Pages 1271-12, Sa-Dong Sangnoek-Gu Kyung ki-Do , Korea. Tel. : +82-31-5000-132 http://www.ktl.re.kr Fax. : +82-31-5000-147 FP-204-03-01 RF EXPOSURE INFORMATION 1. MPE Limits The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is lieted in Table 1 According to FCC §1.1310 : the criteria listed in the following table shall be used to evaluate the environmetal impact of human exposure to radio-frequency(RF) radiation as specified in §1.1307(b). Table 1. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strengh (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f= frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5 6 (B) Limits For General Population / Uncontrolled Exposure (f=frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 2. EUT information Type of equipment : CAR Alarm Transceiver Model Name : 2WNANO FCC ID : VA5JR940-2WSS Frequency Band : 910.92 ~ 919.08 MHz Procedure The procedure used to determine the RF power density was based upon a calculation for determining compliance with the MPE requirements. The power generated by each transmitter used in this was initially measured by a power and the powers were recorded . Through use of the Friis transmission fomula and knowledge of the maximum antenna gain to be used, the power density level is calculated at a distance of 20 cm. The antenna gain to be used to calculate the MPE in all relevant bands of operation. Page 2 of 2 Pages 1271-12, Sa-Dong Sangnoek-Gu Kyung ki-Do , Korea. Tel. : +82-31-5000-132 http://www.ktl.re.kr Fax. : +82-31-5000-147 FP-204-03-01 Friis Transmission Formula Friis transmission formula : Pd =(P out * G) / (4πr 2 ) Where, P d = Power Density (mW/cm 2 ) π=3.1416 P out = out power to antenna (mW) r = distance between observation point and center of the radiator(cm) 3. Calculated MPE The highest RF powered measured in band was used to determine the maximum theoretical antenna gain in that band. The power density limit for General Population/Uncontrolled Exposure at each frequency is determined based on the information in Table 1. Table 2. Calculated MPE Data for RFID Reader Frequency 915 MHz Limit 0.61 mW/cm 2 Distance (cm), R 20 cm Power (dBm), P 15.76 dBm (37.67 mW) Tx Ant Gain(dBi), G -4.28 Power Density (mW/cm2) 0.0011 Minimum Distance 0.88 cm 4. Summary of Results Table 5. Maximum Permissible Summary Table Frequency Band (MHz) Maximum Antenna Gain (dBi) MPE at 20 cm (mW/cm 2 ) MPE Limit 20 cm (mW/cm 2 ) Test Result 910.92 ~ 919.08 -4.28 0.0011 0.61 PASS 5. Conclusion Calculations show that Radio devices with described antennas complied with Maximum Permissible (MPE) limit for the General Population/Uncontrolled Exposure

Report No.: 10-341-032 Page 1 of 28 Pages 1271-12, Sa-Dong Sangnok-Gu, Ansan-si Gyunggi-Do , Korea. Tel. : +82-31-5000-132 http://www.ktl.re.kr Fax. : +82-31-5000-149 FP-204-03-01 TEST REPORT 1. Applicant Name : SEGI LIMITED Address : Room 1808, 18/F, Tower 2, Admiralty Center, 18 Harcourt road, Hongkong City, 186, CHINA 2. Products Name : Car Alarm Transceiver Model/Type : 2WNANO Manufacturer : SEGI LIMITED 3. Test Standard : FCC CFR 47 Part 15, Subpart C section 15.247 4. Test Method : ANSI C63.4-2009 5. Test Result : Positive 6. Date of Application : July. 13, 2010 7. Date of Issue : July. 15, 2010 Tested by Approved by ` Sung-kyu Cho Jeong-min Kim Telecommunication Team Engineer Telecommunication Team Manager The test results contained apply only to the test sample(s) supplied by the applicant, and this test report shall not be reproduced in full or in part without approval of the KTL in advance. Report No.: 10-341-032 Page 2 of 28 Pages 1271-12, Sa-Dong Sangnok-Gu, Ansan-si Gyunggi-Do , Korea. Tel. : +82-31-5000-132 http://www.ktl.re.kr Fax. : +82-31-5000-149 FP-204-03-01 TABLE OF CONTENTS 1. GENERAL INFORMATIONS .................................................................................................. 4 1.1. Applicant (Client) .............................................................................................................................................. 4 1.2. Equipment (EUT) .............................................................................................................................................. 4 1.3. Testing Laboratory ........................................................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................................ 6 3. MEASUREMENT & RESULTS ............................................................................................... 7 3.1. 20 dB Bandwidth : Session 15.247(a)(1) ........................................................................................................ 7 3.1.1. Test Setup Layout .................................................................................................................................... 7 3.1.2. Limit ......................................................................................................................................................... 7 3.1.3. Test result ................................................................................................................................................ 7 3.2. Maximum Peak Power : Section 15.247(b)(1) .............................................................................................. 10 3.2.1. Test Setup Layout .................................................................................................................................. 10 3.2.2. Limit ....................................................................................................................................................... 10 3.2.3. Test result .............................................................................................................................................. 10 3.3. 100 KHz Bandwidth of Frequency Band Edges : Section 15.247(d).......................................................... 13 3.3.1. Test Setup Layout .................................................................................................................................. 13 3.3.2. Limit ....................................................................................................................................................... 13 3.3.3. Test result .............................................................................................................................................. 13 3.4. Hopping Channel Separation : Section 15.247(a)(1) ................................................................................... 15 3.4.1. Test Setup Layout .................................................................................................................................. 15 3.4.2. Limit ....................................................................................................................................................... 15 3.4.3. Test result .............................................................................................................................................. 15 3.5. Number of Hopping Channels : Session 15.247(a)(1)(i) ............................................................................. 16 3.5.1. Test Setup Layout .................................................................................................................................. 16 3.5.2. Limit ....................................................................................................................................................... 16 3.5.3. Test result .............................................................................................................................................. 16 Report No.: 10-341-032 Page 3 of 28 Pages 1271-12, Sa-Dong Sangnok-Gu, Ansan-si Gyunggi-Do , Korea. Tel. : +82-31-5000-132 http://www.ktl.re.kr Fax. : +82-31-5000-149 FP-204-03-01 3.6. Dwell Time : Session 15.247(a)(1)(i) ............................................................................................................. 17 3.6.1. Test Setup Layout .................................................................................................................................. 17 3.6.2. Limit ....................................................................................................................................................... 17 3.6.3. Test result .............................................................................................................................................. 17 3.7. Conducted Spuriou…

Text truncated - open the document above for the full version.

Model Number : 2WNANO Test setup Photo Model Number : 2WNANO Test setup Photo
