Date: May 2, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. CY_Choi/ RAPA, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. CY_Choi / RAPA on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Name: Young il / President Company: SEGI LIMITED REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

SEGI LIMITED Room 1808, 18/F, Tower 2, Admiralty Center, 18 Harcourt Road, Admiralty, Hongkong city, 186, CHINA E-MAIL : [email protected] Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section pertaining to confidential material SEGI LIMITED would like the following documents regarding this submission for FCC ID : VA5JA5R1060-1A315 to be kept confiden tial. 1. Block Diagram 2. Schematic Diagram 3. Operational Description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Date 2 nd of May , 2013 By Young il Chang Title : President ============================================================

SEGI LIMITED Keyless Entry System EZ100-R-315 It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 3. External Photos of EUT 1. Top 2. Bottom

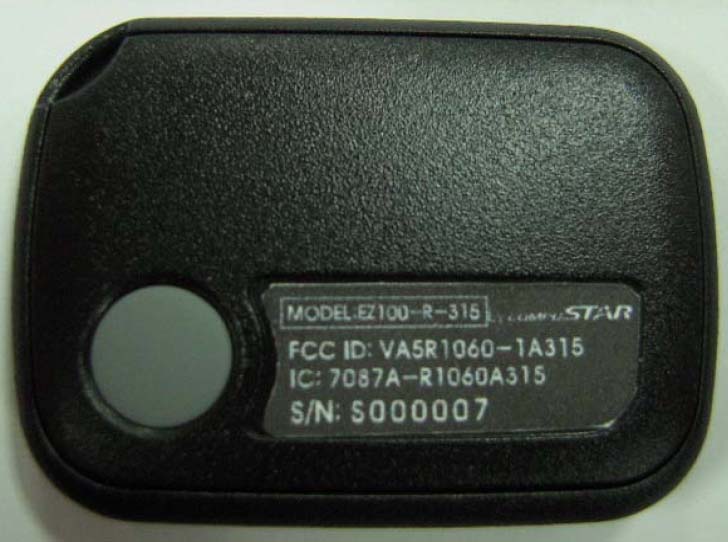

SEGI LIMITED Keyless Entry System EZ100-R-315 It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 2. FCC ID Label and Location 1. Label sample 2. Location

SEGI LIMITED Keyless Entry System EZ100-R-315 It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 4. Internal Photos of EUT 1. Top 2. Bottom SEGI LIMITED Keyless Entry System EZ100-R-315 It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory

Page : 1 / 13 Report No. : RAPA13-O-280 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory TEST REPORT Report Number RAPA13-O-280 Type of Equipment Keyless Entry System Model Name EZ100-R-315 FCC ID VA5R1060-1A315 IC Number 7087A-R1060A315 Applicant Name SEGI LIMITED Logo Address 1808, 18/F, Tower II, Admiralty Centre, 18 Harcourt Rd., Admiralty, Hong Kong Manufacturer Name SEGI ELECTRONICS CO., LTD. Address Chenjiapucun, Liaobu Town Dongguan City, Guangdong Province, 523-408, P.R.China Test period April 19, 2013 to April 30, 2013 Issuing date of report May 09, 2013 Total page 13 pages (including this page) SUMMARY The equipment complies with FCC CFR 47 Part 15 Subpart C Section 15.231 and IC RSS-210 Issue8 Annex 1- 2010. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass-production. Date : May 09, 2013 Date : May 09, 2013 Prepared and tested by Chang Young Choi Reviewed by Sukil Park Deputy General Manager /TCL of RAPA Executive Managing Director/TCL of RAPA Page : 2 / 13 Report No. : RAPA13-O-280 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory CONTENTS 1. GENERAL DESCRIPTION .............................................................................................................. 3 1.1 Applicant ................................................................................................................................................ 3 1.2 Manufacturer .......................................................................................................................................... 3 1.3 Basic description of EUT ...................................................................................................................... 3 1.4 Electrical specification .......................................................................................................................... 4 2. GENERAL INFORMATION OF TEST ............................................................................................. 4 2.1 Standard for measurement methods ................................................................................................... 4 2.2 Description of EUT modification .......................................................................................................... 4 2.3 Description of test system configuration............................................................................................ 4 3. MEASUREMENT DATA .................................................................................................................. 5 3.1 Transmission time ................................................................................................................................. 5 3.2 Field strength of fundamental and spurious emission ...................................................................... 9 3.3 20 dB Bandwidth .................................................................................................................................. 11 4. TEST EQUIPMENT LIST ............................................................................................................... 13 Page : 3 / 13 Report No. : RAPA13-O-280 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory 1. GENERAL DESCRIPTION 1.1 Applicant • Company name : SEGI LIMITED • Address : 1808, 18/F, Tower 2, Admiralty Center, 18 Harcourt Rd., Admiralty, Hong kong • Contact person : Eui Seok, Chung • Phone/Fax : +82-32-623-5550 / +82-32-623-6667 1.2 Manufacturer • Company name : SEGI ELECTRONICD CO., LTD • Address : Chenjiapucun, Liaobu Town, Dongguan City, Guangdong Province, 523-408, P.R.China • Contact person Eui Seok, Chung • Phone/Fax : +82-32-623-5550 / +82-32-623-6667 1.3 Basic description of EUT • Product name : Keyless Entry System • Model name : EZ100-R-315 • Serial number : N/A • Frequency : 315 MHz • Output power : 1 Channel • Modulation method : ASK • FCC Rule Part(s) : FCC CFR47 Part 15 Subpart C Section 15.231 • IC Rule Part(s) : IC RSS-210 Issue8 Annex 1-2010 • FCC classification : DSC / Part 15 Security/Remote control Transmitter • IC classification : Annex 1 / Momentarily Operated Devices and Remote Control • Test period : April 19, 2013 to April 30, 2013 • Issuing date of report : May 09, 2013 • Place of test : Head office 824, B104, Anyang Megavalley, 799, Gwanyang-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-767, Korea Open area test site 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-825, Korea (FCC Registration Number : 337229) (FCC Conformity Assessment Body, Registration No: 608365) (IC Submission Number : 143881) (KCC Designation Number : KR0027) Page : 4 / 13 Report No. : RAPA13-O-280 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory 1.4 Electrical specification Item Specifications Type of Equipment Keyless Entry System Model Name EZ100-R-315 Transmit Frequency 315 MHz by pattern antenna Receive Frequency 20 kHz by coil inductor for RFID Modulation Method ASK Power Source 3 Vdc (CR2032) Size (mm) 26.8 x 37.3 x 8.3 (W x L x H) 2. GENERAL INFORMATION OF TEST 2.1 Standard for measurement methods Applied Standard : FCC CFR47 Part 15 Subpart C, IC RSS-210 Issue8 Annex 1-2010 FCC IC Description of Test Limit Result 15.209 RSS-210_2.2Radiated Emission in Restricted BandSee 15.207 Pass 15.231(a) A1.1.1 Transmission Time(s) 5 Pass 15.231(b) A1.1.2 Field Strength of Fundamental (dBμV/m)95.6(Peak) / 75.6(AVG) Pass 15.231(b) & 15.209 A1.1.2 Radiated Emission(dBμV/m) 75.6(Peak) / 55.6(AVG…

Text truncated - open the document above for the full version.

SEGI LIMITED Keyless Entry System EZ100-R-315 It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 1. Photos of Test Setup 1. Test Setup of Radiation
