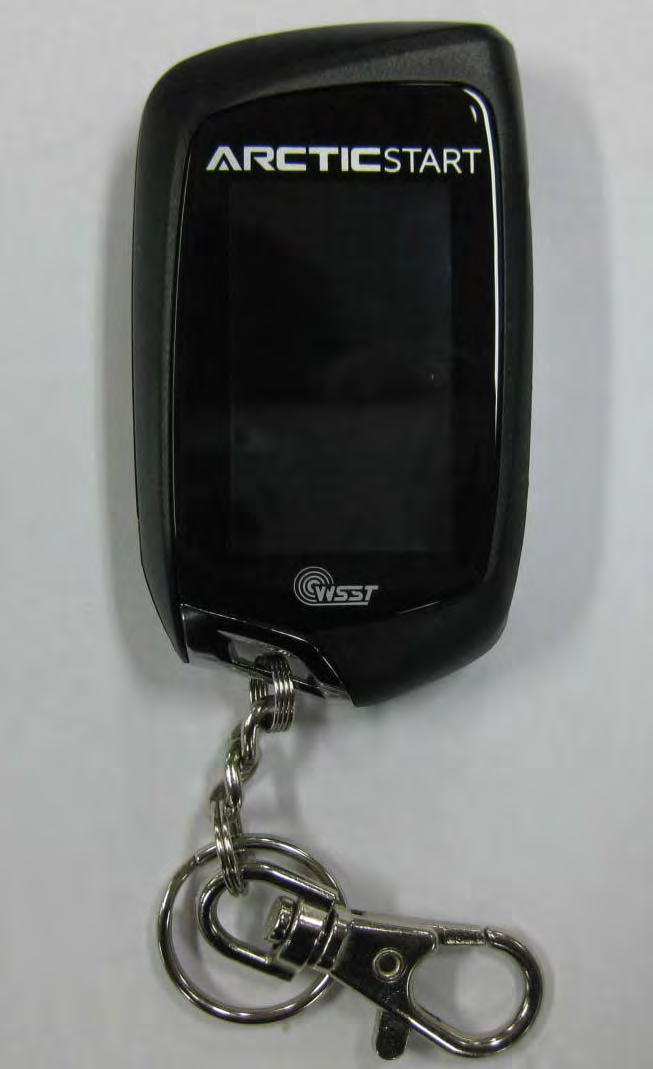

VA5RCD300-2WSSKeyless Entry System AR2WT10R-SS

Firstech, LLC. | 1 8102REUCL000500 // FT-2WLCD-S Guide REV1 QUICK START CARD 2 WAY LCD REMOTES Tap the Lock Button to lock your doors and/or arm your vehicle. Hold this button for 2.5 seconds to activate Button Lock. “Hold” will flash on the LCD when you press any button. Hold this button for 3.5 seconds to activate panic/vehicle locater. Tap the Unlock Button to unlock your doors and/or disarm your vehicle. Hold this button for 2.5 seconds to pop your trunk. If not equipped, ask your Authorized Dealer for details on how to get it. Hold this button for 2.5 seconds to start your vehicle. Your remote will receive a page back alert and run time countdown timer will start. If enabled, double tapping this button will reset your remote start run time or turbo timer. Status: Tapping this button will activate vehicle status check. The first tap will check temperature inside your vehicle, second, battery voltage and third, remote battery voltage. Repeat and your vehicle will shut off. Auxiliary 1: Tap the Start Button and then tap the Trunk release button. Auxiliary 2: Tap the Start Button, Press and hold Trunk + Start Buttons for 2.5 seconds and then tap the Trunk Button. Tap these two buttons at the same time to turn Valet Mode off. Turn Ignition On and tap buttons to turn on. Hold them for 2.5 seconds to turn your FT-DAS or Shock Sensor on or off. Tap these two buttons at the same time to turn the horn or siren chirps on or off. Tap these two buttons to activate Passive locking/arming. Your system will lock/arm after 30 seconds if enabled. Hold these two buttons for 2.5 seconds to enter the Remote Option Menu. Valet Mode: If your remote start is not working, you may be in Valet Mode. Your parking lights will also not flash. Your doors will still lock and unlock. To exit Valet Mode, tap the Lock and Trunk buttons or turn the Ignition On and then tap the foot brake 10 times or reprogram your remote(s). Holding the Lock and Trunk buttons for 2.5 seconds will turn your FT-DAS or Shock Sensor on or off. FEATURE LCD READOUT FUNCTION/DESCRIPTION Enter and Exit Menu Hold Unlock and Trunk Buttons for 2.5 Seconds Put remote in programming mode. Exits after 20 seconds of inactivity. UpTap the Trunk ButtonMoves down the menu DownTap the Start ButtonMoves back up the menu Time Adjusts Hour Adjusts Minute Sets the current time on your remote. (Not available on all LCD remotes) Remote Start Time Adjusts Hour Adjusts Minute Sets the time start. Please check with your installer for additional info. Alarm Clock Time Adjusts Hour Adjusts Minute Sets the time in which you would like the remote’s alarm clock to alert you. Alarm ClockOn of Off This feature turns the alarm clock on or off. RPSOn or Off Turns your RPS Touch paging feature on or off. VibrateOn or OffTurns the silent mode on or off. TemperatureFº / CºOn or Off Switches between Fº and Cº. START ERROR CODESSTART ERROR CODES Firstech, LLC. | 2 QUICK START CARD 2 WAY LCD REMOTES To reprogram your remote first cycle the key in the ignition 5 times within 7 seconds. Parking lights will flash. After that tap the Lock button on your remote. Repeat for any additional remotes. If you receive two parking light flashes, your system has exited remote programming mode and you must retry. Register online at www.compustar.com within 10 days of purchase to activate your new remote’s warranty. Questions/comments? Contact us at 888-820-3690 from 8 AM to 5 PM PST. Also please visit www.compustar.com for a complete user’s manual. PARKING LIGHT FLASHESREMOTE START ERROR 3 then 11: Motor running 3 then 22: Key in ignition on position 3 then 33: Door open (manual transmission only) 3 then 44: Trunk open 3 then 55: Foot brake on 3 then 66: Hood open 3 then 77: Reservation off (manual transmission only) 3 then 88: Tach or voltage sensing failure 3 then 99: FT-DAS sensor shutdown 3 then 1010: System is in Valet Mode Firstech, LLC. | 3 CARTE DE MISE EN ROUTE RAPIDE TÉLÉCOMMANDES BIDIRECTIONNELLES À ACL Pressez le bouton verrouillage pour verrouiller les portières et/ou activer le système de sécurité de votre véhicule. Pressez ce bouton pendant 2,5 secondes pour activer le bouton de verrouillage. « Hold » clignotera sur l’ACL au moment de presser n’importe quel bouton. Tenez pressé ce bouton pendant 3,5 secondes pour activer les fonctions de panique et de localisation du véhicule. Pressez le bouton de déverrouillage pour déverrouiller vos portières et/ou désactiver le système de sécurité de votre véhicule. Tenez pressé ce bouton pendant 2,5 secondes pour ouvrir votre coffre. S’il n’est pas équipé de cette option, demandez à votre détaillant autorisé pour plus de détails sur la façon de l’obtenir. Tenez pressé ce bouton pendant 2,5 secondes pour démarrer votre véhicule. Votre télécommande recevra un message d’alerte et une minuterie à compte à rebours de la durée démarrera. Si cette option est activée, le fait de presser deux fois ce bouton réinitialisera la durée du démarrage à distance ou la minuterie du turbo. Statut : Si vous pressez ce bouton, le control du statut du véhicule sera activé. La première fois que vous pressez cela fera le control de la température à l’intérieur de votre véhicule, la deuxième, le voltage de la batterie et la troisième, le voltage de la pile de la télécommande. Répétez l’opération et le moteur de votre véhicule s’arrêtera. Auxiliaire 1: Pressez le bouton de démarrage et ensuite pressez le bouton d’aperture du coffre. Auxiliaire 2: Pressez le bouton de démarrage, pressez et maintenez pressé les boutons du coffre + démarrage pendant 2,5 secondes et ensuite pressez le bouton du coffre. Pressez ces deux boutons simultanément pour désactiver le mode valet. Tournez le contact et pressez les boutons pour allumer. Tenez-lez pressés pendant 2,5 secondes pour activer ou désactiver votre FT-DAS ou votre détecteur d’impact. Pressez ces deux boutons simultanément pour activer ou désactiver le klaxon ou les bips de la sirène. Pressez ces deux boutons pour activer…

Text truncated - open the document above for the full version.

Date: August 26, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. TY_YOON/ RAPA, to act on our behalf in al l manners relating to application fo r equipment authorizat ion, including signing of all documents relating to th es e matters. Any and all acts carried out by Mr. TY_YOON/ RAPA on our behalf shall have the same effe ct as acts of our own. I, the undersigned, hereby certify that we ar e not subject to a denial of feder al benef its, that includes FCC benefits, pursuant to Sectio n 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. t esting, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Di vision into disrepute and not make any statement regarding our product certification which t he Certification Divisi on may co nsider misleading or unauthorized; e) upon suspension or cancellation of certifi cation, discontinue use of all advertisi ng matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity wi th specif ied standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certifi cation Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certifi cation Division when requested; j) take appropriate ac tion with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notic e from the applicant. Sincerely Yours, Name: Young il / President Company: SEGI LIMITED REMARK: 1. This au th orization letter will be sent along with your application when filing with the Certifi cation Division. 2. Please follow the format and type it on co mpan y letterhead an d send original to us. 3. Authorized signature must be in agreemen t with grantee code contact in FCC database.

SEGI LIMITED UNIT F, 7/F, CENTURY INDUSTRIAL CENTER, 33-35 AU PUI WAN STREET, SHATIN, NT, HONGKONG E-MAIL : [email protected] Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section pertaining to confidential material SEGI LIMITED would like the following documents regarding this submission for FCC ID : VA5RCD300-2WSS to be kept confidential. 1. Block Diagram 2. Schematic Diagram 3. Circuit Description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Date 28th of October, 2013 By Young il Chang Title : President ============================================================

Page : 1 / 39 Report No. : RAPA13-O-731 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247( R e v.3) Testing and Certification Laboratory TEST REPORT Report Number RAPA13-O-731 Type of Equipment Keyless Entry System Model Name AR2WT10R-SS FCC ID VA5RCD300-2WSS IC Number 7087A-2WRCD300WSS Applicant Name SEGI LIMITED Logo Address UNIT F, 7/F, CENTURY INDUSTRIAL CENTER, 33-35 AU PUI WAN STREET, SHANTIN, NT, HONGKONG Manufacturer Name SEGI ELECTRONICS CO., LTD Address Chenjiapucun, Liaobu Town, Dongguan City, Guangdong Province, P.R.China Test period October 28, 2013 to November 13, 2013 Issuing date of report November 21, 2013 Total page 39 pages (including this page) SUMMARY The equipment complies with FCC Part 15.247: Operation within the bands 902 MHz to 928 MHz, 2 400 MHz to 2 483.5 MHz, and 5 725 MHz to 5 850 MHz and IC RSS-210 Issue8 Annex 1-2010. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass- production. Date : November 21, 2013 Date : November 21, 2013 Prepared and tested by Ta e Yang Yo o n Reviewed by Sukil Park Manager / TCL of RAPA Executive Managing Director / TCL of RAPA Page : 2 / 39 Report No. : RAPA13-O-731 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247( R e v.3) Testing and Certification Laboratory CONTENTS 1. GENERAL DESCRIPTION .............................................................................................................. 3 1.1 Applicant ..................................................................................................................................................... 3 1.2 Manufacturer ............................................................................................................................................... 3 1.3 Basic description of EUT ............................................................................................................................. 3 1.4 Electrical specification ................................................................................................................................. 4 2. General information of test ............................................................................................................ 5 2.1 Standard for measurement methods .......................................................................................................... 5 2.2 Description of EUT modification .................................................................................................................. 5 2.3 Description of test system configuration ..................................................................................................... 5 3. Measurement data .......................................................................................................................... 6 3.1 Radiated emission in restricted band .......................................................................................................... 6 3.2 Frequency separation ................................................................................................................................. 9 3.3 Number of hopping channels .................................................................................................................... 11 3.4 Occupied bandwidth .................................................................................................................................. 13 3.5 Average time of occupancy ....................................................................................................................... 17 3.6 Maximum peak output power .................................................................................................................... 23 3.7 Conducted emission and band edge ........................................................................................................ 30 4. RF Exposure Compliance Requirement ..................................................................................... 35 5. Test equipment list ...................................................................................................................... 39 Page : 3 / 39 Report No. : RAPA13-O-731 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247( R e v.3) Testing and Certification Laboratory 1. GENERAL DESCRIPTION 1.1 Applicant • Company name : SEGI LIMITED • Address : UNIT F, 7/F, CENTURY INDUSTRIAL CENTER, 33-35 AU PUI WAN STREET, SHANTIN, NT, HONGKONG • Contact person : Eui Seok Chung • Phone/Fax : +82-32-623-5550 / +82-32-623-6667 1.2 Manufacturer • Company name : SEGI ELECTRONICS CO., LTD • Address : Chenjiapucun, Liaobu Town, Dongguan City, Guangdong Province, P.R.China • Contact person : Eui Seok Chung • Phone/Fax : +82-32-623-5550 / +82-32-623-6667 1.3 Basic description of EUT • Product name : Keyless Entry System • Model name : AR2WT10R-SS • Serial number : N/A • Frequency : 910.92 MHz ~ 919.08 MHz • Number of channel(s) : 25 Channels • Modulation method : FHSS • FCC Rule Part(s) : FCC CFR47 Part 15 Subpart C Section 15.247 • IC Rule Part(s) : IC RSS-210 Issue8 Annex 8-2010 • FCC classification : DSS / Part 15 Spread Spectrum Transmitter (FHSS) • IC classification : Annex 8 / Frequency Hopping and Digital Modulation Systems Operating in the bands 902 - 928 MHz, 2 400 - 2 483.5 MHz and 5 725 - 5 850 MHz • Test period : October 28, 2013 to November 13, 2013 • Issuing date of report : November 21, 2013 • Place of test : Head office 824 & B104, Anyang Megavalley, 799, Gwanyang-dong, Dongan-gu, Anyang-si, Gyeonggi-do 431-767, Korea Open area test site 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do 449-825, Korea (FCC Registration Number : 337229) (IC Submission Number : 143881) (K…

Text truncated - open the document above for the full version.

SEGI LIMITED Keyless Entry System AR2WT10R-SS It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup 1. Test Setup of Radiation (X Plane) SEGI LIMITED Keyless Entry System AR2WT10R-SS It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup 2. Test Setup of Radiation (Y Plane) SEGI LIMITED Keyless Entry System AR2WT10R-SS It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup 3. Test Setup of Radiation (Z Plane)
