VA5REC340-2WSPKeyless Entry System (Model: 2WG9R-SP)
SEGI LIMITED
Click to zoom
Application Details
- Equipment Class
- DSC - Part 15 Security/Remote Control Transmitter
- Date of Grant
- Nov 06, 2012
- Application Purpose
- Original Equipment
- Date of Application
- Nov 06, 2012
- Equipment Note
- Keyless Entry System (Model: 2WG9R-SP)
- Frequency Range
- 433.92000000 - 433.92000000
- Company
- SEGI LIMITED
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
www.compustar.com www.firstechonline.com Applicable to the following remote(s) All 4 Button Light Emitting Diode Remote )ylnO lanoitanretnI( rebmuN DI CI)ylnO SU( rebmuN DI CCFetomeR 2WG5R - 900SHVA5JR961A9157087A-R961A915 2WG5R-SHVA5JR961-2A4337087A-R961A433 2WG9R-SPVA5REC340-2WSP7087A-2WREC340SP www.compustar.com www.firstechonline.com Numéro d’identification FCC Numéro d’identification IC (seulement USA)(seulement International) 2WG5R - 900SHVA5JR961A9157087A-R961A915 2WG5R-SHVA5JR961-2A4337087A-R961A433 2WG9R-SPVA5REC340-2WSP7087A-2WREC340SP All 4 Button Light Emitting Diode Remote Télécommande Manuel de l’utilisateur This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following conditions; Ce dispositif est conforme avec la partie 15 des règlements FCC.L’opération est assujettie aux conditions suivantes : (1) Ce dispositif ne devrait pas causer des interférences nuisibles. Cet appareil est conforme aux standard(s) RSS exempt(s) de licence d’Industrie Canada. Son utilisation est sujette aux conditions suivantes : (2) Ce dispositif devrait accepter les interférences reçues incluant celles qui pourraient occasionner des opérations indésirab les. . AVERTISSEMENT:Des changements ou modifications non-expressément approuvés par les parties responsables de cette conformité peuvent annuler l’autorisation d’opérer ce dispositif. Applicable aux télécommandes suivantes:
Users Manual
By Firstech, LLC 2 t @o@c t @o@c iT w@c T r @led@f@@d QQ q@r U v @m U r @m @M@b @r V Rw@r @b@fW Qw@r @b@fY g @s @fQR a @l@O@a@@u@O@dQR p @l@O@aQS a@t@r @s@fQS m@t@r @s@f@Hr @m I QT t@r QU aux@o@O@w@rMd@O@s@dQV s @a@O@dQV By Firstech, LLC 2 a @s @fQW d @l@O@@c @d@lQW t@t @m QW R c@m @Hm @v @cIQX rps@Hr @p@s I@u@O@dQY s @v @sRP t @s@m RQ c@O@h@s@m RQ a@j@m RQ m @o@s RQ p@Rw@Tb@r RR r @c@O@p@r HIRR l @l @wRU m RW r @s@e@dRS a@dRT 3 By Firstech, LLC Introduction Thank you for purchasing a Firstech system for your vehicle. In order to truly enjoy the benefits of this system, we recommend that you thoroughly review the following manual. Please note that this manual applies to the 2WG5R-900SH 2 Way - 4 Button LED Remote, regardless of whether you purchased the alarm only, starter only or alarm/starter combination. This manual also supports the 1WG5R-900SH 1 Way remotes that may be included with your system. There are certain features listed in this manual that may not be available for your system. There may also be features listed in this manual that require additional installation or programming before they are active. Please note that this remote system has a 6 pin antenna plug and are not compatible with previous systems. If you have any questions, please contact the original place of purchase. For further information you may also contact our customer support center by calling 888-820-3690. Warranty Coverage Caution: The Manufacturer’s warranty will be voided if this product is installed by anyone other than an authorized Firstech dealer. For complete warranty details visit www.compustar.com or the last page of this manual. Firstech remotes carry a 1 year warranty from original date of purchase. Warranty registration can be completed online by visiting www.compustar.com. Please complete the registration form within 10 days of purchase. We do not include a mail in warranty registration card with each unit - registration must be done online. To verify that an authorized dealer installed your system, we highly recommend that you keep a copy of the original proof of purchase, such as the dealer invoice in a safe place. 5 By Firstech, LLC By Firstech, LLC 4 ! Quick Reference When servicing or loaning your vehicle to others, the system should be placed in Valet Mode. Valet Mode prevents the system from remote starting and disables all alarm functions. IMPORTANT:While in Valet mode the remote will still control power lock and unlock systems. The parking lights will not flash. The system can be put into valet one of three ways: 1. Turn the vehicle’s key to the ignition “on” position and tap buttons simultaneously for 0.5 second. The parking lights will flash once and/or siren chirp once to confirm the system is in valet mode. Repeat this process to take the system out of valet mode. The parking lights will flash twice and/or siren chirp once to confirm the system is out of valet mode. 2. If you do not have your remote control, you can put the system into valet by turning the ignition key “on” and then “off” five times within 7 seconds. The parking lights will flash once to confirm the system is in valet mode. Shortly after the first flash, the parking lights will flash twice. A remote control is required to take the system out of valet mode. IMPORTANT:If your system is set up for a secure valet option, you will not be able to put the system into valet until the proper code has been entered to the secure valet switch. 3. If your system is set up for the secure valet option (optional), you will not be able to put the system into valet until the proper code has been entered to the secure valet switch. The secure valet switch is the small button with bright blue LED on the front and if installed is the only way to override the alarm and/or remote start. Until programmed, the default code is (3, 3). v @m 7 By Firstech, LLC By Firstech, LLC 6 Quick Reference The only regular maintenance this system requires is remote control battery replacement. No programming is required when replacing the battery. Two Way Remotes: First, remove the small Phillips screw located on the back of the remote. Once the screw has been removed, gently pull the remote apart taking care to not damage the circuit board. Your battery size should be listed on the battery. (Battery size: CR2450) IMPORTANT: Be sure to observe correct polarity when installing the battery. One Way Remotes: First, remove the small Phillips screw located on the back of the remote. Once the screw has been removed, gently pull the remote apart taking care to not damage the circuit board. Your battery size should be listed on the battery. Replacements can be purchased from your local Firstech dealer or an electronics store. r @m Mb @r Quick Reference R@w@r @b@f Button(s) Duration FunctionLEDLED 2nd Car ModeChirp(s) 0.5 secondLocks doors and/or arms alarm.AmberRedOnce 3.5 secondsPanic/vehicle locater (flashes vehicle’s Green and RedGreen and RedN/A parking lights and sounds siren and horn). 0.5 secondUnlocks doors and/or disarms alarm.AmberRedTwice 0.5 secondAux 1. Triggers the auxiliary 1 output (most AmberRedOnce commonly used for rear defrost or window roll-down). 2.5 secondsTrunk release. Triggers the trunk release output and Solid Amber then Solid Red then Flash RedTwice opens the vehicle’s trunk.Flash Amber 0.5 secondAux 2. …
Text truncated - open the document above for the full version.
Cover Letter(s)
Date: October 8, 2012 Fede ral Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. CY_Choi/ RAPA, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. CY_Choi / RAPA on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Name: Young il Chang / President Company: SEGI LIMITED REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.
Cover Letter(s)
SEGI LIMITED Room 1808, 18/F, Tower 2, Admiralty Center, 18 Harcourt Road, Admiralty, Hongkong city, 186, CHINA E-MAIL : [email protected] Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section pertaining to confidential material SEGI LIMITED would like the following documents regarding this submission for FCC ID : VA5 REC340-2WSP to be kept confidenti al. 1. Block Dia gram 2. Schematic Diagram 3. Operational Description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Date 8th of October , 2012 By Young il Chang Title : President ============================================================
External Photos

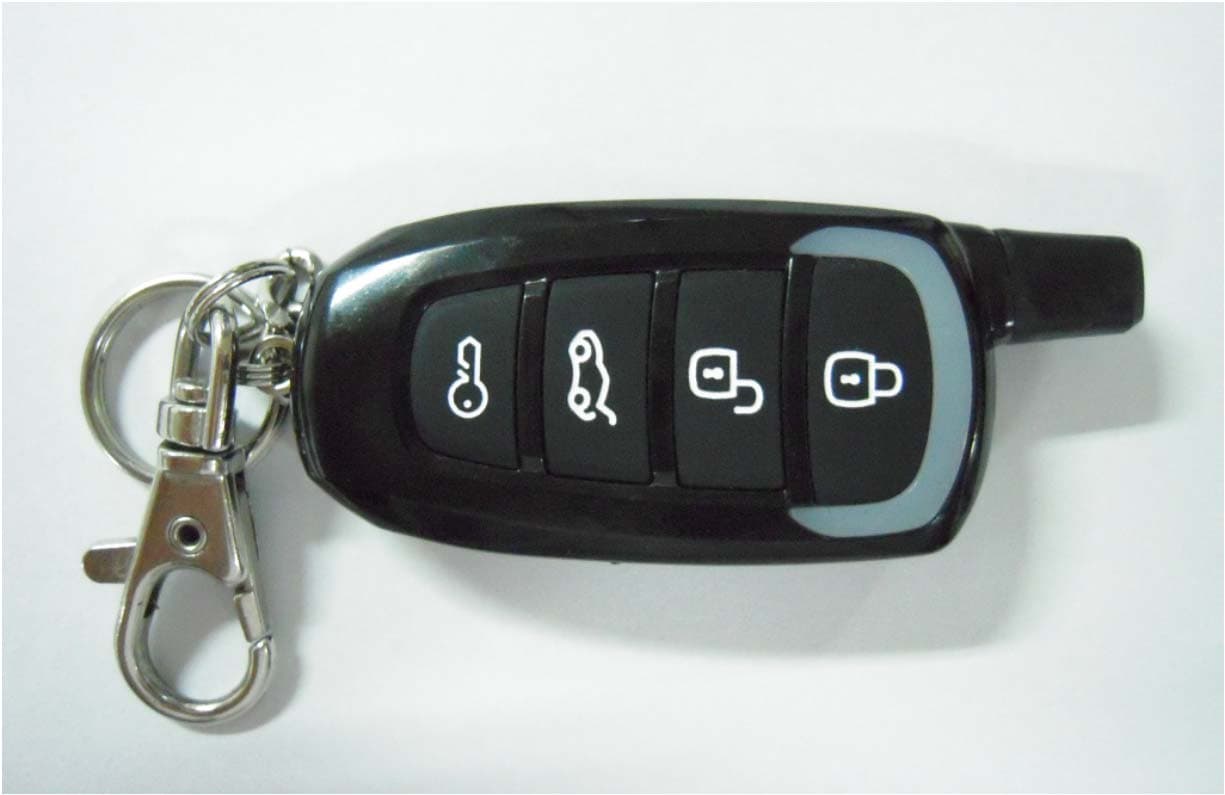

SEGI LIMITED Keyless Entry System 2WG9R-SP It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 3. External Photos of EUT 1. Front SEGI LIMITED Keyless Entry System 2WG9R-SP It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 3. External Photos of EUT 2. Back
ID Label/Location Info
SEGI LIMITED Keyless Entry System 2WG9R-SP It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 2. FCC ID Label and Location
Internal Photos
SEGI LIMITED Keyless Entry System 2WG9R-SP It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 4. Internal Photos of EUT 1. Front SEGI LIMITED Keyless Entry System 2WG9R-SP It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 4. Internal Photos of EUT 2. Back
Test Report
Page : 1 of 19 Report No. : RAPA12-O-653 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part15.231(Rev.0) Testing and Certification Laboratory TEST REPORT Report Number RAPA12-O-653 Type of Equipment Keyless Entry System Model Name 2WG9R-SP FCC ID VA5REC340-2WSP IC Number 7087A-2WREC340SP Applicant Name SEGI LIMITED Logo Address Room 1808, 18/F, Tower 2, Admiralty Centre, 18 Harcourt Rd., Admiralty, Hong Kong Manufacturer Name SEGI ELECTRONICS CO., LTD. Address Chenjiapucun, Liaobu Town, Dongguan City, Guangdong Province, P.R.China Date of test September 18, 2012 to October 5, 2012 Date of issue October 12, 2012 Total Page 19 pages (including this page) SUMMARY The equipment complies with FCC CFR 47 Part 15 Subpart C Section 15.231 and IC RSS-210 Issue8 Annex 1-2010. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass-production. Date : October 12 2012 Tested by SeungSik Kim Assistant Manager Date : October 12, 2012 Reviewed by Sukil Park Executive Managing Director Page : 2 of 19 Report No. : RAPA12-O-653 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part15.231(Rev.0) Testing and Certification Laboratory CONTENTS 1. General description of EUT -------------------------------------------------------------------------------------3 1.1 Applicant---------------------------------------------------------------------------------------------------------------3 1.2 Manufacturer ---------------------------------------------------------------------------------------------------------3 1.3 Basic description of EUT ------------------------------------------------------------------------------------------3 1.4 Technical specification of EUT -----------------------------------------------------------------------------------4 2. General information of test -------------------------------------------------------------------------------------5 2.1 Standard for measurement method ----------------------------------------------------------------------------5 2.2 Description of EUT modification ---------------------------------------------------------------------------------5 2.3 Test configuration ------------------------------------------------------------------------------------------5 3. Measurement data ---------------------------------------------------------------------------------------------------5 3.1 Transmission time ---------------------------------------------------------------------------------------------------6 3.2 Field strength of fundamental and spurious emission ----------------------------------------------------14 3.3 20 dB bandwidth ---------------------------------------------------------------------------------------------------17 4. Test equipment list -------------------------------------------------------------------------------------------------19 Page : 3 of 19 Report No. : RAPA12-O-653 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part15.231(Rev.0) Testing and Certification Laboratory 1. General description of EUT 1.1 Applicant • Company name : SEGI LIMITED • Address : Room 1808, 18/F, Tower 2, Admiralty Centre, 18 Harcourt Rd., Admiralty, Hong Kong • Contact person : Eui Seok, Chung • Phone/Fax : 82-32-623-5550 / 82-32-623-6667 1.2 Manufacturer • Company name : SEGI ELECTRONICS CO., LTD • Address : Chenjiapucun, Liaobu Town, Dongguan City, Guangdong Province, P.R.China • Contact person : Eui Seok, Chung • Phone / Fax : 82-32-623-5550 / 82-32-623-6667 1.3 Basic description of EUT • Product name : Keyless Entry System • Model name : 2WG9R-SP • Serial number : Not available(Proto Type) • Frequency : 433.92 MHz(Tx) • Channel number : 1 Channel • Modulation method : ASK • FCC Rule Part(s) : FCC CFR47 Part 15 Subpart C Section 15.231 • IC Rule Part(s) : IC RSS-210 Issue8 Annex 1-2010 • FCC classification : DSC / Part 15 Security/Remote control Transmitter • IC classification : Annex 1 / Momentarily Operated Devices and Remote Control • Date of test : September 18, 2012 to October 5, 2012 • Date of issue : October 12, 2012 • Place of test : Head office 824, B104, Anyang Megavalley, 799, Gwanyang-dong, Dongan-gu, Anyang-si, Gyeonggi-do, Korea, 483-060 Open area test site 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-825 (FCC Registration Number : 337229) (IC Submission Number : 143881) (KCC Designation Number : KR0027) Page : 4 of 19 Report No. : RAPA12-O-653 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part15.231(Rev.0) Testing and Certification Laboratory 1.4 Technical specification of EUT Model Name 2WG9R-SP Product Name Keyless Entry System Size(mm) 27.0 x 68 x 13 (W x L x H) Battery Size CR2016 Battery 2EA Transmit Frequency 433.92 MHz Modulation Method ASK Page : 5 of 19 Report No. : RAPA12-O-653 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part15.231(Rev.0) Testing and Certification Laboratory 2. General information of test 2.1 Standard for measurement methods 2.2 Description of EUT modification During the test, there was no mechanical or circuitry modification to improve RF and spurious characteristic, and any RF and spurious suppression device(s) was not added against the device tested. 2.3 Test configuration • Type of peripheral equipment used Description Model Name Serial No.ManufacturerFCC ID IC Number EUT 2WG9R-SP N/A SEGI Electronics Co., Ltd. VA5REC340-2WSP 7087A-2WREC340SP • Type of cable used Device from Device to Type of Cable Cable Number Length - - - - - Applied Standard : FCC CFR47 Part 15 Subpart C, IC RSS-210 Issue8 Annex 1-2010 FCC IC Description of Test Limit Result 15.231(a) A1.1.1 Transmission Time(s) 5 Pass 15.231(b) A1.1.2 Field…
Text truncated - open the document above for the full version.
Test Setup Photos
SEGI LIMITED Keyless Entry System 2WG9R-SP It should not be reproduced in full or partly without the written approval by TCL of RAPA. Testing and Certification Laboratory Appendix 1. Photos of Test Setup 1. Test Setup of Radiation
Contact Information
Applicant
Youngil Chang
Test Firm
Testing and Certification Agency of RAPAWoong-gul Kang
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231 | 433.92 MHz - 433.92 MHz | - |
