VA5RED300-2WSPKeyless Entry System

FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate this device. IC This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Firstech, LLC. | 1 8102REUCL001200 // FT-1B2W Guide REV1 QUICK START CARD 2 WAY 1 BUTTON REMOTES Tap this button for 1 second to lock your doors and/or arm your vehicle. Upon confirmation, the Lock LED will flash and remote will chirp once. Tap this button twice within 1 second to unlock your doors and/or disarm your vehicle. Upon confirmation, the Unlock LED will flash and remote will chirp twice. Hold this button for 3 seconds to start your vehicle. Your vehicle’s parking lights will flash once and/or siren will chirp once for confirmation. Upon confirmation, the Start LED will flash and remote chirp once. It will then chirp three times to confirm your vehicle has started. Repeat and your vehicle will shut off. Valet Mode: If your remote start is not working, you may be in Valet Mode. Your parking lights will also not flash. Your doors will still lock and unlock. To exit Valet Mode,turn the vehicle’s ignition On and then tap this button 5 times, waiting a second between each tap. Your vehicle will flash the parking lights twice and exit Valet Mode. You can also exit Valet Mode by turning the ignition On and then tapping the foot brake 10 times or reprogramming your remote(s). To reprogram your remote first cycle the key in the ignition 5 times within 7 seconds. Parking lights will flash. After that tap the Lock button on your remote. Repeat for any additional remotes. If you receive two parking light flashes, your system has exited remote programming mode and you must retry. EVENTLEDS LED COLOR LED DURATION REMOTE CHIRPS Runtime Remaining: 100%Red Once Every 5 Seconds 3 Times Runtime Remaining: 50%Red Runtime Remaining: 25%Red Runtime Remaining: 60 SecRed Once Every 2 Seconds Lock ConfirmationBlue1 x1 x Unlock ConfirmationBlue2 x2 x Start/Stop ConfirmationBlue Once On/ Twice Off Once On/ Twice Off All Error ConfirmationsRed 3 Times3 Times Arming/Locking While Trigger is Open Red Low Battery WarningBlueFade PARKING LIGHT FLASHESREMOTE START ERROR 3 then 11: Motor running 3 then 22: Key in ignition on position 3 then 3 3: Door open (manual transmission only) 3 then 44: Trunk open 3 then 55: Foot brake on 3 then 66: Hood open 3 then 7 7: Reservation off (manual transmission only) 3 then 88: Tach or voltage sensing failure 3 then 99: FT-DAS sensor shutdown 3 then 1010: System is in Valet Mode START ERROR CODESLEDS Firstech, LLC. | 2 QUICK START CARD 2 WAY 1 BUTTON REMOTES Register online at www.compustar.com within 10 days of purchase to activate your new remote’s warranty. Questions/comments? Contact us at 888-820-3690 from 8 AM to 5 PM PST. Also please visit www.compustar.com for a complete user’s manual. Firstech, LLC. | 3 CARTE DE MISE EN ROUTE RAPIDE TÉLÉCOMMANDES UNIDIRECTIONNELLES À 1 BOUTON Pressez ce bouton pendant 1 seconde pour verrouiller vos portières et/ou armer le système de sécurité de votre véhicule. Pour confirmer, la DEL de verrouillage clignotera et la télécommande émettra un bip. Pressez ce bouton deux fois en 1 seconde pour déverrouiller vos portières et/ ou désactiver le système de sécurité de votre véhicule.Pour confirmer, la DEL de déverrouillage clignotera et la télécommande émettra deux bips.. Tenez pressé ce bouton pendant 3 secondes pour démarrer votre véhicule. Les feux de stationnement de votre véhicule clignoteront une fois et/ou la sirène émettra un bip pour confirmer. Pour confirmer, la DEL de démarrage clignotera et la télécommande émettra un bip. Alors, elle émettra trois bips pour confirmer que votre véhicule a démarré. Répétez et le moteur de votre véhicule s’arrêtera. Mode valet : si votre démarrage à distance ne fonctionne pas, il est possible que le mode valet soit activé. Vos feux de stationnement ne clignoteront pas non plus. Le verrouillage et déverrouillage de portière continueront de fonctionner. Pour sortir du mode valet, tournez le contact à la position ON et ensuite pressez ce bouton 5 fois, en attendant une seconde entre chaque pression. Votre véhicule fera clignoter les feux de stationnement deux fois et sortira du mode valet. Vous pouvez aussi sortir du mode valet en tournant le contact à la position ON et en pressant ensuite la pédale de frein 10 fois ou en reprogrammant votre (vos) télécommande(s). Pour reprogrammer votre télécommande, en premier tournez la clé dans le contact 5 fois à l’intérieur de 7 secondes. Après cela, pressez le bouton de verrouillage sur votre télécommande.Répétez l’opération pour chaque télécommande additionnelle. Si vous recevez deux clignotements des feux de stationnement, votre télécommande est sorti du mode programmation de la télécommande et vous devez essayer à nouveau. CLIGNOTEMENTS DES FEUX DE STATIONNEMENT ERREUR DE DÉMARRAGE À DISTANCE 3 ensuite 11: Moteur allumé 3 ensuite 22: Clé dans le contact en position ON 3 ensuite 3 3: Portière ouverte (seulement transmission manuelle) 3 ensuite 44: Coffre ouvert 3 …

Text truncated - open the document above for the full version.

Date: August 26, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. TY_YOON/ RAPA, to act on our behalf in al l manners relating to application fo r equipment authorizat ion, including signing of all documents relating to th es e matters. Any and all acts carried out by Mr. TY_YOON/ RAPA on our behalf shall have the same effe ct as acts of our own. I, the undersigned, hereby certify that we ar e not subject to a denial of feder al benef its, that includes FCC benefits, pursuant to Sectio n 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. t esting, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Di vision into disrepute and not make any statement regarding our product certification which t he Certification Divisi on may co nsider misleading or unauthorized; e) upon suspension or cancellation of certifi cation, discontinue use of all advertisi ng matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity wi th specif ied standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certifi cation Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certifi cation Division when requested; j) take appropriate ac tion with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notic e from the applicant. Sincerely Yours, Name: Young il / President Company: SEGI LIMITED REMARK: 1. This au th orization letter will be sent along with your application when filing with the Certifi cation Division. 2. Please follow the format and type it on co mpan y letterhead an d send original to us. 3. Authorized signature must be in agreemen t with grantee code contact in FCC database.

SEGI LIMITED UNIT F, 7/F, CENTURY INDUSTRIAL CENTER, 33-35 AU PUI WAN STREET, SHATIN, NT, HONGKONG E- MAIL : [email protected] Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section pertaining to confidential material SEGI LIMITED would like the following documents regarding this submission for FCC ID : VA5RED300-2WSP to be kept confidential per the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459) . 1. Bl ock Diagram 2. Schematic Diagram 3. Circuit Description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sin cerely, Date 06th of September , 2013 By Young il Chang Title : President ============================================================

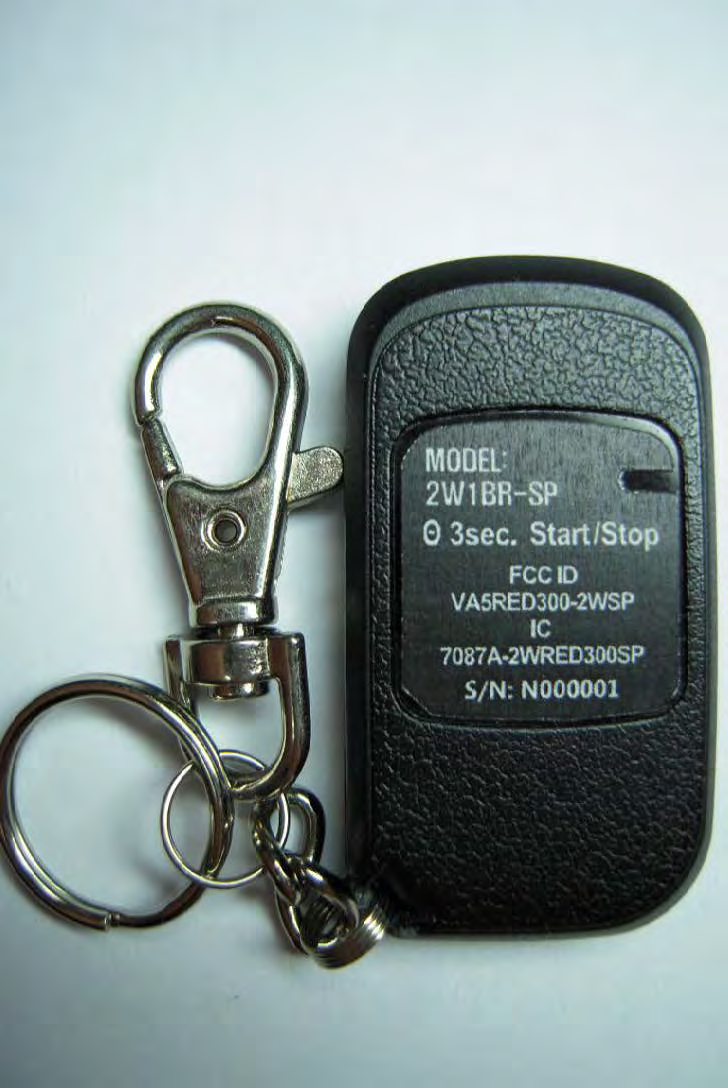

SEGI LIMITED Keyless Entry System 2W1BR-SP It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 1. Front SEGI LIMITED Keyless Entry System 2W1BR-SP It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 2. Back

SEGI LIMITED Keyless Entry System 2W1BR-SP It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 2. FCC ID Label and Location

SEGI LIMITED Keyless Entry System 2W1BR-SP It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209Rev.0) Testing and Certification Agency Appendix 4. Internal Photos of EUT 1. Front SEGI LIMITED Keyless Entry System 2W1BR-SP It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209Rev.0) Testing and Certification Agency Appendix 4. Internal Photos of EUT 2. Back

Page : 1 of 17 Report No. : RAPA13-O-616 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part15.231(Rev.0) Testing and Certification Laboratory TEST REPORT Report Number RAPA13-O-616 Type of Equipment Keyless Entry System Model Name 2W1BR-SP FCC ID VA5RED300-2WSP IC Number 7087A-2WRED300SP Applicant Name SEGI LIMITED Logo Address UNIT F, 7/F, CENTURY INDUSTRIAL CENTER, 33-35 AU PUI WAN STREET, SHANTIN, NT, HONGKONG Manufacturer Name SEGI ELECTRONICS CO., LTD. Address Chenjiapucun, Liaobu Town, Dongguan City, Guangdong Province, P.R.China Test duration September 6, 2013 to September 10, 2013 Issuance date of report September 12, 2013 Total Page 17 pages (including this page) SUMMARY The equipment complies with FCC CFR 47 Part 15 Subpart C Section 15.231 and IC RSS-210 Issue8 Annex 1-2010. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass- production. Date : September 12, 2013 Date : September 12, 2013 Tested by Tae Yang Yoon Reviewed by Sukil Park Manager Executive Managing Director Page : 2 of 17 Report No. : RAPA13-O-616 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part15.231(Rev.0) Testing and Certification Laboratory CONTENTS 1. General description of EUT ........................................................................................................... 3 1.1 Applicant ................................................................................................................................................. 3 1.2 Manufacturer........................................................................................................................................... 3 1.3 Basic description of EUT ....................................................................................................................... 3 1.4 Technical specification of EUT ............................................................................................................. 4 2. General information of test ........................................................................................................... 5 2.1 Standard for measurement methods and test result ......................................................................... 5 2.2 Description of EUT modification .......................................................................................................... 5 2.3 Test configuration .................................................................................................................................. 5 3. Measurement data ......................................................................................................................... 6 3.1 Transmission time .................................................................................................................................. 6 3.2 Field strength of fundamental and spurious emission .................................................................... 12 3.3 20 dB Bandwidth .................................................................................................................................. 15 4. Test equipment list ...................................................................................................................... 17 Page : 3 of 17 Report No. : RAPA13-O-616 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part15.231(Rev.0) Testing and Certification Laboratory 1. General description of EUT 1.1 Applicant • Company name : SEGI LIMITED • Address : UNIT F, 7/F, CENTURY INDUSTRIAL CENTER, 33-35 AU PUI WAN STREET, SHANTIN, NT, HONGKONG • Contact person : Eui Seok, Chung • Phone/Fax : 82-32-623-5550 / 82-32-623-6667 1.2 Manufacturer • Company name : SEGI ELECTRONICS CO., LTD • Address : Chenjiapucun, Liaobu Town, Dongguan City, Guangdong Province, P.R.China • Contact person : Eui Seok, Chung • Phone / Fax : 82-32-623-5550 / 82-32-623-6667 1.3 Basic description of EUT • Product name : Keyless Entry System • Model name : 2W1BR-SP • Serial number : Not available(Proto Type) • Frequency : 433.92 MHz(Tx) • Channel number : 1 Channel • Modulation method : ASK • FCC Rule Part(s) : FCC CFR47 Part 15 Subpart C Section 15.231 • IC Rule Part(s) : IC RSS-210 Issue8 Annex 1-2010 • FCC classification : DSC / Part 15 Security/Remote control Transmitter • IC classification : Annex 1 / Momentarily Operated Devices and Remote Control • Date of test : September 6, 2013 to September 10, 2013 • Date of issue : September 12, 2013 • Place of test : Head office 824 & B104, Anyang Megavalley, 799, Gwanyang-dong, Dongan-gu, Anyang-si, Gyeonggi-do 431-767, Korea Open area test site 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do 449-825, Korea (FCC Registration Number : 337229) (IC Submission Number : 143881) (KCC Designation Number : KR0027) Page : 4 of 17 Report No. : RAPA13-O-616 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part15.231(Rev.0) Testing and Certification Laboratory 1.4 Technical specification of EUT Model Name 2W1BR-SP Product Name Keyless Entry System Size(mm) 28.4 x 46.6 x 9.3 (W x L x H) Battery Size 6.0 Vdc (CR2025 * 2) Transmit Frequency 433.92 MHz Modulation Method ASK Page : 5 of 17 Report No. : RAPA13-O-616 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part15.231(Rev.0) Testing and Certification Laboratory 2. General information of test 2.1 Standard for measurement methods and test result 2.2 Description of EUT modification During the test, there was no mechanical or circuitry modification to improve RF and spurious characteristic, and any RF and spurious suppression device(s) was not added against the device tested. 2.3 Test configuration • Type of peripheral…

Text truncated - open the document above for the full version.

SEGI LIMITED Keyless Entry System 2W1BR-SP It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup 1. Test Setup of Radiation (9 kHz ~ 30 MHz) SEGI LIMITED Keyless Entry System 2W1BR-SP It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup 2. Test Setup of Radiation (30 MHz ~ 300 MHz) SEGI LIMITED Keyless Entry System 2W1BR-SP It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup 3. Test Setup of Radiation (300 MHz ~ 1 GHz)
