VA5RED301-1WSSKeyless Entry System

Part Number: XXXXXX, REV A 11/2013 KIA MOTORA Smart Key ARS CALL CENTER NUMBER 1-855-225-7344(US) 1-877-542-2886(CA) 12 REMOTE STARTOWNER’S GUIDE WARNING It is the responsibility of the vehicle operator to ensure that their vehicle is parked in a safe and responsible manner. 1. When leaving the vehicle, it is the user' s responsibility to ensure that the gearshift lever is in "Park" in order to avoid accidents upon remote starting. (Note: Make sure that the automatic vehicle cannot start in "Drive".) 2. It is the user' s responsibility to ensure that the remote starter is disabled or put into valet mode before servicing. FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Using the remote control Description of Remote Appearance Button Functions Vehicle Presets Heater Windshield Wipers, Radio & Headlights Changing the Remote Control Transmitter Battery Remote-Starting your Vehicle Remote-Starting Driving Off Remote Starter Features Valet/Service Mode Panic Mode Advanced Features: Installation -programmable Options Engine Run Time setting Light Blinking during remote engine start Troubleshooting Poor Transmitting Range LIMITED THIRY-SIX(36)MONTHS OR 60,000KM WARRANTY REMOTE STARTOWNER’S GUIDE INTRODUCTION TABLE OF CONTENTS: Congratulations on your purchase of a Kia Remote Start System Featuring PowerCode Technology. This easy-to- use manual details the operationg instruction and benefits of the Remote Start System. Should you have questions regarding this system that this manual does not address, please contact your local Kia dealer. 34 Using the remote control Vehicle Presets Heater When leaving the vehicle it is recommended to preset the accessory controls in preparation for the Next remote start. Settings for the blower motor(fan),front and rear (if equipped),should not be left on HIGH.It is recommended to leave the settings on LOW or MEDIUM instead. Windshield Wipers, Radio & Headlights Certain vehicles require the radio and / or windshield wipers and / or headlights circuits to become energized while running under remote start. When leaving the vehicle you must ensure that the windshield wipers and headlights switches are OFF. Leaving the headlights switch ON on certain types of vehicles could cause them to remain ON even after remote starter shutdown, resulting in a dead battery. Description of Remote Appearance Button ImageButtonLEDFeature Tap 1 timeLock Tap 2 times Unlock 2 seconds 4 seconds PANIC Button Functions Lock, Unlock and Remote starting icon is displaying with One LED color. Remote start/stop Arming/Disarming Note: Tap the button 1 time on the remote control transmitter to arm the vehicle. For disarming, tap the button two times PANIC: Personal Protection Alarm Note: Press the button for 4 seconds START/STOP: Note : Remote Engine Start - Tap the button 1 time and then press the button for 2 seconds within 3 seconds. Remote Engine Stop -Press the button for 2 seconds oe@s’”@k…™ 56 Changing the Remote Control Transmitter Battery Remote-Starting your Vehicle Remote-Starting For REMOTE Start KEY Fob 1. Tap button one time and Lock LED will display. And then press button for 2 seconds within 3 seconds. 2. Remote Stop - Press button for 2 seconds. For OE REMOTE 1. Tap button and tap or button shortly within three(3) seconds. Engine start is not available for five seconds after doors open. 2. To stop the engine, tap or button shortly for a 1/2 second Note:When remote engine start using OE smart key, valid communication range will be max 30-50 meters (Same as OE smart key range validity and it can be different from vehicle types) If your vehicle does not start at the first attempt, the system will shut down, wait a few seconds and try to start the engine again. There will be 3 start attempts before the system gives up. Driving Off With the vehicle running remotely, tap the button 2 times to disarm the OEM Starter Kill and/or the OEM alarm and unlock the doors. Enter the vehicle and do the following: 1. Turn the ignition key to the IGNITION ON (RUN) position. (Do not turn the key to the CRANK position while the engine is running. This would cause the starter motor to reengage.) 2. Press the brake pedal to disengage the remote starter unit. With the vehicle key is in the IGNITION ON position, press the brake pedal or 30 seconds passes, vehicle is ready to drive. Note:In remote engine start status, engine will be deactivated according to following conditions. - Open the door and 30 seconds is passed. - Press brake pedal without key is in IGNITION ON position. The 3-Volt Lithium battery X 2EA(Model: CR2025) supplied in your remote control transmitter will last approximately three years, depending on usage. When the battery begins to weaken, you will notice LED no display or a decrease in range or distance from the vehicle that your remote control will operate. Replacement batteries are available at local electronics stores. Following the instructions below to change the remote control battery 1. You may use a coin to pry the remote control halves apart 2. Remove the old battery and repl…

Text truncated - open the document above for the full version.

Date: August 26, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. TY_YOON/ RAPA, to act on our behalf in al l manners relating to application fo r equipment authorizat ion, including signing of all documents relating to th es e matters. Any and all acts carried out by Mr. TY_YOON/ RAPA on our behalf shall have the same effe ct as acts of our own. I, the undersigned, hereby certify that we ar e not subject to a denial of feder al benef its, that includes FCC benefits, pursuant to Sectio n 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. t esting, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Di vision into disrepute and not make any statement regarding our product certification which t he Certification Divisi on may co nsider misleading or unauthorized; e) upon suspension or cancellation of certifi cation, discontinue use of all advertisi ng matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity wi th specif ied standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certifi cation Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certifi cation Division when requested; j) take appropriate ac tion with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notic e from the applicant. Sincerely Yours, Name: Young il / President Company: SEGI LIMITED REMARK: 1. This au th orization letter will be sent along with your application when filing with the Certifi cation Division. 2. Please follow the format and type it on co mpan y letterhead an d send original to us. 3. Authorized signature must be in agreemen t with grantee code contact in FCC database.

SEGI LIMITED Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: VA5RED301-1WSS To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Circuit Description Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Young il Chang President SEGI LIMITED January 7, 2014

Page : 38 / 39 Report No. : RAPA13-O-732 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247( R e v.3) Testing and Certification Laboratory 4. RF Exposure Compliance Requirement According to KDB447498 D01 General RF Exposure Guidance v05r01 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] ∙ [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where ∙ f(GHz) is the RF channel transmit frequency in GHz ∙ Power and distance are rounded to the nearest mW and mm before calculation ∙ The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Channel Number Frequency [MHz] Max. Average Power [dBm] Max. Average Power [mW] Separation distance [mm] 1-g SAR value Test exclusion thresholds 1 910.92 10.82 12.1 5 2.31 3.0 13 915.00 10.74 11.9 5 2.27 3.0 25 919.08 10.58 11.4 5 2.19 3.0 Result: SAR is not required.

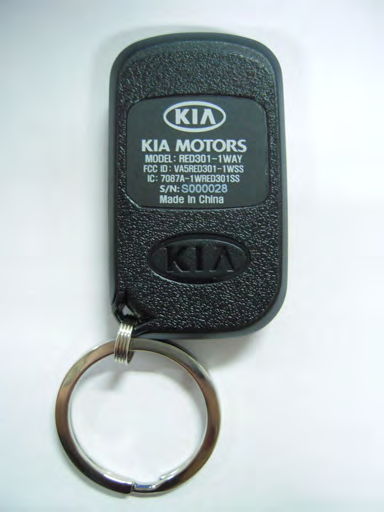

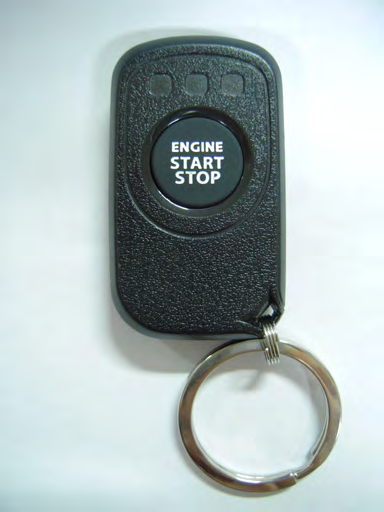

Page : 1 / 39 Report No. : RAPA13-O-732 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247( R e v.3) Testing and Certification Laboratory TEST REPORT Report Number RAPA13-O-732 Type of Equipment Keyless Entry System Model Name RED301-1WAY FCC ID VA5RED301-1WSS IC Number 7087A-1WRED301SS Applicant Name SEGI LIMITED Logo Address UNIT F, 7/F, CENTURY INDUSTRIAL CENTER, 33-35 AU PUI WAN STREET, SHANTIN, NT, HONGKONG Manufacturer Name SEGI ELECTRONICS CO., LTD Address Chenjiapucun, Liaobu Town, Dongguan City, Guangdong Province, P.R.China Test period October 28, 2013 to November 13, 2013 Issuing date of report November 21, 2013 Total page 39 pages (including this page) SUMMARY The equipment complies with FCC Part 15.247: Operation within the bands 902 MHz to 928 MHz, 2 400 MHz to 2 483.5 MHz, and 5 725 MHz to 5 850 MHz and IC RSS-210 Issue8 Annex 1-2010. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass- production. Date : November 21, 2013 Date : November 21, 2013 Prepared and tested by Ta e Yang Yo o n Reviewed by Sukil Park Manager / TCL of RAPA Executive Managing Director / TCL of RAPA Page : 2 / 39 Report No. : RAPA13-O-732 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247( R e v.3) Testing and Certification Laboratory CONTENTS 1. GENERAL DESCRIPTION .............................................................................................................. 3 1.1 Applicant ..................................................................................................................................................... 3 1.2 Manufacturer ............................................................................................................................................... 3 1.3 Basic description of EUT ............................................................................................................................. 3 1.4 Electrical specification ................................................................................................................................. 4 2. General information of test ............................................................................................................ 5 2.1 Standard for measurement methods .......................................................................................................... 5 2.2 Description of EUT modification .................................................................................................................. 5 2.3 Description of test system configuration ..................................................................................................... 5 3. Measurement data .......................................................................................................................... 6 3.1 Radiated emission in restricted band .......................................................................................................... 6 3.2 Frequency separation ................................................................................................................................. 9 3.3 Number of hopping channels .................................................................................................................... 11 3.4 Occupied bandwidth .................................................................................................................................. 13 3.5 Average time of occupancy ....................................................................................................................... 17 3.6 Maximum peak output power .................................................................................................................... 23 3.7 Conducted emission and band edge ........................................................................................................ 24 4. RF Exposure Compliance Requirement ..................................................................................... 38 5. Test equipment list ...................................................................................................................... 39 Page : 3 / 39 Report No. : RAPA13-O-732 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247( R e v.3) Testing and Certification Laboratory 1. GENERAL DESCRIPTION 1.1 Applicant • Company name : SEGI LIMITED • Address : UNIT F, 7/F, CENTURY INDUSTRIAL CENTER, 33-35 AU PUI WAN STREET, SHANTIN, NT, HONGKONG • Contact person : Eui Seok Chung • Phone/Fax : +82-32-623-5550 / +82-32-623-6667 1.2 Manufacturer • Company name : SEGI ELECTRONICS CO., LTD • Address : Chenjiapucun, Liaobu Town, Dongguan City, Guangdong Province, P.R.China • Contact person : Eui Seok Chung • Phone/Fax : +82-32-623-5550 / +82-32-623-6667 1.3 Basic description of EUT • Product name : Keyless Entry System • Model name : RED301-1WAY • Serial number : N/A • Frequency : 910.92 MHz ~ 919.08 MHz • Number of channel(s) : 25 Channels • Modulation method : FHSS • FCC Rule Part(s) : FCC CFR47 Part 15 Subpart C Section 15.247 • IC Rule Part(s) : IC RSS-210 Issue8 Annex 8-2010 • FCC classification : DSS / Part 15 Spread Spectrum Transmitter (FHSS) • IC classification : Annex 8 / Frequency Hopping and Digital Modulation Systems Operating in the bands 902 - 928 MHz, 2 400 - 2 483.5 MHz and 5 725 - 5 850 MHz • Test period : October 28, 2013 to November 13, 2013 • Issuing date of report : November 21, 2013 • Place of test : Head office 824 & B104, Anyang Megavalley, 799, Gwanyang-dong, Dongan-gu, Anyang-si, Gyeonggi-do 431-767, Korea Open area test site 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do 449-825, Korea (FCC Registration Number : 337229) (IC Submission Number : 143881) (KC…

Text truncated - open the document above for the full version.

SEGI LIMITED Keyless Entry System RED301-1WSS It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup 1. Test Setup of Radiation (X Plane) SEGI LIMITED Keyless Entry System RED301-1WSS It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup 2. Test Setup of Radiation (Y Plane) SEGI LIMITED Keyless Entry System RED301-1WSS It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup 3. Test Setup of Radiation (Z Plane)
