VAAWFTCactus Wireless Flash Trigger

WIRELESS FLASH TRIGGER BY C CC CA AA AC CC CT TT TUS USUS US ™ USER MANUAL 2 Thank you for choosing CACTUS. This Cactus PT-04 Wireless Flash Trigger is a powerful yet stable device to command external flashes wirelessly. With this wireless flash trigger, you can place different flashes at various angles and distances from the object without being hindered by wires. This is particularly useful for portrait and product photography. Please read this instruction manual carefully and refer to the manual of your camera and flash if necessary. The Cactus PT-04 Wireless Flash Trigger composes of a transmitter and a receiver. The transmitter is to be attached on your camera while the receiver an external flash. When the transmitter is activated, it emits radio signal to the receivers and therefore triggers the external flashes. Each receiver works with one flash. Number of receivers to be used with a transmitter is unlimited. In other words, you can control as many external flashes as you wish provided that you have enough receivers to work with them. The transmitter is made of advanced electronic circuits and components. Its special energy-saving design allows a new battery to last a year when the unit is in the standby mode or triggers 20,000 times continuously. Triggering current is only 0.01mAh. It is safe for all cameras, both film and digital, and flashes with standard hot shoe or PC sync connector. The four selectable channels and advanced anti-interference feature allow the device to work within the effective area without interfered by other channels. Trademark Information CACTUS is a registered Trademark of Harvest One Limited in Hong Kong. 3 CONTENTS Nomenclature ..........................................P. 4 Operation ..........................................P. 5 Major Specifications ..........................................P. 7 Trouble Shooting ...........................................P.8 Notices ..........................................P. 9 Warranty ..........................................P. 10 4 NOMENCLATURE Transmitter Receiver 5 OPERATION Channel setup There are two small switches located at the bottom of the transmitter. Four channels can be tuned according to different combination of the switches. Only when the channel of the transmitter matches that of the receiver, the external flash cannot be triggered off. The combinations are as follows: Channel No. Switch 1 Switch 2 1 1 2 2 0 2 3 0 N 4 1 N 6 Operation 1. Attach hot shoe of the external flash to that of the receiver, or use the flash’s connection cable to connect the receiver and the flash. 2. Switch on the power of the receiver. 3. Set the channel of the receiver according to the table above so that it is the same as that of the transmitter. The switch of the receiver is inside the power compartment. 4. Press the “TEST” button of the transmitter. The light on the transmitter will be on, so as that of the receiver. Both lights are on means that both the transmitter and the receiver are working in good condition. 5. Attach the hot shoe of the transmitter to the hot shoe of the camera. 6. If your camera does not have a hot shoe, plug the 3.5mm plug of the camera’s connection cable to the jack of the transmitter’s X synchronic cable; connect another side of the camera’s connection cable to the jack of the camera’s X synchronic cable. 7. More than one receiver can be used to work with the transmitter. 7 MAJOR SPECIFICATIONS The package includes: 1. One transmitter 2. One Receiver 3. One PC sync cable 4. One battery for transmitter and one for receiver Specifications • 4 channels selectable • Radio working frequency: 433MHz; • Maximum effective area: 10 metres / 3 feet 5 inches (in open area without interference) • Minimum effective area: 60 centimetres / 2 feet • Power Input of Transmitter: L1028 12V 23A battery • Power Input of Receiver: CR2 3V Alkaline battery • Net Weight: 78g. 8 TROUBLE SHOOTING Q: I press the button on the transmitter but my flash does not light up. Why? A: Please make sure that: 1. The plastic wrapping on receiver’s battery has been removed. 2. Batteries on both the transmitter and receiver are new. 3. The receiver has been switched to “ON”. 4. The channels of both the transmitter and receiver match each other. 5. When you press the button on the transmitter, the LED on the receiver and transmitter will light up. Q: The flash misfires even I did not press the button on the transmitter. What can I do? A: Although this trigger has advanced anti-interference design, interference from the environment is still inevitable. Please move your setup to some other areas and try again. If misfiring stops, the problem may come from the interference of the environment. Interference may occur if you place flashes too close to each other. Try to move the flashes apart for at least 60cm / 2 feet. Misfiring problem should be resolved. If misfiring persists, switch to different channels and try again. 9 NOTICES NOTICES FOR CUSTOMERS IN THE U.S.A. Federal Communications Commission (FCC) Radio Frequency Interference Statements This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the e…

Text truncated - open the document above for the full version.

HARVESTONE A€1T€|JRAFI June 13, 2007 Mr. KC Lee The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N,T., Hong Kong. Dear Mr. Lee, Letter of Attestation This equipment has been tested in accordance with the requirements contained in the appropriate commission Regulations, To the best of my knowledge, these fests were pertormed using measurement procedures consistent with industry or commission standards and demonstrate that the equipment complies with the appropriate standards' Each unit manufactured, imported or marketed, as defined in the commission's regulations, will conform to the samples tested within the variations that can be expected due to quantity production and testing on a statistical basis. r further certify that the necessary measurements were made by the Hong Kong standards and Testing Centre Ltd,, 70 Dai Wang Street, Taipo Industrial Estate, Taipo, N,7., Hong Kong. 1101 David House. 8-20 Nanking Street, Kowloon, Hong Kong. AE^EEH,F.11a8-20ffi.16-F1r11018 Yours sincerely, Youn W. Director Harvest ne Limited t/ (8s2) 3s2s-0116f/(852)3525-0tL7 www.harvest-one.com

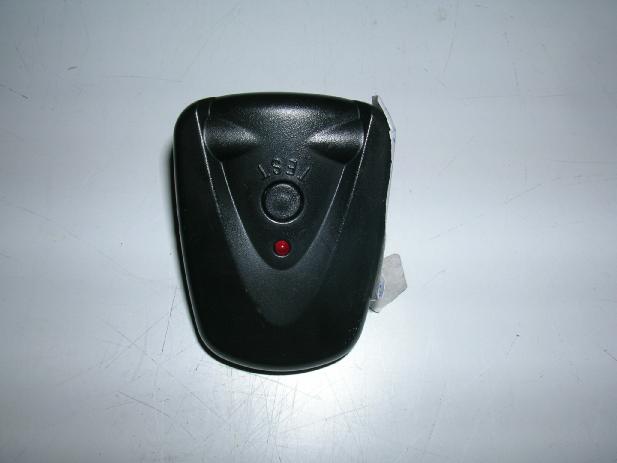

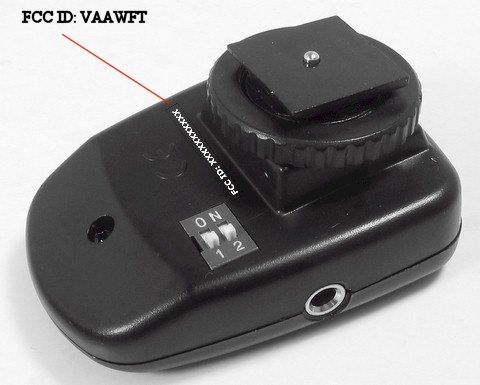

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

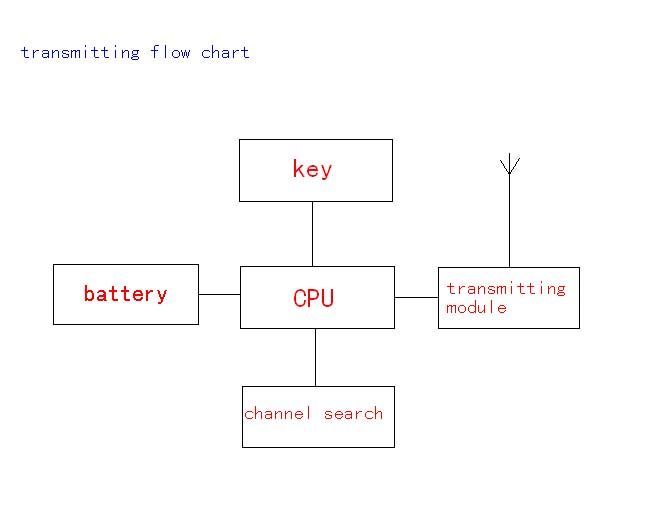

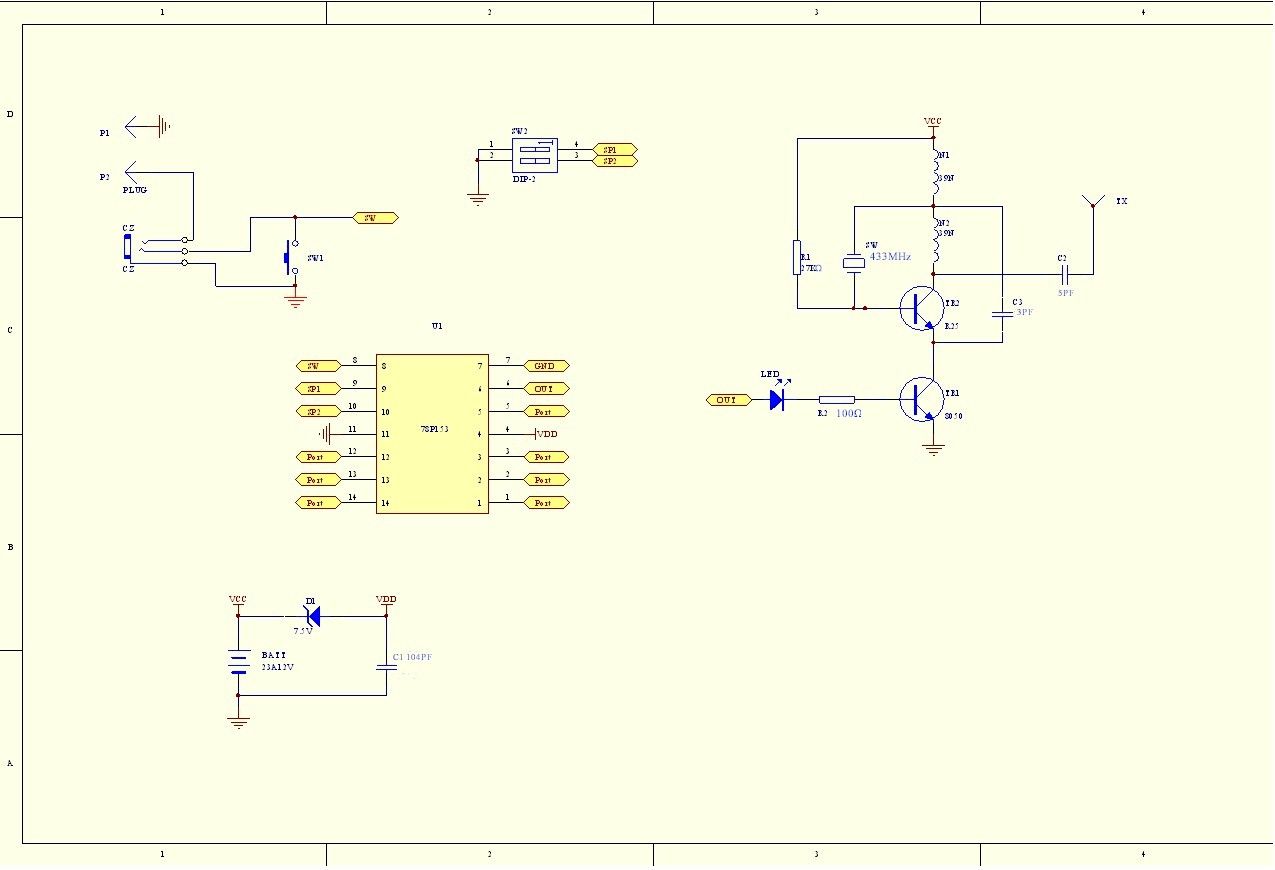

FCC ID: VAAWFT Circuit Description The 433 MHz crystal oscillator drives the base of TR2 the final/buffer amplifier. The modulation provided by IC. The output of TR2 has the matching network consisting of C2 and C3 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source No external antenna There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 12 Volt (“L1028” size battery x 1) primary battery Operation Descriptions The transmitter is a remote control operating at 433MHz band. The transmitter is powered by a 12V battery (“L1028” size battery x 1) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form pulse modulating signal on the 433 MHz carrier frequency. Remarks: The transmitter is a 1 button transmitter. The EUT continues to transmit while button is being pressed. It is button transmitter, Modulation by IC ; and type is Pulse modulation.

STC Test Report Date : 2007-06-07 Page 1 of 19 No. : HM158831 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (HAO004): Harvest One Limited. 1101 David House, 8-20 Nanking Street, Kowloon, Hong Kong. Manufacturer: Harvest One Limited. 1101 David House, 8-20 Nanking Street, Kowloon, Hong Kong. Description of Samples: Model Name: Cactus Wireless Flash Trigger Brand Name: CACTUS TM Model Number: PT-04 FCC ID: VAAWFT Date Samples Received: 2007-05-17 Date Tested: 2007-06-05 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-06-07 Page 2 of 19 No. : HM158831 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 19 Content Page 2-3 of 19 1.0 General Details 1.1 Test Laboratory Page 4 of 19 1.2 Applicant Details Page 4 of 19 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 19 Description of EUT operation 1.4 Date of Order Page 5 of 19 1.5 Submitted Samples Page 5 of 19 1.6 Test Duration Page 5 of 19 1.7 Country of Origin Page 5 of 19 2.0 Technical Details 2.1 Investigations Requested Page 6 of 19 2.2 Test Standards and Results Summary Page 6 of 19 3.0 Test Results 3.1 Emission Page 7-11 of 19 3.2 Bandwidth Measurement Page 12-13 of 19 STC Test Report Date : 2007-06-07 Page 3 of 19 No. : HM158831 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 14 of 19 Appendix B Duty Cycle Correction During 100 msec Page 15-16 of 19 Appendix C Periodic Operation Page 17 of 19 Appendix D Photographs Page 18-19 of 19 STC Test Report Date : 2007-06-07 Page 4 of 19 No. : HM158831 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Harvest One Limited. 1101 David House, 8-20 Nanking Street, Kowloon, Hong Kong. HKSTC Code Number for Applicant Manufacturer Harvest One Limited. 1101 David House, 8-20 Nanking Street, Kowloon, Hong Kong. STC Test Report Date : 2007-06-07 Page 5 of 19 No. : HM158831 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Product: Cactus Wireless Flash Trigger Manufacturer: Harvest One Limited. Brand Name: CACTUS TM Model Number: PT-04 Rating: 12Vd.c (“L1028” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Harvest One Limited., 433MHz Wireless Control Flash Trigger. The transmitter is a button transmitter. The EUT continues to transmit while button is being pressed. It is button transmitter, Modulation by IC; and the type is pulse modulation. 1.4 Date of Order 2007-05-17 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2007-06-05 1.7 Country of Origin China STC Test Report Date : 2007-06-07 Page 6 of 19 No. : HM158831 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 2006 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tabl…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
