VASECR300GManned Charge System

eb Corp.
Manned Charge System - FCC ID VASECR300G - eb Corp.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Jan 02, 2008
Application Purpose
Original Equipment
Date of Application
Jan 02, 2008
Equipment Note
Manned Charge System
Frequency Range
13.56000000 - 13.56000000
Company
eb Corp.
Country
South Korea

Documents & Files

Select a file to view

Users Manual

โ†—

Block Diagram

โ†—

Cover Letter(s)

โ†—

External Photos

โ†—

ID Label/Location Info

โ†—

Internal Photos

โ†—

Operational Description

โ†—

Schematics

โ†—

Test Report

โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 1/1 ATTACHMENT E. - USER MANUAL - Ecuador Traffic Card System Manual for User of Manned Charger(ECR-300) System Name: Manned Charge System Stage Name: ECUADOR AFC Version: Ver. 1.0 Revision History NO Versi on Revision Date Change Reason 1 Change Contents 2 Prepare d by Approve d by 1 1.0 2006.11.01 New Newly written Dong-jin kim 1 Change Reason: Enter change contents choosing if change contents are addition/correction/deletion/review/approval for previous document. 2 Change Contents : Write the location where changes occur and the change contents in detail(Describe the chapter, section, change contents) ์—์ฝฐ๋„๋ฅด ๊ตํ†ต์นด๋“œ ์‹œ์Šคํ…œ ์œ ์ธ์ถฉ์ „๊ธฐ ECR-300 ์‚ฌ์šฉ์ž ์„ค๋ช…์„œ (แ„Œแ…ฎ)์ด๋น„ -- 2 Contents 1. INITIAL SCREEN......................................................... 3 2. INQUIRING THE BALANCE OF TRAFFIC CARD.............................. 4 3. CHARGING TRAFFIC CARD............................................................... 5 4. INQUIRING THE INFORMATION OF TRAFFIC CARD์˜ค๋ฅ˜! ์ฑ…๊ฐˆํ”ผ๊ฐ€ ์ •์˜๋˜์–ด ์žˆ์ง€ ์•Š์Šต๋‹ˆ๋‹ค. 5. INQUIRING THE INFORMATION OF SAM................................................ 7 6. CHARGING A DEPOSIT ................................................................... 8 7. TRANSMITTING TRANSACTIONS DATA................................................. 9 8. TOTALING TRANSACTIONS DATA......................................................10 9. REPRINTING OUT A RECEIPT ..........................................................11 10. INQUIRING THE NUMBER OF CHARGER.............................................12 ์—์ฝฐ๋„๋ฅด ๊ตํ†ต์นด๋“œ ์‹œ์Šคํ…œ ์œ ์ธ์ถฉ์ „๊ธฐ ECR-300 ์‚ฌ์šฉ์ž ์„ค๋ช…์„œ (แ„Œแ…ฎ)์ด๋น„ -- 3 1. Initial screen Screen Handled contents <When using power password> โ˜ž Checking items in power on - Check if memory (flash) is normal. - Check if RTC is normal. - Check if RF Module (RC531) is normal. - Check whether SAM is normal or not. - Check whether printer (paper status) is normal. - Check if modem is normal. - The version and number of charger in the second row of screen is displayed on initial screen. - Data necessary for operating charger from memory is loaded on initial screen. - Check if the transmission conditions of transactions details specified in the operation information of charger(number of cases, amount of money) - Check if there is the operation information programs which should be downloaded from charger host. - Check if the lowest balance of electric wallet specified in the operation information is satisfied. - Check if traffic card to handle is inserted. - Current date and time is displayed on initial screen. - The balance of a deposit is displayed on the second row of initial screen. โ˜ž Push number key 1 in order to change the screen displaying date and time. โ˜ž The functions of inputted keys are called. ์นด๋“œ์‚ฝ์ž… ๊ตํ†ต์นด๋“œ ์ž”์•ก์กฐํšŒ ๋ฐ ์ถฉ์ „ Charging a deposit Charging SAM Transmission Transmitting transactions details Specific function Installing and setting up Print Reprinting out a receipt Total Totaling sales Inquiry Inquiring the information of card Verification Inquiring the information of SAM Cancel Canceling just prior transactions 0 Displaying the version of S/W and the number of charger Traffic card charger V1.00 Traffic card charger [9999999999] Traffic card charger Checking system 100% Traffic card charger [1000000 won] Place your card here2006/08/01 Power password _ _ _ _ ์—์ฝฐ๋„๋ฅด ๊ตํ†ต์นด๋“œ ์‹œ์Šคํ…œ ์œ ์ธ์ถฉ์ „๊ธฐ ECR-300 ์‚ฌ์šฉ์ž ์„ค๋ช…์„œ (แ„Œแ…ฎ)์ด๋น„ -- 4 2. Inquiring the balance of traffic card Screen Handled contents - If you place prepaid traffic card on initial screen, the type of card and the current balance are displayed on screen. - Current balance is displayed also on an indicator for customer. - If you take prepaid traffic card away or Cancel key I inputted, screen returns to the initial screen. - Screen display in case of old card(general type) - Screen display in case of new card, Type A card(premium type) - Screen display in case of new card, Type B card(premium type) Banlance: 50000 won < General > Inputting chared amount ______ Traffic card charger [1000000 won] Place your Balance: 50000 won < General > Inputting charged amount Balance: 50000 won < General. > Inputting charged amount ______ Balance: 50000 won [ General. ] Inputting charged amount ______ ์—์ฝฐ๋„๋ฅด ๊ตํ†ต์นด๋“œ ์‹œ์Šคํ…œ ์œ ์ธ์ถฉ์ „๊ธฐ ECR-300 ์‚ฌ์šฉ์ž ์„ค๋ช…์„œ (แ„Œแ…ฎ)์ด๋น„ -- 5 3. Charging traffic card Screen Handled contents - If the amount to charge is inputted and OK key is inputted on the screen inquiring the balance of prepaid traffic card, charger charges prepaid traffic card. - Input the amount to request for charging from the keyboard of charger. - Verify if there is a space to save transactions data in main memory. - Charger deducts the amount requested for charging from SAM, and charges prepaid traffic card. - If charging is completed, charger saves the charge details of prepaid traffic card in memory and displays the balance of SAM after charging and the balance of prepaid traffic card on screen. - The balance of prepaid traffic card after charging is displayed also on an indicator for customer. - If automatic printing out a receipt is set up, charger prints out a receipt. - If you take prepaid traffic card away, or Cancel key is inputted, current screen returns to initial screen. Balance: 5000 won < General > Inputting charged amount ______ Balance: 5000 won < General > Inputting charged amount 10000_ Charge transactions Charger is charging ,wait for a minute. Completion of charge transactions Deposit: 150000 won Card: 15000 won Take your Card away. Traffic card charger [1000000 won] Place your card here. 2006/08/01 10:00 Traffic Card Receipt Transaction type : Charge transaction Charger number : 9999999999 Issue company Name : Gyeonggi-do Card number : 1000200-105-0000003860 Settlement type : Cash Transactions date and time : 2005/02/24 10:04:09 SAM number : 3038303030303031 Balance before charge : 5,000 won Charged amount : 10,000 won Balance after charge : 15,00โ€ฆ

Text truncated - open the document above for the full version.

Block Diagram

FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 1/1 ATTACHMENT C. - BLOCK DIAGRAM - 32Bit CPU 200/266MHz SAM Module (SIM Type 6EA) Main Memory 32Mbyte SDRAM 133MHz Program Memory 2MByte FLASH Data Memory 8MByte FLASH RF Card Module ISO14443 Type A,B Mifare Card Type IC Card Module (Contact) MSR Module ISO Track 2 RTC Battery Backup Modem Module PSTN 56K bps External Port RS232, RS485 DC to DC Input : DC24V Output: DC7V,5V,3.3V Graphic LCD 128 x 64 Customer Display 7 Segments LED 6 Digit Printer Module ์˜์ˆ˜์ฆ System Control I/O Control AC toDC Adaptor Input : AC90 ~ 250V Output: DC24V Power supply External Memory Socket ECR ECR - - 300 300 ์ถฉ์ „๊ธฐ ์ถฉ์ „๊ธฐ Block Diagram Block Diagram

External Photos

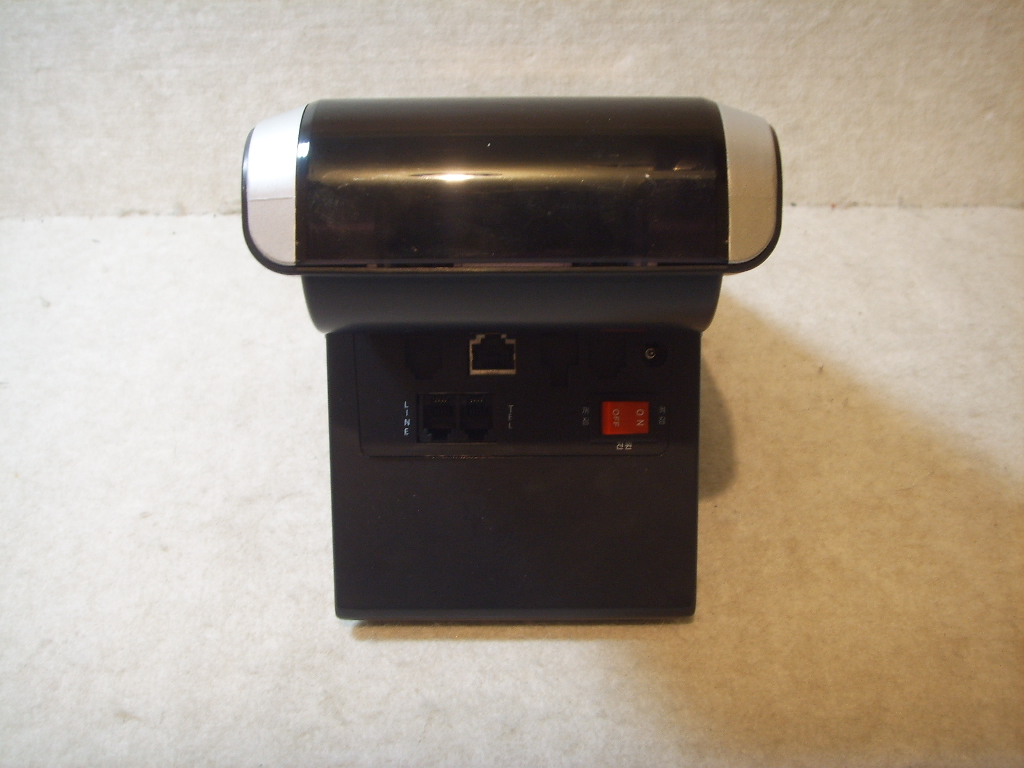

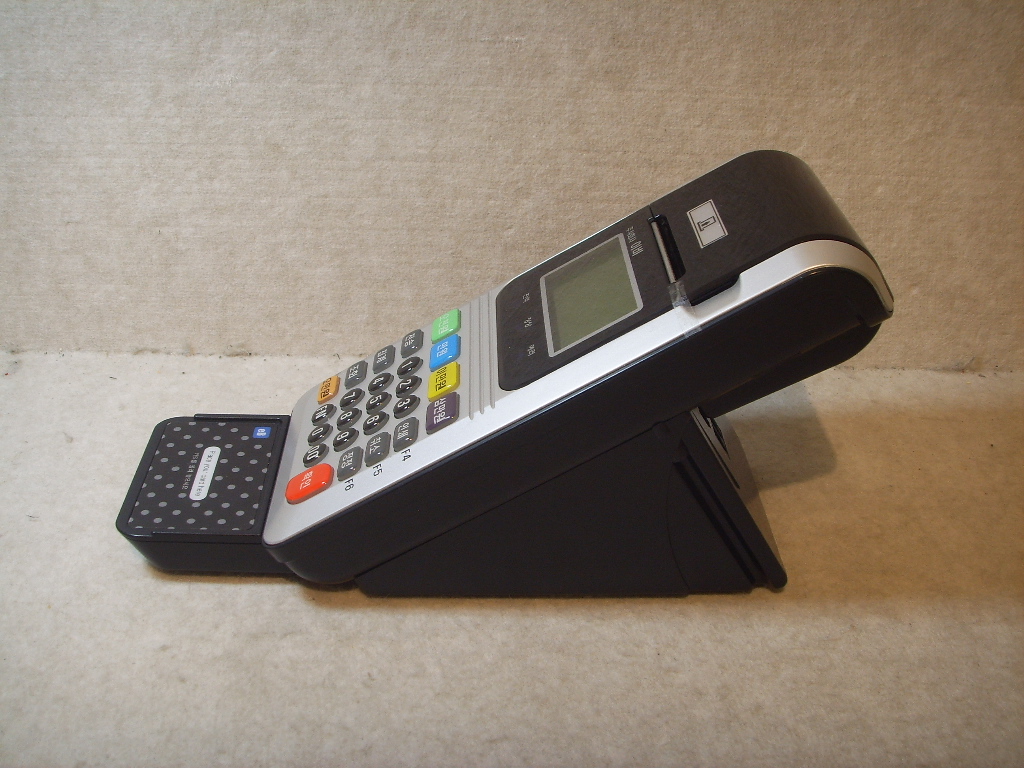

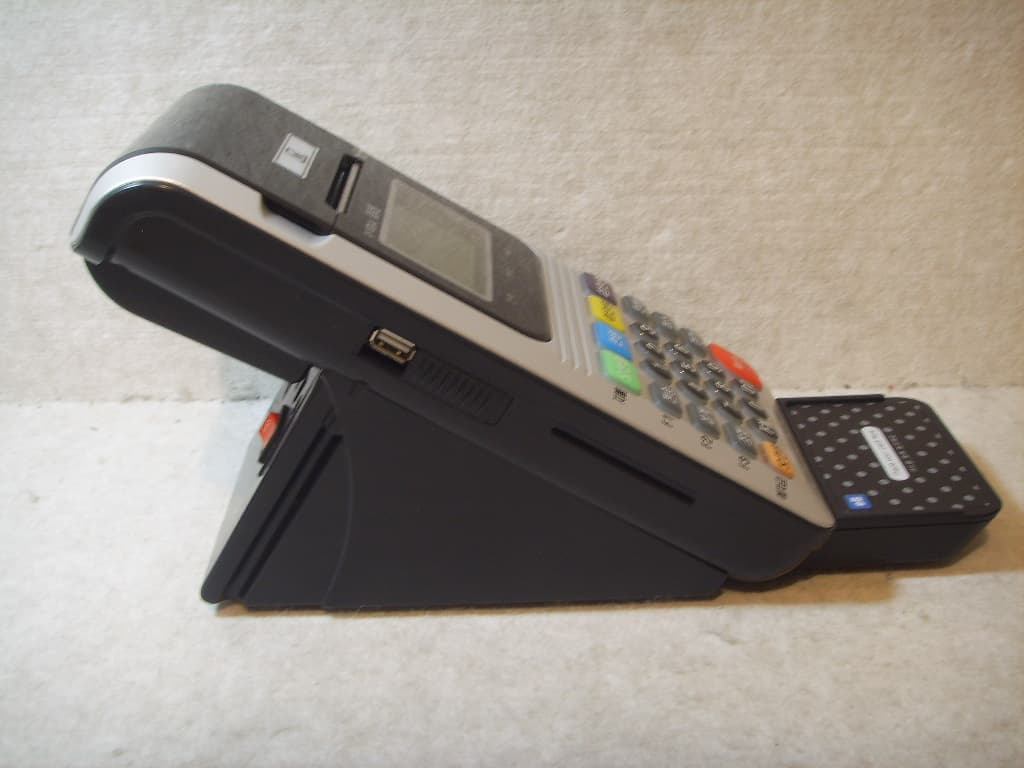

FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 1/6 ATTACHMENT B. -EXTERNAL PHOTOS - FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 2/6 (Front) FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 3/6 (Back) FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 4/6 (Left) FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 5/6 (Right) FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 6/6 (Bottom)

ID Label/Location Info

FCC ID :VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 1/3 ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS - FCC ID :VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 2/3 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL Model Name : ECR300G FCC ID : VASECR300G EUT Type : Manned Charge System Serial No : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. eb Corp. 14th Fl., HIGH-END TOWER, 235-2, Guro-Dong, Guro-Ku, Seoul, Korea MADE IN KOREA FCC ID :VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 3/3 1.2 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL LOCATION

Internal Photos

FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 1/13 ATTACHMENT F. - INTERNAL PHOTOS - FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 2/13 (ALC-100 Top) FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 3/13 (ALC-100 Bottom) FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 4/13 (ALC-100 Ant Top) FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 5/13 (ALC-100 Ant Bottom) FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 6/13 (AMC-100 CPU) FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 7/13 (AMC-100 Ext) FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 8/13 (AMC-100 Flash) FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 9/13 (AMC-100 Main Top) FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 10/13 (AMC-100 Main Bottom) FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 11/13 (AMC-100 Sam) FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 12/13 (SCS36-12BAT TOP) FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 13/13 (SCS36-12BAT BOTTOM)

Operational Description

FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 1/1 ATTACHMENT J. - THEORY of OPERATION - The MFRC531 is member of a family of highly integrated reader I cs for contactless communication based on 13.56MHz. The MFrc531 Supports all layers of ISO 14443. Figure 1 shows a simplified blockdiagram. Figure1 : Simplified MFRC531 Block Diagram -The parallel u-Controller interface detects automatically the connected 8bit parallel interface -The data procesing part performs the parallel to serial convers ion of the data.It supports the framing generation check.the CRC/Parity generation and check as well as the bit coding and p rocessing. All layers of ISO14443-A are supported,as the MFRC531 operates in transparent mode.-The status amd control part allo ws the configuration of the dev ice to environmental influences to achieve the best performance for each application.-The Cryto1 stream cipher unit is implemented to support commun ication to MIFARE CLASSIC products -A secure non-volatile key memory is included to store Crypto 1 key-sets. -The analog part includes two internal bridge driver outputs to achieve an operating distance up to 100m depending on the ante nna coil and environmental influences.Futhermore,the internal receiv ing part allows the receiving and decoding of data without exte rnal filtering. 7. Theory of Operation 7.1 RF Interface The MIFARE technology describe s an ISO 14443-Type A compliant R F interface for a communication between a reader and a contactl ess card. Overview MIFARE RF Interface- Energy transmission : Transformer principle; MIFARE card is p assive -Operating frequency : 13.56MHz- Communication structure : H alf duplex,reader talks first -Data rate : 105.6KHz-Data transmission : Both directions RWD ร† Card : 100%ASK,Miller coded Card ร† RWD : subcarrier load modulation, subcarrier frequency 847.5KHz,OO K,Manchester Code 7.2 Energy Transmission The energy transmission between the reader antenna and passive PICC is based on the transformer principle.At PCD side an anten na coil is required as well as a card coil implemented in the MIFARE card Figure 2 shows the basic principle and the equivalent electroni c circuitry. Figure 2 :Transformer Model The current in the RWD antenna coil generates a magnetic flux.P arts of this flux flow through th e card coil and induce voltage in the card itself.This voltage will vary within the distance between reader antenn and transferred power.The right part shows the equivalent electical circuitry,the transformer model. 7.3 Data transmission RWD ร† Card To transfer data between the PCD and the PICC a half-duplex com munication structure is used .The PCD always starts the communication.The data tranmissio n from the PCD to the PICC uses a 100% ASK modulation to the ISO14443 Type A.Figure 3 shows a typical Signal shape. Figure3: Data Transmission PCD ร† PICC,typical signal shape Due to the Quality factor Q of th e antenna the transmitted Sign al is deformed to the shape show n in Figure 4. This shape can b e used to measure the tu ning of the antenna. As the PICC is passive,the energy for the PICC has to be provide d during the communication between PCD and PICC.Therefore, ISO 14444A uses an optimised coding to provide a constant level of e nergy independently from the data transmitted to the PICC.This id the modufied Miller code,which is shown is shown in Figure5 in d etail The data rate of MIFARE is 105.9KHz,so the length of a frame is 9.44us.A pulse in the Miller coding has a length of 3us. A logical โ€˜ 1 โ€™ expressed with a pulse in the centre of the bit frame. Two possibilities are given to code a logical โ€˜ 0 โ€™ Tis coding depends on the previou bit; If the previous bit was a โ€™ 0 โ€™ ,the following โ€˜ 0 โ€™ is expressed with apulse of 3us at in the first half of the next bit frame. If the previous bit was a โ€™ 1 โ€™ ,the following โ€™ 0 โ€™ the following โ€™ 0 โ€™ is expressed without a puls e in the next bit frame. Figure 4 : Data Transmission PCD ร† PICC,Miller Coding 7.4 Data Transmission PICC ร† PCD Subcarrier load modulation principleThe data transmission from the PICC back to the PCD uses the pr inciple of load modulation shown in Figure 5. The PICC is desig ned as a resonance circuitry and consumes energy generated by the PCD.Th is energy consumption has a feedback effect as a coltage drop on PCD side.This effect is used to transfer data from the PICC b ack to the PCD by changing the load in the card IC. Figure 5: Subcarrier Load Modulation Principle The PCD antenna is tuned to a resonance frequency Fr=13.56MHz. The time T0 expresses he pulse length of the operationg frequenc y T0=1/Fr 74ns. In fact,this resonance curcuit generates voltages at the PCD antenna several times higher than the supply voltage. Due to small coupling factor between the PCD and PICC antenna PICC โ€™ s reponse is up to 60dB below thw voltage generated by the reader.To detect such a signal,it requires a well designed receiv ing circuit. The PICC data transfer back to the PCD uses a data rate of 105. 9kbit/s with Manchester coding.At Manchester Coding each bit is represented by either a raising or a falling edge in the centre of a bit frame.For the MIFARE principle this is shown on the ri ght side of Figure5 : A logical โ€˜ 1 โ€™ is expressed with a falling egde in the centre of the bit frame. A logical โ€˜ 0 โ€™ is expressed with a rising edge in the centre of the bit frame. This Manchester coded data modulates a sub carrier F sub = Fr/ 16 =847.5KHz. Finally, this modulated sub carri er switches the load of the PI CC,which result in the load modul ation as shown in the last line of Figure5, and which is received and decoded again by the PCD. Figure 6 shows the relation between the time and the frequency domain of the load modulation.Due to the data of The Manchester cde generates sidebands at both of the sub carrie r frequency: The modulation sub then geneโ€ฆ

Text truncated - open the document above for the full version.

Schematics

FCC ID : VASECR300G HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-R07-042 1/1 ATTACHMENT G. - SCHEMATIC DIAGRAM - 55 44 33 22 11 D D C C B B A A MAIN_DISPLAY 2.0 A3 12 Friday, February 10, 2006 (MAIN_PCB) ์ถฉ์ „๊ธฐ ๊ณ ๊ฐ์šฉ ๋””์Šคํ”Œ๋ ˆ์ด TitleSize Document Number Rev Date: Sheet of DINCLKLD1 RST TXDRSTRXD DINLD1CLKLED1_1LED2_2LED3_3 LED2_2LED3_3LED1_1 LED1LED2LED3 LED1LED2LED3 RXD TXD VCC VCC VCC VCC VCC VCC VCC VCC VCC + C7 10uF/10V(A TYPE) C6 0.1uF(2012) C2 0.1uF(2012) R9 10(2012) SEG1 SND430A 1 2 3 4 5 7 8 9 10 11 12 6 E D DP C G B DIG3 DIG2 F A DIG1 NC C515pF(2012) J1CON14AP 13579 1113 2468101214 +++++++ +++++++ R1 4.7k(2012) X1 22.1184MHz(SX-1) R11 10(2012) C10.1uF(2012) U1 KIA7442F/SOT89 1 3 2 Vcc OUT GND R4 10(2012) R6 10(2012) R5 10(2012) R29.53K(2012) R12390(2012) SEG2 SND440A 1 2 3 4 5 6 7 8 9 10 11 12 E D DP C G DIG4 B DIG3 DIG2 F A DIG1 R13390(2012) R14390(2012) R3 4.7k(2012) R7 10(2012) R8 10(2012) C415pF(2012) R10 10(2012) C3 0.1uF(2012) U3AT89C2051-24MHz(20Pin DIP TYPE)) 123456789 10 12132019181716151411 RSTP3.0(RX)P3.1(TX)XTAL2XTAL1P3.2(INT0) P3.3(INT1)P3.4(T0)P3.5(T1)GND P1.0(AIN0)P1.1(AIN1) VCC P1.7P1.6P1.5P1.4P1.3P1.2P3.7 D1 YELOW 5PI D2 RED 5PI D3 GREEN 5PI U2MAX7219CNG(DIP) 1918 1 1213 9 21167310581416202321151722 4 24 V+ISETDINLOAD(CS#)CLKGND DIG0DIG1DIG2DIG3DIG4DIG5DIG6DIG7 SEG ASEG B SEG CSEG D SEG E SEG F SEG G SEG DP GND DOUT 55 44 33 22 11 D D C C B B A A SUB_DISPLAY 1.0 A3 22 Friday, February 10, 2006 (SUB PCB) ์ถฉ์ „๊ธฐ ๊ณ ๊ฐ์šฉ ๋””์Šคํ”Œ๋ ˆ์ด TitleSize Document Number Rev Date: Sheet of DINLD1CLK LED1_1 TXDRXD DINLED3_3LED2_2CLKLED1_1LD1 RXD TXD LED2_2LED3_3 VCC VCC VCC VCC VCC VCC VCC VCC C14 0.1uF(2012) R26390(2012) R16 10(2012) R159.53K(2012) + C12 1uF/16V(SMD A) C190.1uF(2012) C8 0.1uF(2012) R22 10(2012) R28390(2012) R24 100(2012) + C10 1uF/16V(SMD A) D5 RED 5PI J3 MX5268-06 123456 D6 GREEN 5PI + C18 470uF/16V(AXIAL) U4MAX7219CNG(DIP) 1918 1 1213 9 21167310581416202321151722 4 24 V+ISETDINLOAD(CS#)CLKGND DIG0DIG1DIG2DIG3DIG4DIG5DIG6DIG7 SEG ASEG B SEG CSEG D SEG E SEG F SEG G SEG DP GND DOUT R23 10(2012) + C13 1uF/16V(SMD A) D4 YELOW 5PI J2CON14AP 13579 1113 2468101214 +++++++ +++++++ U6 ANA1501A50/TO263-5L 1 2 3 4 5 V IN OUT GND FB ON/OFF R18 10(2012) R17 10(2012) D7 1N5822(AXIAL) + C16 470uF/35V(AXIAL) R19 10(2012) R20 10(2012) R25 100(2012) U5 MAX232D (SOP) 13 8 111013 45 2 6 129 14 7 1615 R1INR2IN T1INT2IN C1+ C1- C2+C2- V+ V- R1OUTR2OUT T1OUTT2OUT VCCGND L233uH/5A(AXIAL) SEG4 SND440A 1 2 3 4 5 6 7 8 9 10 11 12 E D DP C G DIG4 B DIG3 DIG2 F A DIG1 + C15 10uF/10V(A TYPE) + C111uF/16V(SMD A) R21 10(2012) SEG3 SND430A 1 2 3 4 5 7 8 9 10 11 12 6 E D DP C G B DIG3 DIG2 F A DIG1 NC C170.1uF(AXIAL/MONO) + C9 1uF/16V(SMD A) L3MPZ2012S 300A 1 2 R27390(2012) L1 MPZ2012S 300A 1 2 55 44 33 22 11 D D C C B B A A ANTENNA 1.0 ECR-300 ANTENNA A 11 Wednesday, November 09, 2005 TitleSize Document Number Rev Date: Sheet of C1160pF(2012) C2 15pF(2012) C3 ?pF(2012) C4 18pF(2012) C520pF(trimmer) EE DD CC BB AA 4 4 3 3 2 2 1 1 NAND FLASH BOARD 2 0.1 ์œ ์ธ์ถฉ์ „๊ธฐ A3 11 Wednesday, February 08, 2006 TitleSize Document Number Rev Date: Sheet of DATA3DATA1DATA2 DATA0 DATA7 DATA4DATA5DATA1 DATA6 DATA2 DATA5DATA0 DATA6DATA3 DATA4 DATA7 ALE nFWE nFLASH_WP nFCE nFLASH_WP DATA[7:0] CLE ALEnFRE DATA[7:0] nFRE nFCE RnB RnB nFWE CLE VDD33V VDD33V VDD33V VDD33V VDD33V U1K9K5608U0D-YCB0(TSOP48) 19 18164117 37 424344 127 2930313236 98 13 WP WECLEIO4ALE VCC2 IO5IO6IO7 VCC1 R/B# IO0IO1IO2IO3VSS2CEREVSS1 C1 100nF 12 J2 PH03-10-SS-B-G 12345678910 J1 PH03-12-SS-B-G 123456789101112 R1 4.7K 12 C410uF/16V C3100nF R2 4.7K 12 C2 100nF 12 55 44 33 22 11 D D C C B B A A DIR L : B to A/OE L : ACTIVE H : Z KEY 1.0 ECR-300 KEY-LCD A3 12 Wednesday, November 09, 2005 TitleSize Document Number Rev Date: Sheet of DATA7DATA5DATA0DATA7DATA6DATA0DATA4DATA2DATA2DATA5DATA3DATA6DATA1DATA3DATA1DATA4 nRESET DATA[7:0] KEY_SCAN_IN KEY_SCAN_OUT VDD33VVDD33V VDD33V VDD33V VDD5V VDD5V VDD5V VDD5V VDD5V VDD5V VDD5V VDD5V VDD5V VDD5V VDD5V VDD5V S22 S10 R9140R D20 RF-YUB170TS R10140R S4 R11140R R12140R R13140R R14 140R RA1 4.7K 18 27 36 45 R15 140R R16 140R R17 140R R18 140R S23 R19 140R R20 140R S5 S17 D21 RF-YUB170TS C1100nF 12 R14.7K S24 S12 S9 S3 S1 D22 RF-YUB170TS S7 S16 D4 RF-YUB170TS S19 D5 RF-YUB170TS S11 D6 RF-YUB170TS S2 C2100nF 12 S18 D7 RF-YUB170TS D23 RF-YUB170TS D8 RF-YUB170TS D24 RF-YUB170TS D9 RF-YUB170TS D25 RF-YUB170TS D10 RF-YUB170TS D26 RF-YUB170TS D11 RF-YUB170TS D27 RF-YUB170TS D12 RF-YUB170TS S13 D13 RF-YUB170TS D14 RF-YUB170TS D15 RF-YUB170TS D16 RF-YUB170TS U174HC273/SO 1 10 1120 256912151619 3478 13141718 CLR GND CLKVCC 1Q2Q3Q4Q5Q6Q7Q8Q 1D2D3D4D5D6D7D8D D17 RF-YUB170TS D18 RF-YUB170TS S14 S6 S20 U2 74HC245/SO 20 23456789 181716151413121110 1 19 VCCA1A2A3A4A5A6A7A8 B1B2B3B4B5B6B7B8 GND DIROE D19 RF-YUB170TS S8 S15 S21 EE DD CC BB AA 1 1 2 2 3 3 4 4 LCD/LED 1.0 ECR-300 KEY-LCD A3 22 Wednesday, November 09, 2005 TitleSize Document Number Rev Date: Sheet of DATA1DATA4DATA6DATA5DATA2DATA0DATA7DATA3 DATA7DATA1DATA5DATA3DATA4DATA0DATA6DATA2 ADDR0 DATA[7:0] LCD_CS nWBE0 nWBE0 nRESET nOE LCD_CS H_EMV_TXDH_EMV_RXDH_EMV_RESET CARD_VALUE CARD_OKCARD_NG nWBE0 KEY_SCAN_IN nRESET nOE H_EMV_TXD H_EMV_RXD KEY_SCAN_OUT CARD_VALUE DATA[7:0] LCD_CS CARD_NGCARD_OK H_EMV_RESET ADDR0 VDD33V VDD33V VDD5V VDD33V VDD33V VDD33V VDD5V VDD33V VDD33V VDD33V VDD33V VDD33V VDD33VVDD33VVDD33V VDD33V VDD5V C17 220nF U4B 74LV14/SO 3 4 147 R5 330R U4D 74LV14/SO 9 8 147 R6 270R CN1GF055-26S-LSS 123456789 1011121314151617181920212223242526 CS1 RSTA0WRRDD0D1D2D3D4D5D6D7VDDVSSVOUTCAP3-CAP1+CAP1-CAP2-CAP2+V1V2V3V4V5 C19 220nF C8 100uF/16V (D) U4C 74LV14/SO 5 6 147 D2RF-GUB170TS Q2 2N3904/SOT23 U3 74HC245/SO 20 23456789 181716151413121110 1 19 VCCA1A2A3A4A5A6A7A8 B1B2B3B4B5B6B7B8 GND DIROE C3 100nF C7 100nF R7 330R + C11 1uF/25V U4E 74LV14/SO 11 10 147 R8 270R C20100nF 12 C21100nF 12 C5 10uF/16V (B) + C101uF/25V D1RF-YUB170TS R2 330R C4 10uF/16V (B) C6100nF D3RF-RUB170TS C14 2โ€ฆ

Text truncated - open the document above for the full version.

Test Report

HCT PT.15.225 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-R07-044 Test Dates: Dec. 17, 2007 EUT Type: Manned Charge System FCC ID: VASECR300G Page 2 of 18 C O N T E N T S 1. GENERAL INFORMATION.......................................................................................................................................3 1-1. CLIENT INFORMATION .................................................................................................................................. 3 1-2. Description of Equipment Under Test ................................................................................................................. 3 2. TEST SPECIFICATIONS ............................................................................................................................................ 4 2.1 Standards............................................................................................................................................................... 4 3. STANDARDS ENVIRONMENTAL TEST CONDITIONS ...................................................................................... 5 4. TEST SUMMARY ........................................................................................................................................................ 6 5. TEST EQUIPMENT..................................................................................................................................................... 7 6. Conducted Emission Measurement ............................................................................................................................. 8 6-1. AC Line Conducted Emissions............................................................................................................................ 8 7. Radiated Emission Measurement .............................................................................................................................. 13 7-1. Radiated Emission 9KHz โ€“ 30 MHz.................................................................................................................. 14 7-2. Radiated Emission 30 MHz โ€“ 1000 MHz .......................................................................................................... 16 8. Emission Bandwidth Plot. .......................................................................................................................................... 17 9. Frequency Tolerance................................................................................................................................................... 18 HCT PT.15.225 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-R07-044 Test Dates: Dec. 17, 2007 EUT Type: Manned Charge System FCC ID: VASECR300G Page 3 of 18 1. GENERAL INFORMATION 1-1. CLIENT INFORMATION Company eb Corp. Contact Point 14th Fl., HIGH-END TOWER, 235-2, Guro-Dong, Guro-Ku, Seoul, Korea Contact person Name: DaeHee, Han Tel: + 82 2 6220 3000 Fax: + 82 2 6220 5001 1-2. Description of Equipment Under Test Equipment Under Test Description Manufacturer Model Name Serial Number Manned Charge System (RFID Device) eb Corp. ECR300G Not labeled HCT PT.15.225 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-R07-044 Test Dates: Dec. 17, 2007 EUT Type: Manned Charge System FCC ID: VASECR300G Page 4 of 18 2. TEST SPECIFICATIONS 2.1 Standards The following tests were conducted on a sample of the equipment for the purpose of demonstrating compliance With FCC Part 15.Subpart C Regulation Measurement standard Range Title 47 of the CFR:2005, Part 15 Subpart (c), Clause 15.225(a) ANSI C63.4:2003 13.553MHz to 13.567MHz Title 47 of the CFR:2005, Part 15 Subpart (c), Clause 15.225(d) ANSI C63.4:2003 outside of the 13.110-14.010 MHz band Title 47 of the CFR:2005, Part 15 Subpart (c), Clause 15.209 ANSI C63.4:2003 9kHz to 30MHz Title 47 of the CFR:2005, Part 15 Subpart (c), Clause 15.209 ANSI C63.4:2003 30MHz to 1GHz Title 47 of the CFR:2005, Part 15 Subpart (c), Clause 15.207 ANSI C63.4:2003 150kHz to 30MHz Title 47 of the CFR:2005, Part 15 Subpart (c), Clause 15.225(e) ANSI C63.4:2003 0.01% of nominal HCT PT.15.225 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-R07-044 Test Dates: Dec. 17, 2007 EUT Type: Manned Charge System FCC ID: VASECR300G Page 5 of 18 3. STANDARDS ENVIRONMENTAL TEST CONDITIONS Temperature : + 15 ยฐC to + 35 ยฐC Relative humidity: 30 % to 60 % Air pressure 860 mbar to 1060 mbar HCT PT.15.225 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-R07-044 Test Dates: Dec. 17, 2007 EUT Type: Manned Charge System FCC ID: VASECR300G Page 6 of 18 4. TEST SUMMARY The results in this report apply only to sample tested Regulation Test Type Range Result Title 47 of the CFR:2005, Part 15 Subpart (c), Clause 15.225(a) Radiated Electric Field Emissions 13.553MHz to 13.567MHz Pass Title 47 of the CFR:2005, Part 15 Subpart (c), Clause 15.225(b) Radiated Electric Field Emissions 13.410MHz to 13.553MHz and 13.567MHz to 13.710MHz N/A Title 47 of the CFR:2005, Part 15 Subpart (c), Clause 15.225(c) Radiated Electric Field Emissions 13.710MHz to 14.010MHz N/A Title 47 of the CFR:2005, Part 15 Subpart (c), Clause 15.209 (d) Radiated Electric Field Emissions 9kHz to 30MHz Pass Title 47 of the CFR:2005, Part 15 Subpart (c), Clause 15.209 Radiated Electric Field Emissions 30MHz to 1GHz Pass Title 47 of the CFR:2005, Part 15 Subpart (c), Clause 15.207 AC power conducted emissions 150kHz to 30MHz Pass Title 47 of the CFR:2005, Part 15 Subpart (c), Clause 15.225(e) Frequency Stability 0.01% of nominal Pass HCT PT.15.225 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-R07-044 Test Dates: Dec. 17, 2007 EUT Type: Manned Charge System FCC ID: VASโ€ฆ

Text truncated - open the document above for the full version.
