VB8-NT-006Column FM TX

Newlift Technologies Ltd. www.e2mate.com, www.ipda-cn.com - 1 - Users Manual of Column FM Transmitter ‹ Features: ¾ High fidelity, stereo. ¾ With Digital PLL, wave signal transmission and reception won’t be affected even in the situation subject to extreme changes by temperature. ¾ Full frequency range. ¾ Memory for last frequency. ¾ Powered by iPod. ¾ Blue backlight. ‹ Specifications: ¾ Frequency response: 100Hz~15000Hz ¾ Separation: ≥30dB ¾ Operating current: 20±3mA ¾ Transmission range: 88.1MHz~107.9MHz (interval 0.1MHz Built-in antenna) ¾ Dimensions: D42.5mm x W26.5mm x H20mm ¾ N.W.: 10g ¾ G.W.: 37g ‹ Compatible with: ¾ Compatible with all iPod series ‹ Use Means: ¾ Connect the FM transmitter to iPod. ¾ Adjust the volume and frequency of the FM radio and avoid the frequency of the broadcasting stations. ¾ Tune the frequency of the FM transmitter according to the FM radio. ¾ The FM transmitter will automatically save the last frequency when you disconnect it. Installation: Simplly insert to the iPod, then you can enjoy the music with the others! Newlift Technologies Ltd. www.e2mate.com, www.ipda-cn.com - 2 - Users Manual of Column FM Transmitter ‹ FCC Caution: ¾ This device complies with Part 15 of the FCC Rules. Operation is subject to ¾ the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC NOTES: ¾ The manufacture is not responsible for any radio or TV interference caused by ¾ unauthorized modifications to this equipment.Such modifications could void the user's ¾ authority to operate the equipment.

KDB Inquiry Tracking Number - 138263

1. How does the device Operate? Answer: Power DC3.3V is provided by iPod MP3 Player. Frequencies are selected by a Up/Down button on the EUT. Just connect to the iPod MP3 Player, set the adjust frequency, and then the music can be transmitted out. The frequency range from 88.1MHz to 107.9MHz. 2. Provide information on the device and its antenna. Answer: The antenna is a built-in trace on the circuit board. (Please see the attached: user manual and circuit) 3. How is it installed? Answer: Plug-in connecter is inserted into the iPod MP3 Player connector. No other installation is required. 4. What test procedure was used? Answer: ANSI C63.4-2003. 5. If tested in a car, how was it configured? Answer: It was not tested in an automobile. It was tested in an 3 meter chamber as shown in the Test Set-Up photographs. 6. Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. Answer: The maximum tuning range is 88.1MHz to 107.9MHz. Test is selected with Lowest(88.1MHz), Middle(98MHz), and High(107.9MHz) channel. Please see the test report (Page 3 of 17 Page 4 of 17 and the data showed) and Usermanual. 7. Was the bandwidth properly tested with maximum audio input? Answer: We played a song from iPod with the maximum audio input. 8. Provide the test report. Answer: Please refer to the attachment.

NEWLIFT TECHNOLOGIES LTD. MODEL: NT-006 REPORT NO.: STR07058040I FCC PART 15.239 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

NEWLIFT TECHNOLOGIES LTD. MODEL: NT-006 REPORT NO.: STR07058040I FCC PART 15.239 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VB8-NT-006 Specifications : Text is Black in color. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

NEWLIFT TECHNOLOGIES LTD. MODEL: NT-006 REPORT NO.: STR07058040I FCC PART 15.239 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VB8-NT-006 Specifications : Text is Black in color. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

NEWLIFT TECHNOLOGIES LTD. MODEL: NT-006 REPORT NO.: STR07058040I FCC PART 15.239 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 NEWLIFT TECHNOLOGIES LTD. MODEL: NT-006 REPORT NO.: STR07058040I FCC PART 15.239 Solder Board-Component View 2

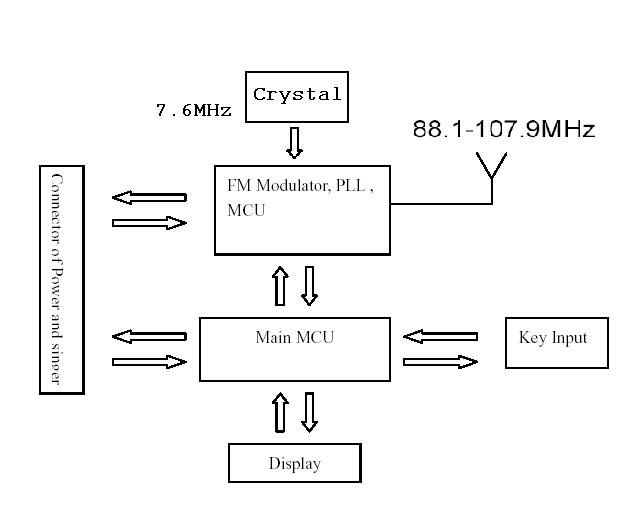

CIRCUIT DESCRIPTION As the DC Power on through the connector of the iPod mp3 player, the MCU is searching for the Audio Input Signal. Audio signal input through the connector bus, then the FM Modulator trigger is on, carrying the signal with modulation and sent to the transmitter output terminal, then passing the Amplifier and Filter, transmitting through the ANT Port with Frequency Range 87.1 to 107.9MHz. The main MCU deal with signal control and display, key tracking for improving the EUT’s function. The FM Modulator deal with the signal modulation and transition.

11 22 33 44 55 66 D D C C B B A A Title Number Revision Size B Date: 2007-5-17 Sheet of File: D:\ 产品资料 (PD-INFO)\..\NT-006 V03.SchDrawn By: CS 1 NA1 2 WR 3 DATA 4 VSS 5 NA2 6 NA3 7 VLCD 8 VDD 9 NA4 10 NA5 11 NA6 12 COM1 13 COM2 14 COM3 15 COM4 16 S1 17 S2 18 S3 19 S4 20 S5 21 S6 22 S7 23 S8 24 S9 25 S10 26 S11 27 S12 28 S13 29 S14 30 NA10 31 NA11 32 NA12 33 NA13 34 NA14 35 NA15 36 NA16 37 NA17 38 NA18 39 NA19 40 NA20 41 NA21 42 NA22 43 NA23 44 NA24 45 NA25 46 NA26 47 NA27 48 Q1 1621 VSSD 1 RCH 2 VDDD 3 RF_VDD 4 VDDH 5 RF_VSS 6 VPLL 7 MOD_OUT 8 RF_OUT 9 LC_OUT 10 XI 11 RST 12 XO 13 SEL 14 EN 15 CLK 16 DATA 17 NC 18 LCH 19 PDN 20 E1 CV1 kv1471 L3 100nH C161U R162.7K R15 15K C18 0.47UF R181.9K R171.9K C7 1UF C20 10U R1447K R610K C1533p C19 0.47UF Y17.6M C1027PC1127P C31UF C51UF C61UF C41UF C8 100U C9104 C14100 Q4 9018 L2 82nH C12 27P C2103 E2AN T (88.1-107.9MHz) C13 10....68p Vpow VpowVpow R1033k R310k R1133k R410k reset R710K L1560NH OUT L OUT R C17 47p R810K C21 100p R13330 VDDD VDDD DATACLKCSPDN PA0 1 PB7 2 PB6 3 VDD 4 PB5/OSCO 5 PB4/OSCI 6 PB3/RES 7 PB2 8 PB1 9 PB0 10 VSS 11 PA3 12 PA2 13 PA1 14 Q3153 A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U1FM24C02 VPOW 2DOWN 1 UP DATA CLK CS VPOW R210K R110K Q2NPN R9470 1 1 2 2 D2LED VPOW R510K EN VPOW 123456789 101112131415161718192021222324252627282930 CN1iPod DOCK JACK TXD OUT ROUT L 1394 R12549K 1 2 3 4 J2CON4 vpow 1394 TXD ENDATACLKPDN reset C1103 D1DIODE 1 2 3 4 5 6 7 8 9 10 11 12 J1CON12 C220.1UF 1 1 2 2 3 3 Q58050 R1910M VPOW C23222 OUT R R2010k

NEWLIFT TECHNOLOGIES LTD. MODEL: NT-006 REPORT NO.: STR07058040I PAGE 1 OF 17 FCC PART 15.239 FCC PART 15.239 MEASUREMENT AND TEST REPORT FOR NewLift Technologies LTD. FLAT/RM 905-6, 9/F, LEADER IND CENTRE, 57-59 AU PUI WAN STREET, FOTAN SHATIN, HONGKONG FCC ID: VB8-NT-006 Report Concerns: Original Report Equipment Type: Column FM TX Model: NT-006 Report No.: STR07058040I Test/Witness Engineer: Lahm Peng Test Date: 2007-05-21 Prepared By: Shenzhen SEM.Test Compliance Service Co., Ltd. Room 609-610, Baotong Building, Baomin 1 st Road, Baoan District, Shenzhen, Guangdong, P.R.C. (518133) Approved & Authorized By: Jandy So / PSQ Manager Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . NEWLIFT TECHNOLOGIES LTD. MODEL: NT-006 REPORT NO.: STR07058040I PAGE 2 OF 17 FCC PART 15.239 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS..................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE........................................................................................................................................6 3.2 TEST RESULT.........................................................................................................................................................6 4. §15.209, §15.239 (B)(C)- RADIATED EMISSION .................................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION.............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 5. §15.239(A) EMISSION BANDWIDTH TESTING ...............................................................................................13 5.1 STANDARD APPLICABLE......................................................................................................................................13 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................13 5.3 TEST PROCEDURE.................................................................................................................................................13 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................13 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 6. §15.249(B) OUT OF BAND EMISSIONS .............................................................................................................16 6.1 STANDARD APPLICABLE......................................................................................................................................16 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................16 6.3 TEST PROCEDURE.................................................................................................................................................16 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................16 6.5 SUMMARY OF TEST RESULTS/PLOTS.........................................................…

Text truncated - open the document above for the full version.

NEWLIFT TECHNOLOGIES LTD. MODEL: NT-006 REPORT NO.: STR07058040I FCC PART 15.239 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiated Emission Test Setup (Below 1GHz)
