VB8-NT-076MFIFM TRANSMITTER

： Introduction: * Simply press the "S" button, iPDA® NT-076 AutoScan FM Transmitter will scan the clearest frequency for you, then tune the radio and enjoy your music! Features: * AutoScan function automatically finds the clearest frequency. * RDS (Radio Data System) shows song and artist names on the screen of the FM radio. * Optional frequency ranges for EU/US/JP areas. * Full frequency range. Memory for last frequency. * High fidelity, stereo, Digital PLL. * Powered by iPod, iPhone or iPad. * Mini USB port for charging iPod, iPhone or iPad via external power source. * Transmission range of up to 10 meters. Specifications: * Frequency response: 100Hz-15000Hz * Separation: ≥30dB * Operating current: 20mA±3mA * Frequency range options: EU: 87.6-107.9MHz (interval 0.1MHz) US: 88.1-107.9MHz (interval 0.2MHz) JP: 76.0-90.0MHz (interval 0.1MHz) * Dimensions: W49 x H34 x D14 (mm) * N.W.: 31g * Color: Black Compatible with: * iPod touch (1st, 2nd, 3rd and 4th generation) * iPod classic * iPod nano (1st, 2nd, 3rd, 4th, 5th and 6th generation) * iPhone 4 * iPhone 3GS * iPhone 3G * iPhone * iPad Use Means: * Connect the FM Transmitter to your iPod, iPhone or iPad. * Press the "S" button to automatically scan the clearest frequency. * Adjust the volume of the car radio and tune it to the same frequency. * Play your music and enjoy it via car stereo. * If the FM signal is interrupted, please reset the car radio and the FM Transmitter to anothe r clear frequency. * Optional frequency ranges: press "+" and "-" button at the same time to select different frequency areas (EU/US/JP). FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW.

Block Diagram RF IC QN8006 RF Amplifier Cicuit Audio Signal Input XTAL 7.6MHz Ant. 88.1~107.9MHz MCU-LW1224 Press-Key LCD Display DC 3.3V Power Supply XTAL 12MHz

Newlift Technologies Ltd. Flat/Rm 13, 6/F, Harry Industrial Building, 49-51 Au Pui Wan Street, Fo Tan, NT, HK (FCC ID:VB8-NT-076MFI ) Date: Dec. 26, 2010 Gentlemen: We, Newlift Technologies Ltd., declare the device of FCC ID:VB8-NT-076MFI, Model Name: NT-076MFI, with a scanning receiver and comply with all sections of 47 CFR Part 15 Subpart B section 15.121 requirements. Sincerely, Newlift Technologies Ltd. ( Ric Woo) (Manager)

Newlift Technologies Ltd. (FCC ID：VB8-NT-076MFI) POWER OF ATTORNEY DATE: November 09, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Newlift Technologies Ltd., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Newlift Technologies Ltd. (Ric Woo) (Manager)

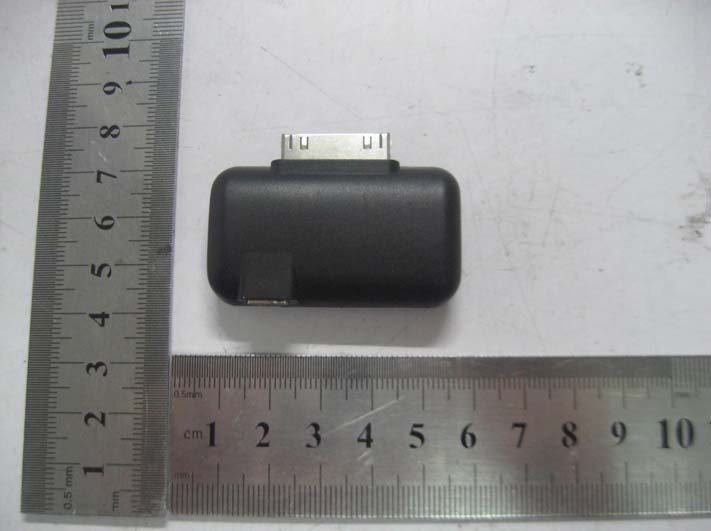

Newlift Technologyies Ltd. Model: NT-076MFI REPORT NO.: STR10118090I FCC PART 15.239 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

Newlift Technologyies Ltd. Model: NT-076MFI REPORT NO.: STR10118090I FCC PART 15.239 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VB8-NT-076MFI Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Newlift Technologyies Ltd. Model: NT-076MFI REPORT NO.: STR10118090I FCC PART 15.239 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VB8-NT-076MFI Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Newlift Technologyies Ltd. Model: NT-076MFI REPORT NO.: STR10118090I FCC PART 15.239 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Newlift Technologyies Ltd. Model: NT-076MFI REPORT NO.: STR10118090I FCC PART 15.239 Solder Board-Component View 2

Circuit Description Input audio signal by the iPod, through the IC QN8006 mixings, and adjust the IC-LW1224 to change transmitting frequency, then the RF signals are transmitted via the RF amplifier circuit and the antenna. 1. working voltage: DC 3.3V 2. IC LW1224 crystal oscillator: 12MHz, IC QN8006 crystal oscillator: 7.6MHz 3. transmitter frequency: 88.1 MHz ~107.9MHz 4. with a LCD display and two press-key to control the frequency

11 22 33 44 55 66 77 88 D D C C B B A A ALO 1 ARO 2 AUGND 3 ALI 4 ARI 5 AGND 6 RFI 7 RFGND 8 RFO 9 VIO 10 CEN 11 MOD 12 MCK 13 DOUT 14 WS 15 XCLK 16 XTAL1 17 XTAL2 18 AGND 19 DIN 20 SEB 21 SCL 22 SDA 23 VCC 24 PGND 25 U1 QN8006 L4100nH C13 102 88.1 - 107.9MHz TX_ANT Y1 7.6M C3104 C1 105 C2 105 R7 3K3 R8 3K3 R110KR210K C15 102 RF_3.3V P2.1/PWM2 1 P2.2 2 P2.3 3 P2.4 4 P2.5 5 P2.6 6 P2.7 7 P3.0 8 P3.1 9 P3.2 10 P3.3 11 P3.4 12 P3.5 13 P3.6 14 P3.7 15 P4.0 16 P4.1 17 P4.2 18 P4.3 19 P4.4 20 P4.5 21 P4.6 22 P4.7 23 P0.0 24 P0.1 25 P0.2 26 P0.3 27 P0.4 28 P0.5 29 P0.6 30 P0.7 31 P1.4 32 P1.3 33 P1.2/SI 34 P1.1/SO 35 P1.0/SCK 36 VDD 37 XTOUT 38 XTIN 39 VPP/NMCLR 40 PA.1 41 PA.0 42 VSS 43 P2.0 44 U3 LW1224 C0 C1 C2 C3 S0 S1 S2 S3 S4 S5 S6 S7 1 2 3 4 5 6 7 8 9 10 11 12 13 J3LCD 13 NC 1 MODE1 2 NC 3 RESET 4 VCC 5 NC 6 NC 7 NC 8 NC 9 NC 10 VSS 11 SCL 12 SDA 13 MODE0 14 NC 15 NC 16 NC 17 NC 18 NC 19 NC 20 U4 2164 R5 10K R4 10K C9104 R6 10K C10104 DGND 1 DGND 2 TPA+ 3 USB D+ 4 TPA- 5 USB D- 6 TPB+ 7 USB PWR 8 TPB- 9 ACC ID 10 F/W PWR 11 F/W PWR 12 3.3V OUT 13 RESERVED 14 DGND 15 DGND 16 RESERVED 17 RX>IPOD 18 TX<IOPD 19 ACC DET 20 SVID C 21 SVID Y 22 COMPOSITE 23 REMOTE SEN 24 LINE IN_L 25 LINE IN_R 26 LINE OUT_L 27 LINE OUT_R 28 AUDIO RET 29 DGND 30 J1MFI514S0595 R11549K C4Comment: 104 C1810uF/6.3VC19Comment: 10uF/10V iPod_TXiPod_RX 123 UP DOWN Mem C10C20 SOUND DET LED D1LED R16 100R iPod_3.3V iPod_3.3V iPod_3.3V 2164_SDA2164_SCL 2164_SDA2164_SCL iPod_TX iPod_RX A0 1 A1 2 A2 3 VSS 4 DATA 5 CLK 6 ORG 7 VDD 8 U2 AT24C02 iPod_3.3V RF_PO R13100K R171M iPod_3.3V C26222 C8104 QN8007 SDA QN8007 SCL QN8007 SDAQN8007 SCL Y312MY232.768KHz C22 20P C23 20P C24 20P C25 20P R3 10K C7104 L1 15uH 1 1 2 2 3 3 4 4 5 5 6 6 7 7 J2 MINIUSB-5PIN E2 RX_ANT RF_3.3V iPod-R C6104 RF_PO C2010uF/6.3V C5104 RF_3.3V R121K L5 100nH C1727P R947K C11103 C14102 L7 560nH R14 47K C16102 L882nH C12103 iPod-R C2727P L6100nH R10 NA 1 32 Q4LIBRARY.Sch 1 3 2 Q3LIBRARY.Sch 1 32 Q1LIBRARY.Sch 1 32 Q2LIBRARY.Sch

NewLift Technologies Ltd. Model: NT-076MFI REPORT NO.: STR10118090I PAGE 1 OF 20 FCC PART 15.239 FCC PART 15.239 MEASUREMENT AND TEST REPORT FOR NewLift Technologies Ltd. Flat/Rm 13, 6/F, Harry Ondustrial Building, 49-51 Au Pui Wan Street, Fo Ta n , N T, H K FCC ID: VB8-NT-076MFI Report Concerns: Original Report Equipment Type: FM Transmitter Model: NT-076MFI Report No.: STR10118090I Test Date: 2010-11-09 to 2010-11-25 Issue Date: 2010-11-24 Tested By: Jason Chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . NewLift Technologies Ltd. Model: NT-076MFI REPORT NO.: STR10118090I PAGE 2 OF 20 FCC PART 15.239 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.209, §15.239 (B)(C)- RADIATED EMISSION .................................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.4 TEST PROCEDURE...................................................................................................................................................7 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 5. §15.239(A) EMISSION BANDWIDTH TESTING ...............................................................................................15 5.1 STANDARD APPLICABLE.......................................................................................................................................15 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................15 5.3 TEST PROCEDURE.................................................................................................................................................15 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................15 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................15 6. §15.239(C) OUT OF BAND EMISSIONS .............................................................................................................18 6.1 STANDARD APPLICABLE.......................................................................................................................................18 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................18 6.3 TEST PROCEDURE.................................................................................................................................................18 6.4 ENVIRONMENTAL CONDITIONS.................................................................…

Text truncated - open the document above for the full version.

Newlift Technologyies Ltd. Model: NT-076MFI REPORT NO.: STR10118090I FCC PART 15.239 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz)
