www.elitescreens.com/[email protected] EliteHomeseries UsersGuide TypeCVer.1.2 Ez-ElectricScreen ①IR②RF ③Wallbox ④12Vtriggercable Eyereceiver⑤ ⑥Battery Bubblelevel⑦ Red +12V Green 0V Pleasealwayspointto theeyereceiverwhen usingtheIRremote. www.elitescreens.com /[email protected] 1.Besuretoreadthismanualbeforeuseandfollowtheproceduresspecified: Putthismanualatasafeplacenearesttothedeviceforreference. Donotusetheaccessoriesnotrecommendedbythemanufacturetoavoidanydamage. Handlethedevicecarefullyduringtransportationtoavoidimpact. Donotputthedeviceatunevenorinclinedplaces. Donotputanyheavyobjectonthepowercord;fixthepowercordproperlytoavoid ☆ ☆ ☆ ☆ ☆ ☆ ☆ Trippingoverofpassers-by. Donotoverloadthepowercordtopreventelectricalshockorfire. Guardanyliquidorforeignobjectagainstenteringthedevice,toavoidelectricalshockor fireduetoloosecontactorshortcircuit. 2.Ifanyaccessoryneedstobereplaced,becarefultoavoidshortcircuit. 3Therearenouserserviceableaccessoriesinthedevice.Nobodyexceptauthorizedtechnicians canopenthedevicetoavoidelectricalshock.Topreventtheriskofelectricalshockorfire,guard againstmoistureandrainshower. Makesurethatthevoltageconnectedtotheproductiscorrectatanytime.Theratinglabelonthe productindicatestheratedvoltage. Toprotecttheenvironment,sendtheproducttotheenvironmentauthorityfordisposalwhenit cannotserveanylonger. Donothandlethepowerplugwhenyourhandsarewetoryourfeetareincontactwithwater. 4.Donotusethedeviceatthefollowingcircumstances: 1)Disconnectthepowercordundertheconditionofheavystorm,wind,rain,thunderor lightening. 2)Avoiddirectsunshine,rainshowerormoisture. 3)Keepawayfromfiresourcesandhightemperaturetopreventthedevicefrombeingoverheated. 4)Cutoffthepowersupplyfirstbeforetransportationormaintenance. ImportantSafetyandWarningPrecautions: www.elitescreens.com /[email protected] : www.elitescreens.com/[email protected] NOTE: Thisequipmenthasbeentestedandfoundtocomplywiththelimits foraClassBdigitaldevice,pursuanttoPart15oftheFCCRules.These limitsaredesignedtoprovidereasonableprotectionagainstharmful interferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcan radiateradiofrequencyenergyand,ifnotinstalledandusedin accordancewiththeinstructions,maycauseharmfulinterferencetoradio communications. ! ! ! ! Reorientorrelocatethereceivingantenna. Increasetheseparationbetweentheequipmentandreceiver. Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Changesormodificationstothisunitnotexpresslyapprovedbytheparty responsibleforcompliancecouldvoidtheuser'sauthoritytooperatethe equipment. : However,thereisnoguaranteethatinterferencewillnotoccurinaparticular installation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoffand on,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreof thefollowingmeasures: Warning 1.12VTrigger:12VtriggerforyournewElite Cinetension-----allowsyourscreento synchronizeitsdropandrisewiththe projector'spowercycle.Thescree dropswhentheprojectorpowersup, andretractswhenthe projectorpowersdown. 3.BubbleLevel:Includedwiththeinstallationpackageisasmallbubblelevelthatcanbeusefulin determiningifthescreenisperfectlylevelwheninstalling. NOTE:① ② PleaseusetheDownsignsideasthebottom. TheBubbleshouldbeinthemiddlepositiontodeterminethatitislevel. 2.IR(Infrared)WallBoxKitandEyeReceiver:TheWallBoxKitcontainsanIRreceiver andenablestheconsumertouseeithertheIRremoteorhardwirecontrolstooperatethescreen'sdrop/ risecapabilities.IReyeprotrudesfromthebottomofthecasingtopresentalowprofileline-of-sight controloptionforyourIRremote.Itisalow-visibilityalternativetousingthewallboxkitanditsabilityto protrudefromthebottomofthescreenallowsline-of-sightcontroleveninarecessedceilinginstallation. VideoProjectionInterface RedDC12V Green0V ToProjector Connectionpins insideofcase Connectionpins insideofcase Wall-mountedReceiver (ExtensionSensor) Transmitter Connectionpins insideofcase Sensor Sensor BubbleLevel www.elitescreens.com/[email protected] Pleasereadthisguidepriortoinstallation. ● ● ● Makesurethecurrentratingisequaltothatoftheapplianceratingwhenanextensioncordisused. Donotuseanyaccessoriesnotprovidedbythemanufacturerwiththisscreen.Wewillnotberesponsible foranyrisksoffire,electricshock,orinjuriesresultingfromthemisuseofthisproductwithaccessories notdesignedforit. Makesurethescreenismountedinahorizontallevel.Wesuggestconsultingwithaprofessionalifyou areunsureonhowtoperformaproperinstallation. INSTALLATION MOUNTINGINSTALLATION WallMountedCeilingMountedCeilingRecessedMounted *Allow2ofspacingbetweenthefrontandbackofthescreen I.MasonryAnchorsareusedonconcrete/masonrywall/ceilings;Plasticdrywallanchorsareincludedfordrywall mounting III.InstalltheAluminumExtrudedHangerSetontotheslidechannelandmovetothedesiredposition Beforelockingitbytighteningtheconnectingbolt. II.Woodscrewsaretobeusedforwoodenwall/ceilingstudsonscreensizeslessthanorequalto120 inches(diagonal).Masonryanchorsshouldbeusedforwall/ceilinginstallationsofscreensizesgreater than120inches(diagonal). MOUNTINGACCESSORIES Warning:Standardscrewsx2foreachtype Thesearestandardaccessoriesincludedwiththeceiling/wallbrackets.Models mayvaryandanchorswillnotsupportallmodels. Uponassemblythebracketwillslideinto thecasingrailsformounting. A B C A B C D D www.elitescreens.com/[email protected]

Block Diagram

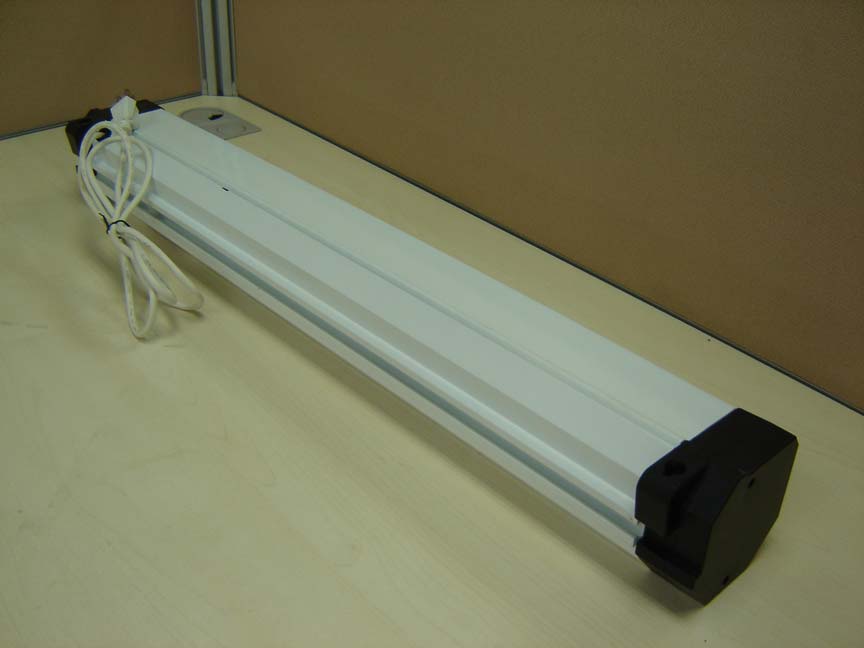

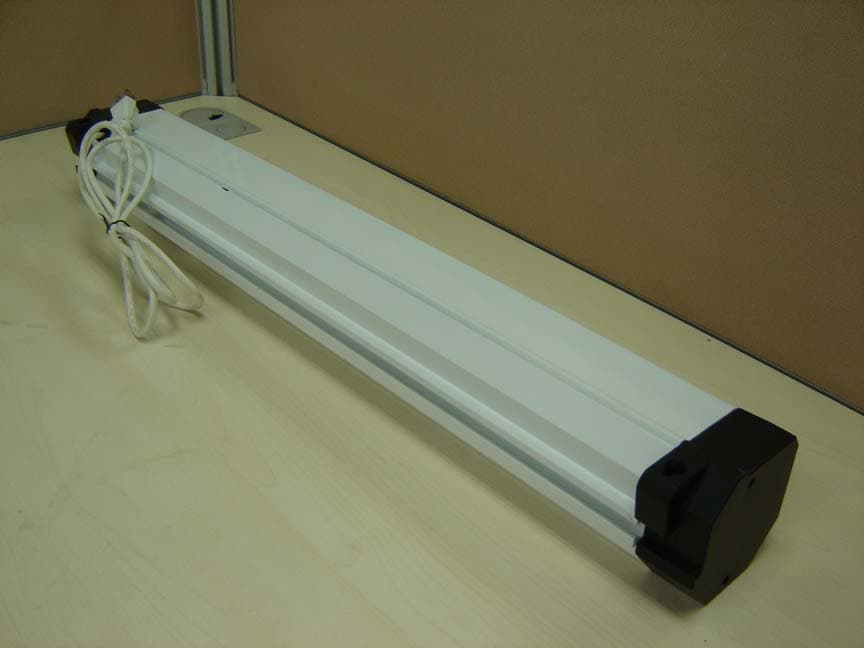

External Photo Figure 1 Figure 2

Label Dimension 67.9mm 36.5mm Location

Internal Photo Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6

Technical Description for 434MHz Receiver, Model: Elitescreen 434 MHz RF signal emitted from the transmitter (Model: Cinetension) sold with this product was received by the antenna and past to the LNA of HC01, FSK receiver, which consists of a fully integrated multi-band PLL synthesizer, an LNA with switchable gain, I/Q down converter mixers, baseband filters and amplifiers, and an I/Q demodulator followed by a data filter. HC01 demodulated the signal and past to U2 (EM78P260) via the connector SDI, SDO, SCK, NSEL. The demodulated data was decoded by U2 and communicated with U6 (AT24C02), and then fed back to U2, which control the motor to up or stop or down screen. The specification of HC01 Universal ISM Band FSK Receiver was attached with filename hc01.pdf.

HC01 Universal ISM Band FSK Receiver DESCRIPTION: HC01 HC01 is a single chip, low power, multi-channel FSK receiver designed for use in applications requiring FCC or ETSI conformance for unlicensed use in the 315, 433, 868, and 915 MHz bands. Used in conjunction with HC's FSK transmitters, the HC01 is a flexible, low cost, and highly integrated solution that does not require production alignments. All required RF functions are integrated. Only an external crystal and bypass filtering are needed for operation. The HC01 has a completely integrated PLL for easy RF design, and its rapid settling time allows for fast frequency hopping, bypassing multi-path fading, and interference to achieve robust wireless links. The PLL’s high resolution allows the usage of multiple channels in any of the bands. The baseband bandwidth (BW) is programmable to accommodate various deviation, data rate, and crystal tolerance requirements. The receiver employs the Zero-IF approach with I/Q demodulation, therefore no external components (except crystal and decoupling) are needed in a typical application. The HC01 is a complete analog RX and baseband receiver including a multi-band PLL synthesizer with an LNA, I/Q down converter mixers, baseband filters and amplifiers, and I/Q demodulator. The chip dramatically reduces the load on the microcontroller with integrated digital data processing: data filtering, clock recovery, data pattern recognition and integrated FIFO. The automatic frequency control (AFC) feature allows using a low accuracy (low cost) crystal. To minimize the system cost, the chip can provide a clock signal for the microcontroller, avoiding the need for two crystals. For low power applications, the device supports low duty-cycle operation based on the internal wake-up timer. BLOCK DIAGRAM HC01 FEATURES: Fully integrated (low BOM, easy design-in) No alignment required in production Fast settling, programmable, high-resolution PLL Fast frequency hopping capability High bit rate (up to 115.2 kbps in digital mode and 256 kbps in analog mode) Direct differential antenna input Programmable baseband bandwidth (67 to 400 kHz) Analog and digital RSSI outputs Automatic frequency control (AFC) Data quality detection (DQD) Internal data filtering and clock recovery RX pattern recognition SPI compatible serial control interface Clock and reset signals for microcontroller 16 bit RX data FIFO Low power duty-cycle mode (less than 0.5 mA average supply current) Standard 10 MHz crystal reference Wake-up timer Low battery detector 2.2 to 5.4 V supply voltage Low power consumption (~9 mA in low bands) Low standby current (0.3 μA) TYPICAL APPLICATIONS Remote control Home security and alarm Wireless keyboard/mouse and other PC peripherals Toy control Remote keyless entry Tire pressure monitoring Te l e m e t r y Personal/patient data logging Remote automatic meter reading HC01 DETAILED DESCRIPTION General The HC01 FSK receiver is the counterpart of the Hc’s FSK transmitter. It covers the unlicensed frequency bands at 315, 433, 868, and 915 MHz. The device facilitates compliance with FCC and ETSI requirements. The programmable PLL synthesizer determines the operating frequency, while preserving accuracy based on the on-chip crystal-controlled reference oscillator. The PLL’s high resolution allows for the use of multiple channels in any of the bands. The receiver employs the Zero-IF approach with I/Q demodulation, allowing the use of a minimal number of external components in a typical application. The HC01 consists of a fully integrated multi-band PLL synthesizer, an LNA with switchable gain, I/Q down converter mixers, baseband filters and amplifiers, and an I/Q demodulator followed by a data filter. The HC VCO in the PLL performs automatic calibration, which requires only a few microseconds. Calibration always occurs when the synthesizer begins. If temperature or supply voltage changes significantly, VCO recalibration can be invoked easily. Recalibration can be initiated at any time by switching the synthesizer off and back on again. LNA The LNA has 250 Ohm input impedance, which works well with the recommended antennas. If the RF input of the chip is connected to 50 Ohm devices, an external matching circuit is required to provide the correct matching and to minimize the noise figure of the receiver. The LNA gain (and linearity) can be selected (0, –6, –14, –20 dB relative to the highest gain) according to RF signal strength. This is useful in an environment with strong interferers. Baseband Filters The receiver bandwidth is selectable by programming the bandwidth (BW) of the baseband filters. This allows setting up the receiver according to the characteristics of the signal to be received. An appropriate bandwidth can be selected to accommodate various FSK deviation, data rate, and crystal tolerance requirements. The filter structure is a 7-th order Butterworth low-pass with 40 dB suppression at 2*BW frequency. Offset cancellation is accomplished by using a high-pass filter with a cut-off frequency below 7 kHz. HC01 Data Filtering and Clock Recovery The output data filtering can be completed by an external capacitor or by using digital filtering according to the final application. Analog operation: The filter is an RC type low-pass filter and a Schmitt-trigger (St). The resistor (10k) and the St is integrated on the chip. An (external) capacitor can be chosen according to the actual bit-rate. In this mode the receiver can handle up to 256 kbps data rate. Digital operation: The data filter is a digital realization of an analog RC filter followed by a comparator with hysteresis. In this mode there is a clock recovery circuit (CR), which can provide synchronized clock to the data. With this clock the received data can fill the RX Data FIFO. The CR has three operation modes: fast, slow, and automatic. In slow mode, its noise immunity is very high, but it has slower settling time and requires more accurate data timing than …

Text truncated - open the document above for the full version.

September 21, 2007 Elite Screens China Corp. Longxi Duimianling Industry Zone, Longcheng, Longgang District, Shenzhen, Guangdong, China Dear Andy: Enclosed you will find your file copy of a Part 15 Certification (FCC ID: VBXELITESCREENS). For your reference, TCB will normally take another 20 days for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Shawn Xing Assistant Manager Enclosure Intertek Testing Services Shenzhen Ltd. Guangzhou Branch 1~8th floor, Block E2, 11 Cai Pin Road, Science city, Guangzhou Economic Development Zone, Guangzhou, P.R.China Telephone/Fax: 86-20-8213 9688/86-20-3205 7538 • The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Shenzhen Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch 1~8th floor, Block E2, 11 Cai Pin Road, Science city, Guangzhou Economic Development Zone, Guangzhou, P.R.China Telephone/Fax: 86-20-8213 9688/86-20-3205 7538 Elite Screens China Corp. Application For Certification (FCC ID: VBXELITESCREENS) Superheterodyne Receiver JGZ0705093-2 Shawn Xing September 21, 2007 INTERTEK TESTING SERVICES FCC ID: VBXELITESCREENS i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labeling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: VBXELITESCREENS MEASUREMENT/TECHNICAL REPORT ii Elite Screens China Corp. - MODEL: Elitescreens FCC ID: VBXELITESCREENS This report concerns (check one:) Original Grant X class II Change _____ Equipment Type: Superheterodyne Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [08-07-06 Edition] provision. Report prepared by: Shawn Xing Intertek Testing Service Shenzhen Ltd. Guangzhou Branch 1~8th floor, Block E2, 11 Cai Pin Road, Science city, Guangzhou Economic Development Zone, Guangzhou, P.R.China Phone: 86-755-8614-0602 Fax: 86-755-8601-6751 INTERTEK TESTING SERVICES FCC ID: VBXELITESCREENS iii Table of Contents 1.0 General Description........................................................................................ 2 1.1 Product Description ........................................................................................... 2 1.2 Related Submittal(s) Grants............................................................................... 2 1.3 Test Methodology.............................................................................................. 3 1.4 Test Facility ....................................................................................................... 3 2.0 System Test Configuration ............................................................................. 5 2.1 Justification ....................................................................................................... 5 2.2 EUT Exercising Software................................................................................... 5 2.3 Special Accessories .......................................................................................... 5 2.4 Equipment Modification ..................................................................................... 6 2.5 Measurement Uncertainty.................................................................................. 6 2.6 Support Equipment List and Description ............................................................ 6 3.0 Emission Results ............................................................................................ 8 3.1 Field Strength Calculation.................................................................................. 9 3.2 Radiated Emission Configuration Photograph.................................................. 10 3.3 Radiated Emission Data .................................................................................. 11 3.4 Conducted Emission Configuration Photograph............................................... 13 3.5 Conducted Emission Data ............................................................................... 14 4.0 Equipment Photographs............................................................................... 16 5.0 Product Labelling.......................................................................................... 18 6.0 Technical Specifications ............................................................................... 20 7.0 Instruction Manual ........................................................................................ 22 8.0 Miscellaneous Information........................................................................... 24 8.1 Stabilization Waveform.................................................................................... 25 8.2 Discussion of Pulse Desensitization................................................................. 26 8.3 Calculation of Average Factor.......................................................................... 27 8.4 Emissions Test Procedures ............................................................................. 28 INTERTEK TESTI…

Text truncated - open the document above for the full version.

Conducted Graph Conducted Disturbance EUT: M/N:electronic screen Op Cond: normal Test Spec: N Comment: AC 120V/60Hz 0 10 20 30 40 50 60 70 dBuV 80 0.15 MHz 30 110 ConQP ConAV Conducted Disturbance EUT: M/N:electronic screen Op Cond: normal Test Spec: L Comment: AC 120V/60Hz 0 10 20 30 40 50 60 70 dBuV 80 0.15 MHz 30 110 ConQP ConAV
