VD2-HSG1255TABLET PC

Hannspree Inc.
TABLET PC - FCC ID VD2-HSG1255 - Hannspree Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Aug 21, 2012
Application Purpose
Original Equipment
Date of Application
Aug 21, 2012
Equipment Note
TABLET PC
Frequency Range
2412.00000000 - 2462.00000000
Company
Hannspree Inc.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗
↗

RF Exposure Info

↗
↗

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual Contents Precautions............................................................................................................................................... 2 1. Know Your HANNS Pad..................................................................................................................... 4 2. First Use of HANNS PAD................................................................................................................... 5 2.1 Battery management and charging.............................................................................................5 2.2 Turn on/off HANNS PAD ......................................................................................................... 5 2.3 Connected to the PC .................................................................................................................. 5 3. Device Operation Interface .................................................................................................................. 5 3.1 Home screen description............................................................................................................ 5 3.2 Menu interface description ........................................................................................................ 8 3.3 Status Bar description ................................................................................................................ 8 3.4 Use of touch screen.................................................................................................................... 9 4. Basic Settings....................................................................................................................................... 9 4.1 WI-FI and network................................................................................................................... 10 4.1.1 WI-FI ............................................................................................................................ 10 4.2 Device ...................................................................................................................................... 12 4.2.1 Sound ............................................................................................................................ 12 4.2.2 Display .......................................................................................................................... 14 4.2.3 Storage .......................................................................................................................... 15 4.2.4 Battery........................................................................................................................... 15 4.2.5 Application program ..................................................................................................... 16 4.3 Personal.................................................................................................................................... 17 4.3.1 Accounts and synchronization ...................................................................................... 17 4.3.2 Location and services....................................................................................................17 4.3.3 Security ......................................................................................................................... 18 4.3.4 Language and input method .......................................................................................... 19 4.3.5 Backup and reset ........................................................................................................... 20 4.4 System...................................................................................................................................... 21 4.4.1 Date and time ................................................................................................................ 21 4.4.2 Accessory Functions ..................................................................................................... 22 4.4.3 Developer options .........................................................................................................23 4.4.4 About tablet PC............................................................................................................. 24 5. Software application and operation ................................................................................................... 24 5.1 ES File explorer ....................................................................................................................... 24 5.2 Picture browsing ...................................................................................................................... 25 5.3 Music playback ........................................................................................................................ 27 1 5.4 Video player............................................................................................................................. 27 5.5 Web browser ............................................................................................................................ 29 5.6 Email........................................................................................................................................ 29 5.7 Calendar ................................................................................................................................... 30 5.8 Alarm clock ............................................................................................................................. 30 6. Product Specification ......................................................................................................................... 30 7. Troubleshooting ................................................................................................................................. 31 2 Copyright © 2011 Control information This device is in acc…

Text truncated - open the document above for the full version.

Block Diagram

55 44 33 22 11 D D C C B B A A TitleSize Document Number Rev Date: Sheet of Add:Unit 1005, Block east, Phase II, Tian'an High-techPlaza,Chegongmiao, Futian District, Shenzhen, China Tel: 0086 755 82507136 Fax: 0086 755 82507106 Drawn Check EM3066-101A V0.1 A3 12 Tuesday, July 03, 2012 1 E-BODA Confidential EBODA MID 7.780.1042 TitleSize Document Number Rev Date: Sheet of Add:Unit 1005, Block east, Phase II, Tian'an High-techPlaza,Chegongmiao, Futian District, Shenzhen, China Tel: 0086 755 82507136 Fax: 0086 755 82507106 Drawn Check EM3066-101A V0.1 A3 12 Tuesday, July 03, 2012 1 E-BODA Confidential EBODA MID 7.780.1042 TitleSize Document Number Rev Date: Sheet of Add:Unit 1005, Block east, Phase II, Tian'an High-techPlaza,Chegongmiao, Futian District, Shenzhen, China Tel: 0086 755 82507136 Fax: 0086 755 82507106 Drawn Check EM3066-101A V0.1 A3 12 Tuesday, July 03, 2012 1 E-BODA Confidential EBODA MID 7.780.1042 SDIO1 2918 PWR UART2 I2C3 I2C2 I2S0 LCDCRGB888 NAND FLASH and iNAND select one >=1GB DDR3 *2256M*8Bit RK3066 32768Hz 24MHz OSC 24M 32KCLKIN DDR3 *2256M*8Bit UART0 USBOTG2.0 iNAND RESET USBHOST2.0 NANDFLASH PMIC I2S1 DDRInterface CHARGE&POWERSWITCH CIF0 5V/3A DCDC BUCK SDIO0 HSADC IR IN CIF1 FRONT CAMERAREAR CAMERA I2C4 RBG TO LVDS LVDS PANEL TOUCH PANEL&LIGHT SENSOR AUDIO CODEC I2C0 I2C DEVICE DEBUG I2C1 DC JACK5V/2ABATTERY 3.7V RTC 32K CLKOUT RESET HDMI PORT HDMI1.4 UART3 RECEIVER KEY BOARDGPIO&AD BATTRY DETECTOR WIFIRK901 Block Diagram

Cover Letter(s)

Hannspree Inc. FCC ID: VD2-HSG1255 POWER OF ATTORNEY July 26, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Bontek Compliance Testing Laboratory Co., Ltd.(Tony Wu) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Bontek Compliance Testing Laboratory Co., Ltd. (Tony Wu) on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Hannspree Inc. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuantto that section. Sincerely, Hannspree Inc. Alfred Lan (Director)

External Photos

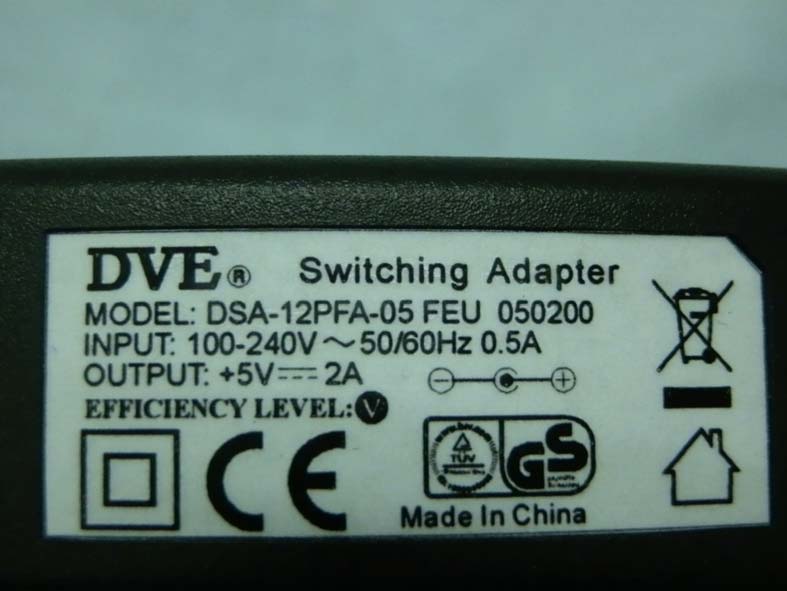

EUT EXTERNAL PHOTOGRAPHS EUT –Front View EUT –Rear View EUT –Side View EUT –Adapter View ( MODEL NO:YHXH015-050200) EUT –Adapter View (MODEL NO: DSA-12PFA-05 FEU 050200) EUT EXTERNAL PHOTOGRAPHS (HSG1254) EUT –Front View EUT –Rear View EUT –Side View

ID Label/Location Info

FCC ID Label Sample:VD2-HSG1255

Internal Photos

EUT INTERNAL PHOTOGRAPHS EUT –Uncovered View EUT –Mainboard View EUT –PCB View EUT –PCB View EUT –PCB View EUT –PCB View EUT –BT Modul View EUT –Battery View

Operational Description

B5 0755-27492635 0755-27471559 HTTP://WWW.SZVPD.COM 1 Confirmation Signature Customer Approved Responsible Responsible Chief Chief Approve Approve Date Date Instruction: accept conditional acceptance Note: B5 0755-27492635 0755-27471559 HTTP://WWW.SZVPD.COM 2 1 General Information This approval sheet supports for MID project. FPC antennas include in this project. This report is for the performance of WLAN antenna. Antenna shape sizeMeet the requirement of MID Antenna band2400MHz~2500MHz Antenna materialAntenna material meet the requirement of Adhesive performanceAdhesive performance meet the requirement of MID Antenna performance meet the spec below Description 2.4GHz~2.5GHz 4.9GHz~5.9GHz Units Peak Antenna Gain 3.0 6.0 dBi Average Antenna Gain -6.0 -6.0 dBi Antenna Efficiency -6 -6 dB Antenna Efficiency 35 30 % Feed Impedance 50 ohms Operating Temperature -40 to +85 deg C Polarization / Azimuth Linear / Omni-directional Mechanical Information Mechanical Dimension Cable Length 100mm/Gray Description WLAN antenna Material PCB Coaxial Cable 50Ohm/O.D.1.13mm Environmental Operation Temperature -40 to +85 deg C Storage Temperature -40 to +85 deg C B5 0755-27492635 0755-27471559 HTTP://WWW.SZVPD.COM 3 2. Antenna - Radiation Pattern Test Data Testing Equipment Specification: Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m Quite Zone: 600mm @1 GHz Isolation: >100dB @ 1 MHz ~ 10 GHz Testing Equipment: Agilent 5071B Received Antenna: 0.7 ~ 6.0 GHz for Gain Calibration Double Ridged Horn Antenna B5 0755-27492635 0755-27471559 HTTP://WWW.SZVPD.COM 4 3 Measurement information RTLOSS,VSWR,SMITH B5 0755-27492635 0755-27471559 HTTP://WWW.SZVPD.COM 5

Operational Description

RK3066 RK3066 RK3066 RK3066 Datasheet Datasheet Datasheet Datasheet brief brief brief brief Rev1.0 RockchipsConfidential1 RK3066 RK3066 RK3066 RK3066 Datasheet Datasheet Datasheet Datasheet brief brief brief brief Revision1.0 Feb.2012 RK3066 RK3066 RK3066 RK3066 Datasheet Datasheet Datasheet Datasheet brief brief brief brief Rev1.0 RockchipsConfidential2 Revision Revision Revision Revision History History History History Date Date Date Date Revision Revision Revision Revision Description Description Description Description 2011-10-300.0InitialRelease 2012-02-151.0Addpackageinformation RK3066 RK3066 RK3066 RK3066 Datasheet Datasheet Datasheet Datasheet brief brief brief brief Rev1.0 RockchipsConfidential3 TABLE TABLE TABLE TABLE OF OF OF OF CONTENT CONTENT CONTENT CONTENT RevisionHistory .................................................................................... 2 TABLEOFCONTENT .............................................................................. 3 Chapter1Introduction...............................................................4 1.1Overview ....................................................................... 4 1.2Features ........................................................................ 4 1.3BlockDiagram .............................................................. 15 Chapter2Packageinformation..................................................16 2.1Dimension ................................................................... 16 2.2BallMap ...................................................................... 18 2.3PinNumberOrder ......................................................... 21 2.4RK3066power/groundIOdescriptions ............................. 26 2.5RK3066functionIOdescriptions ..................................... 28 Chapter3ElectricalSpecification ............................................... 40 3.1AbsoluteMaximumRatings ............................................ 40 3.2RecommendedOperatingConditions ............................... 41 3.3DCCharacteristics ........................................................ 42 3.4ElectricalCharacteristicsforGeneralIO ........................... 43 3.5ElectricalCharacteristicsforPLL ..................................... 43 3.6ElectricalCharacteristicsforSAR-ADC .............................. 44 3.7ElectricalCharacteristicsforTS-ADC ............................... 44 3.8ElectricalCharacteristicsforUSBOTG/Host2.0Interface .... 44 3.9ElectricalCharacteristicsforHDMI .................................. 45 3.10ElectricalCharacteristicsforDDRIO ................................ 45 3.11ElectricalCharacteristicsforeFuse .................................. 46 RK3066 RK3066 RK3066 RK3066 Datasheet Datasheet Datasheet Datasheet brief brief brief brief Rev1.0 RockchipsConfidential4 CHAPTER CHAPTER CHAPTER CHAPTER 1 1 1 1 Introduction Introduction Introduction Introduction 1.1 1.1 1.1 1.1 Overview Overview Overview Overview RK3066isalowpower,highperformanceprocessorsolutionformobilephones, personalmobileinternetdeviceandotherdigitalmultimediaapplications,andintegrates dual-coreCortex-A9withseparatelyNEONandFPUcoprocessor. Manyembeddedpowerfulhardwareenginesprovideoptimizedperformanceforhigh- endapplication.RK3066supportsalmostfull-formatvideodecoderby1080p@60fps,also supportH.264/MVC/VP8encoderby1080p@30fps,high-qualityJPEGencoder/decoder andspecialimagepreprocessorandpostprocessor. Embedded3DGPUmakesRK3066completelycompatiblewithOpenGLES2.0and1.1, OpenVG1.1.Evensupporthighquality3Dvideoreplay.Special2Dhardwareenginewith MMUwillmaximizedisplayperformance. RK3066hashigh-performanceexternalmemoryinterface(DDR3/LVDDR3/LPDDR/ LPDDR2)capableofsustainingdemandingmemorybandwidths,alsoprovidesacomplete setofperipheralinterfacetosupportveryflexibleapplications. ThisdocumentwillprovideguidelineonhowtouseRK3066correctlyandefficiently. Inthem,thechapter1andchapter2willintroducethefeatures,blockdiagram,signal descriptionsandsystemusageofRK3066,thechapter3throughchapter45willdescribe thefullfunctionofeachmoduleindetail. 1.2 1.2 1.2 1.2 Features Features Features Features 1.2.1Processor  Dual-coreARMCortex-A9MPCoreprocessorisahigh-performance,low-power, cachedapplicationprocessor FullimplementationoftheARMarchitecturev7-Ainstructionset,ARMNeon AdvancedSIMD(singleinstruction,multipledata)supportforacceleratedmediaand signalprocessingcomputation Superscalar,variablelength,out-of-orderpipelinewithdynamicbranchprediction,8- stagepipeline  IncludeVFPv3hardwaretosupportsingleanddouble-precisionadd,subtract,divide, multiplyandaccumulate,andsquarerootoperations SCUensuresmemorycoherencybetweenthetwoCPUs IntegratedtimerandwatchdogtimerperCPU  Integrated32KBL1instructioncache,32KBL1datacache,4-watysetassociative  512KBunifiedL2Cache Trustzonetechnologysupport Fullcoresightdebugsolution  Debugandtracevisibilityofwholesystems  ETMtracesupport Invasiveandnon-invasivedebug FourseparatepowerdomaintosupportInternalpowerswitchon/offandexternally turnon/offbasedondifferentapplicationscenario  PD_A9_0:1 st Cortex-A9+Neon+FPU+L1I/DCache PD_A9_1:2 nd Cortex-A9+Neon+FPU+L1I/DCache PD_DBG:CoreSight-DKforCortex-A9  PD_SCU:SCU+L2Cachecontroller,andincludingPD_A9_0,PD_A9_1,PD_DGB  OneisolatedvoltagedomaintosupportDVFS 1.2.2MemoryOrganization Internalon-chipmemory 10KBBootRom RK3066 RK3066 RK3066 RK3066 Datasheet Datasheet Datasheet Datasheet brief brief brief brief Rev1.0 RockchipsConfidential5  64KBinternalSRAMforsecurityandnon-securityaccess,detailedsizeis programmable 2KBinternalSRAMsharedwithNandC  Externaloff-chipmemory ① DDR3/LVDDR3,16/32bitsdatawidth,2ranks,2GB(max)addressspaceperrank LPDDR,32bitsdatawidth,2ranks,2GB(max)addressspaceperrank LPDDR2,32bitsdatawidth,2ranks,2GB(max)addressspaceperrank AsyncSRAM/NorFlash,8/16bitsdatawidth,2banks,1MB(max)addressspaceper bank AsyncNandFlash(includeLBANand),8/16bitsdatawidth,8banks SyncDDRNandFlash,8bitsdatawidth,8banks 1.2.3InternalMemory InternalBootRom Size:10KB Supportsystemb…

Text truncated - open the document above for the full version.

RF Exposure Info

Compliance Certification Services Inc. Reference No .: SZ120711B01-SF Date of Issue: July 19, 2012 Report No .: SZ120711B01-SF Page 1 of 17 IEEE 802.11b- Body Up Middle CH1.............................................................................................. 2 IEEE 802.11b- Body Up Middle CH6.............................................................................................. 3 IEEE 802.11b- Body Up Middle CH11............................................................................................ 4 IEEE 802.11b- Body Down Middle CH1........................................................................................ 5 IEEE 802.11b- Body Down Middle CH6........................................................................................ 6 IEEE 802.11b- Body Down Middle CH11...................................................................................... 7 IEEE 802.11b- Body Top Middle CH1............................................................................................ 8 IEEE 802.11b- Body Top Middle CH6............................................................................................ 9 IEEE 802.11b- Body Top Middle CH11........................................................................................ 10 IEEE 802.11b- Body Left Middle CH1...........................................................................................11 IEEE 802.11b- Body Left Middle CH6.......................................................................................... 12 IEEE 802.11b- Body Left Middle CH11........................................................................................ 13 IEEE 802.11b- Body UP Middle CH6............................................................................................ 14 IEEE 802.11b- Body Down Middle CH6....................................................................................... 15 IEEE 802.11b- Body TOP Middle CH6......................................................................................... 16 IEEE 802.11b- Body Left Middle CH6.......................................................................................... 17 Compliance Certification Services Inc. Reference No .: SZ120711B01-SF Date of Issue: July 19, 2012 Report No .: SZ120711B01-SF Page 2 of 17 Test Laboratory: Compliance Certification Services Inc. July 18, 2012 IEEE 802.11b- Body Up Middle CH1 DUT: Tablet PC; Type: HSG1255; Serial: N/A Communication System: IEEE 802.11b; Communication System Band: ISM 2.4GHz Band; Frequency: 2412 MHz;Communication System PAR: 0 dB Ambient: Temperature: 21 °C Relative humidity: 58% Liquid : Temperature: 20 °C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.947 mho/m; ε r = 52.66; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(7.06, 7.06, 7.06); Calibrated: 1/20/2012 • Sensor-Surface: 2.5mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2012 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) IEEE 802.11b /802.11b Body Up Middle CH1/Area Scan (201x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.125 mW/g IEEE 802.11b /802.11b Body Up Middle CH1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.785 V/m; Power Drift = 0.0003 dB Peak SAR (extrapolated) = 0.378 W/kg SAR(1 g) = 0.225 mW/g; SAR(10 g) = 0.105 mW/g Maximum value of SAR (measured) = 0.268 mW/g Compliance Certification Services Inc. Reference No .: SZ120711B01-SF Date of Issue: July 19, 2012 Report No .: SZ120711B01-SF Page 3 of 17 Test Laboratory: Compliance Certification Services Inc. July 18, 2012 IEEE 802.11b- Body Up Middle CH6 DUT: Tablet PC; Type: HSG1255; Serial: N/A Communication System: IEEE 802.11b; Communication System Band: ISM 2.4GHz Band; Frequency: 2437 MHz;Communication System PAR: 0 dB Ambient: Temperature: 21 °C Relative humidity: 58% Liquid : Temperature: 20 °C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.948 mho/m; ε r = 52.65; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(7.06, 7.06, 7.06); Calibrated: 1/20/2012 • Sensor-Surface: 2.5mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2012 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) IEEE 802.11b /802.11b Body up Middle CH6/Area Scan (201x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.544 mW/g IEEE 802.11b /802.11b Body up Middle CH6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.250 V/m; Power Drift = 0.0142 dB Peak SAR (extrapolated) = 0.685 W/kg SAR(1 g) = 0.424 mW/g; SAR(10 g) = 0.222 mW/g Maximum value of SAR (measured) = 0.597 mW/g Compliance Certification Services Inc. Reference No .: SZ120711B01-SF Date of Issue: July 19, 2012 Report No .: SZ120711B01-SF Page 4 of 17 Test Laboratory: Compliance Certification Services Inc. July 18, 2012 IEEE 802.11b- Body Up Middle CH11 DUT: Tablet PC; Type: HSG1255; Serial: N/A Communication System: IEEE 802.11b; Communication System Band: ISM 2.4GHz Band; Frequency: 2462 MHz;Communication System PAR: 0 dB Ambient: Temperature: 21 °C Relative humidity: 58% Liquid : Temperature: 20 °C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.948 mho/m; ε r = 52.68; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(7.06, 7.06, 7.06); Calibrated: 1/20/2012 • Sensor-Surface: 2.5mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2012 • Phantom: Twin SAM Phantom; Type: QD 000 P4…

Text truncated - open the document above for the full version.

RF Exposure Info

Compliance Certification Services Inc. Report No: SZ120711B01-SF FCCID: VD2-HSG1255 Date of Issue : July 19,2012 Page 1 of 75 Rev. 01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. ANSI/IEEE Std. C95.1-1999 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For Product Name: Tablet PC Brand Name: I-INC, HANNspree Model No.: HSG1255 Series Model: HSG1254 Test Report Number: SZ120711B01-SF Issued for Hannspree Inc. 4F., No. 48, Wucyuan Rd., Wugu Industrial Zone, New Taipei City 248,Taiwan Issued by Compliance Certification Services Inc. Kun shan Laboratory No.10 Weiye Rd., Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China TEL: 86-512-57355888 FAX: 86-512-57370818 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No: SZ120711B01-SF FCCID: VD2-HSG1255 Date of Issue : July 19,2012 Page 2 of 75 Rev. 01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ........................................................... 3 2. EUT DESCRIPTION....................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC................................ 5 4. TEST METHODOLOGY.............................................................................................................. 5 5. TEST CONFIGURATION ............................................................................................................ 5 6. DOSIMETRIC ASSESSMENT SETUP........................................................................................ 5 6.1 MEASUREMENT SYSTEM DIAGRAM ...........................................................................................................7 6.2 SYSTEM COMPONENTS...............................................................................................................................8 7. EVALUATION PROCEDURES ................................................................................................. 11 8. MEASUREMENT UNCERTAINTY............................................................................................ 14 9. EXPOSURE LIMIT .................................................................................................................... 15 10. EUT ARRANGEMENT .............................................................................................................. 16 10.1 ANTHROPOMORPHIC HEAD PHANTOM .................................................................................................16 10.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION...................................................................................17 10.3 DEFINITION OF THE “TILTED” POSITION ................................................................................................18 11. MEASUREMENT RESULTS..................................................................................................... 19 11.1 TEST LIQUIDS CONFIRMATION ...............................................................................................................19 11.2 LIQUID MEASUREMENT RESULTS ..........................................................................................................20 11.3 PROBE CALIBRATION PROCEDURE .......................................................................................................21 11.4 SYSTEM PERFORMANCE CHECK...........................................................................................................26 11.5 EUT TUNE-UP PROCEDURES AND TEST MODE....................................................................................29 EUT SETUP PHOTOS ........................................................................................................................................31 SAR TESTED FOR BODY-WORN: .....................................................................................................................31 11.6 SAR MEASUREMENT RESULTS...............................................................................................................32 11.7 EUT PHOTO................................................................................................................................................34 MODEL : HSG1255 .............................................................................................................................................34 12. EQUIPMENT LIST & CALIBRATION STATUS........................................................................ 41 13. FACILITIES............................................................................................................................... 42 14. REFERENCES.......................................................................................................................... 42 15. ATTACHMENTS ....................................................................................................................... 43 Appendix A: Plots of Performance Check..................................................................................... 44 Appendix B: DASY Calibration Certificate .................................................................................... 47 Appendix C: Plots of SAR Test Result .....................................................................................…

Text truncated - open the document above for the full version.

Schematics

55 44 33 22 11 D D C C B B A A VDD_FB PWR_EN PWR_EN PWR_EN PWR_EN POWER1 DC_DET BAT_DET2 PWR_KEY BAT_DET BAT_LOW POWER2 BATT2 PWR_EN VDC CHG_OK1 CHG_OK1 BATT2 BACK_MAILVOL+VOL- VOL+BACK_MAILVOL- VDD11FB VDD_FB PWM2 VDD11FB VOL--POWER1POWER2GNDGND RESET VOL-VOL+RESET BACK_MAIL VOL--VOL++RESTESC VDD_ARM VSYS VCC_DDR VSYS VCC_25 VCC_IO VCC_IO VSYS VDD_LOG VSYS VDD_11 VDD_LOG VCC_33 VCCA_33 VDC BATT VSYS VCC_IO BATT BATT VDC VDC VCC_IO VBUS0 BATT VDC VDC VSYS VCC_IO VCC_IO VCC_IO VCC_IO BAT_DET2 4 DC_DET 7 BAT_LOW 9 CHG_DET 7 BL_EN 7 PWR_KEY 7 PWR_HOLD 7 BAT_DET 9 BACK_MAIL 4 VOL- 4 VOL+ 4 RECOVER 4 PWM2 3 PWM1 3 RESET 6 福州瑞芯微电子有限公司 REV: Create Date:Title:File: Page Num:Page Total: Modify Date: DC/Charge Thursday, November 24, 2011Friday, June 01, 2012 14 5 1.0 RK3066_REF 福州瑞芯微电子有限公司 REV: Create Date:Title:File: Page Num:Page Total: Modify Date: DC/Charge Thursday, November 24, 2011Friday, June 01, 2012 14 5 1.0 RK3066_REF 福州瑞芯微电子有限公司 REV: Create Date:Title:File: Page Num:Page Total: Modify Date: DC/Charge Thursday, November 24, 2011Friday, June 01, 2012 14 5 1.0 RK3066_REF 充电管理 3.0V POWER CONTROL CHARGER DC IN RED RED current charge is eque to 100mV/Rsns 充电红色灯亮 满电灯灭 红色灯 KEY Board Q33904SOT23Q33904SOT23 1 3 2 R87 0.1R/1% R87 0.1R/1% U12 NC/CD5101-330AS/S-80833CNMA U12 NC/CD5101-330AS/S-80833CNMA VOUT 1 GND 2 VDD 3 R106 100K%1 R0402 R106 100K%1 R0402 D9 IN4148 D9 IN4148 C63105/6.3VC0402C63105/6.3VC0402 L16FB600RL16FB600R L9 4.7uH CD32 L9 4.7uH CD32 R13 47K R0402 R13 47K R0402 R200 100K%1 R0402 R200 100K%1 R0402 R130NC/…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Alfred Lan(director)
[email protected]+86 21 39126999Fax: +86 21 39126969

Test Firm

Bontek Compliance Testing Laboratory LtdTony Wu
[email protected]86-755-86337020Fax: 86-755-86337028

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz30.00 mW
Grant Notes
Output power is conducted. SAR data in this filing is applicable to demonstrate compliance for this host product configuration as shown in this filing. The antenna(s) used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter within this host device except in accordance with FCC multi-transmitter product procedures.. End users must be provided with operating instructions for satisfying RF exposure compliance requirements. Highest reported SAR value is 0.42 w/kg
